2108-3-00-1-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 2108-3-00-1-7

Preview

2108-3-00-1-7: DescriptionPCB Terminal; CategoryThe connector terminals; File Size45KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

2108-3-00-1-7 Overview

PCB Terminal

2108-3-00-1-7 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Manufacturer's serial number	2108
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

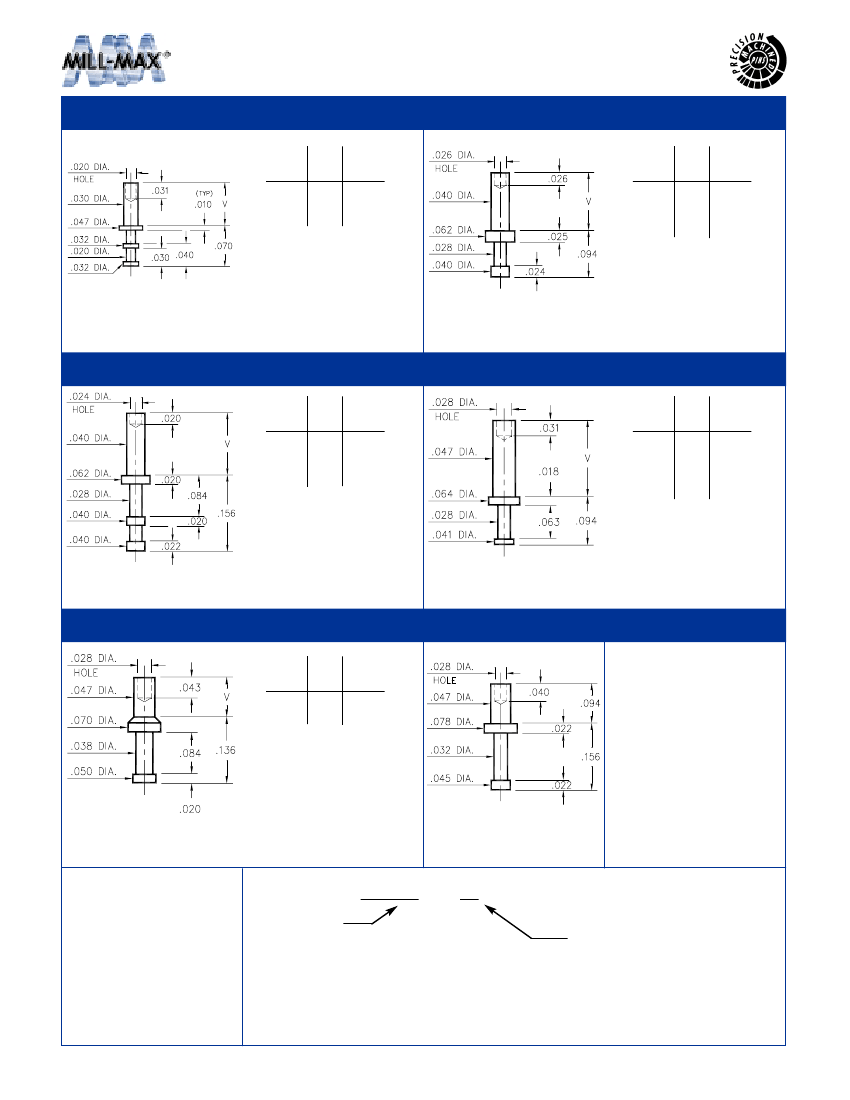

SOLDER TERMINALS

TURRETS

2111

-X-

1

2

3

Board

Thick-

ness

.031

.062

.094

Length

V

.053

.084

.115

2113

-X-

1

2

3

4

Board

Thick-

ness

.031

.062

.094

.125

Length

V

.053

.084

.115

.147

2111-X-00-XX-00-00-07-0

Swage mount in .033 hole

2113-X-00-XX-00-00-07-0

Swage mount in .043 hole

2108

-X-

1

2

3

4

Board

Thick-

ness

.031

.062

.094

.125

Length

V

.053

.084

.115

.147

2102

-X-

5

1

2

3

4

Board

Thick-

ness

.016

.031

.062

.094

.125

Length

V

.035

.054

.084

.115

.147

2108-X-00-XX-00-00-07-0

Swage mount in .043 hole

2102-X-00-XX-00-00-07-0

Swage mount in .052 hole

2109

-X-

1

2

Board

Thick-

ness

.031

.062

Length

V

.052

.085

2324

2109-X-00-XX-00-00-07-0

Swage mount in .052 hole

2324-2-00-XX-00-00-07-0

Swage mount in .052 hole

for .062 thick board

SPECIFICATIONS

PIN MATERIAL:

Brass Alloy 360, 1/2 Hard

Swage pins are annealed

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: 2XXX - X - 00 - XX - 00 - 00 - 07 - 0

BASIC PART #

SPECIFY PIN FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

44

300µ"

SILVER OVER

COPPER

50

300µ" ELECTRO-SOLDER

(60/40 SnPb)

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253
