UUD1C220MNR1GS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> UUD1C220MNR1GS

UUD1C220MNR1GS: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 22 uF, SURFACE MOUNT, 2121; CategoryPassive components; File Size50KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

UUD1C220MNR1GS Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 16 V, 22 uF, SURFACE MOUNT, 2121

UUD1C220MNR1GS Parametric

Parameter Name	Attribute value
negative deviation	20 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	105 Cel
positive deviation	20 %
Rated DC voltage urdc	16 V
Processing package description	CHIP, ROHS COMPLIANT
EU RoHS regulations	Yes
state	Active
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
capacitance	22 µF
dielectric materials	ALUMINUM
jesd_609_code	e6
leakage_current__ma_	.00352
Manufacturer Series	UD
Installation features	SURFACE MOUNT
packaging shape	CYLINDRICAL PACKAGE
Package Size	SMT
cking_method	TAPE
polarity	POLARIZED
ipple_current__ma_	75
series	UD
size code	2121
tangent angle	0.16
terminal coating	TIN BISMUTH OVER COPPER
Terminal shape	FLAT
heigh	5.8 mm
length	5.5 mm
width	5.3 mm

Preview

Download Datasheet

View All

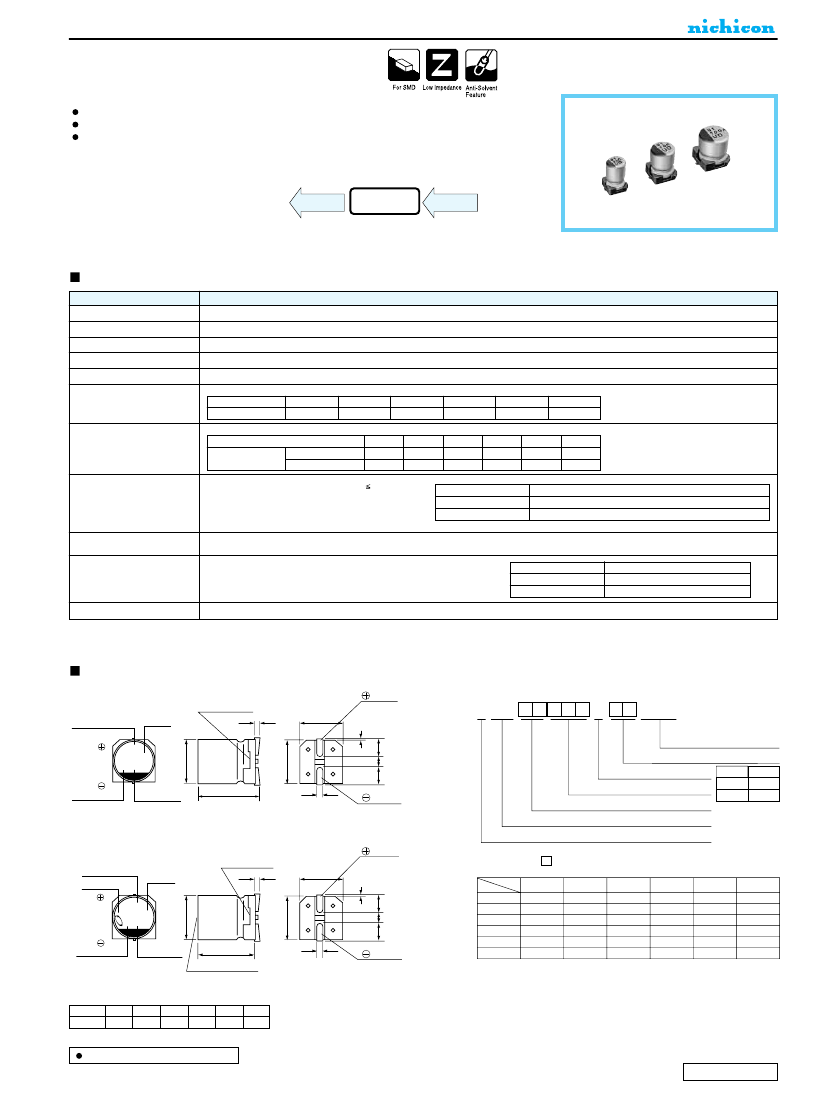

ALUMINUM ELECTROLYTIC CAPACITORS

Chip Type, Low Impedance

series

Chip type, low impedance temperature range up to +105

°C

Designed for surface mounting on high density PC board.

Applicable to automatic mounting machine using carrier tape.

Low Impedance

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

Leakage Current

tan

Performance Characteristics

– 55 ~ +105°C

6.3 ~ 50V

1 ~ 1500µF

± 20% at 120Hz, 20°C

After 2 minutes' application of rated voltage, leakage current is not more than 0.01 CV or 3 (µA), whichever is greater.

Measurement frequency : 120Hz, Temperature : 20°C

Rated voltage (V)

6.3

tan

(MAX.)

0.26 (0.28) 0.20 (0.24) 0.16 (0.20) 0.14 (0.16) 0.12 (0.14) 0.12 (0.14)

Measurement frequency : 120Hz

Rated voltage (V)

Z– 25°C / Z+20°C

Impedance ratio

ZT / Z20 (MAX.)

Z– 55°C / Z+20°C

(

) is

φ8

over

Stability at Low Temperature

6.3

Endurance

After 5000 hours' (2000 hours for

φD

6.3)

application of rated voltage at 105°C , capacitors

meet the characteristic requirements listed at

right.

Capacitance change

tan

Leakage current

Within ±30% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Resistance to soldering

heat

Marking

After leaving capacitors under no load at 105°C for 1000 hours,

they meet the specified value for endurance characteristics listed above.

The capacitors shall be kept on the hot plate maintained at 250°C

Capacitance change

for 30 seconds. After removing from the hot plate and restored

tan

at room temperature, they meet the characteristic requirements

Leakage current

listed at right.

Black print on the case top.

Within ±10% of initial value

Initial specified value or less

Chip Type

(φ4 ~ 6.3)

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

Positive

Series

Type numbering system (Example : 16V 22

10 11 12 13 14

UUD 1 C 2 2 0 M CR 1 GS

A±0.2

Voltage (C:16V)

Package code

Configuration

Capacitance tolerance (±20%)

Rated Capacitance (22µF)

Rated voltage (16V)

Series name

4 ~ 6.3

•

φD±0.5

22C

B±0.2

A±0.2

Lot No.

Capacitance

L±0.3

Negative

Code

(φ8,

φ10×10L)

Voltage (V:35V)

Type

Positive

Series

Plastic platform

0.3 MAX.

0.5 MAX.

C±0.2

•

The lead-free product is also available upon request.

In this case, L will be put at 11th digit of type numbering system.

(mm)

Trade mark

5.8

1.8

4.3

1.0

5.8

0.5 ~ 0.8

5.8

2.1

5.3

1.3

5.8

0.5 ~ 0.8

6.3

5.8

2.4

6.6

2.2

5.8

0.5 ~ 0.8

6.3

7.7

2.4

6.6

2.2

7.7

0.5 ~ 0.8

2.9

8.3

3.1

0.8 ~ 1.1

3.2

10.3

4.5

0.8 ~ 1.1

A±0.2 A±0.2

Lot No.

Capacitance

L±0.5

Pressure relief vent

Negative

100V

φD±0.5

B±0.2

Voltage

6.3

Code

Dimension table in next page.

CAT.8100T
