AM2923XM datasheet, PDF - EEWORLD Datasheet

AM2923XM: DescriptionMultiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, 0.064 X 0.067 INCH, DIE-16; Categorylogic logic; File Size134KB，5 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

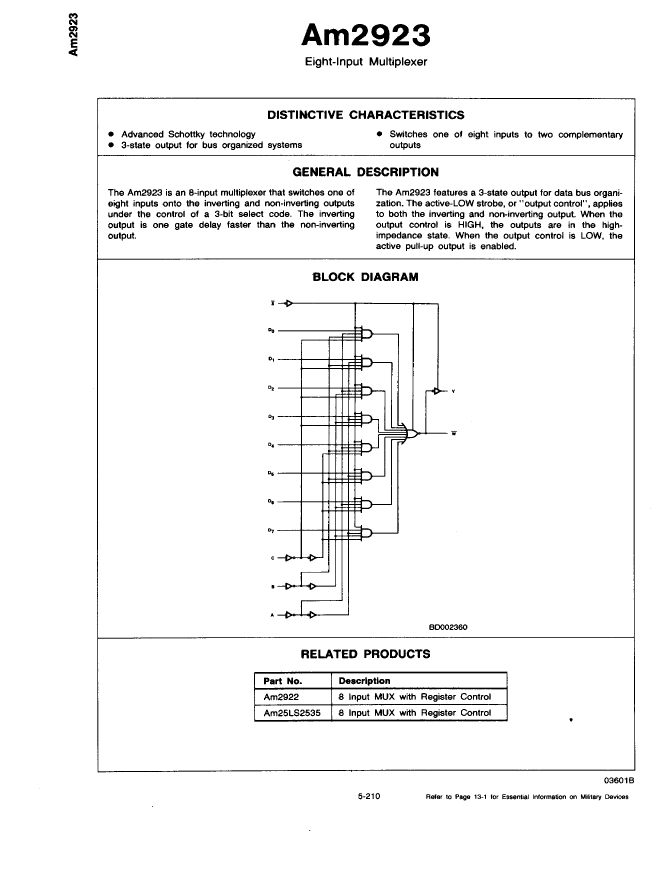

AM2923XM Overview

Multiplexer, S Series, 1-Func, 8 Line Input, 1 Line Output, Complementary Output, TTL, 0.064 X 0.067 INCH, DIE-16

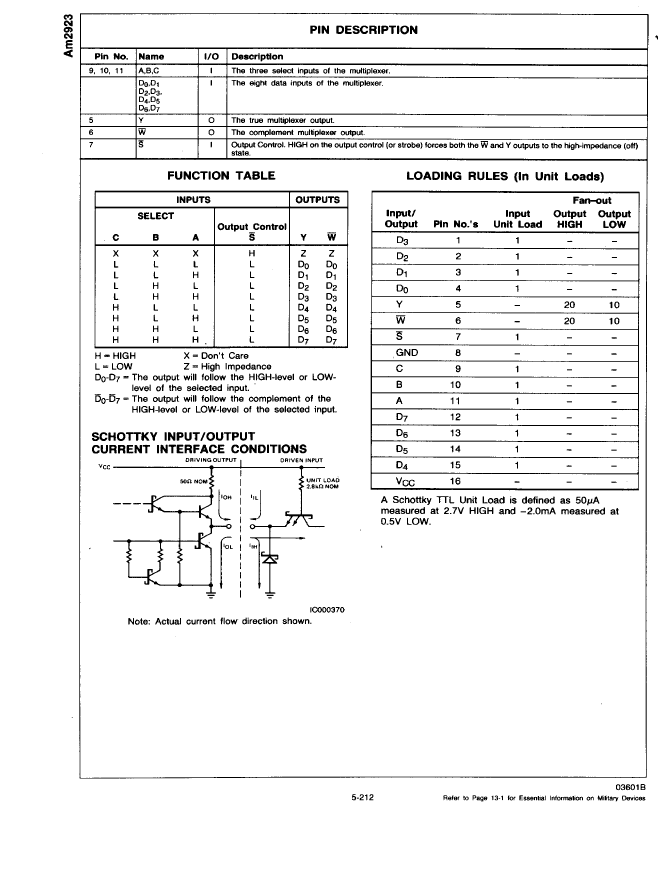

Parameter Name	Attribute value
Maker	AMD

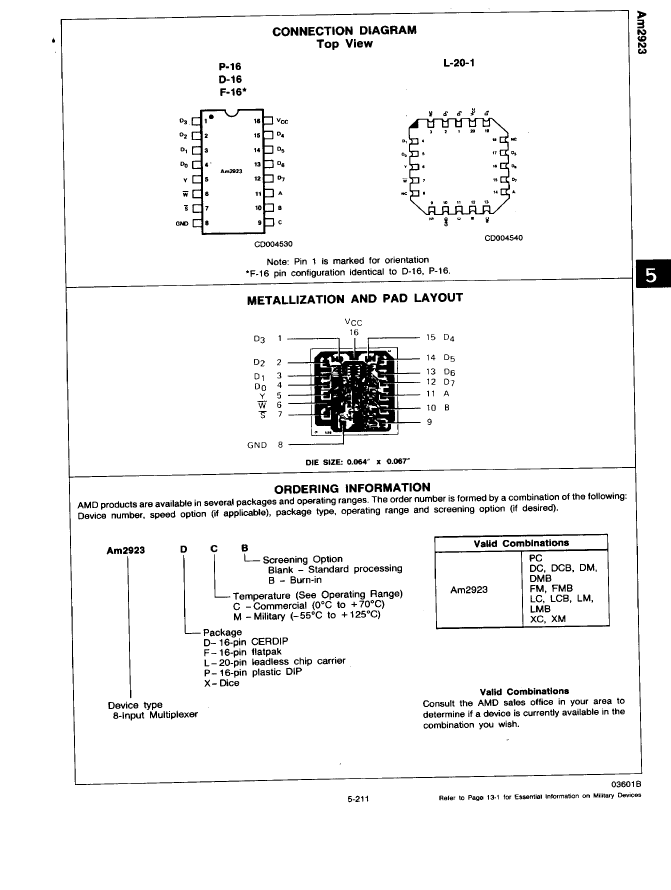

Parts packaging code	DIE
package instruction	DIE,
Contacts	16
Reach Compliance Code	unknown
series	S
JESD-30 code	R-XUUC-N16
Load capacitance (CL)	15 pF

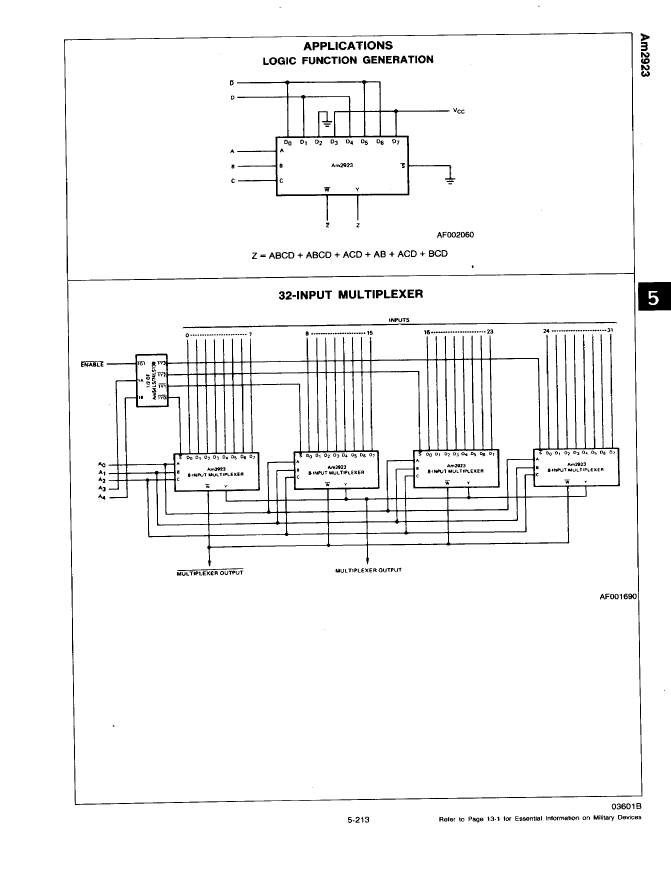

Logic integrated circuit type	MULTIPLEXER
Number of functions	1
Number of entries	8
Output times	1
Number of terminals	16

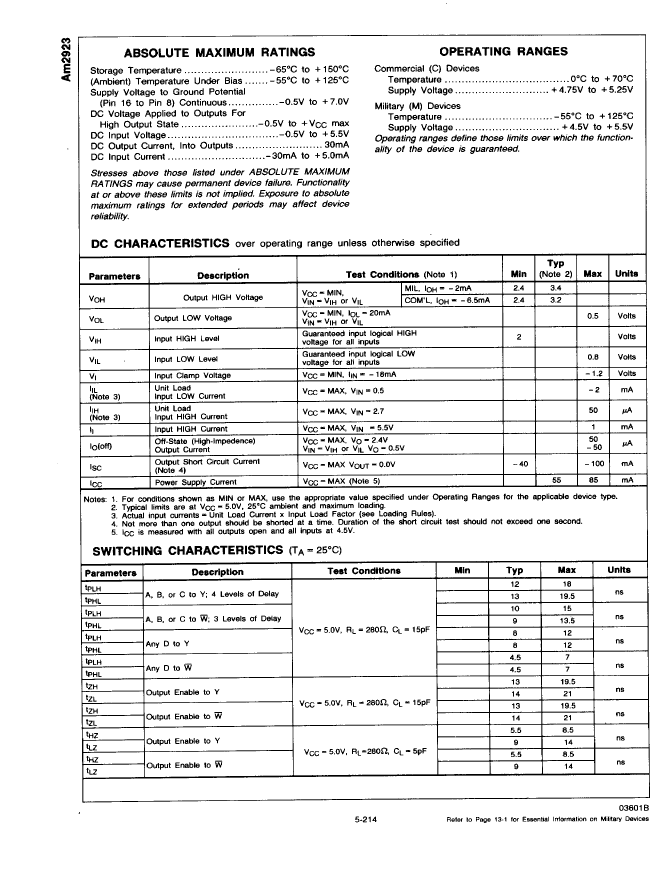

Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	COMPLEMENTARY
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
propagation delay (tpd)	19.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal location	UPPER
