BYG90-30115 datasheet, PDF - EEWORLD Datasheet

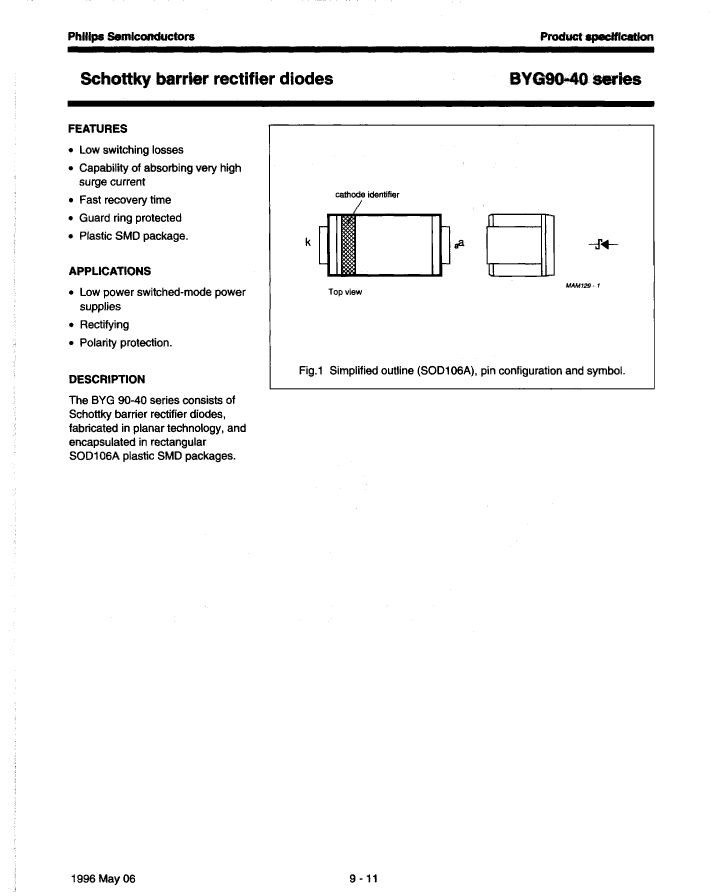

BYG90-30115: Description1A, 30V, SILICON, SIGNAL DIODE; CategoryDiscrete semiconductor diode; File Size87KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

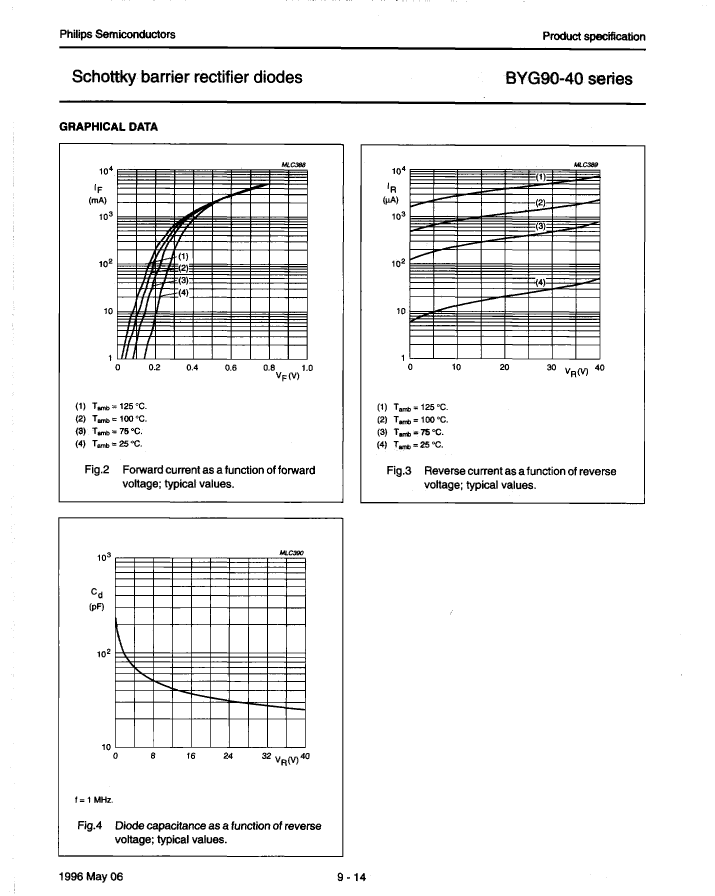

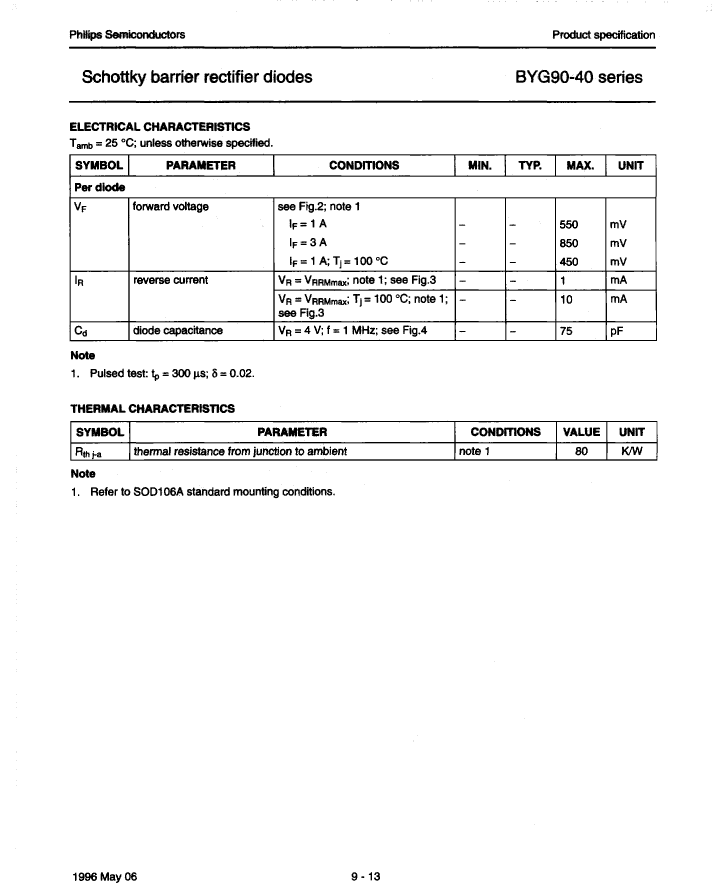

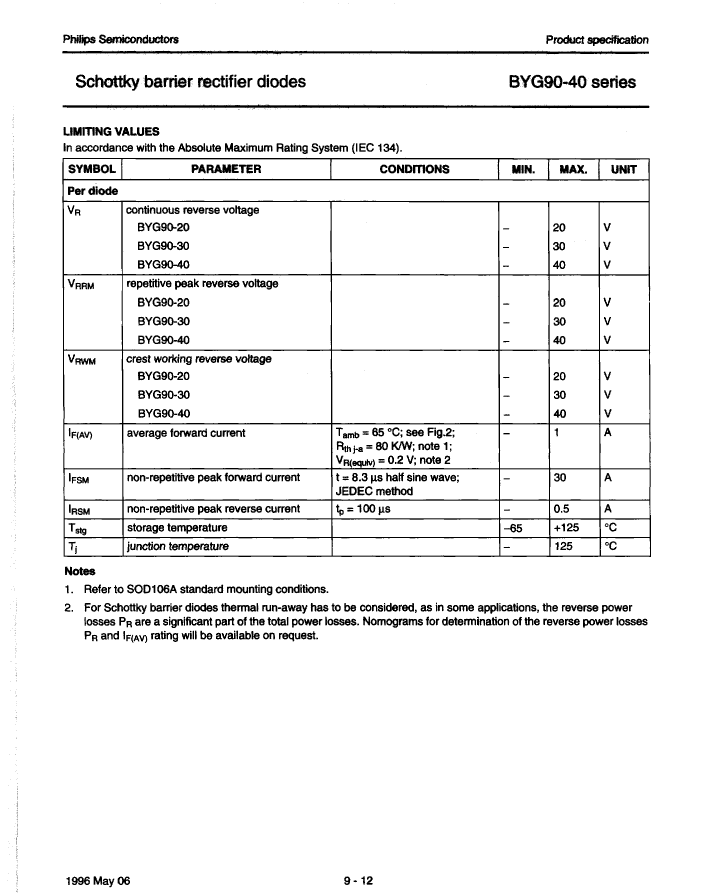

BYG90-30115 Overview

1A, 30V, SILICON, SIGNAL DIODE

Parameter Name	Attribute value
Maker	NXP
package instruction	R-PDSO-C2
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal form	C BEND
Terminal location	DUAL

	BYG90-30115	BYG90-40115	BYG90-20115
Description	1A, 30V, SILICON, SIGNAL DIODE	1A, 40V, SILICON, SIGNAL DIODE	1A, 20V, SILICON, SIGNAL DIODE
package instruction	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
Number of components	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Maximum output current	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	40 V	20 V
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL
Maker	NXP	-	NXP
