MLHF5025481-1.000MHZ-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MLHF5025481-1.000MHZ-T

MLHF5025481-1.000MHZ-T: DescriptionOscillator, 1MHz Min, 70MHz Max, 1MHz Nom,; CategoryPassive components oscillator; File Size98KB，2 Pages; ManufacturerMMD Monitor/Quartztek; Websitehttp://mmdcomp.com; Environmental Compliance

Download Datasheet Parametric View All

MLHF5025481-1.000MHZ-T Overview

Oscillator, 1MHz Min, 70MHz Max, 1MHz Nom,

MLHF5025481-1.000MHZ-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMDIP4,.38,200
Reach Compliance Code	compli
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	70 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP4,.38,200
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	9 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

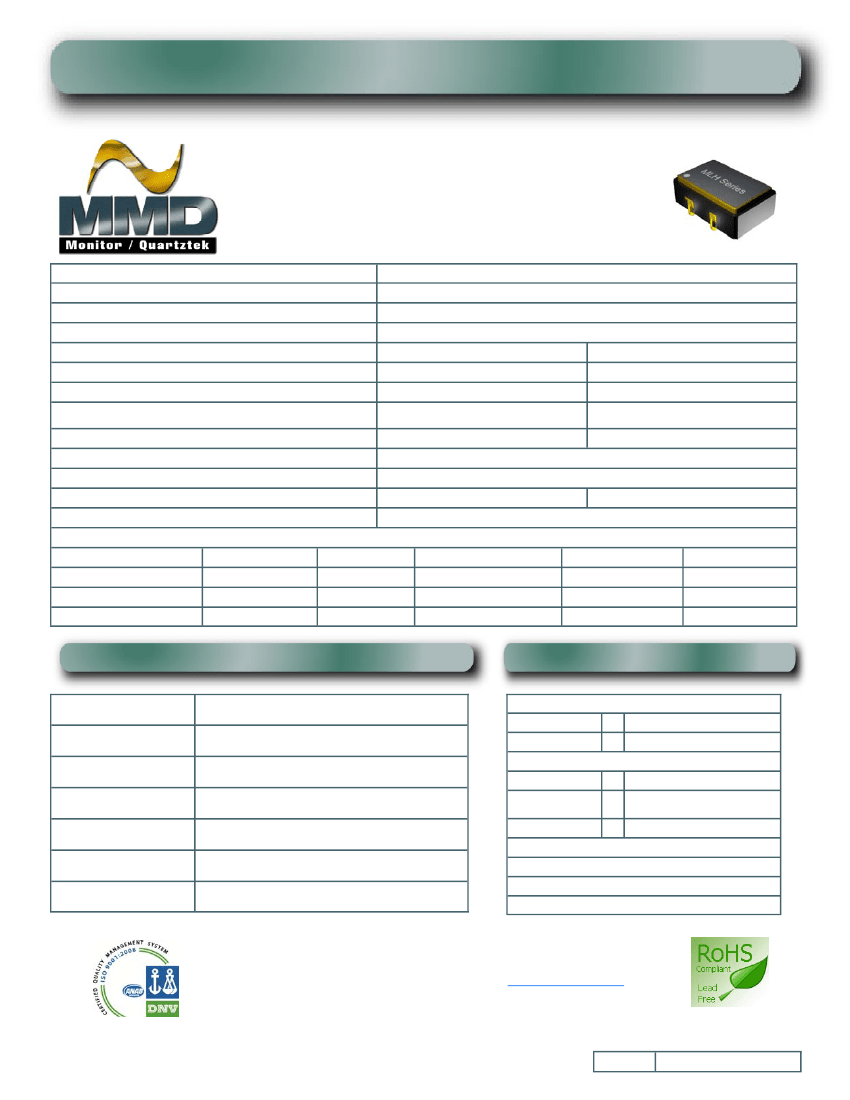

MLH & MLT Series Ceramic J-Lead Oscillator



Frequency Range

Frequency Stability (Inclusive of Temp., Load, Voltage and Aging)

Operating Temp.Range

Storage Temp. Range

Waveform

Logic “0”

Logic “1”

Symmetry

Load

Rise / Fall Time (20% to 80%)

Start Time

Supply Voltage (Vdd)

Jitter

Supply Current Chart

Frequency Range

1.000MHZ to 25.000MHz

25.000MHZ to 40.000MHZ

40.000MHZ to 70.000MHZ

Current

9mA max

20mA max

30mA max

Supply

+5.00 VDC

Frequency Range

1.000MHZ to 30.000MHz

30.000MHZ to 50.000MHZ

50.000MHZ to 70.000MHZ

Current (mA)

10mA max

20mA max

30mA max

Supply

+3.3 VDC

+3.3 VDC ±10%

HCMOS

10% Vdd max

90% Vdd min

40%/60% Optional 45%/55%

50% of waveform w/HCMOS Load

+3.3VDC =5 TTL or 30 pF max

10 nSec max

10 mSec min

+5.0 VDC 10%

Hermetically Sealed Ceramic SMD Package

Wide Frequency Range

Available to -55°C to +125°C Operating

RoHS Compliant Available

1.000MHZ to 70.000MHZ

(See Part Number Guide for Options)

-55°C to +125°C

TTL

0.4V max

2.4V max

40%/60% Optional 45%/55%

1.4Vdc w/TTL Load

+5.0VDC = 10 TTL Gates or 50pF max

Option 1 = 1 pSec typ / Option P = 10 pSec typ

Mechanical & Environmental Detail

Humidity

Hermetic Seal

Solderability

Reflow Solderability

Vibration

Shock

MIL-STD-883

85% RH, 85°C, 48 Hours

Leak Rate 2 X 10

-8

ATM-cm

/sec max

MIL-STD-202G, Method 208

260°C for 10 seconds

MIL-STD-202G, Method 204 35G, 50 to 2000 Hz

MIL-STD-202G, Method 203 Test Cond E, 1000G’s, ½

Sinewave

Available with Level B Screening

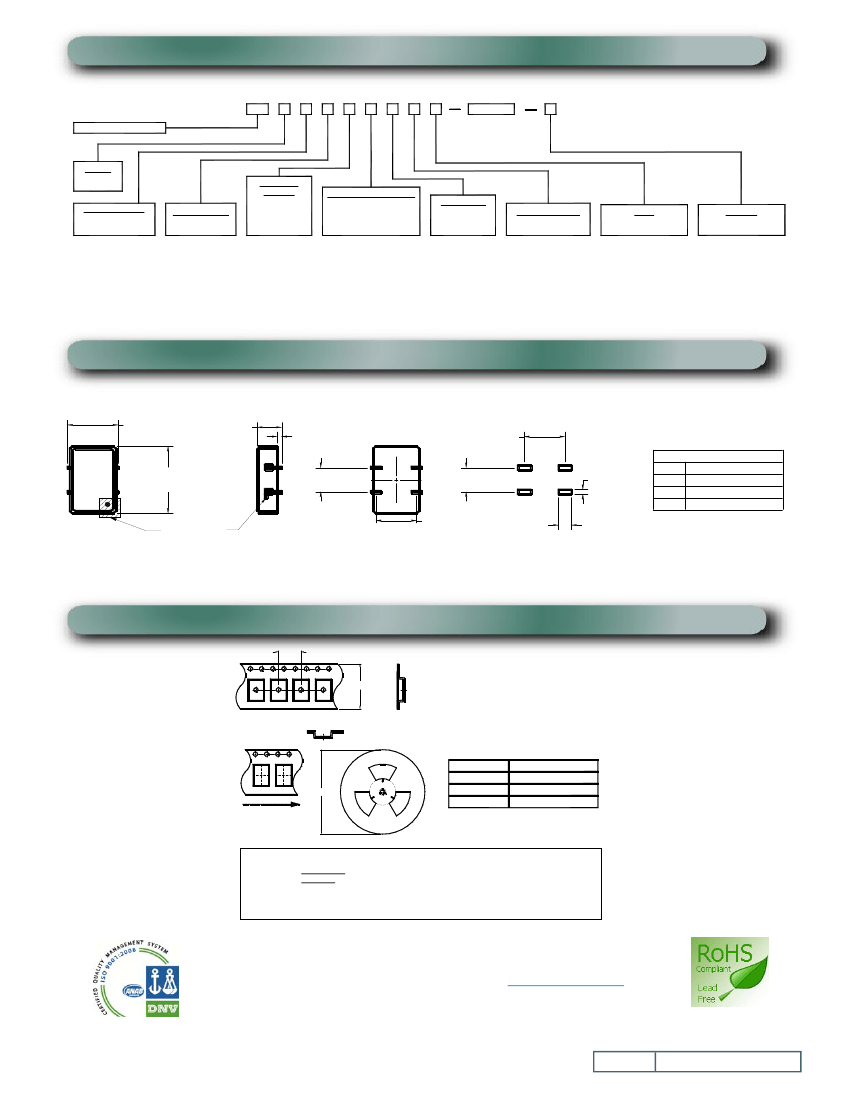

Marking Detail

Line 1 = MXXXXX

XXXXX

Line 2 = SYYWWL

YYWW

Line 3 = XXXXX

Internal use only

May vary with lots

Black dot to denote Pin 1

Internal Code

4 Digit Date Code (Year /

Week)

Denotes RoHS Compliant

MMD

Frequency in MHZ

MMD Monitor/Quartztek

30400 Esperanza, Rancho Santa Margarita, CA, 92688

Phone: (949) 709-5075, Fax: (949) 709-3536,

www.mmdcomp.com

Sales@mmdcomp.com

Revision:

Subject to change without notice

07/19/11 G

Pg 1 of 2
