3362P-1-203T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 3362P-1-203T

3362P-1-203T: DescriptionRES,TAPPED,CERMET,1K OHMS,10% +/-TOL,-100,100PPM TC,2628 CASE; CategoryPassive components; File Size362KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

3362P-1-203T Overview

RES,TAPPED,CERMET,1K OHMS,10% +/-TOL,-100,100PPM TC,2628 CASE

3362P-1-203T Parametric

Parameter Name	Attribute value
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE TIN
Manufacturer Series	3362
Resistor type	TRIMMER

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Single-Turn / Cermet / Industrial / Sealed

■

Miniature package

■

Rotor designed for automatic machine

■

RoHS compliant* version available

■

For trimmer applications/processing

guidelines,

click here

adjust interface

■

Withstands harsh environments and

immersion cleaning processes

■

Tape and reel packaging available

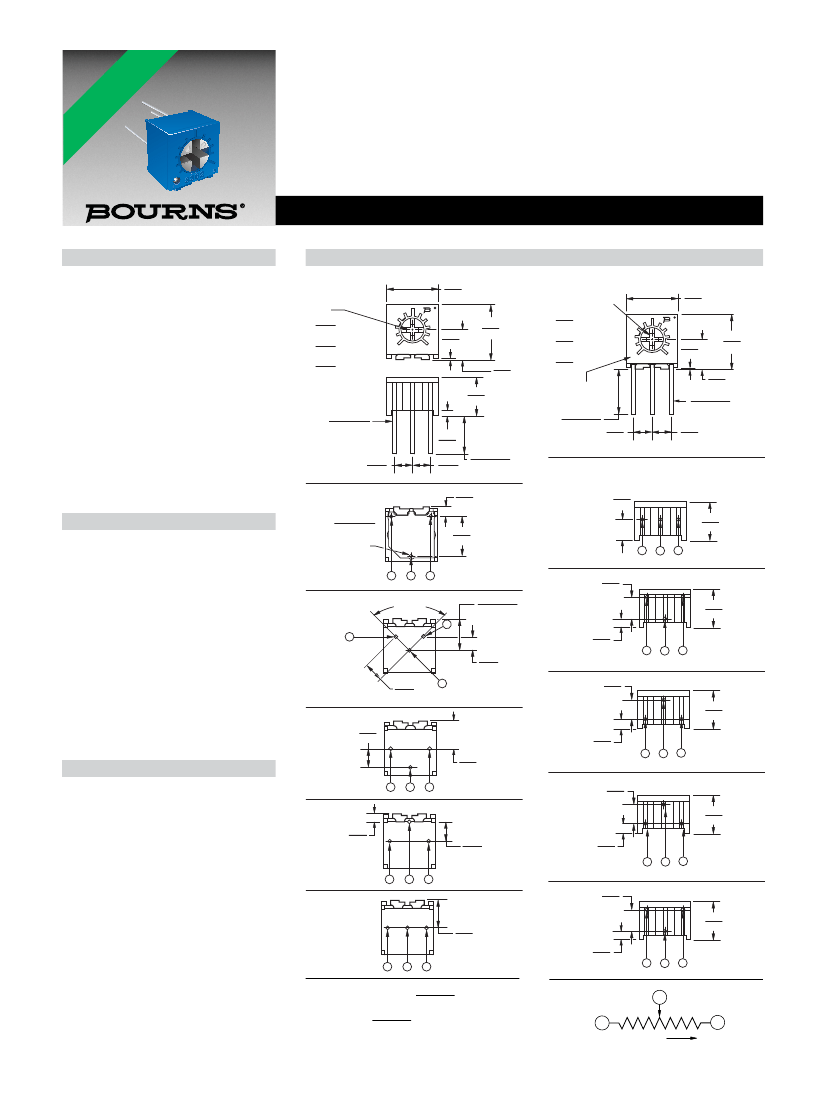

3362 - 1/4 ” Square Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

......................20 ohms to 2 megohms

(see standard resistance table)

Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

........................... 1 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage Divider ...................... ±0.05 %

Rheostat ................................ ±0.15 %

Resolution ................................... Inﬁnite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C .................................... 0.50 watt

125 °C ....................................... 0 watt

Temperature Range ... -55 °C to +125 °C

Temperature Coefﬁcient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours

(2 %

ΔTR;

10 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life.. 1,000 hours 0.5 watt @ 70 °C

(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(4 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Mechanical Angle ................. 270 ° nom.

Torque............................. 3.0 oz-in. max.

Stop Strength ................. 7.0 oz -in. min.

Terminals .......................Solderable pins

Weight ....................................... 0.02 oz.

Marking....................... Resistance code,

terminal numbers, manufacturer’s

model number, style

and date code

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool..............................H-90

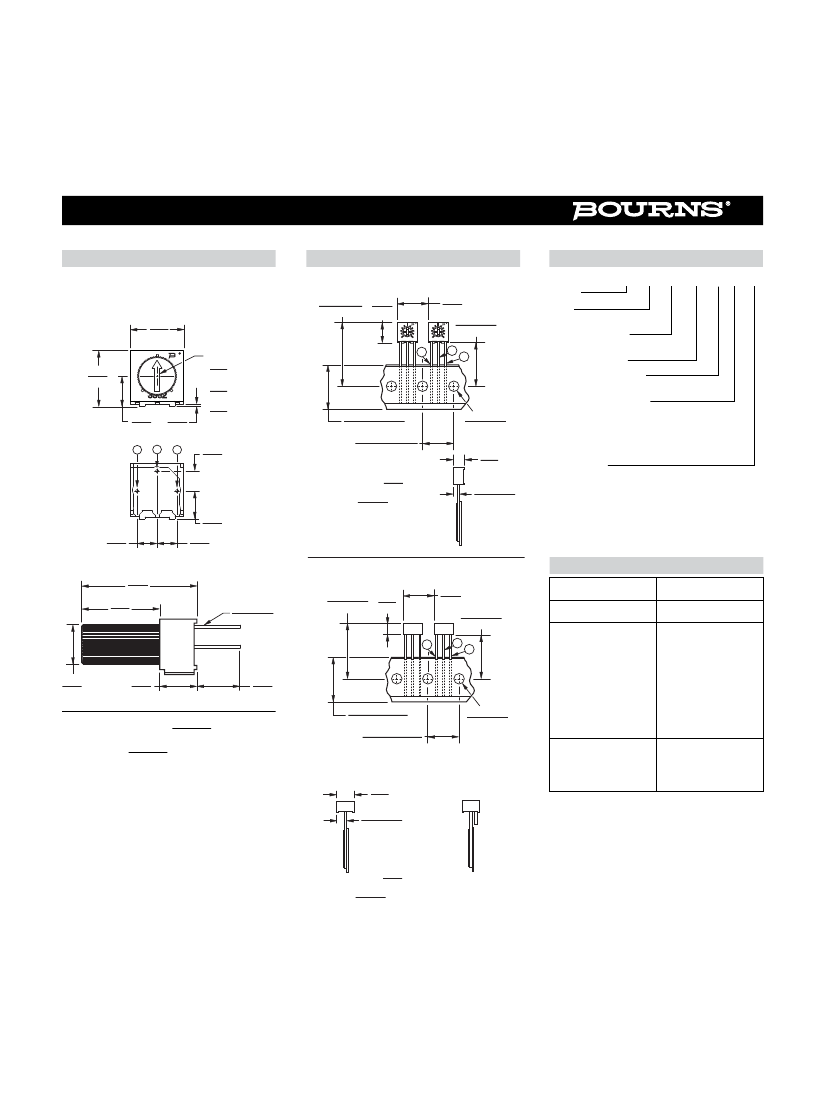

Product Dimensions

Common Dimensions

Top Adjust

ADJ. CROSS

SLOT

2.77

LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

6.60

(.260)

Common Dimensions

Side Adjust

ADJ. CROSS SLOT

2.77

LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

PIN MARKING

REVERSED FOR

STYLE W

5.46

.38

(.215

.015) 2.54

(.100)

5.46

.38

(.215

.015)

6.60

(.260)

3362

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

4.70

(.185)

3362

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

DIA.

.46

.03

(.018

.001) 3 PLCS.

2.54

(.100)

.46

.03

(.018

.001)

.330

(.013)

2.54

(.100)

2.54

(.100)

3362M

2.29

(.090)

4.70

(.185)

3362F

.46

.12

(.018

.005)

DIA.

3 PLCS.

1.22

(.048)

5.08

(.200)

90°

5°

3362S

4.06

.38

(.160

.015)

2.54

(.100)

4.70

(.185)

1.02

(.040)

3362H

1.80

(.071)

2.54

(.100) TYP.

3362W

2.54

(.100)

4.70

(.185)

3362P

2.54

(.100)

3.53

(.139)

1.02

(.040)

3362X

2.54

(.100)

4.70

(.185)

3362R

1.02

(.040)

2.54

(.100)

1.02

(.040)

3362Z

3362U

3.53

(.139)

2.54

(.100)

4.70

(.185)

1.02

(.040)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including

DIMENSIONS:

(INCHES)

annex and RoHS Recast 2011/65/EU June 8, 2011.

0.25

†“Fluorinert” is a registered trademark of 3M Co.

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data

sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

CCW

WIPER

CLOCKWISE
