3362P-1-204TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 3362P-1-204TR

3362P-1-204TR: DescriptionRES,TAPPED,CERMET,20K OHMS,10% +/-TOL,-100,100PPM TC,2628 CASE; CategoryPassive components; File Size362KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com

Download Datasheet Parametric View All

3362P-1-204TR Overview

RES,TAPPED,CERMET,20K OHMS,10% +/-TOL,-100,100PPM TC,2628 CASE

3362P-1-204TR Parametric

Parameter Name	Attribute value
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Resistor type	TRIMMER
structure	Trimmer Pot
jesd_609_code	e3
lead_diamete	0.4600 mm
lead_length	5.46 mm
Manufacturer Series	3362
ckage_heigh	4.7 mm
ckage_length	6.71 mm
Package Size	PCB Mount
ckage_width	7.04 mm
cking_method	Tube
Rated power P	0.5000 W
resistance	20000 ohm
ional_angle	240 deg
series	3362
size code	2628
sub_category	Variable Resistors
Craftsmanship	CERMET
emperature_coefficient__ppm_cel_	-100,100
terminal coating	MATTE TIN
deviation	10 %

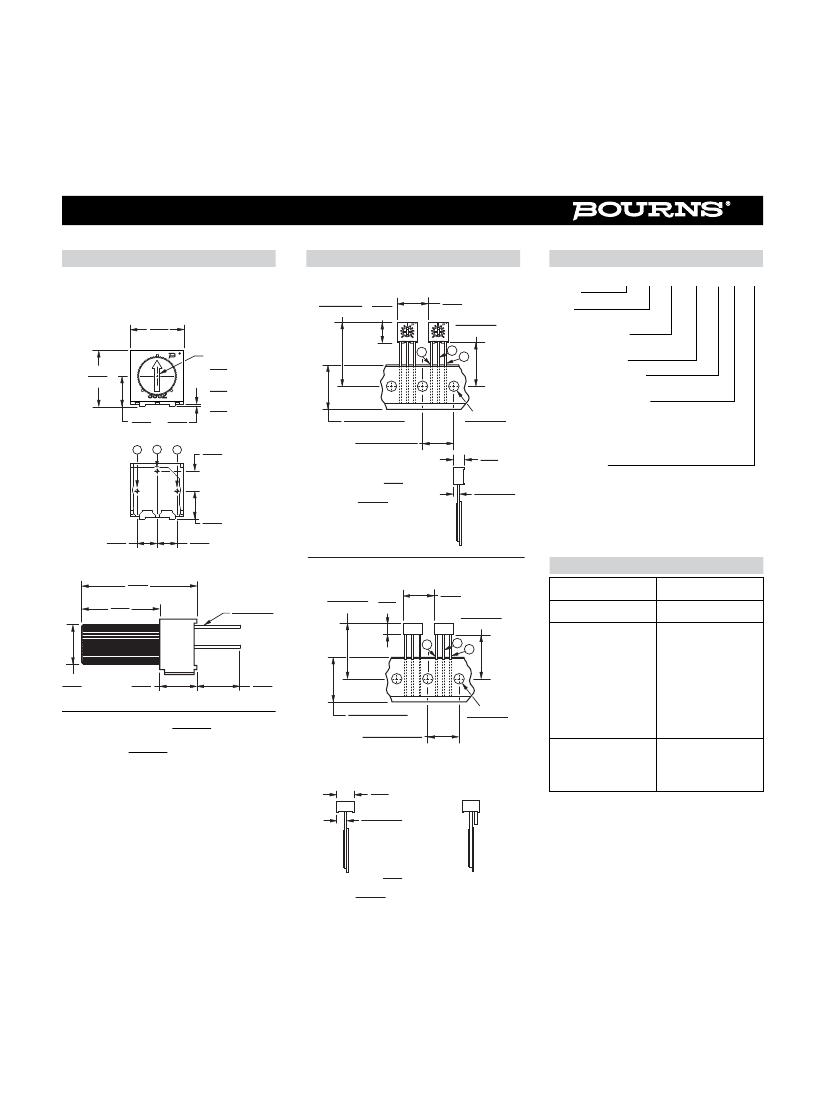

Preview

Download Datasheet

View All

VE S CO

AV R M

AI SIO PL

LA N IA

BL S NT

Features

■

Single-Turn / Cermet / Industrial / Sealed

■

Miniature package

■

Rotor designed for automatic machine

■

RoHS compliant* version available

■

For trimmer applications/processing

guidelines,

click here

adjust interface

■

Withstands harsh environments and

immersion cleaning processes

■

Tape and reel packaging available

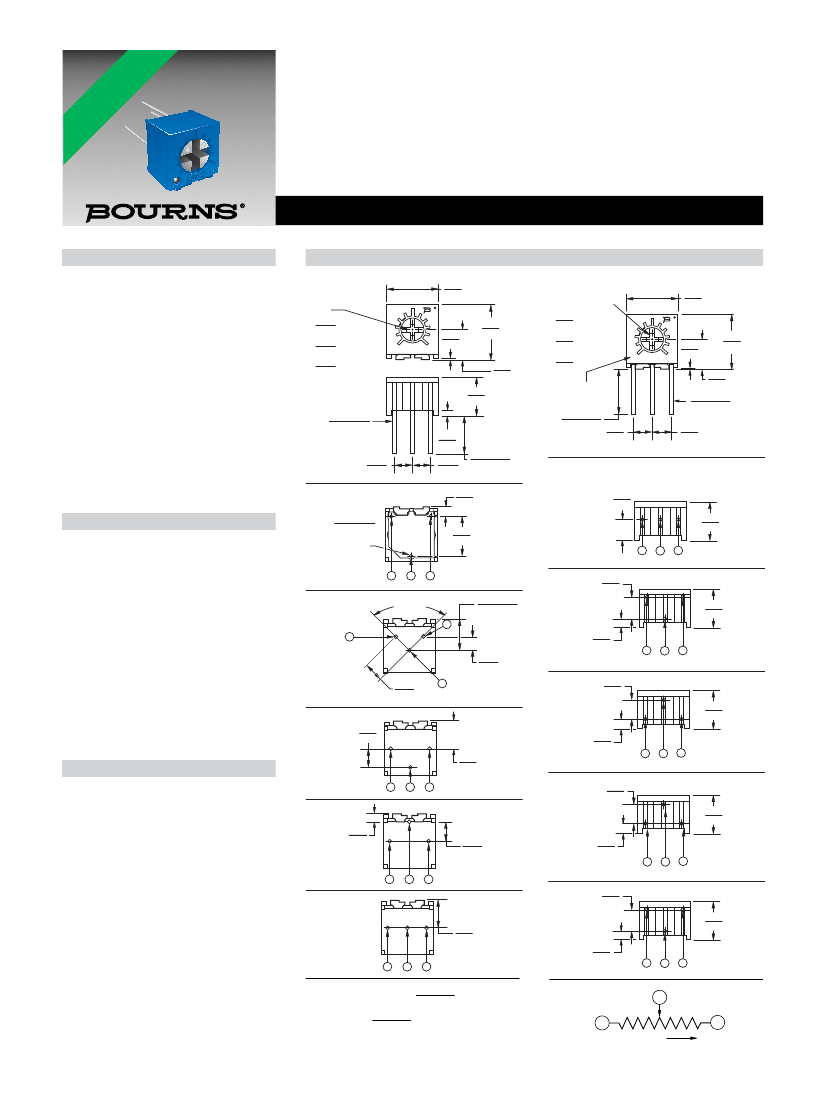

3362 - 1/4 ” Square Trimpot

Trimming Potentiometer

Electrical Characteristics

Standard Resistance Range

......................20 ohms to 2 megohms

(see standard resistance table)

Absolute Minimum Resistance

.................................... 1 % or 2 ohms

(whichever is greater)

Contact Resistance Variation

........................... 1 % or 3 ohms max.

(whichever is greater)

Adjustability

Voltage Divider ...................... ±0.05 %

Rheostat ................................ ±0.15 %

Resolution ................................... Inﬁnite

Insulation Resistance ............... 500 vdc.

1,000 megohms min.

Dielectric Strength

Sea Level................................ 900 vac

80,000 Feet ............................ 350 vac

Adjustment Angle ................. 240 ° nom.

Environmental Characteristics

Power Rating (300 volts max.)

70 °C .................................... 0.50 watt

125 °C ....................................... 0 watt

Temperature Range ... -55 °C to +125 °C

Temperature Coefﬁcient ... ±100 ppm/°C

Seal Test ......................85 °C Fluorinert†

Humidity .......MIL-STD-202 Method 103

96 hours

(2 %

ΔTR;

10 Megohms IR)

Vibration ....... 30 G (1 %

ΔTR;

1 %

ΔVR)

Shock ......... 100 G (1 %

ΔTR;

1 %

ΔVR)

Load Life.. 1,000 hours 0.5 watt @ 70 °C

(3 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Rotational Life .......................200 cycles

(4 %

ΔTR;

3 % or 3 ohms,

whichever is greater, CRV)

Physical Characteristics

Mechanical Angle ................. 270 ° nom.

Torque............................. 3.0 oz-in. max.

Stop Strength ................. 7.0 oz -in. min.

Terminals .......................Solderable pins

Weight ....................................... 0.02 oz.

Marking....................... Resistance code,

terminal numbers, manufacturer’s

model number, style

and date code

Wiper ............... 50 % (Actual TR) ±10 %

Flammability ..........................U.L. 94V-0

Standard Packaging .....50 pcs. per tube

Adjustment Tool..............................H-90

Product Dimensions

Common Dimensions

Top Adjust

ADJ. CROSS

SLOT

2.77

LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

6.60

(.260)

Common Dimensions

Side Adjust

ADJ. CROSS SLOT

2.77 LONG X

(.109)

.64 WIDE X

(.025)

.89 DEEP X

(.035)

PIN MARKING

REVERSED FOR

STYLE W

5.46

.38

(.215

.015) 2.54

(.100)

5.46

.38

(.215

.015)

6.60

(.260)

3362

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

4.70

(.185)

3362

6.99

.25

TYP. (.275)

(010)

3.84

(.151)

DIA.

.46

.03

(.018

.001) 3 PLCS.

2.54

(.100)

.46

.03

(.018

.001)

.330

(.013)

2.54

(.100)

2.54

(.100)

3362M

2.29

(.090)

4.70

(.185)

3362F

.46

.12

(.018

.005)

DIA.

3 PLCS.

1.22

(.048)

5.08

(.200)

90°

5°

3362S

4.06

.38

(.160

.015)

2.54

(.100)

4.70

(.185)

1.02

(.040)

3362H

1.80

(.071)

2.54

(.100) TYP.

3362W

2.54

(.100)

4.70

(.185)

3362P

2.54

(.100)

3.53

(.139)

1.02

(.040)

3362X

2.54

(.100)

4.70

(.185)

3362R

1.02

(.040)

2.54

(.100)

1.02

(.040)

3362Z

3362U

3.53

(.139)

2.54

(.100)

4.70

(.185)

1.02

(.040)

*RoHS Directive 2002/95/EC Jan. 27, 2003 including

DIMENSIONS:

(INCHES)

annex and RoHS Recast 2011/65/EU June 8, 2011.

0.25

†“Fluorinert” is a registered trademark of 3M Co.

TOLERANCES: ±

EXCEPT WHERE NOTED

(.010)

Speciﬁcations are subject to change without notice.

The device characteristics and parameters in this data

sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their speciﬁc applications.

CCW

WIPER

CLOCKWISE
