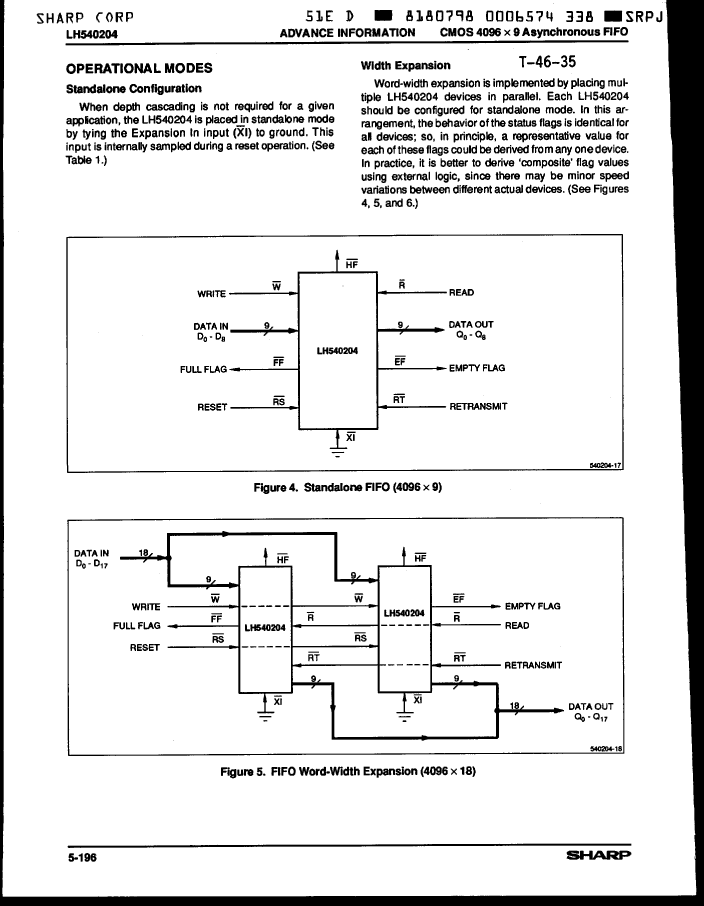

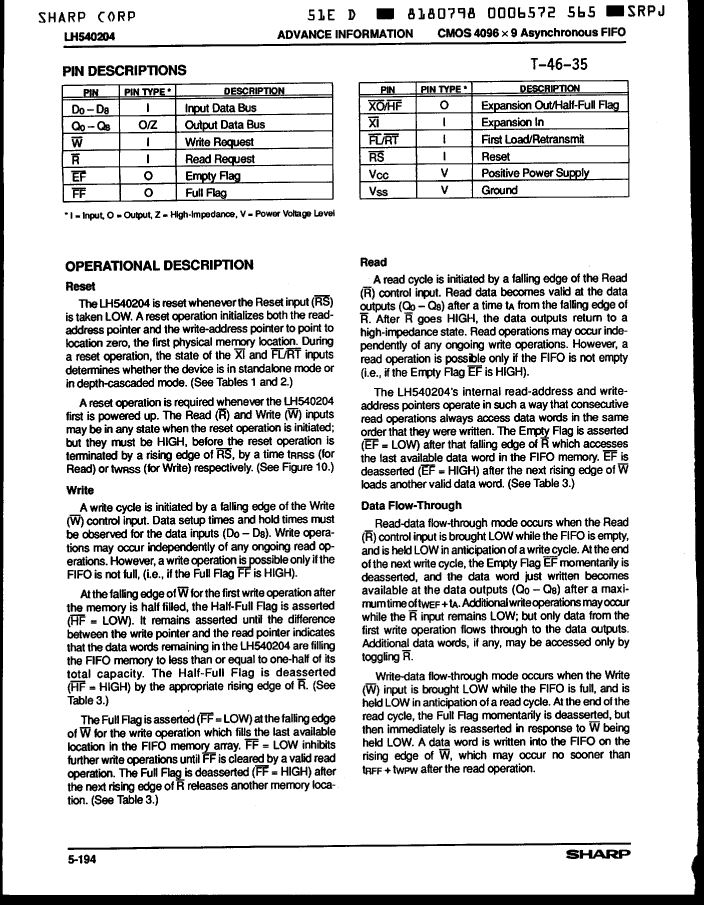

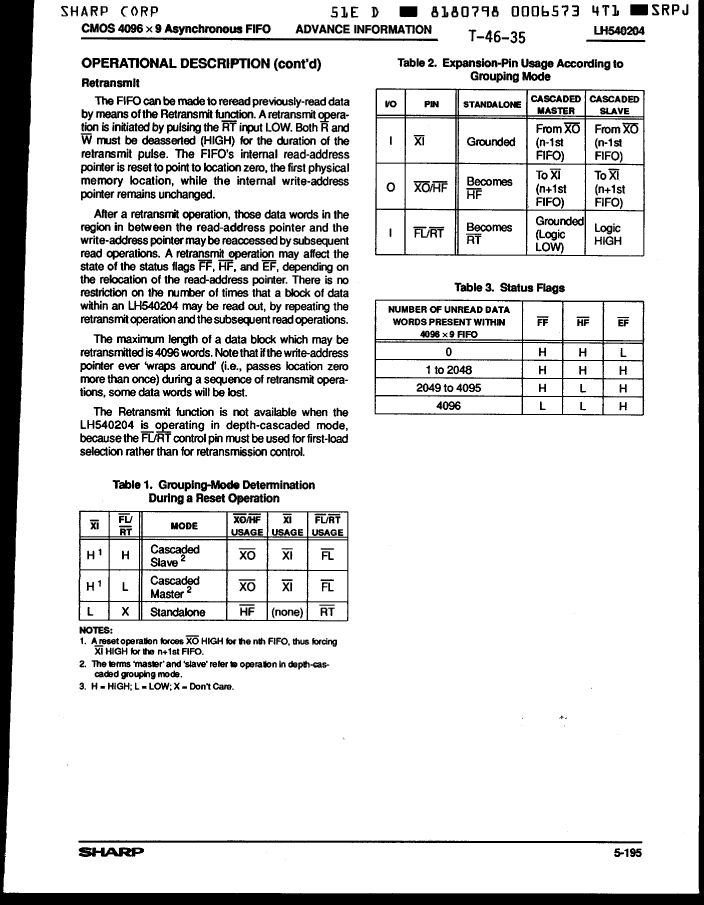

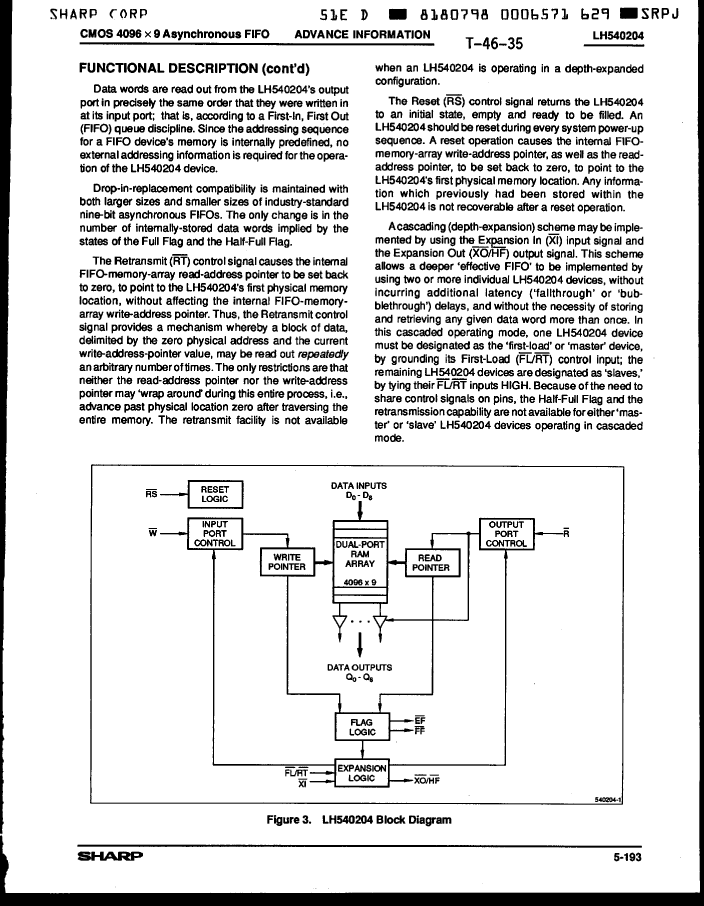

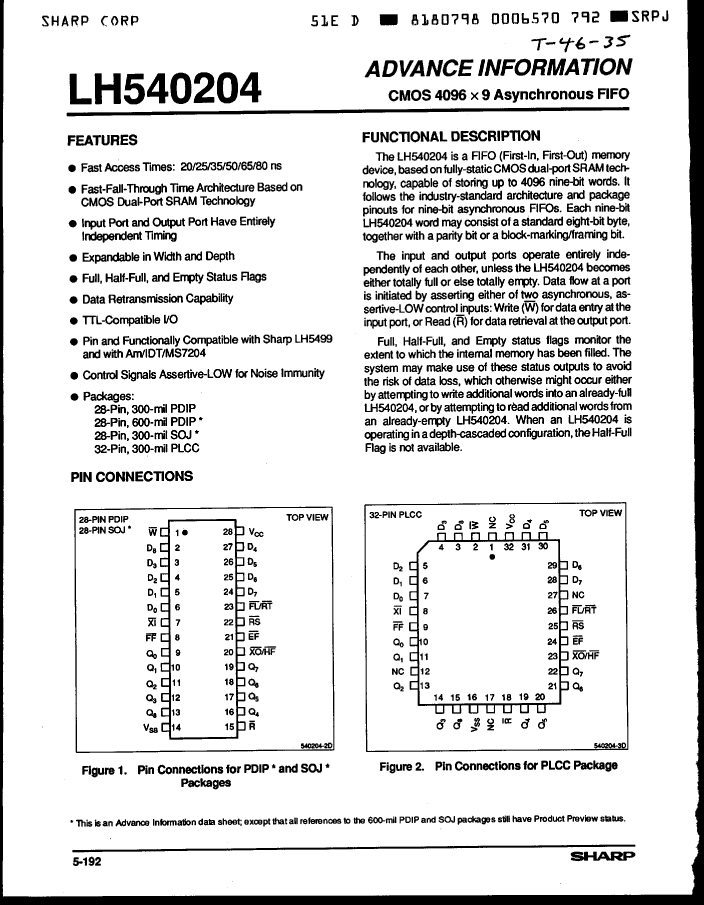

FIFO, 4KX9, 65ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-28 |
| Reach Compliance Code | unknown |
| Maximum access time | 65 ns |
| Other features | RETRANSMIT |
| period time | 80 ns |
| JESD-30 code | R-PDIP-T28 |
| JESD-609 code | e0 |
| length | 36 mm |
| memory density | 36864 bit |
| memory width | 9 |
| Number of functions | 1 |
| Number of terminals | 28 |
| word count | 4096 words |
| character code | 4000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 4KX9 |
| Output characteristics | 3-STATE |
| Exportable | NO |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Parallel/Serial | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| LH540204-65 | LH540204D-65 | LH540204D-80 | LH540204K-65 | LH540204K-80 | LH540204U-65 | LH540204U-80 | LH540204-80 | |
|---|---|---|---|---|---|---|---|---|
| Description | FIFO, 4KX9, 65ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 | FIFO, 4KX9, 65ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28 | FIFO, 4KX9, 80ns, Asynchronous, CMOS, PDIP28, 0.300 INCH, PLASTIC, DIP-28 | FIFO, 4KX9, 65ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | FIFO, 4KX9, 80ns, Asynchronous, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28 | FIFO, 4KX9, 65ns, Asynchronous, CMOS, PQCC32, 0.450 INCH, PLASTIC, LCC-32 | FIFO, 4KX9, 80ns, Asynchronous, CMOS, PQCC32, 0.450 INCH, PLASTIC, LCC-32 | FIFO, 4KX9, 80ns, Asynchronous, CMOS, PDIP28, 0.600 INCH, PLASTIC, DIP-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SHARP | SHARP | SHARP | SHARP | SHARP | SHARP | SHARP | SHARP |
| package instruction | 0.600 INCH, PLASTIC, DIP-28 | 0.300 INCH, PLASTIC, DIP-28 | 0.300 INCH, PLASTIC, DIP-28 | 0.300 INCH, PLASTIC, SOJ-28 | 0.300 INCH, PLASTIC, SOJ-28 | 0.450 INCH, PLASTIC, LCC-32 | 0.450 INCH, PLASTIC, LCC-32 | 0.600 INCH, PLASTIC, DIP-28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Maximum access time | 65 ns | 65 ns | 80 ns | 65 ns | 80 ns | 65 ns | 80 ns | 80 ns |
| Other features | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT | RETRANSMIT |
| period time | 80 ns | 80 ns | 100 ns | 80 ns | 100 ns | 80 ns | 100 ns | 100 ns |
| JESD-30 code | R-PDIP-T28 | R-PDIP-T28 | R-PDIP-T28 | R-PDSO-J28 | R-PDSO-J28 | R-PQCC-J32 | R-PQCC-J32 | R-PDIP-T28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 36 mm | 34.67 mm | 34.67 mm | 18.5 mm | 18.5 mm | 13.995 mm | 13.995 mm | 36 mm |
| memory density | 36864 bit | 36864 bit | 36864 bit | 36864 bit | 36864 bit | 36864 bit | 36864 bit | 36864 bit |
| memory width | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 32 | 32 | 28 |
| word count | 4096 words | 4096 words | 4096 words | 4096 words | 4096 words | 4096 words | 4096 words | 4096 words |
| character code | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 4KX9 | 4KX9 | 4KX9 | 4KX9 | 4KX9 | 4KX9 | 4KX9 | 4KX9 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Exportable | NO | NO | NO | NO | NO | NO | NO | NO |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | DIP | DIP | SOJ | SOJ | QCCJ | QCCJ | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | CHIP CARRIER | CHIP CARRIER | IN-LINE |
| Parallel/Serial | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL | PARALLEL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.2 mm | 4.57 mm | 4.57 mm | 3.7 mm | 3.7 mm | 3.56 mm | 3.56 mm | 5.2 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO | YES | YES | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | J BEND | J BEND | J BEND | J BEND | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | QUAD | QUAD | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 7.62 mm | 7.62 mm | 7.7 mm | 7.7 mm | 11.455 mm | 11.455 mm | 15.24 mm |
