W3E64M16S-XSBX
64Mx16 DDR SDRAM
FEATURES
DDR SDRAM rate = 200, 250, 266, 333**
Package:
• 60 Plastic Ball Grid Array (PBGA), 10 x 12.5mm
1Gb upgrade to 512Mb 60 FBGA SDRAM
2.5V ±0.2V core power supply
2.5V I/O (SSTL_2 compatible)
Differential clock inputs (CK and CK#)
Commands entered on each positive CK edge
Internal pipelined double-data-rate (DDR) architecture; two
data accesses per clock cycle
Programmable Burst length: 2,4 or 8
Bidirectional data strobe (DQS) transmitted/received with
data, i.e., source-synchronous data capture (one per byte)
DQS edge-aligned with data for READs; center-aligned with
data for WRITEs
DLL to align DQ and DQS transitions with CLK
Four internal banks for concurrent operation
Data mask (DM) pins for masking write data (one per byte)
Auto precharge option
Auto Refresh and Self Refresh Modes
Commercial, Industrial and Military Temperature ranges
Organized as 64M x 16
Weight: W3E64M16S-XSBX — 1.0 grams typical
GENERAL DESCRIPTION
The 128MByte (1Gb) DDR SDRAM is a high-speed CMOS,
dy nam ic ran dom-access, memory using 2 chips containing
536,870,912 bits. Each chip is internally configured as a quad-
bank DRAM.
The 128MB DDR SDRAM uses a double data rate architecture to
achieve high-speed operation. The double data rate architecture is
essentially a 2n-prefetch architecture with an interface designed to
transfer two data words per clock cycle at the I/O pins. A single read
or write access for the 256MB DDR SDRAM effectively consists of
a single 2n-bit wide, one-clock-cycle data transfer at the internal
DRAM core and two corresponding n-bit wide, one-half-clock-cycle
data transfers at the I/O pins.
A bi-directional data strobe (DQS) is transmitted externally, along
with data, for use in data capture at the receiver.strobe transmitted
by the DDR SDRAM during READs and by the memory controller
during WRITEs. DQS is edge-aligned with data for READs and
center-aligned with data for WRITEs. Each chip has two data
strobes, one for the lower byte and one for the upper byte.
The 128MB DDR SDRAM operates from a differential clock (CK
and CK#); the crossing of CK going HIGH and CK going LOW will
be referred to as the positive edge of CK. Commands (address
and control signals) are registered at every positive edge of CK.
Input data is registered on both edges of DQS, and output data is
referenced to both edges of DQS, as well as to both edges of CK.
Read and write accesses to the DDR SDRAM are burst oriented;
accesses start at a selected location and continue for a programmed
number of locations in a programmed sequence. Accesses begin
with the registration of an ACTIVE command, which is then followed
by a READ or WRITE command. The address bits registered
coincident with the ACTIVE command are used to select the bank
and row to be accessed. The address bits registered coincident
with the READ or WRITE command are used to select the bank
and the starting column location for the burst access.
The DDR SDRAM provides for programmable READ or WRITE
burst lengths of 2, 4, or 8 locations. An auto precharge function may
be enabled to provide a self-timed row precharge that is initiated
at the end of the burst access.
The pipelined, multibank architecture of DDR SDRAMs allows for
concurrent operation, thereby providing high effective bandwidth
by hiding row precharge and activation time.
An auto refresh mode is provided, along with a power-saving
power-down mode.
* This product is subject to change without notice.
** For 333Mbs operation of Industrial temperature CL = 2.5, at Military temperature
CL = 3.
BENEFITS
53% SPACE SAVINGS vs. 1-1GbTSOP
• 50% Space Savings vs 2 - 512Mb FPBGA
Reduced part count
• 50% I/O reduction vs FPBGA
• 9% I/O reduction vs TSOP
Reduced trace lengths for lower parasitic capacitance
Suitable for hi-reliability applications
Microsemi Corporation reserves the right to change products or specifications without notice.
March 2016
Rev. 10
© 2016 Microsemi Corporation. All rights reserved.
1
Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
W3E64M16S-XSBX

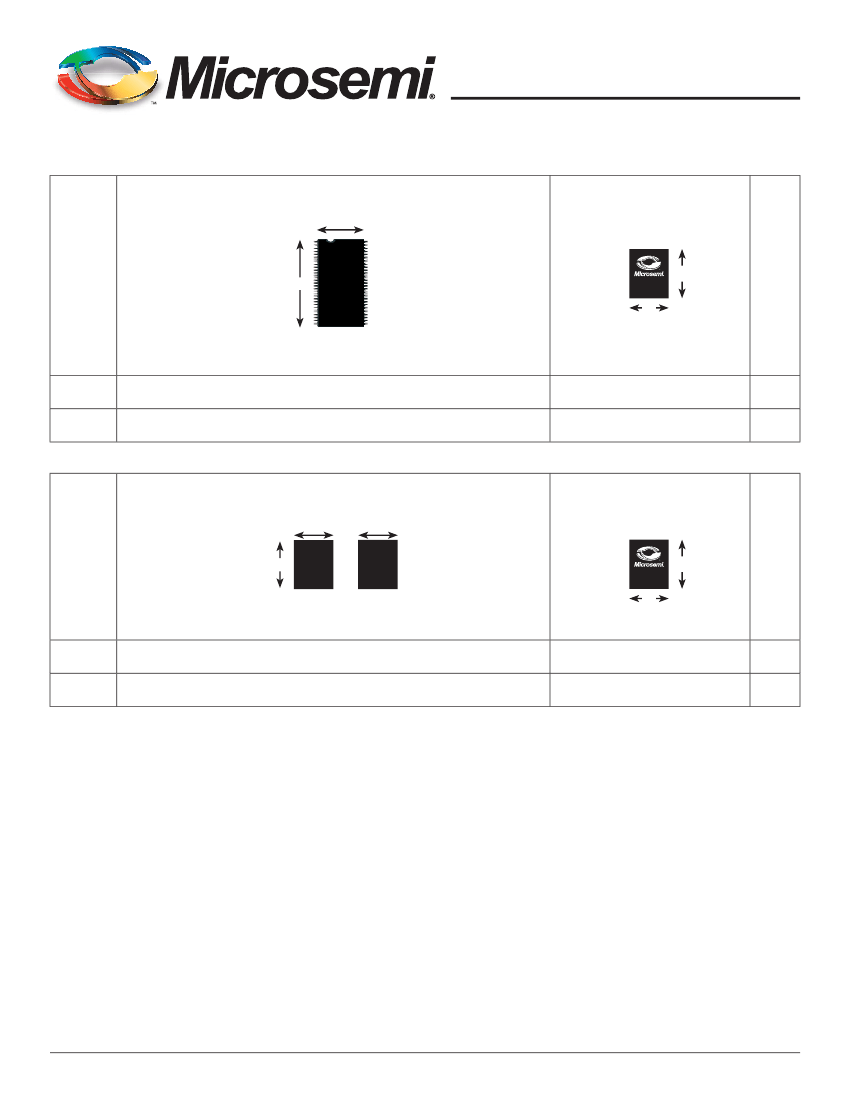

DENSITY COMPARISONS
TSOP Approach (mm)
11.9
W3E64M16S-XSBX
22.3
64Mx16
66
TSOP
12.5
W3E64M16S-XSBX
10
S
A
V
I
N
G
S
Area
I/O Count
265mm
2
66 pins
125mm
2
60 Balls
53%
9%
CSP Approach (mm)
10.0
60
FBGA
10.0
60
FBGA
W3E64M16S-XSBX
12.5
12.5
W3E64M16S-XSBX
10
S
A
V
I
N
G
S
50%
50%
Area
I/O Count
2 x 125mm2 = 250mm
2
2 x 60 balls = 120 balls
125mm
2
60 Balls
FUNCTIONAL DESCRIPTION
Read and write accesses to the DDR SDRAM are burst oriented;
accesses start at a selected location and continue for a pro-
grammed number of locations in a programmed sequence. Ac-
cesses begin with the registration of an ACTIVE command which
is then followed by a READ or WRITE command. The address
bits registered coincident with the ACTIVE command are used to
select the bank and row to be accessed (BA0 and BA1 select the
bank, A0-12 select the row). The address bits registered coincident
with the READ or WRITE command are used to select the starting
column location for the burst access.
Prior to normal operation, the DDR SDRAM must be initialized.
The following sections provide detailed information covering de-
vice initialization, register definition, command descriptions and
device operation.
INITIALIZATION
DDR SDRAMs must be powered up and initialized in a predefined
manner. Operational procedures other than those specified may
result in undefined operation. Power must
fi
rst be applied to V
CC
and V
CCQ
simultaneously, and then to V
REF
(and to the system V
TT
).
V
TT
must be applied after V
CCQ
to avoid device latch-up, which may
cause permanent damage to the device. V
REF
can be applied any
time after V
CCQ
but is expected to be nominally coincident with V
TT
.
Except for CKE, inputs are not recognized as valid until after V
REF
is applied. CKE is an SSTL_2 input but will detect an LVCMOS
LOW level after V
CC
is applied. After CKE passes through V
IH
, it
will transition to an SSTL_2 signal and remain as such until power
is cycled. Maintaining an LVCMOS LOW level on CKE during
power-up is required to ensure that the DQ and DQS outputs will
be in the High-Z state, where they will remain until driven in normal
operation (by a read access). After all power supply and reference
voltages are stable, and the clock is stable, the DDR SDRAM
requires a 200μs delay prior to applying an executable command.
Microsemi Corporation reserves the right to change products or specifications without notice.
March 2016
Rev. 10
© 2016 Microsemi Corporation. All rights reserved.
2
Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
W3E64M16S-XSBX
BALL ASSIGNMENT (TOP VIEW) 60 BALL FBGA
x16 (Top View)
1
2
3
4
5
A
B
C
D
E
F
G
H
J
K
L
M
6
7
8
9
V
SSQ
DQ14
DQ12
DQ10
DQ8
V
REF
DQ15
V
CCQ
V
SSQ
V
CCQ
V
SSQ
V
SS
CK
A12
A11
A8
A6
A4
V
SS
DQ13
DQ11
DQ9
UDQS
UDM
CK#
CKE
A9
A7
A5
V
SS
V
CC
DQ2
DQ4
DQ6
LDQS
LDM
WE#
RAS#
BA1
A0
A2
V
CC
DQ0
V
SSQ
V
CCQ
V
SSQ
V
CCQ
V
CC
CAS#
CS#
BA0
A10
A1
A3
V
CCQ
DQ1
DQ3
DQ5
DQ7
DNU
NOTES: Refer to note 41, page 13 for power/ground pins configuration.
DNU = Do Not Use; to be left unconnected for future upgrades.
NC = Not Connected Internally.
Microsemi Corporation reserves the right to change products or specifications without notice.
March 2016
Rev. 10
© 2016 Microsemi Corporation. All rights reserved.
3
Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
W3E64M16S-XSBX
FIGURE 2 – FUNCTIONAL BLOCK DIAGRAM
WE#
RAS#
CAS#
WE#
V
REF
A0-12
BA0-1
CLK
CLK#
CKE
CS#
DQM
DQS
RAS# CAS#
DQ0
DQ0
V
REF
A0-12
BA0-1
CK
CK#
CKE
CS#
LDM
LDQS
64Mx8
¥
¥
¥
¥
¥
¥
DQ7
¥
¥
¥
¥
¥
¥
DQ7
WE# RAS# CAS#
V
REF
A0-12
BA0-1
CLK
CLK#
CKE
CS#
DQM
DQS
DQ0
DQ8
64Mx8
UDM
UDQS
¥
¥
¥
¥
¥
¥
DQ7
¥
¥
¥
¥
¥
¥
DQ15
REGISTER DEFINITION
MODE REGISTER
The Mode Register is used to define the specific mode of operation
of the DDR SDRAM. This definition includes the selection of a
burst length, a burst type, a CAS latency, and an operating mode,
as shown in Figure 3. The Mode Register is programmed via the
MODE REGISTER SET command (with BA0 = 0 and BA1 = 0)
and will retain the stored information until it is programmed again
or the device loses power. (Except for bit A8 which is self clearing).
Reprogramming the mode register will not alter the contents of
the memory, provided it is performed correctly. The Mode Register
must be loaded (reloaded) when all banks are idle and no bursts
are in progress, and the controller must wait the speci
fi
ed time
before initiating the subsequent operation. Violating either of these
requirements will result in unspeci
fi
ed operation.
Mode register bits A0-A2 specify the burst length, A3 speci
fi
es the
type of burst (sequential or interleaved), A4-A6 specify the CAS
latency, and A7-A12 specify the operating mode.
locations that can be accessed for a given READ or WRITE
command. Burst lengths of 2, 4 or 8 locations are available for
both the sequential and the interleaved burst types.
Reserved states should not be used, as unknown operation or
incompatibility with future versions may result.
When a READ or WRITE command is issued, a block of columns
equal to the burst length is effectively selected. All accesses for
that burst take place within this block, meaning that the burst will
wrap within the block if a boundary is reached. The block is uniquely
selected by A1-Ai when the burst length is set to two; by A2-Ai
when the burst length is set to four (where Ai is the most significant
column address for a given configuration); and by A3-Ai when
the burst length is set to eight. The remaining (least significant)
address bit(s) is (are) used to select the starting location within
the block. The programmed burst length applies to both READ
and WRITE bursts.
BURST TYPE
Accesses within a given burst may be programmed to be either
sequential or interleaved; this is referred to as the burst type and
is selected via bit M3.
The ordering of accesses within a burst is determined by the burst
length, the burst type and the starting column address, as shown
in Table 1.
BURST LENGTH
Read and write accesses to the DDR SDRAM are burst oriented,
with the burst length being programmable, as shown in Figure
3. The burst length determines the maximum number of column
Microsemi Corporation reserves the right to change products or specifications without notice.
March 2016
Rev. 10
© 2016 Microsemi Corporation. All rights reserved.
4
Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
W3E64M16S-XSBX

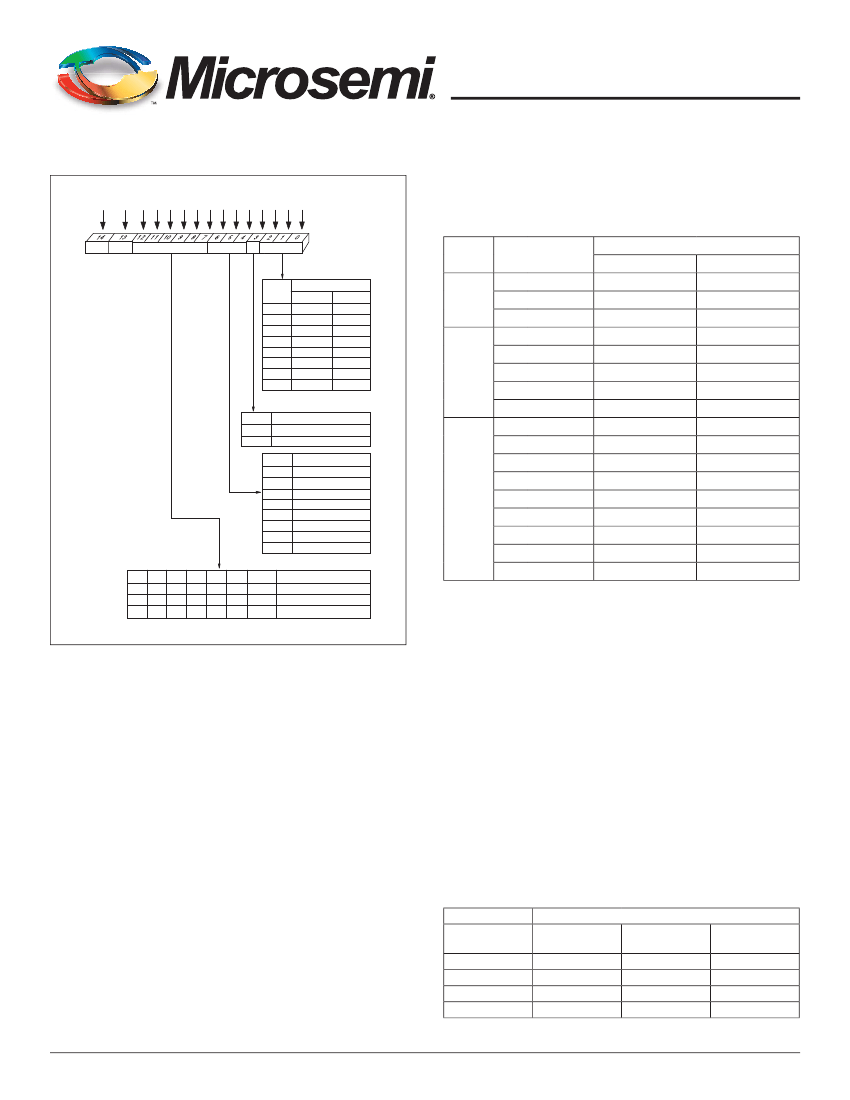

FIGURE 3 – MODE REGISTER DEFINITION
BA
1
BA
0
A
12
A
11
A
10
A
9
A
8
A
7
A
6
A
5
A
4
A
3
A
2
A
1
A
0
Address Bus
All other combinations of values for A7-A12 are reserved for future
use and/or test modes. Test modes and reserved states should
not be used because unknown operation or incompatibility with
future versions may result.
TABLE 1 – BURST DEFINITION
Mode Register (Mx)
0*
0*
Operating Mode
CAS Latency
BT
Burst Length
* M14 and M13
(BA0 and BA1 must be
"0, 0" to select
the base mode register
(vs. the extended
mode register).
Burst
Length
Burst Length
Starting Column
Address
A0
0
1
A1
0
A0
0
1
0
1
A0
0
1
0
1
0
1
0
1
Order of Accesses Within a Burst
Type = Sequential Type = Interleaved
0-1
1-0
0-1-2-3
1-2-3-0
2-3-0-1
3-0-1-2
0-1-2-3-4-5-6-7
1-2-3-4-5-6-7-0
2-3-4-5-6-7-0-1
3-4-5-6-7-0-1-2
4-5-6-7-0-1-2-3
5-6-7-0-1-2-3-4
6-7-0-1-2-3-4-5
7-0-1-2-3-4-5-6
0-1
1-0
0-1-2-3
1-0-3-2
2-3-0-1
3-2-1-0
0-1-2-3-4-5-6-7
1-0-3-2-5-4-7-6
2-3-0-1-6-7-4-5
3-2-1-0-7-6-5-4
4-5-6-7-0-1-2-3
5-4-7-6-1-0-3-2
6-7-4-5-2-3-0-1
7-6-5-4-3-2-1-0
M2 M1 M0
0
0
0
0
1
1
1
1
0 0
0 1
1 0
1 1
0 0
0 1
1 0
1 1
M3 = 0
Reserved
2
4
8
Reserved
Reserved
Reserved
Reserved
M3 = 1
Reserved
2
4
8
Reserved
Reserved
Reserved
Reserved
2
4
0
1
1
A2
0
0
0
A1
0
0
1
1
0
0
1
1
M3
0
1
Burst Type
Sequential
Interleaved
M6 M5 M4
0
0
0
0
1
1
1
1
0 0
0 1
1 0
1 1
0 0
0 1
1 0
1 1
CAS Latency
Reserved
Reserved
2
Reserved
Reserved
Reserved
2.5
Reserved
8
0
1
1
1
1
M12
0
0
-
M11
0
0
-
M10
0
0
-
M9
0
0
-
M8
0
1
-
M7
0
0
-
M6-M0
Valid
Valid
-
Operating Mode
Normal Operation
Normal Operation/Reset DLL
All other states reserved
READ LATENCY
The READ latency is the delay, in clock cycles, between the
registration of a READ command and the availability of the
fi
rst bit
of output data. The latency can be set to 2 or 2.5 clocks.
If a READ command is registered at clock edge n, and the latency
is m clocks, the data will be available by clock edge n+m. Table
2 below indicates the operating frequencies at which each CAS
latency setting can be used.
Reserved states should not be used as unknown operation or
incompatibility with future versions may result.
NOTES:
1. For a burst length of two, A1-Ai select two-data-element block; A0 selects the starting column
within the block.
2. For a burst length of four, A2-Ai select four-data-element block; A0-1 select the starting column
within the block.
3. For a burst length of eight, A3-Ai select eight-data-element block; A0-2 select the starting column
within the block.
4. Whenever a boundary of the block is reached within a given sequence above, the following
access wraps within the block.
EXTENDED MODE REGISTER
The extended mode register controls functions beyond those
controlled by the mode register; these additional functions are DLL
enable/disable, output drive strength, and QFC. These functions
are controlled via the bits shown in Figure 5. The extended mode
register is programmed via the LOAD MODE REGISTER command
to the mode register (with BA0 = 1 and BA1 = 0) and will retain the
stored information until it is programmed again or the device loses
power. The enabling of the DLL should always be followed by a
LOAD MODE REGISTER command to the mode register (BA0/
BA1 both LOW) to reset the DLL.
OPERATING MODE
The normal operating mode is selected by issuing a MODE
REGISTER SET command with bits A7-A12 each set to zero,
and bits A0-A6 set to the desired values. A DLL reset is initiated
by issuing a MODE REGISTER SET command with bits A7 and
A9-A12 each set to zero, bit A8 set to one, and bits A0-A6 set to
the desired values. Although not required, JEDEC specifications
recommend when a LOAD MODE REGISTER command is issued
to reset the DLL, it should always be followed by a LOAD MODE
REGISTER command to select normal operating mode.
TABLE 2 – CAS LATENCY
ALLOWABLE OPERATING FREQUENCY (MHz)
CAS LATENCY
CAS LATENCY = 2
= 2.5
CAS LATENCY = 3
≤
75
≤
100
—
≤
100
≤
125
—
≤
100
≤
133
—
≤
100
≤
166
≤
166
SPEED
-200
-250
-266
-333 IND
Microsemi Corporation reserves the right to change products or specifications without notice.
March 2016
Rev. 10
© 2016 Microsemi Corporation. All rights reserved.
5
Microsemi Corporation • (602) 437-1520 • www.microsemi.com/pmgp
京公网安备 11010802033920号
EEWORLD
