GT40WR21
4. Absolute Maximum Ratings (Note) (T
a
= 25
, unless otherwise specified)
25
Characteristics
Collector-emitter voltage
Gate-emitter voltage
Collector current (DC)
Collector current (1 ms)
Diode forward current (DC)
Diode forward current (100
µs)
Collector power dissipation
Junction temperature
Storage temperature
Mounting torque
(T
c
= 25)
(Note 1)
Symbol
V
CES
V
GES
I
C
I
CP
I
F
I
FP
P
C
T
j
T
stg
TOR
Rating
1800
±25
40
80
20
80
375
175
-55 to 175
0.8
Nm
W
A
Unit
V
Note:
Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
In general, loss of IGBT increases more when it has positive temperature coefficient and gets higher
temperature.
In case that the temperature rise due to loss of IGBT exceeds the heat release capacity of a device, it leads
to thermorunaway and results in destruction.
Therefore, please design heat release of a device with due consideration to the temperature rise of IGBT.
Note 1: Ensure that the junction temperature does not exceed 175.
5. Thermal Characteristics
Characteristics
Junction-to-case thermal resistance
Symbol
R
th(j-c)
Max
0.40
Unit
/W
2
2012-06-05
Rev.1.0
GT40WR21
6. Electrical Characteristics
6.1. Static Characteristics (T
a
= 25
, unless otherwise specified)
25
Characteristics
Gate leakage current
Collector cut-off current
Gate-emitter cut-off voltage
Collector-emitter saturation voltage
Diode forward voltage
Symbol
I
GES
I
CES
V
CE(sat)
V
F
Test Condition
V
GE
=
±25
V, V
CE
= 0 V
V
CE
= 1800 V, V
GE
= 0 V
I
C
= 40 A, V
GE
= 15 V
I
F
= 15 A, V
GE
= 0 V
Min
4.5
Typ.
2.9
1.7
Max
±100
1
7.5
5.9
2.7
Unit
nA
mA
V
V
GE(OFF)
I
C
= 40 mA, V
CE
= 5 V
6.2. Dynamic Characteristics (T
a
= 25
, unless otherwise specified)
25
Characteristics
Input capacitance
Switching time (rise time)
Switching time (turn-on time)
Switching time (fall time)
Switching time (turn-off time)
Reverse recovery time
Symbol
C
ies
t
r
t
on
t
f
t
off
t
rr
I
F
= 15 A, V
GE
= 0 V,
di/dt = -20 A/µs
Test Condition
V
CE
= 10 V, V
GE
= 0 V,
f = 1 MHz
Resistive load
V
CC
= 600 V, I
C
= 40 A,
V
GG
=
±15
V, R
G
= 51
Ω
See Fig. 6.2.1, 6.2.2.
Min
Typ.
4500
0.40
0.55
0.15
0.42
1.0
Max
0.35
Unit
pF
µs

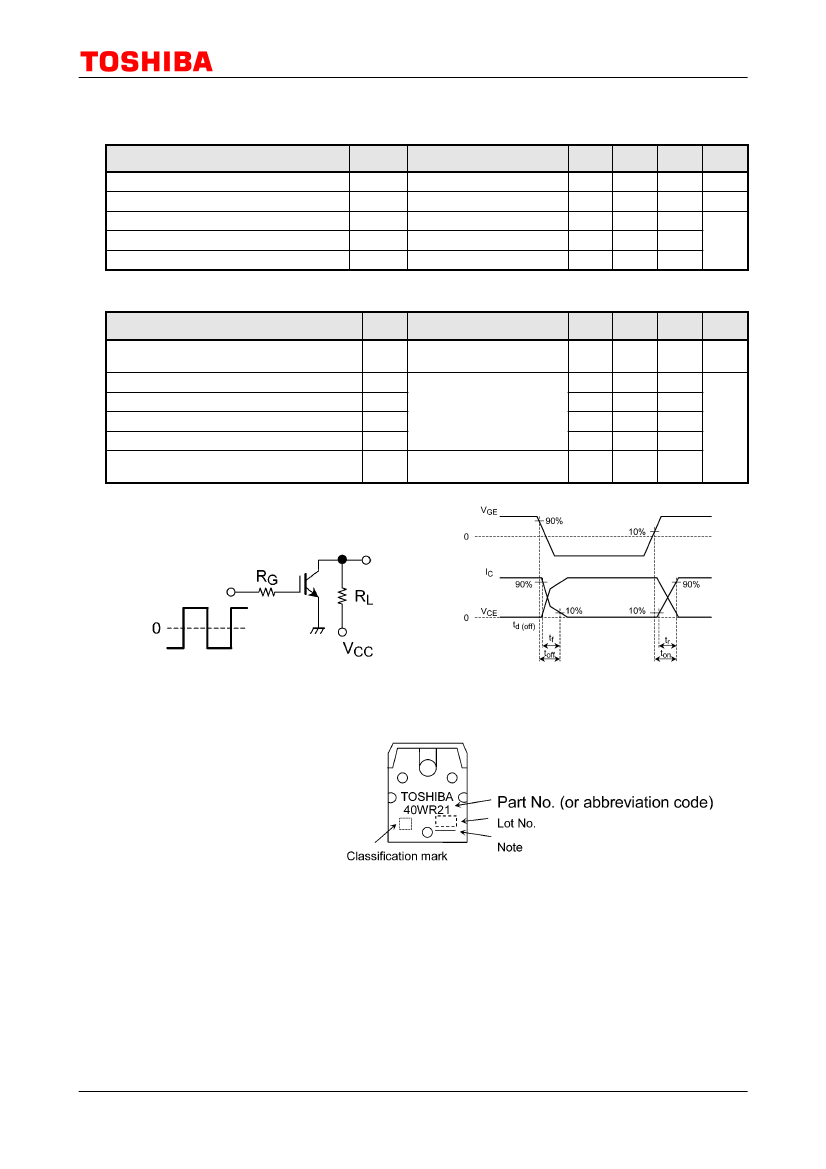

Fig. 6.2.1 Test Circuit of Switching Time
Fig. 6.2.2 Timing Chart of Switching Time
7. Marking (Note)
Fig. 7.1 Marking
Note:
A line under a Lot No. identifies the indication of product Labels.
[[G]]/RoHS COMPATIBLE or [[G]]/RoHS [[Pb]]
Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS
compatibility of Product.
The RoHS is the Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on
the restriction of the use of certain hazardous substances in electrical and electronic equipment.
Note:
This transistor is sensitive to electrostatic discharge and should be handled with care.
3
2012-06-05
Rev.1.0
GT40WR21
