REVISION AJ
DO NOT
SCALE FROM
THIS PRINT
.109 2.77
REF
MEC1-1XX-XX-XX-D-XX-XX
(No OF POS -1) x .03937 [1.00]
C
({(No OF POS +2) x .03937 [1.00]}
+ .100 [2.54])
.007[.18]
.005[.13]
No OF POSITIONS
05, 08, 10, 20, 30, 40 , 50, 60 & 70
(PER ROW, SEE TABLE 2)
CARD THICKNESS
-02: .062 [1.58] THICK CARD
(USE MEC1-XX-S-D-X-X)
.026 0.66 REF
02
16
40
.275 6.99
REF
1.5° MAX SWAY
(ANY DIRECTION)
15
39
01
C
.050 1.27
(No OF POS +2) x
.03937 [1.00] REF
"A"
.350 8.89
REF
"A"
PLATING SPECIFICATION
-F: 3µ" FLASH GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
-L: 10µ" LIGHT GOLD IN CONTACT AREA,
.072 1.83 REF
MATTE TIN ON TAIL
-S: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
MEC1-XX-X-D-X-X
-FM: 3µ" FLASH GOLD IN CONATACT AREA,
MATTE ON TIN TAIL
-LM: 10µ" LIGHT IN CONTACT AREA,
MATTE TIN ON TAIL
-SM: 30µ" SELECTIVE GOLD IN CONTACT AREA,
MATTE TIN ON TAIL
FIG 1
MEC1-120-02-X-D SHOWN
SEE NOTE 5
C
+.005
FLOW INHIBITORS
AT VENDOR DISCRETION
OTHER OPTIONS
-LC: LOCKING CLIP (SEE NOTE 8)
(SEE FIG 2)(USE LC-05-TM)
-A: ALIGNMENT PIN
(MOLDED, SEE FIG 4, SHT 2)
(USE MEC1-XX-X-D-X-A)
-K: POLYIMIDE FILM PAD
(SEE FIG 6, SHT 2)(USE K-DOT-.310-.406-.005)
-TR: TAPE & REEL PACKAGING
(N/A IN 70 POSITION)(SEE FIG 5, SHT 2)
POLARIZED OPTION (SEE TABLE 2)
-BLANK: BODY IS POLARIZED
-NP: NO POLARIZATION (-05 THRU -30 ONLY)
(USE MEC1-XX-X-D-N-X)
ROW SPECIFICATION
-D: DOUBLE ROW
(USE MEC1-XX-X-D-X-X)
.020
- .010
0.51
- 0.25
+0.13
.160 4.07 REF
C
.356
- .002
9.04
- 0.05
+.004
+0.10
90°±3°
.006 0.15 REF
SEE NOTE 2
.320 8.13
REF
C-113-02-XX
.079 2.00
.334 8.49
.030 0.75
SECTION "A"-"A"
PACKAGING VIEW
02
40
IN-PROCESS
(FILL STEP)
C
01
39
MEC1-XX-X-D-N-X
FOR -K OPTION
-NP: NON-POLARIZED OPTION
(AVAILABLE ON -05, -08, -10, -20 & -30 POS. ONLY)
(SHOWN: MEC1-120-02-X-D-NP)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
NO -K OPTION
TUBE: PT-1-24-01-69
PLUG: TP-07
NOTES:
C
+.005
.535
- .000
+0.13
13.59
0.00
TUBE: PT-1-24-01-70
PLUG: TP-29
1. MINIMUM PUSHOUT FORCE: 10 oz.
2. COPLANARITY: POS -05 THRU -26: .004 [.10]
POS -27 THRU -70: .006 [.15]
3.
C
REPRESENTS A CRITICAL DIMENSION.
4. PACKAGE ALL POSITIONS IN TUBES.
(WITH -K OPTION, USE PT-1-24-01-70 TUBE & TP-29 TUBE PLUG)
(WITHOUT -K OPTION, USE PT-1-24-01-69 TUBE & TP-07 TUBE PLUG)
5. MAXIMUM CUT FLASH: .010; FLASH NOT TO EXTEND BELOW LEADS.
6. MAXIMUM ALLOWABLE BOW: .002 INCH/INCH AFTER ASSEMBLY.
7. MAXIMUM BURR: .003[.08], BURR DIRECTION TO BE OPPOSITE OF SOLDER PAD AREA
8. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT
COMPATIBLE WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL PLACEMENT
FOR ALL ASSEMBLIES WITH THE –LC OPTION.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0015 [.038]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR:
VECTRA E130i COLOR: BLACK
CONTACT:
BeCu 190 HM
F:\DWG\MISC\MKTG\MEC1-1XX-XX-XX-D-XX-XX-MKT.SLDDRW

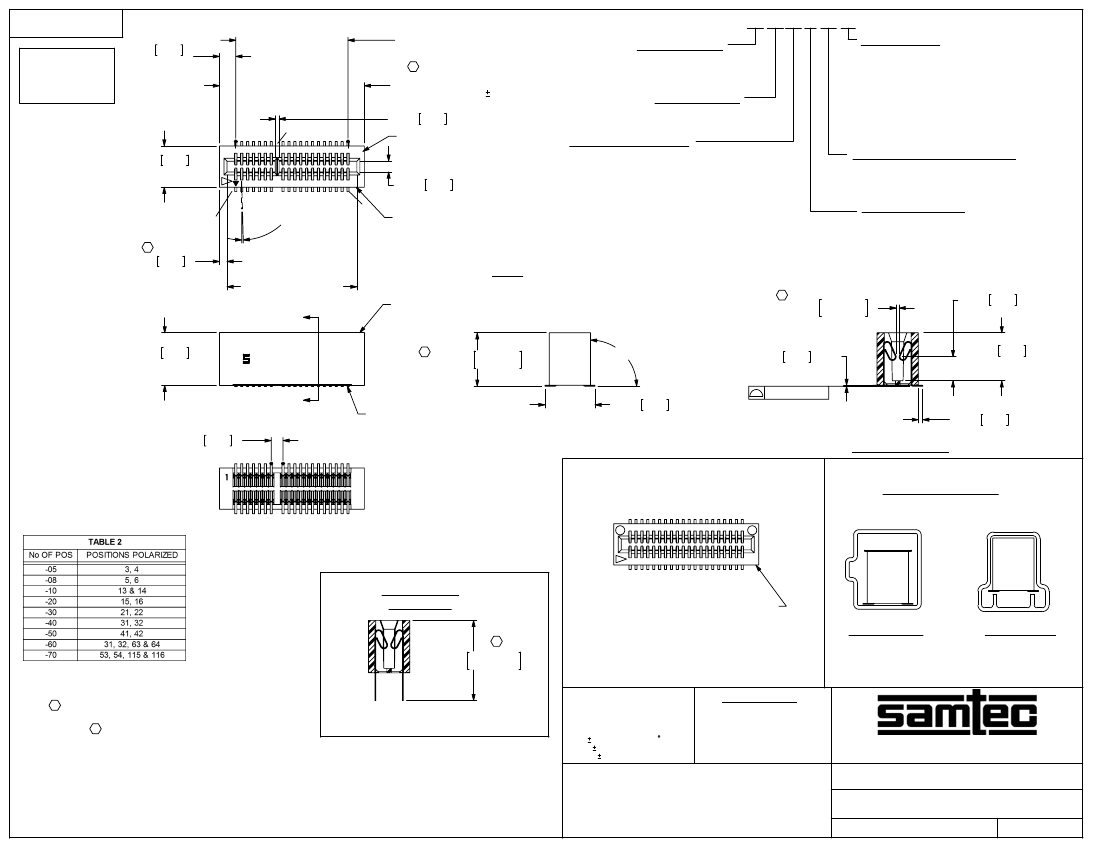

1mm MINI-EDGE CARD ASSEMBLY
5/11/2000
SHEET
1
OF
2
BY:
KEVIN B
MEC1-1XX-XX-XX-D-XX-XX
REVISION AJ

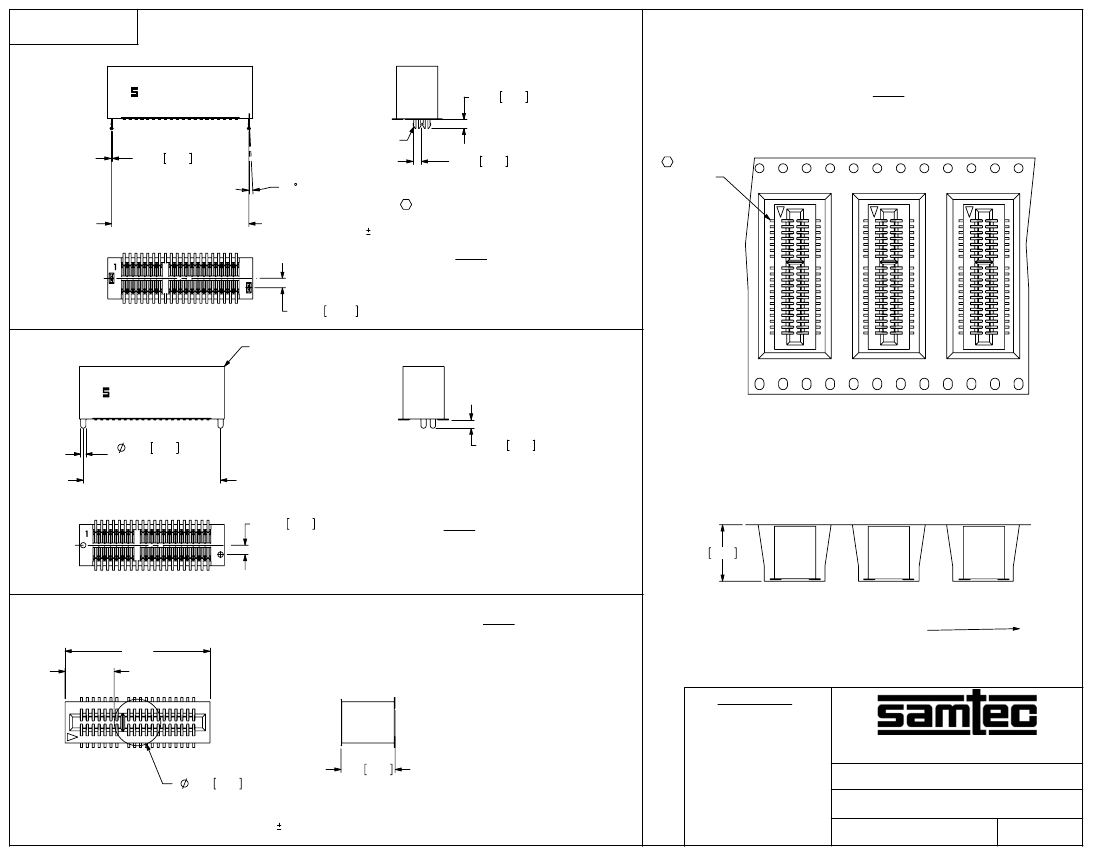

FIG 5
.059 1.50 (TYP)
-TR: TAPE & REEL PACKAGING VIEW
(NOT DRAWN TO SCALE)
LC-05-TM
.010 0.25 REF
2 MAX SWAY
(EITHER DIRECTION)
.056 1.42 REF (TYP)
C
POSITION 1
C
({(No OF POS +2) x .03937[1.00]}
+ .0490[1.245]) .005[.13]
FIG 2
-LC OPTION
(SHOWN: MEC1-120-02-X-D-LC)
.0625 1.588 REF
MEC1-XX-X-D-X-A
.035 0.89 REF
(TYP)
.055 1.40 REF
({(No OF POS +2) x .03937[1.0000]}
+ .0490[1.245]) REF
.0625 1.59 REF
-A: ALIGNMENT PIN OPTION (MOLDED)
(SHOWN: MEC1-120-02-X-D-A)
FIG 4
.376 9.55 REF
FIG 6
"M"
"P"
02
16
40
-K: POLYIMIDE FILM PAD OPTION
(SHOWN: MEC1-120-02-X-D-K)
USER DIRECTION OF UNREELING
F:\DWG\MISC\MKTG\MEC1-1XX-XX-XX-D-XX-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
01
15
39
.310 7.87
NOTE: "M" = USED MEASURED DIMENSION (REF)
"P" = {("M" - .310 [7.87]) / 2} .020 [.51]
.361 9.17
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
1mm MINI-EDGE CARD ASSEMBLY
BY:
KEVIN B
MEC1-1XX-XX-XX-D-XX-XX
5/11/2000
SHEET
2
OF
2
