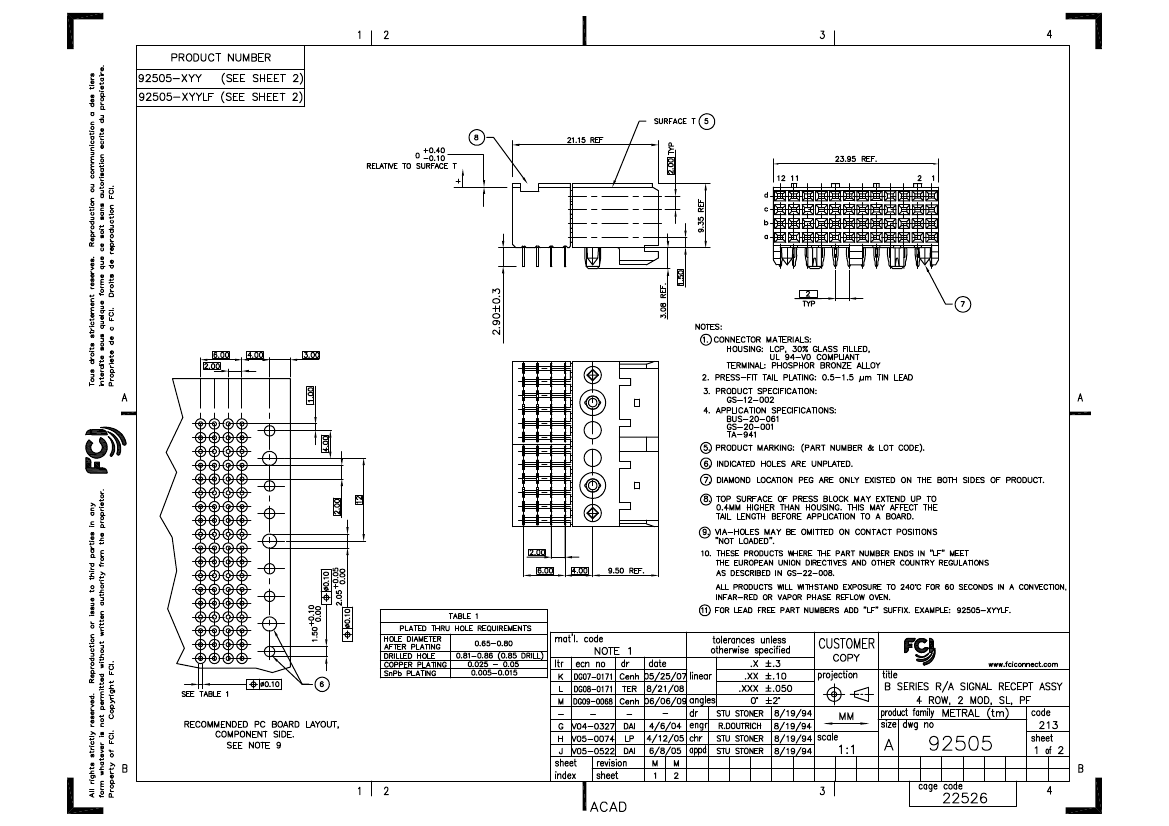

Preview

92505-103: DescriptionBoard Connector, 26 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size159KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

92505-103 Overview

Board Connector, 26 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,

92505-103 Parametric

Parameter Name	Attribute value
Objectid	2140618649
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
body width	0.368 inch
subject depth	0.833 inch
body length	0.943 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Guideline	UL
Terminal length	0.114 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	26
UL Flammability Code	94V-0

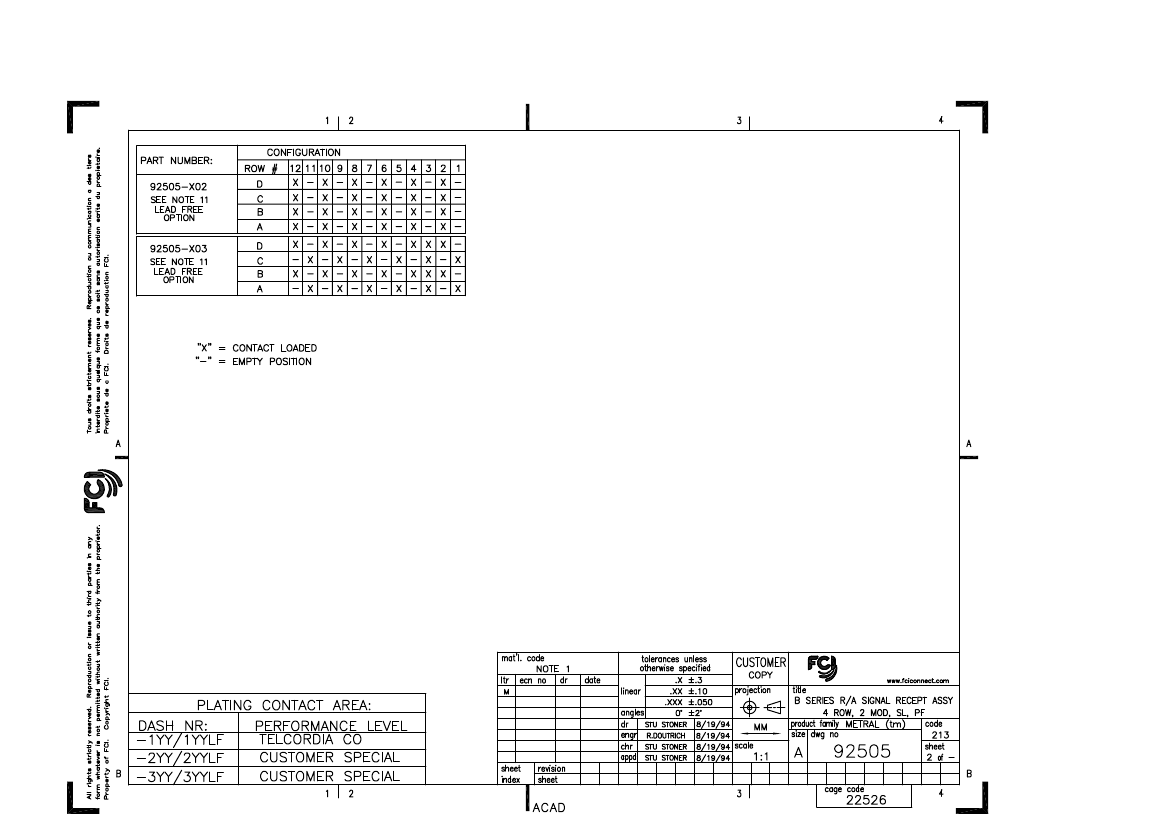

Preview

Download Datasheet

View All

PDM: Rev:M

STATUS:

Released

Printed: May 19, 2011

.

92505-103 Related Products

	92505-103	92505-102LF	92505-202	92505-302LF	92505-103LF
Description	Board Connector, 26 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,	Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle,	Board Connector, 24 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE	Board Connector, 26 Contact(s), 4 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Locking, Receptacle, LEAD FREE
Objectid	2140618649	2140618646	2140618651	2140618654	2140618648
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
YTEOL	8.6	8.6	8.6	8.6	8.6
body width	0.368 inch	0.368 inch	0.368 inch	0.368 inch	0.368 inch
subject depth	0.833 inch	0.833 inch	0.833 inch	0.833 inch	0.833 inch
body length	0.943 inch	0.943 inch	0.943 inch	0.943 inch	0.943 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact completed and terminated	TIN/LEAD	TIN	TIN/LEAD	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	4	4	4	4	4
Number of rows loaded	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL
Terminal length	0.114 inch	0.114 inch	0.114 inch	0.114 inch	0.114 inch
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	26	24	24	24	26
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Is it Rohs certified?	-	conform to	-	conform to	conform to
package instruction	-	LEAD FREE	-	LEAD FREE	LEAD FREE
Contact to complete cooperation	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Contact material	-	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
