27.008.4553.0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 27.008.4553.0

27.008.4553.0: DescriptionStrip Terminal Block, 12A, 2.5mm2, 2 Row(s), 1 Deck(s); CategoryThe connector terminals; File Size87KB，2 Pages; ManufacturerWieland Electric GmbH; Websitehttps://www.wieland-electric.com/

Download Datasheet Parametric View All

27.008.4553.0 Overview

Strip Terminal Block, 12A, 2.5mm2, 2 Row(s), 1 Deck(s)

27.008.4553.0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	POLYAMIDE66, 94V-0
Fastening method	SPRING LOADED
Manufacturer's serial number	8291
Installation type	BOARD
Number of layers	1
Rows	2
Number of channels	30
Rated current	12 A
Rated voltage	300 V
safety certificate	UL; CSA
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

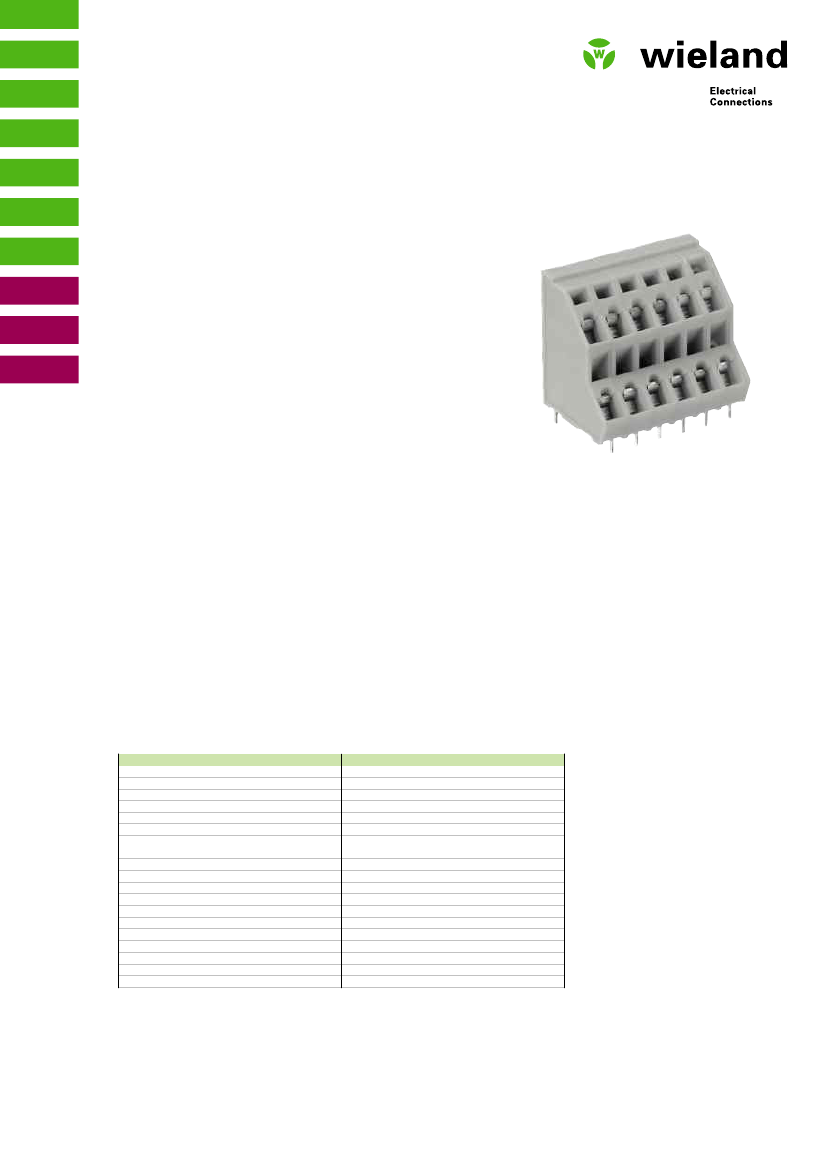

wiecon

Type 8291 EFK

Two-tier PC board terminal in spring clamp technology

Characteristics

Conductors connected using spring clamp technology

Two connection tiers

For solid and fine-stranded wires

Identical (TOP) direction for operation and connection

Large clamping body

4 - 48 pole designs

Frameless construction

5.08 mm spacing

Color pebble gray (similar to RAL 7032)

PC Board Terminals and Connectors

CUSTOMER INFORMATION

Advantages

Time-saving wiring

High packing density

Vibration-proof

High conductor pull-out forces

No special tools required

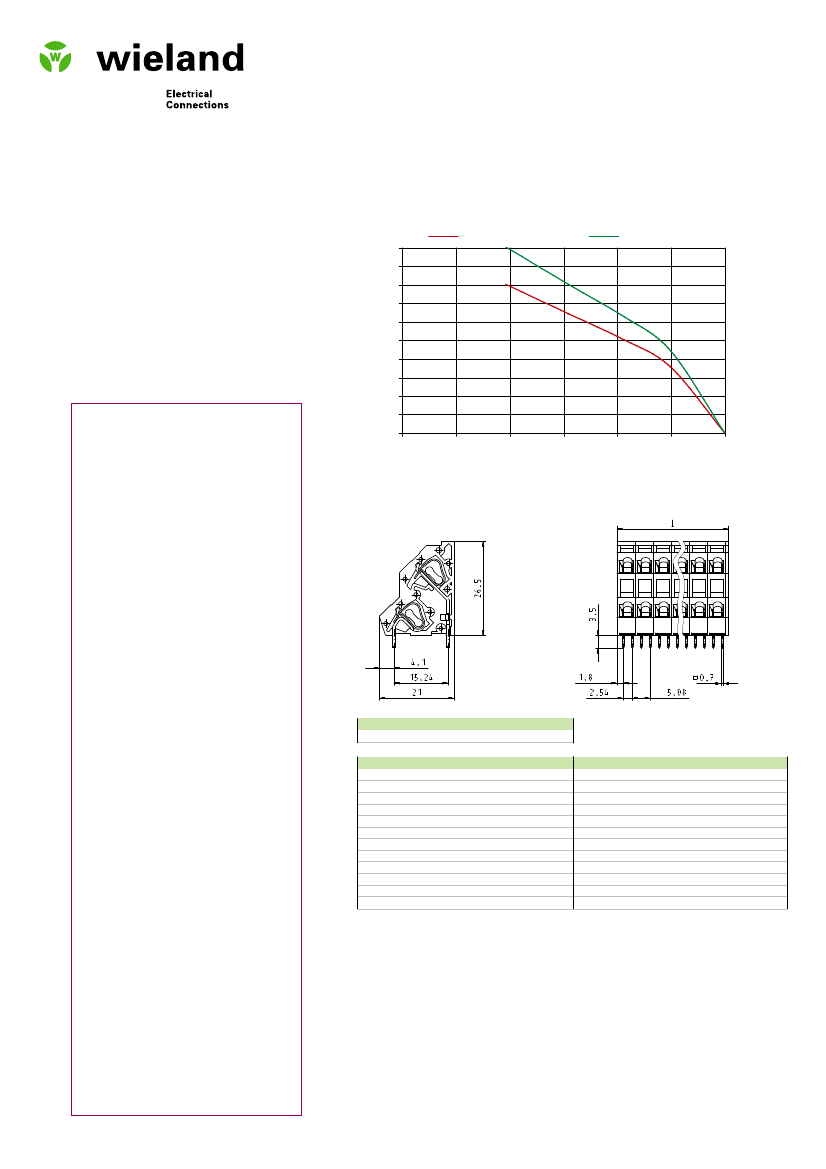

Description

wiecon

Type 8191 EFK

PC board terminal in spring clamp technology

Frameless construction

Spacing

Number of poles

Rated current

Rated voltage

Rated peak voltage

Wire range

AWG wire range

Degree of pollution

Material

Temperature range

Flammability according to UL 94

Conductor

– Insulation strip length

Conductor pull-out forces

Approvals

5.08 mm

4 - 48 (others on request)

12 A

250 V (DIN EN 60664-1)

300 V (UL, CSA)

4 kV

0.08 - 2.5 mm

28 - 12

PA 66

- 40°C – + 100°C

5 - 6 mm

According to EN

UL, CSA

0142.5 H 11/06
