DIODE 75 A, 1200 V, SILICON, RECTIFIER DIODE, Rectifier Diode

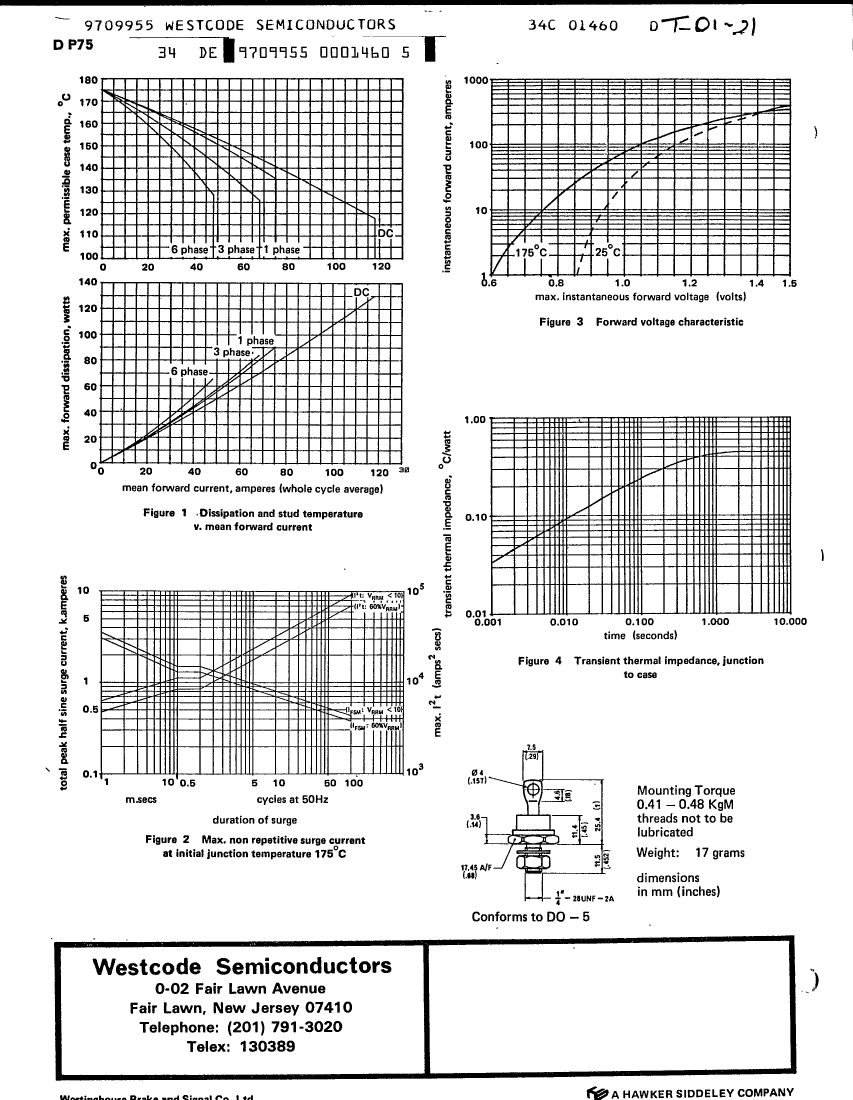

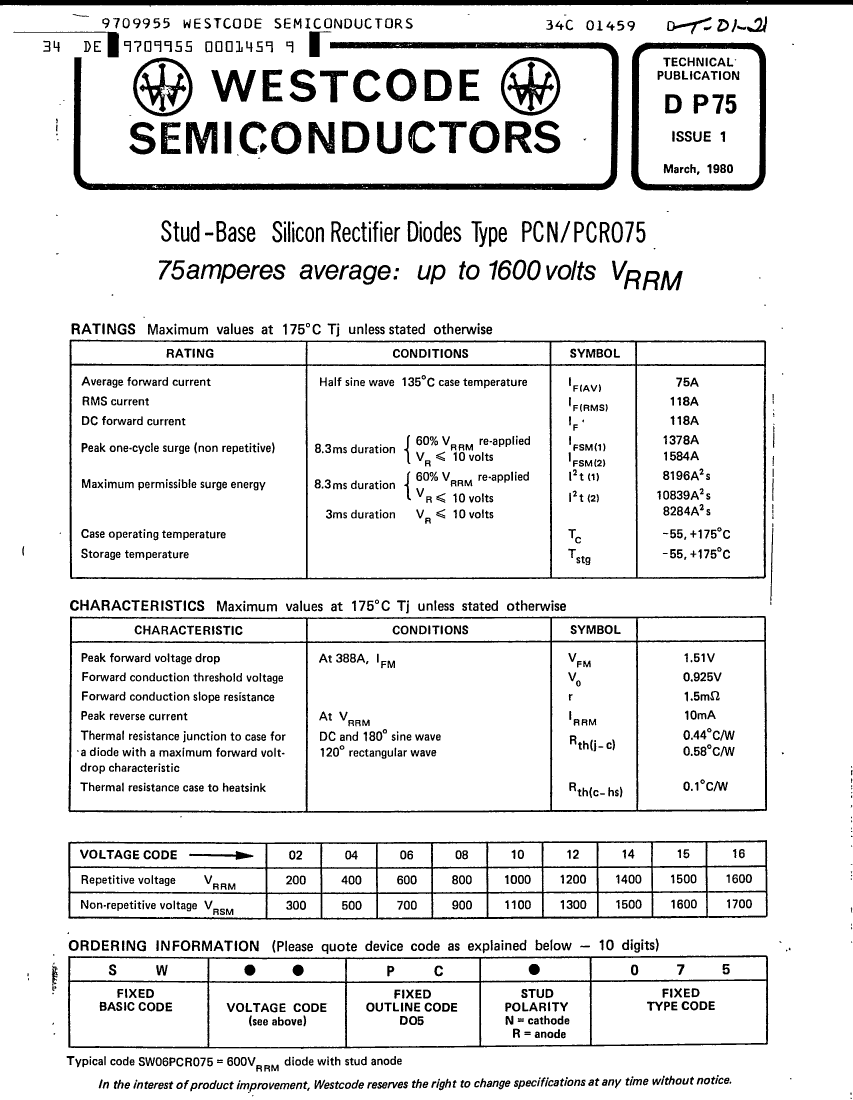

| Parameter Name | Attribute value |
| Maker | IXYS |
| package instruction | O-MUPM-D1 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | ANODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.51 V |
| JESD-30 code | O-MUPM-D1 |
| Maximum non-repetitive peak forward current | 1495 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum operating temperature | 175 °C |
| Maximum output current | 75 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 1200 V |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| SW12PCR075 | SW02PCR075 | SW08PCN075 | SW06PCN075 | SW14PCN075 | SW16PCN075 | SW02PCN075 | SW04PCR075 | SW06PCR075 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | DIODE 75 A, 1200 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 75 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 75 A, 800 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 75 A, 600 V, SILICON, RECTIFIER DIODE, Rectifier Diode | Rectifier Diode, 1 Element, 75A, 1400V V(RRM), | Rectifier Diode, 1 Element, 75A, 1600V V(RRM), | DIODE 75 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 75 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 75 A, 600 V, SILICON, RECTIFIER DIODE, Rectifier Diode |
| Maker | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS | IXYS |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.51 V | 1.51 V | 1.51 V | 1.51 V | 1.51 V | 1.51 V | 1.51 V | 1.51 V | 1.51 V |
| Maximum non-repetitive peak forward current | 1495 A | 1495 A | 1495 A | 1495 A | 1300 A | 1300 A | 1495 A | 1495 A | 1495 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Maximum output current | 75 A | 75 A | 75 A | 75 A | 75 A | 75 A | 75 A | 75 A | 75 A |
| Maximum repetitive peak reverse voltage | 1200 V | 200 V | 800 V | 600 V | 1400 V | 1600 V | 200 V | 400 V | 600 V |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO | NO |
| package instruction | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | - | - | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | - | - | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ANODE | ANODE | CATHODE | CATHODE | - | - | CATHODE | ANODE | ANODE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | - | - | SILICON | SILICON | SILICON |
| JESD-30 code | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 | - | - | O-MUPM-D1 | O-MUPM-D1 | O-MUPM-D1 |
| Phase | 1 | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | - | - | 1 | 1 | 1 |
| Package body material | METAL | METAL | METAL | METAL | - | - | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | - | - | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | - | - | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | - | Not Qualified | Not Qualified | Not Qualified |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | - | - | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | - | - | UPPER | UPPER | UPPER |
