2211-380D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 2211-380D

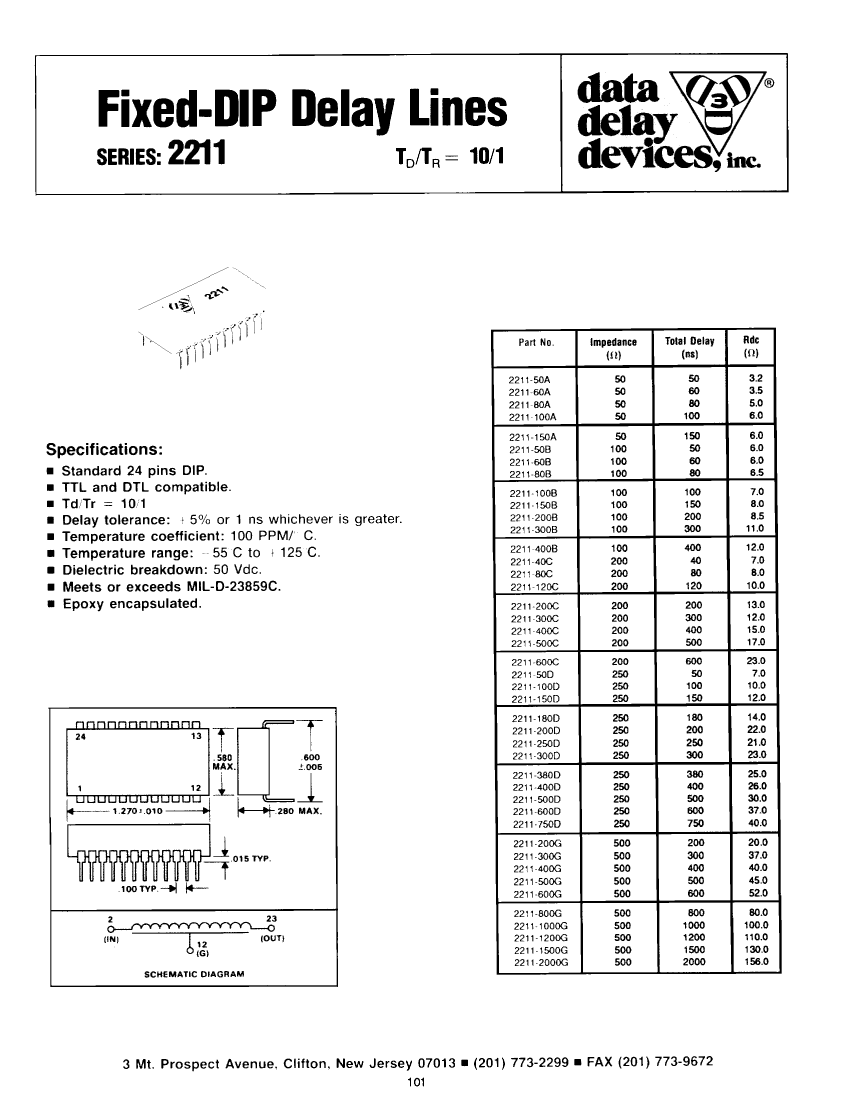

2211-380D: DescriptionPassive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, PDIP24, PLASTIC, DIP-24; Categorylogic logic; File Size37KB，1 Pages; ManufacturerData Delay Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

2211-380D Overview

Passive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, PDIP24, PLASTIC, DIP-24

2211-380D Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	PLASTIC, DIP-24
Contacts	24
Reach Compliance Code	compli
Other features	MEETS MIL-D-23859C; TD/TR = 10/1; DIELECTRIC STRENGTH 50VDC
JESD-30 code	R-PDIP-T24
JESD-609 code	e3
length	32.258 mm
Logic integrated circuit type	PASSIVE DELAY LINE
Number of functions	1
Number of taps/steps	1
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance nominal value (Z0)	250 Ω
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
programmable delay line	NO
Prop。Delay @ Nom-Su	399 ns
Certification status	Not Qualified
Maximum seat height	7.493 mm
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Total delay nominal (td)	380 ns
width	15.24 mm
Base Number Matches	1

Preview

Download Datasheet

View All

2211-380D Related Products

	2211-380D	2211-180D	2211-750D
Description	Passive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, PDIP24, PLASTIC, DIP-24	Passive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, PDIP24, PLASTIC, DIP-24	Passive Delay Line, 1-Func, 1-Tap, True Output, Hybrid, PDIP24, PLASTIC, DIP-24
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	DIP	DIP	DIP
package instruction	PLASTIC, DIP-24	DIP, DIP24,.6	PLASTIC, DIP-24
Contacts	24	24	24
Reach Compliance Code	compli	compli	compli
Other features	MEETS MIL-D-23859C; TD/TR = 10/1; DIELECTRIC STRENGTH 50VDC	MEETS MIL-D-23859C; TD/TR = 10/1; DIELECTRIC STRENGTH 50VDC	MEETS MIL-D-23859C; TD/TR = 10/1; DIELECTRIC STRENGTH 50VDC
JESD-30 code	R-PDIP-T24	R-PDIP-T24	R-PDIP-T24
JESD-609 code	e3	e3	e3
length	32.258 mm	32.258 mm	32.258 mm
Logic integrated circuit type	PASSIVE DELAY LINE	PASSIVE DELAY LINE	PASSIVE DELAY LINE
Number of functions	1	1	1
Number of taps/steps	1	1	1
Number of terminals	24	24	24
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output impedance nominal value (Z0)	250 Ω	250 Ω	250 Ω
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
programmable delay line	NO	NO	NO
Prop。Delay @ Nom-Su	399 ns	189 ns	787.5 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	7.493 mm	7.493 mm	7.493 mm
surface mount	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Total delay nominal (td)	380 ns	180 ns	750 ns
width	15.24 mm	15.24 mm	15.24 mm
Base Number Matches	1	1	1
