BFP91A: DescriptionTRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal; CategoryDiscrete semiconductor The transistor; File Size35KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BFP91A Overview

TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal

BFP91A Parametric

Parameter Name	Attribute value
Maker	NXP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW NOISE
Maximum collector current (IC)	0.05 A
Collector-emitter maximum voltage	12 V
Configuration	SINGLE
Minimum DC current gain (hFE)	40
highest frequency band	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-CRMW-F4
Number of components	1
Number of terminals	4
Maximum operating temperature	175 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	RADIAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	6000 MHz

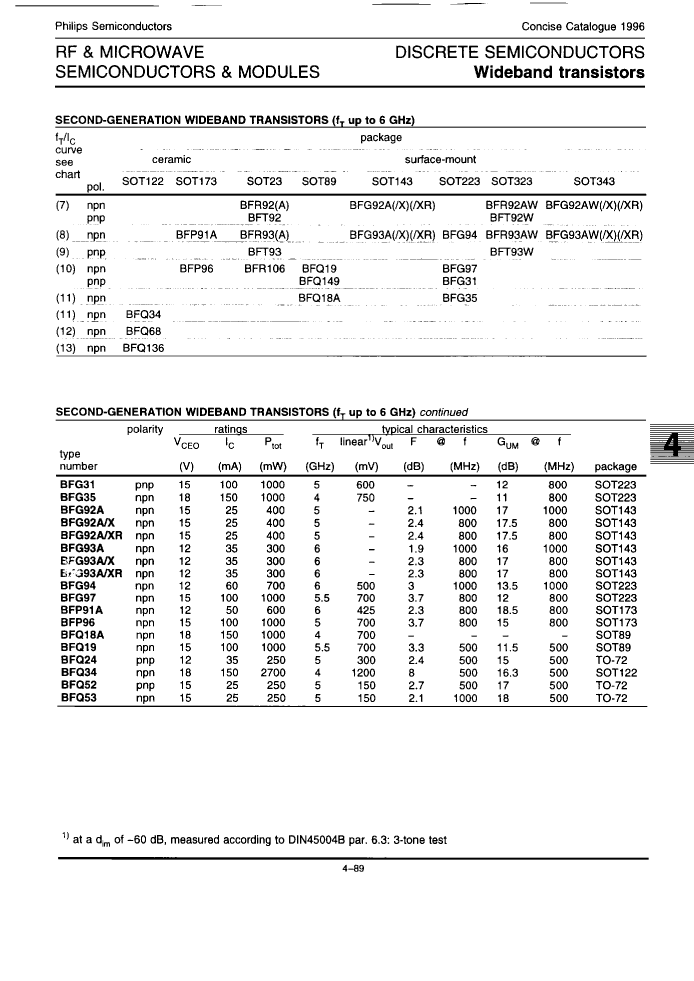

Preview

Download Datasheet

View All

BFP91A Related Products

	BFP91A	BFG93A/XR-T	BFP96	BFQ52	BFQ52,112	BFG92A-T	BFQ53	BFQ24
Description	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, PNP, RF SMALL SIGNAL TRANSISTOR, TO-72, BIP RF Small Signal	RF Small Signal Bipolar Transistor, 0.025A I(C), 1-Element, Ultra High Frequency Band, Silicon, PNP, TO-72	TRANSISTOR L BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, NPN, RF SMALL SIGNAL TRANSISTOR, TO-72, BIP RF Small Signal	TRANSISTOR UHF BAND, Si, PNP, RF SMALL SIGNAL TRANSISTOR, TO-72, BIP RF Small Signal
Reach Compliance Code	compliant	unknow	compliant	unknown	unknown	unknown	unknown	unknown
Other features	LOW NOISE	HIGH RELIABILITY	LOW NOISE	LOW NOISE	LOW NOISE	HIGH RELIABILITY	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.05 A	0.035 A	0.1 A	0.025 A	0.025 A	0.025 A	0.025 A	0.035 A
Collector-emitter maximum voltage	12 V	12 V	15 V	15 V	15 V	15 V	15 V	12 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
highest frequency band	ULTRA HIGH FREQUENCY BAND	L BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND	L BAND	ULTRA HIGH FREQUENCY BAND	ULTRA HIGH FREQUENCY BAND
JESD-30 code	O-CRMW-F4	R-PDSO-G4	O-CRMW-F4	O-MBCY-W3	O-MBCY-W3	R-PDSO-G4	O-MBCY-W3	O-MBCY-W3
Number of components	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	3	3	4	3	3
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	METAL	METAL	PLASTIC/EPOXY	METAL	METAL
Package shape	ROUND	RECTANGULAR	ROUND	ROUND	ROUND	RECTANGULAR	ROUND	ROUND
Package form	MICROWAVE	SMALL OUTLINE	MICROWAVE	CYLINDRICAL	CYLINDRICAL	SMALL OUTLINE	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	PNP	PNP	NPN	NPN	PNP
surface mount	YES	YES	YES	NO	NO	YES	NO	NO
Terminal form	FLAT	GULL WING	FLAT	WIRE	WIRE	GULL WING	WIRE	WIRE
Terminal location	RADIAL	DUAL	RADIAL	BOTTOM	BOTTOM	DUAL	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	6000 MHz	6000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz	5000 MHz
Maker	NXP	-	NXP	NXP	NXP	NXP	NXP	NXP
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99	EAR99
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
package instruction	-	SMALL OUTLINE, R-PDSO-G4	-	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3	SMALL OUTLINE, R-PDSO-G4	CYLINDRICAL, O-MBCY-W3	CYLINDRICAL, O-MBCY-W3
Shell connection	-	COLLECTOR	-	SHIELD	-	COLLECTOR	SHIELD	SHIELD
