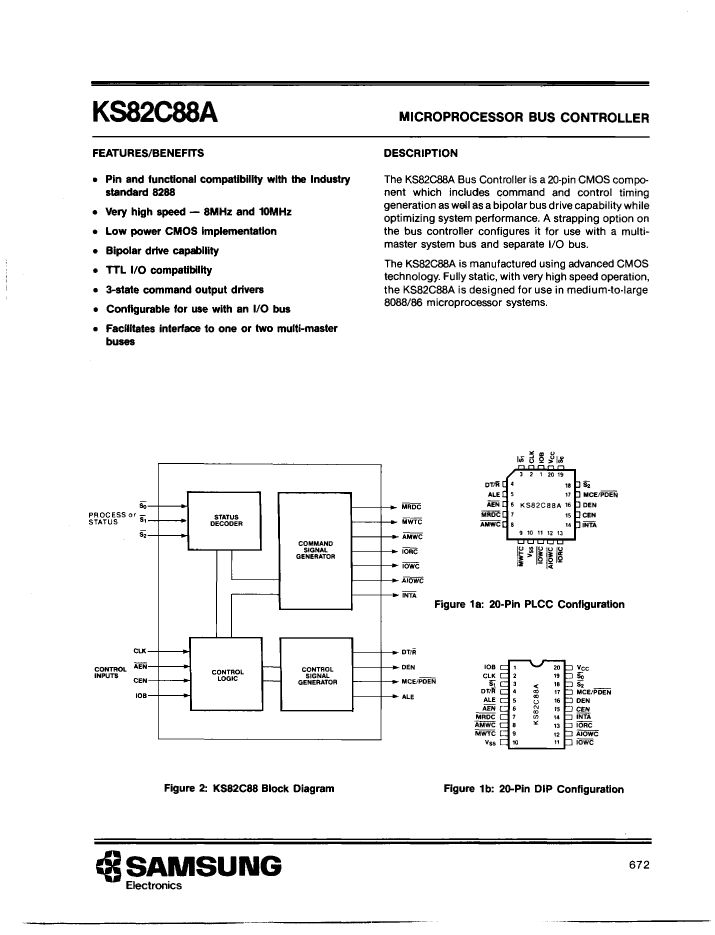

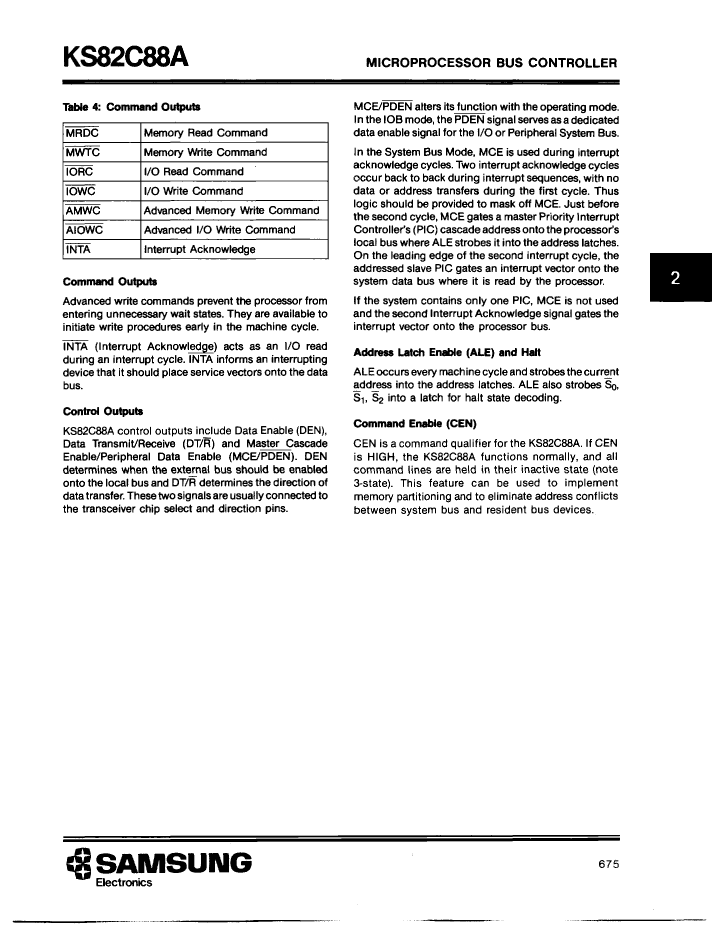

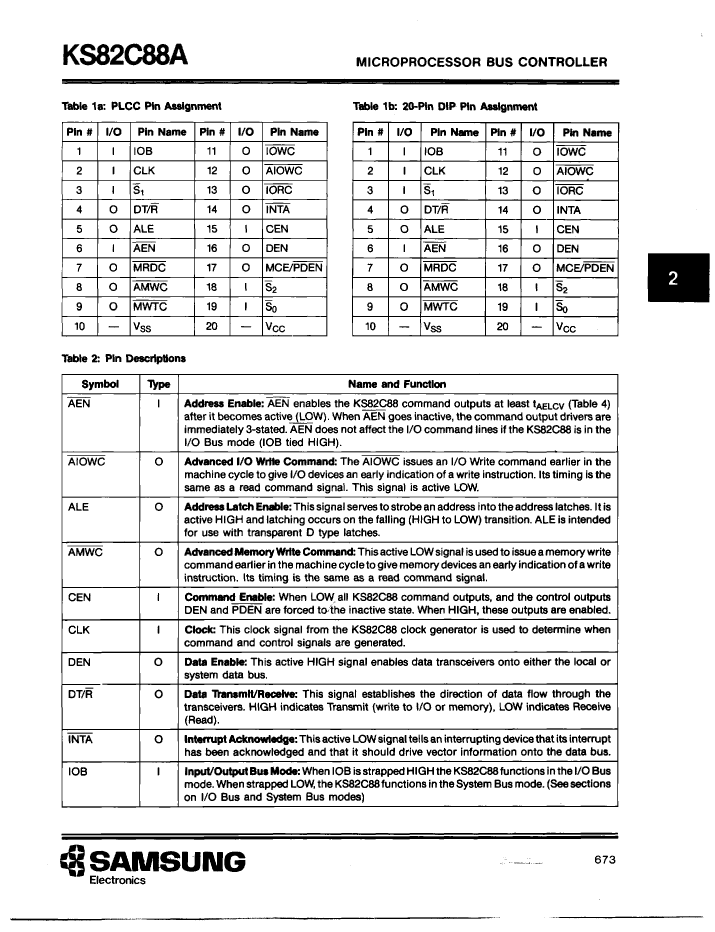

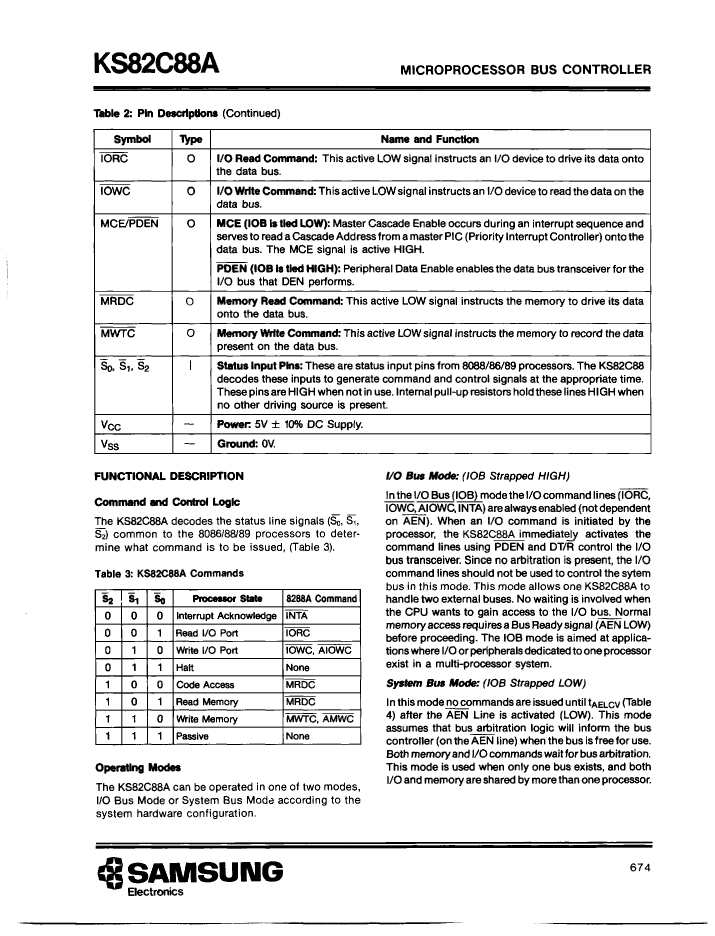

Control/Command Signal Generator, 8MHz, CMOS, PQCC20, PLASTIC, LCC-20

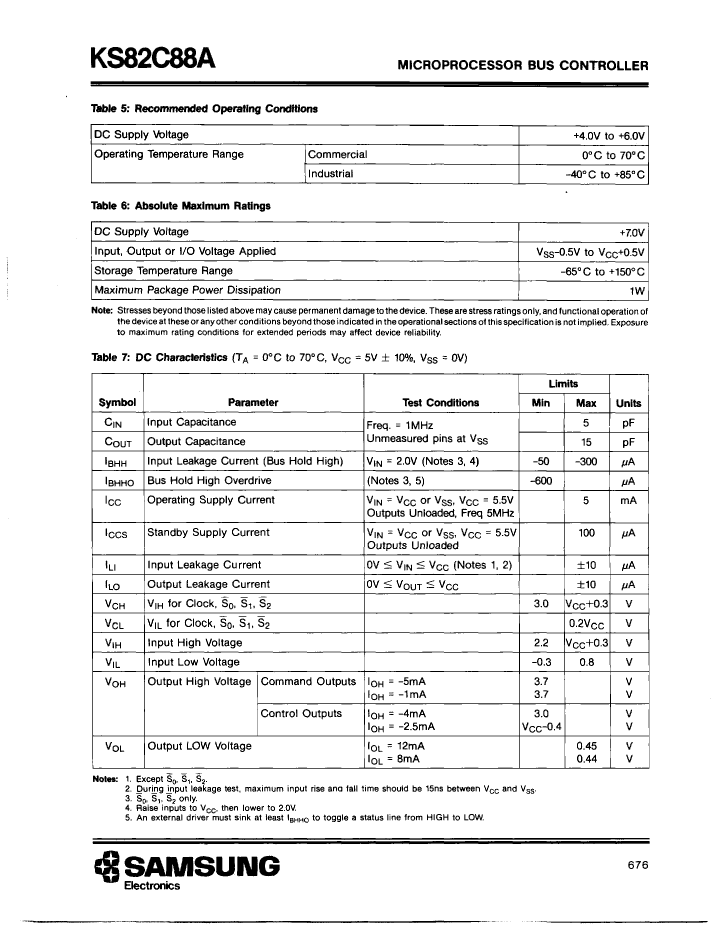

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SAMSUNG |
| Parts packaging code | QLCC |
| package instruction | QCCJ, LDCC20,.4SQ |
| Contacts | 20 |
| Reach Compliance Code | unknown |
| Bus compatibility | 8088; 8086 |
| maximum clock frequency | 8 MHz |
| JESD-30 code | S-PQCC-J20 |
| JESD-609 code | e0 |
| length | 8.9662 mm |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | QCCJ |
| Encapsulate equivalent code | LDCC20,.4SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| Maximum seat height | 4.57 mm |
| Maximum slew rate | 5 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 8.9662 mm |
| uPs/uCs/peripheral integrated circuit type | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR |
| KS82C88A-8IL | KS82C88A-8IP | KS82C88A-8CL | KS82C88A-10CL | KS82C88A-10CP | KS82C88A-10IP | KS82C88A-8CP | KS82C88A-10IL | |
|---|---|---|---|---|---|---|---|---|
| Description | Control/Command Signal Generator, 8MHz, CMOS, PQCC20, PLASTIC, LCC-20 | Control/Command Signal Generator, 8MHz, CMOS, PDIP20, PLASTIC, DIP-20 | Control/Command Signal Generator, 8MHz, CMOS, PQCC20, PLASTIC, LCC-20 | Control/Command Signal Generator, 10MHz, CMOS, PQCC20, PLASTIC, LCC-20 | Control/Command Signal Generator, 10MHz, CMOS, PDIP20, PLASTIC, DIP-20 | Control/Command Signal Generator, 10MHz, CMOS, PDIP20, PLASTIC, DIP-20 | Control/Command Signal Generator, 8MHz, CMOS, PDIP20, PLASTIC, DIP-20 | Control/Command Signal Generator, 10MHz, CMOS, PQCC20, PLASTIC, LCC-20 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | QLCC | DIP | QLCC | QLCC | DIP | DIP | DIP | QLCC |
| package instruction | QCCJ, LDCC20,.4SQ | DIP, DIP20,.3 | QCCJ, LDCC20,.4SQ | QCCJ, LDCC20,.4SQ | DIP, DIP20,.3 | DIP, DIP20,.3 | DIP, DIP20,.3 | QCCJ, LDCC20,.4SQ |
| Contacts | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| Bus compatibility | 8088; 8086 | 8088; 8086 | 8088; 8086 | 8088; 8086 | 8088; 8086 | 8088; 8086 | 8088; 8086 | 8088; 8086 |
| maximum clock frequency | 8 MHz | 8 MHz | 8 MHz | 10 MHz | 10 MHz | 10 MHz | 8 MHz | 10 MHz |
| JESD-30 code | S-PQCC-J20 | R-PDIP-T20 | S-PQCC-J20 | S-PQCC-J20 | R-PDIP-T20 | R-PDIP-T20 | R-PDIP-T20 | S-PQCC-J20 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 8.9662 mm | 26.6192 mm | 8.9662 mm | 8.9662 mm | 26.6192 mm | 26.6192 mm | 26.6192 mm | 8.9662 mm |
| Number of terminals | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Maximum operating temperature | 85 °C | 85 °C | 70 °C | 70 °C | 70 °C | 85 °C | 70 °C | 85 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | QCCJ | DIP | QCCJ | QCCJ | DIP | DIP | DIP | QCCJ |
| Encapsulate equivalent code | LDCC20,.4SQ | DIP20,.3 | LDCC20,.4SQ | LDCC20,.4SQ | DIP20,.3 | DIP20,.3 | DIP20,.3 | LDCC20,.4SQ |
| Package shape | SQUARE | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | IN-LINE | CHIP CARRIER | CHIP CARRIER | IN-LINE | IN-LINE | IN-LINE | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 4.57 mm | 4.32 mm | 4.57 mm | 4.57 mm | 4.32 mm | 4.32 mm | 4.32 mm | 4.57 mm |
| Maximum slew rate | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA | 5 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | NO | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | INDUSTRIAL | COMMERCIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | J BEND | THROUGH-HOLE | J BEND | J BEND | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | J BEND |
| Terminal pitch | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | DUAL | QUAD | QUAD | DUAL | DUAL | DUAL | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 8.9662 mm | 7.62 mm | 8.9662 mm | 8.9662 mm | 7.62 mm | 7.62 mm | 7.62 mm | 8.9662 mm |
| uPs/uCs/peripheral integrated circuit type | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR | SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR |
| Maker | SAMSUNG | SAMSUNG | SAMSUNG | - | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG |
