20SVP27M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 20SVP27M

20SVP27M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 27uF, SURFACE MOUNT, 2626, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size76KB，2 Pages; ManufacturerSANYO; Websitehttp://www.semic.sanyo.co.jp/english/index-e.html

Download Datasheet Parametric View All

20SVP27M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	20SVP27M	-	-	View	Buy Now

20SVP27M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, SOLID POLYMER, POLARIZED, 20V, 27uF, SURFACE MOUNT, 2626, CHIP, ROHS COMPLIANT

20SVP27M Parametric

Parameter Name	Attribute value
Objectid	2011668412
package instruction	, 2626
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	27 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (SOLID POLYMER)
ESR	60 mΩ
Manufacturer's serial number	SVP
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	20 V
ripple current	72.5 mA
size code	2626
surface mount	YES
Delta tangent	0.1
Terminal shape	FLAT

Preview

Download Datasheet

View All

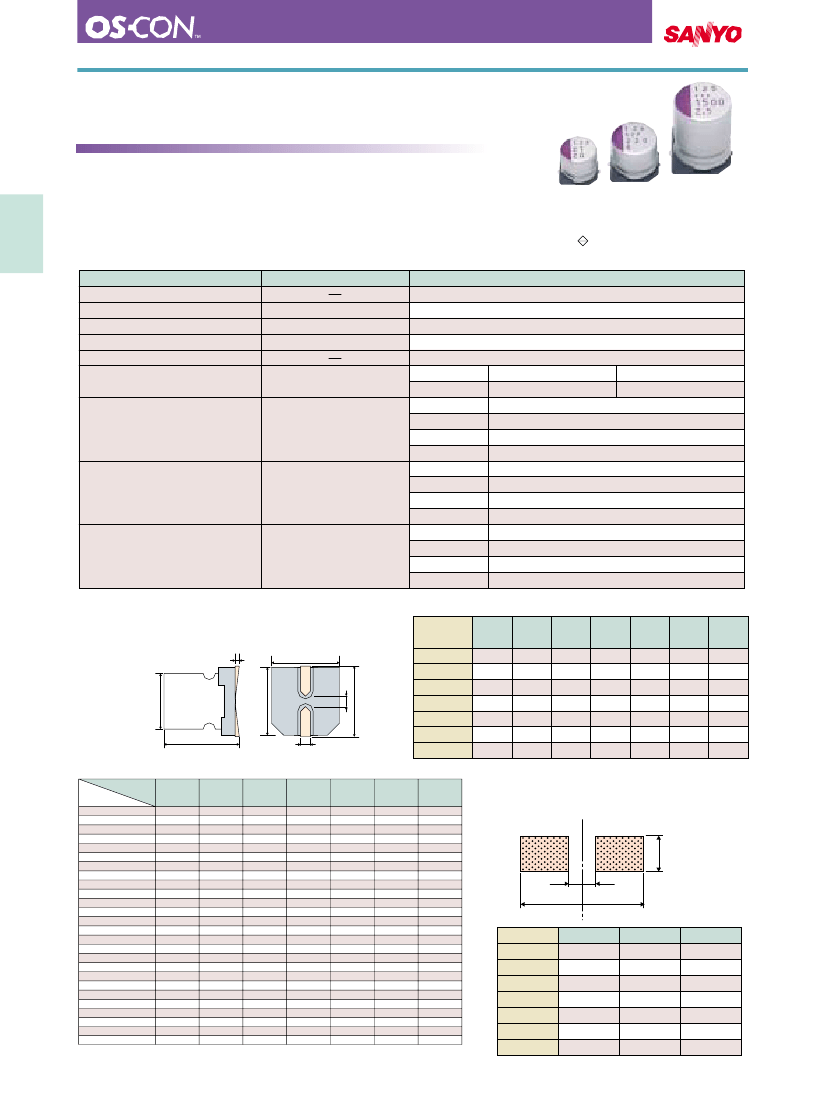

SPECIFICATIONS FOR EACH SERIES

Conductive polymer type

SVP

Specifications for

each series

Series

Standard SMD type

Standard SMD type product

Use for surface mounted type switching power supplies.

This product can support lead free-reflow. (※2).

■Specifications

Items

Category temperature range

Tolerance on rated capacitance

Tangent of loss angle

Leakage current

※1

ESR

Characteristics of impedance

ratio at high temp. and low temp.

Conditions

Marking : Polarity( ), Rated voltage, Lot.No.

(Purple) SVP(Upper E7), Rated capacitance.

Characteristics

-55°C to +105°C

±20%

120Hz

Less than or equal to the value of Table7

120Hz

After 2 minutes

Less than or equal to the value of Table7

Based the value at

Z / Z

20°C

0.75 to 1.25

-55°C

100KHz，+20°C

Z / Z

20°C

0.75 to 1.25

+105°C

∆C/C

Within

±20%

105°C, 2,000h, Rated

tanδ

1.5 times or less than an initial standard

Endurance

voltage applied

ESR

1.5 times or less than an initial standard

(25V→20V applied)

Leakage current

Below an initial standard

∆C/C

Within

±20%

60°C, 90 to 95%RH,

tanδ

1.5 times or less than an initial standard

Damp heat (Steady state)

1,000h,

ESR

1.5 times or less than an initial standard

No-applied voltage

Leakage current Below an initial standard (after voltage processing)

Within

±10%

∆C/C

Resistance to

1.3 times or less than an initial standard

tanδ

※2

(VPS) (230°C X 75s)

soldering heat

1.3 times or less than an initial standard

ESR

Leakage current Below an initial standard (after voltage processing)

※1

In case of some problems for measured values, measure after applying rated voltage for 2.5 to 20V products or 20V for 25V products

for 120 minutes at 105°C .

(unit : mm)

※2

Refer to Page 56 for reflow soldering conditions.

■Dimensions

0.2max.

（＋）

Size Code

φD±0.5

W±0.2 H±0.2 C±0.2

P±0.2

-0.4

4.3

5.4

4.0

4.3

5.0 0.6 to 0.8 1.0

5.3

5.9

5.0

5.3

6.0 0.6 to 0.8 1.4

6.6

5.9

6.3

6.6

7.3 0.6 to 0.8 2.1

8.3

6.9

8.0

8.3

9.0 0.6 to 0.8 3.2

7.9 10.3 10.3 11.0 0.6 to 0.8 4.6

10.0

8.3

E12

8.0 11.9

8.3

9.0 0.8 to 1.1 3.2

F12

10.0 12.6 10.3 10.3 11.0 0.8 to 1.1 4.6

+0.1

■Size

List

µF

（SV）

3.3

4.7

6.8

100

120

150

180

220

270

330

470

560

680

820

1200

1500

φD

RV : Rated voltage (SV) : Surge (room temperature)

2.5

6.3

（3.3）（5.2）（8.2）

（11.5）

（18.4）

（23.0）

（25.0）

C6,E7

E12

F12

E12

F12

E7,F8

F8,E12

F12

E7,F8

F8,E12

E12

F12

E12

■Recommended

land pattern

dimension of PWB

(unit : mm)

Size Code

E12

F12

1.0

1.4

2.1

2.8

4.3

2.8

4.3

6.2

7.4

9.1

11.1

13.1

11.1

13.1

1.6

1.9

※For

the minimum packing quantity, please refer to page 55.
