W25P025AD-6F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> W25P025AD-6F

W25P025AD-6F: DescriptionStandard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-136, TQFP-100; Categorystorage storage; File Size440KB，17 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw

Download Datasheet Parametric Compare View All

W25P025AD-6F Overview

Standard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-136, TQFP-100

W25P025AD-6F Parametric

Parameter Name	Attribute value
Maker	Winbond Electronics Corporation
Parts packaging code	QFP
package instruction	LQFP,
Contacts	100
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	6 ns
JESD-30 code	R-PQFP-G100
length	20 mm
memory density	2097152 bit
Memory IC Type	STANDARD SRAM
memory width	32
Number of functions	1
Number of terminals	100
word count	65536 words
character code	64000
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature
organize	64KX32
Package body material	PLASTIC/EPOXY
encapsulated code	LQFP
Package shape	RECTANGULAR
Package form	FLATPACK, LOW PROFILE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	1.6 mm
Maximum supply voltage (Vsup)	3.465 V
Minimum supply voltage (Vsup)	3.135 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	OTHER
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	14 mm

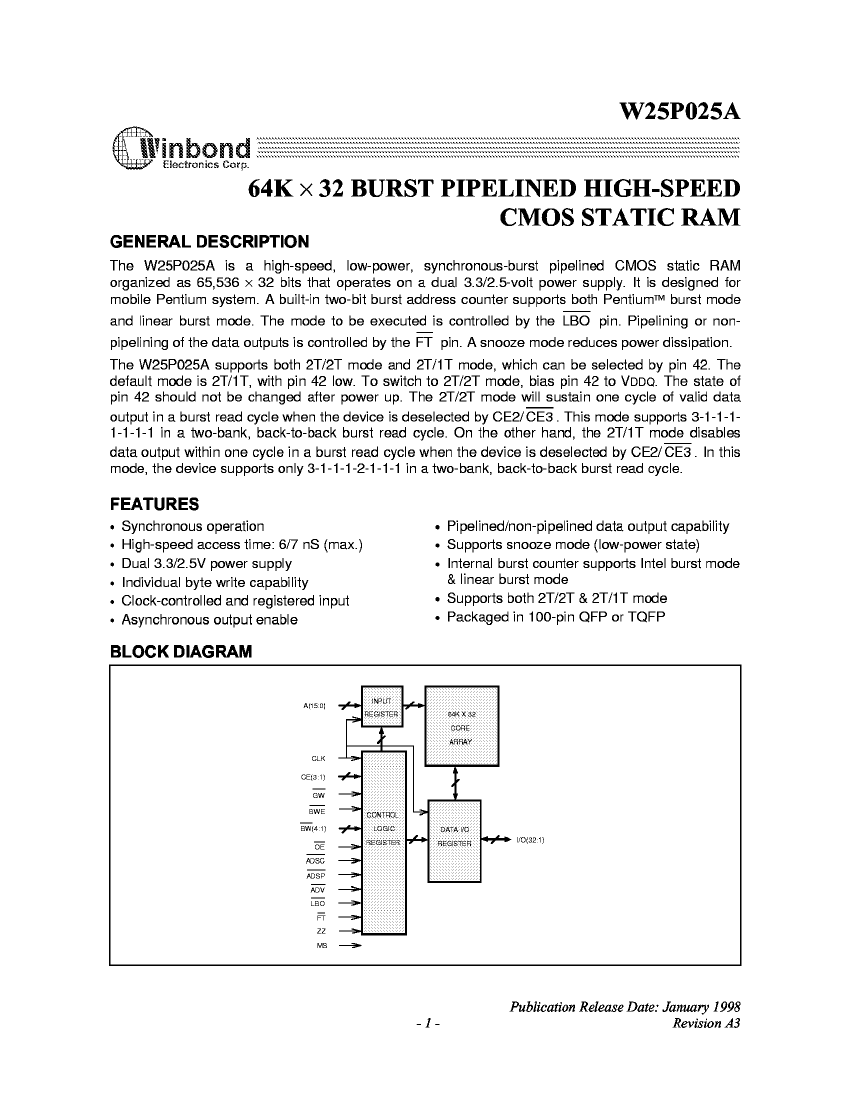

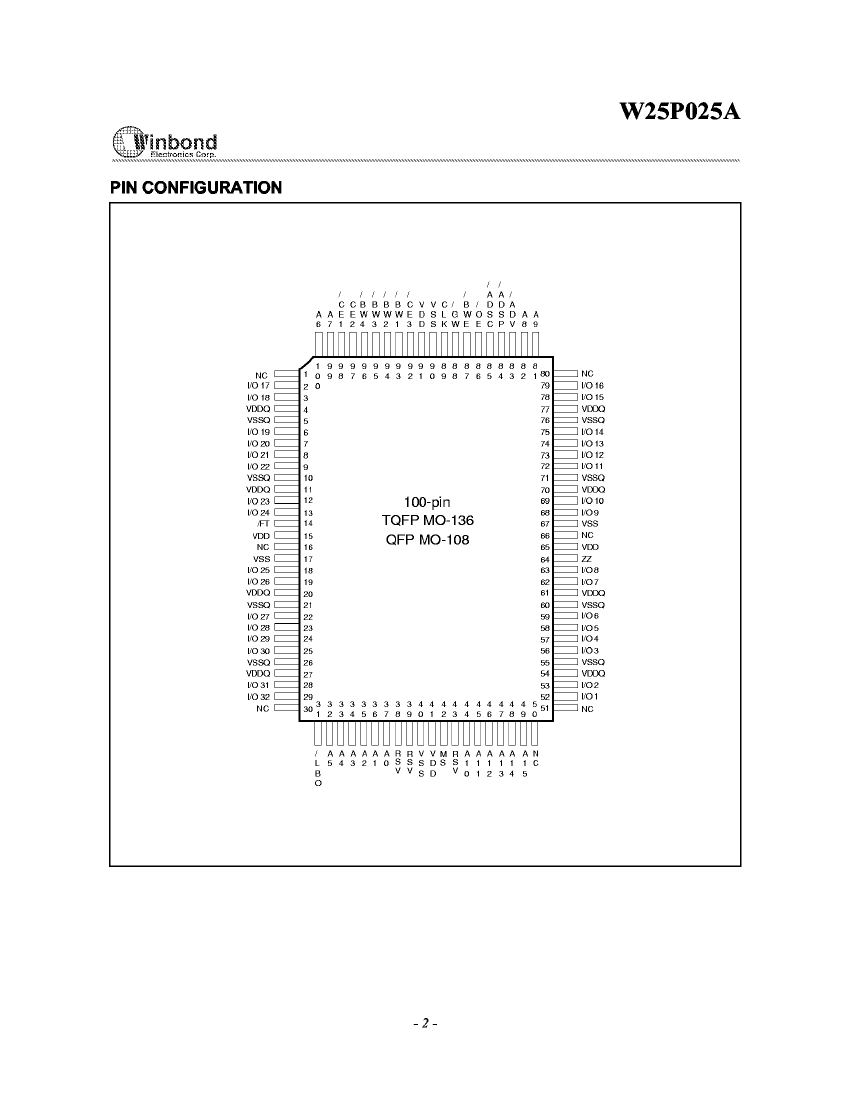

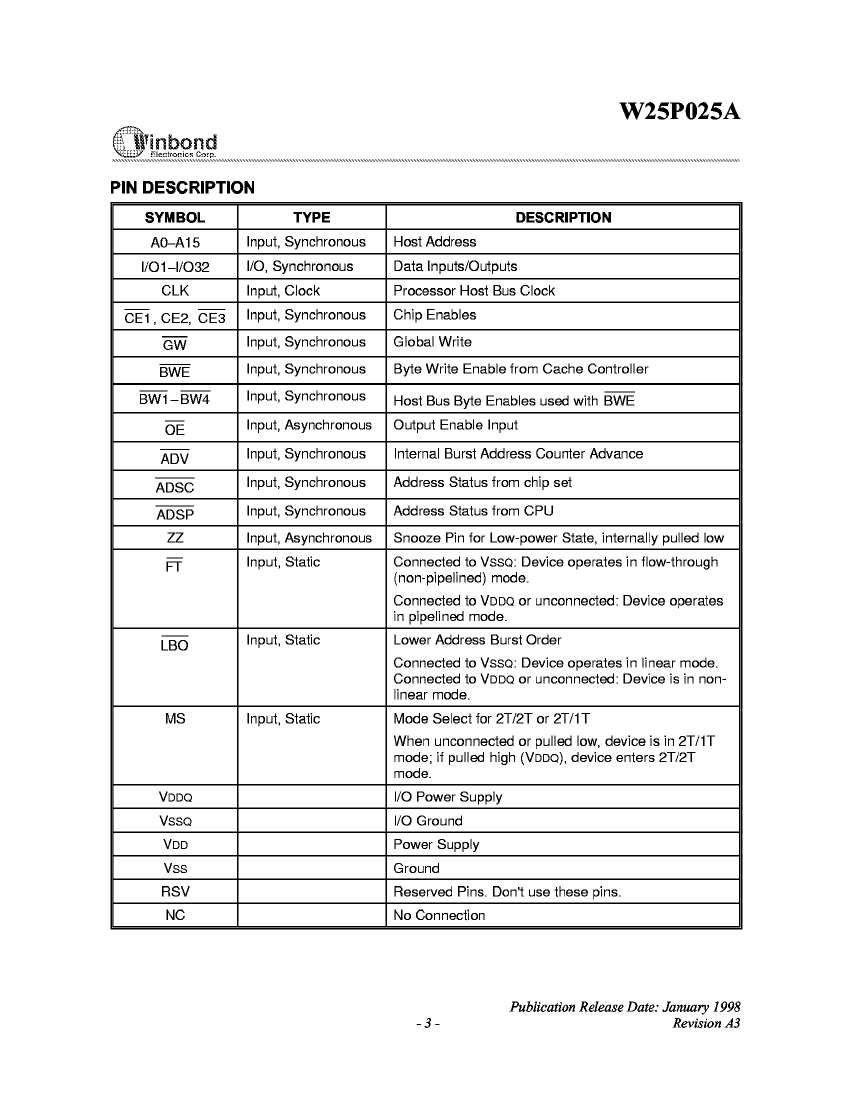

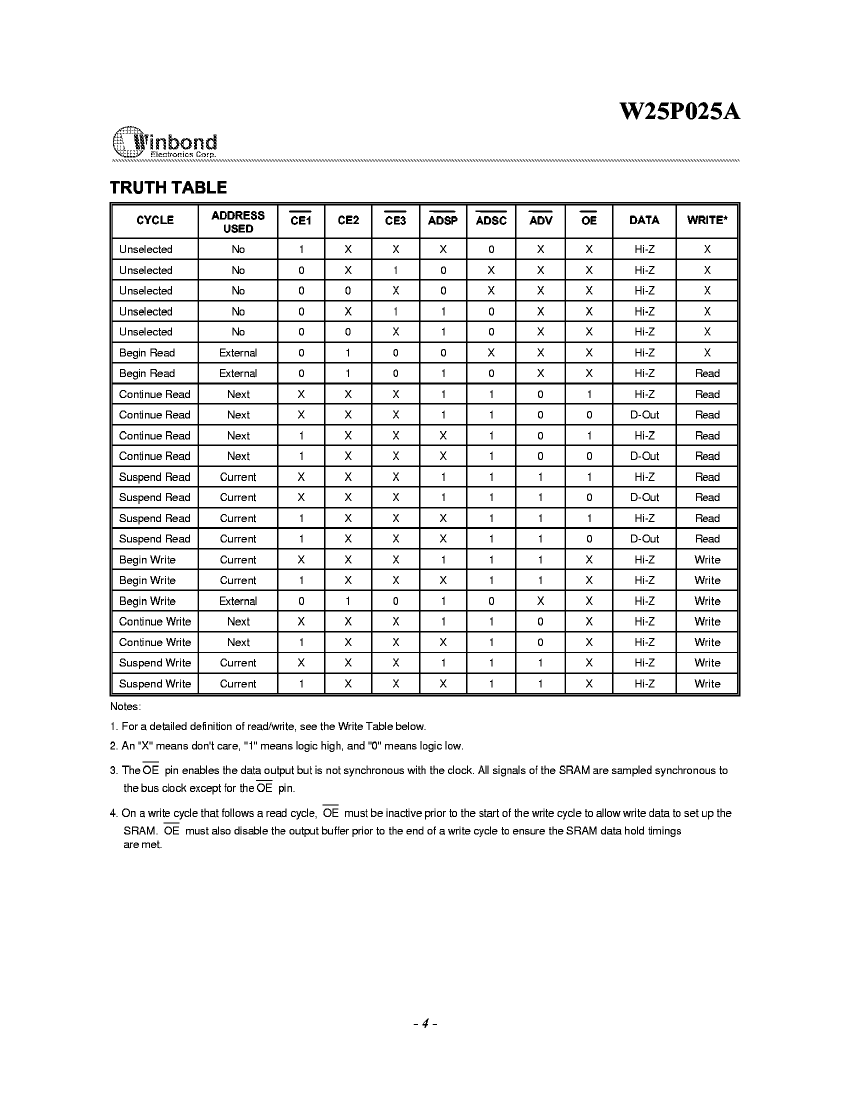

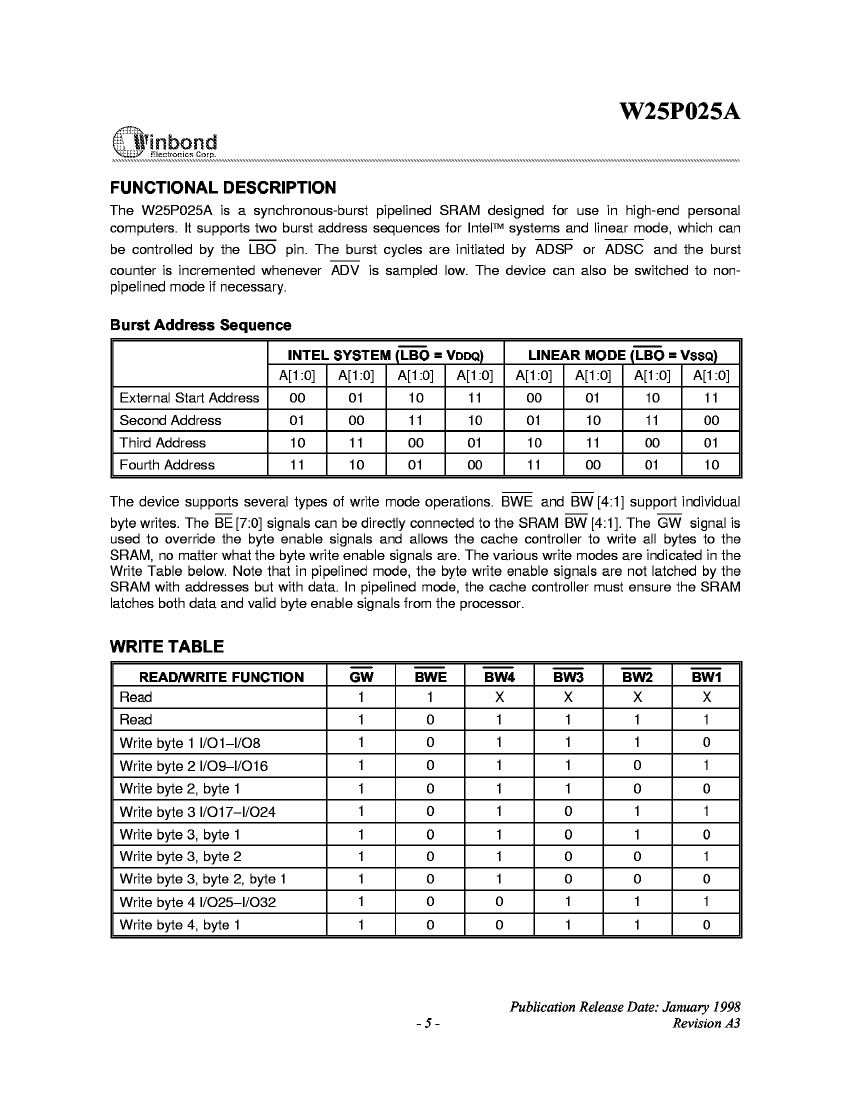

Preview

Download Datasheet

View All

W25P025AD-6F Related Products

	W25P025AD-6F	W25P025AF-6F	W25P025AD-7F	W25P025AF-7F	W25P025AF-6	W25P025AD-6	W25P025AD-7	W25P025AF-7
Description	Standard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-136, TQFP-100	Standard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-108, QFP-100	Standard SRAM, 64KX32, 7ns, CMOS, PQFP100, MO-136, TQFP-100	Standard SRAM, 64KX32, 7ns, CMOS, PQFP100, MO-108, QFP-100	Standard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-108, QFP-100	Standard SRAM, 64KX32, 6ns, CMOS, PQFP100, MO-136, TQFP-100	Standard SRAM, 64KX32, 7ns, CMOS, PQFP100, MO-136, TQFP-100	Standard SRAM, 64KX32, 7ns, CMOS, PQFP100, MO-108, QFP-100
Maker	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation
Parts packaging code	QFP	QFP	QFP	QFP	QFP	QFP	QFP	QFP
package instruction	LQFP,	QFP,	LQFP,	QFP,	QFP,	LQFP,	LQFP,	QFP,
Contacts	100	100	100	100	100	100	100	100
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A	3A991.B.2.A
Maximum access time	6 ns	6 ns	7 ns	7 ns	6 ns	6 ns	7 ns	7 ns
JESD-30 code	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100	R-PQFP-G100
length	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm	20 mm
memory density	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit	2097152 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	32	32	32	32	32	32	32	32
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	100	100	100	100	100	100	100	100
word count	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words	65536 words
character code	64000	64000	64000	64000	64000	64000	64000	64000
Operating mode	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C	70 °C
organize	64KX32	64KX32	64KX32	64KX32	64KX32	64KX32	64KX32	64KX32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LQFP	QFP	LQFP	QFP	QFP	LQFP	LQFP	QFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK, LOW PROFILE	FLATPACK	FLATPACK	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE	FLATPACK
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.6 mm	3.32 mm	1.6 mm	3.32 mm	3.32 mm	1.6 mm	1.6 mm	3.32 mm
Maximum supply voltage (Vsup)	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V	3.465 V
Minimum supply voltage (Vsup)	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V	3.135 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	OTHER	OTHER	OTHER	OTHER	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm	0.65 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm	14 mm
