AE83395G20396 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> AE83395G20396

Preview

AE83395G20396: DescriptionMIL Series Connector, 39 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerAero-Electric Connector; Websitehttps://www.aero-electric.com/index.html; Environmental Compliance

Download Datasheet Parametric View All

AE83395G20396 Overview

MIL Series Connector, 39 Contact(s), Stainless Steel, Female, Crimp Terminal, Plug

AE83395G20396 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Aero-Electric Connector
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: MIL-DTL-83723 SERIES III, COMPATIBLE CONTACT: M39029/5-115, M39029/5-116
Back shell type	SOLID
Body/casing type	PLUG
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT RESISTANT; FLUID RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	YES
Manufacturer's serial number	AE833
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	STAINLESS STEEL
Housing size	20
Termination type	CRIMP
Total number of contacts	39

Preview

Download Datasheet

View All

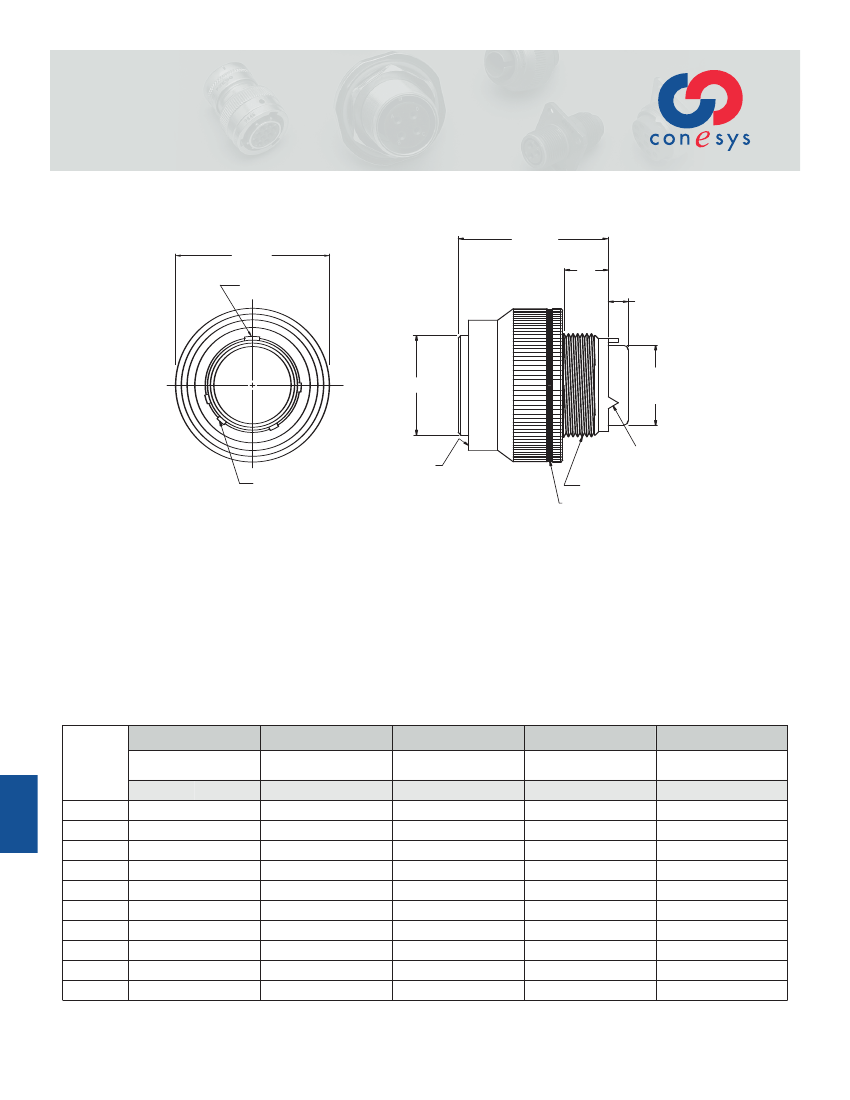

M83723/95, 96

Self-Locking Plug

AE83395, 96

Threaded Coupling, Crimp Removable, Rear Release

1.180(29.97)

MAX

.290(7.37)

MIN

FULL

THREAD

.190(4.83)

.130(3.30)

GROMMET

EXTENSION

C

MAX

COUPLING NUT

MASTER KEY

A

B

MAX

GROMMET

D

MATING THREAD

4 MINOR KEYS

3 ACCESSORY TEETH

EQUALLY SPACED

E

ACCESSORY THREAD

BLUE COLOR BAND

Page 93

Page 104

Pages 107 108

,

Page 87

Page 106

Page 102

MIL–DTL–

83723 S III

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Speciﬁcations

Insert Availability and Contact Information

Polarization

A

Shell

Size

8

10

12

14

16

18

20

22

24

28

+.005

-.004

inch

.400

.521

.691

.760

.887

.993

1.118

1.243

1.368

1.618

+.13

-.10

mm

10.16

13.23

17.55

19.30

22.53

25.22

28.40

31.57

34.75

41.10

B

Maximum

inch

.305

.405

.531

.665

.790

.869

.994

1.119

1.244

1.475

mm

7.75

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

37.47

C

Maximum

inch

.832

.959

1.097

1.236

1.360

1.473

1.586

1.703

1.846

2.278

mm

21.13

24.36

27.86

31.39

34.54

37.41

40.28

43.26

46.89

57.86

D

Mating Thread

Class 2B

9/16-24UNEF

11/16-24UNEF

7/8-20UNEF

15/16-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-9/16-18UNEF

1-13/16-16UN

E

Accessory Thread

Class 2A

1/2-20UNF

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

1-3/4-18UNS
