ADD8709WSTZ-REEL

Description
IC 18 BUFFER AMPLIFIER, PQFP48, LEAD FREE, MO-026-BBC, LQFP-48, Buffer Amplifier
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size392KB，16 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Parametric Compare View All

ADD8709WSTZ-REEL Overview

IC 18 BUFFER AMPLIFIER, PQFP48, LEAD FREE, MO-026-BBC, LQFP-48, Buffer Amplifier

ADD8709WSTZ-REEL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerADI
Parts packaging codeQFP
package instructionLEAD FREE, MO-026-BBC, LQFP-48
Contacts48
Reach Compliance Codeunknown
ECCN codeEAR99
Amplifier typeBUFFER
Maximum average bias current (IIB)1.5 µA
Nominal bandwidth (3dB)4.5 MHz
Maximum input offset voltage15000 µV
JESD-30 codeS-PQFP-G48
JESD-609 codee3
length7 mm
Humidity sensitivity level3
Number of functions18
Number of terminals48
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
Minimum output current0.15 A
Package body materialPLASTIC/EPOXY
encapsulated codeLFQFP
Package shapeSQUARE
Package formFLATPACK, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Celsius)260
Certification statusNot Qualified
Maximum seat height1.6 mm
Nominal slew rate6 V/us
Supply voltage upper limit18 V
Nominal supply voltage (Vsup)16 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperatureNOT SPECIFIED
width7 mm

Preview

Download Datasheet
18-Channel Gamma Buffer
with Regulator
ADD8709
FEATURES
18 precision gamma reference outputs
Mask-programmable voltage regulator: 0.4% accuracy
Upper 9 buffers swing to V
DD
Lower 9 buffers swing to GND
Single-supply operation: 7.5 V to 16.5 V
Gamma current drive: 15 mA per channel
Peak output current: 150 mA
Output voltage stable under load conditions
48-lead, Pb-free LQFP package

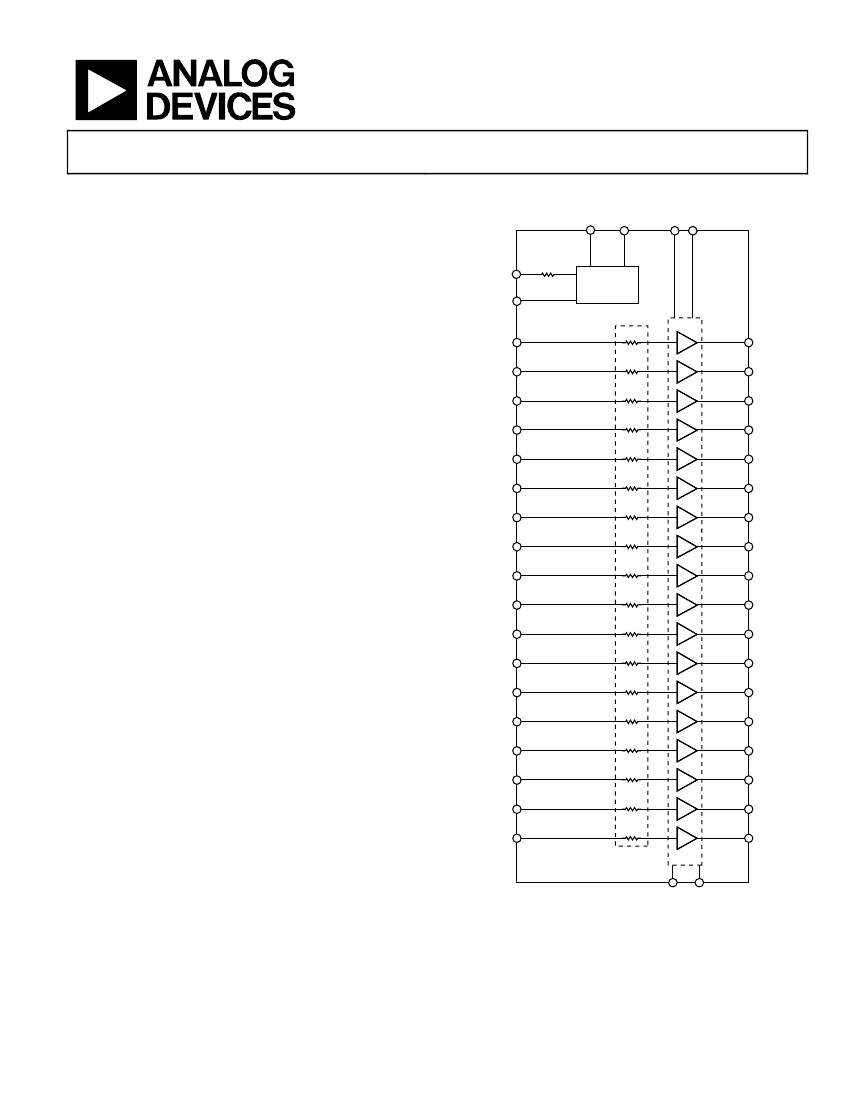

FUNCTIONAL BLOCK DIAGRAM
GND
V
DD
V
DD
V
DD
700Ω*
FB
VOLTAGE
REGULATOR
V
REG OUT
GAMMA
BUFFERS
700Ω*
V
IN
18
V
IN
17
V
OUT
18
V
OUT
17
V
OUT
16
V
OUT
15
V
OUT
14
V
OUT
13
V
OUT
12
V
OUT
11
V
OUT
10
V
OUT
9
V
OUT
8
V
OUT
7
V
OUT
6
V
OUT
5
V
OUT
4
V
OUT
3
V
OUT
2
V
OUT
1
700Ω*
APPLICATIONS
LCD TV panels
LCD monitor panels
V
IN
16
V
IN
15
V
IN
14
V
IN
13
V
IN
12
V
IN
11
V
IN
10
V
IN
9
V
IN
8
V
IN
7
V
IN
6
V
IN
5
V
IN
4
V
IN
3
V
IN
2
V
IN
1
700Ω*
700Ω*
GENERAL DESCRIPTION
The ADD8709 is an 18-channel integrated gamma reference for
use in LCD TV and monitors panels. The output buffers feature
high current drive and low offset voltage to provide an accurate
and stable gamma curve. The top nine channels swing to V
DD
and the lower nine channels swing to GND.
An on-board voltage regulator provides a fixed input for the
gamma buffers, isolating the gamma curve from supply ripple.
The ADD8709 is specified over the temperature range of
–40°C to +105°C and comes in a 48-lead, Pb-free, low-profile
quad flat package.
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
700Ω*
*ESD PROTECTION RESISTORS
GND GND
Figure 1. 48-Lead LQFP
Rev. A
Information furnished by Analog Devices is believed to be accurate and reliable.
However, no responsibility is assumed by Analog Devices for its use, nor for any
infringements of patents or other rights of third parties that may result from its use.
Specifications subject to change without notice. No license is granted by implication
or otherwise under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700
www.analog.com
Fax: 781.326.8703
© 2004 Analog Devices, Inc. All rights reserved.
04715-001
