NJU6533FA2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> NJU6533FA2

NJU6533FA2: DescriptionLiquid Crystal Driver, 36-Segment, CMOS, PQFP52, QFP-52; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size218KB，20 Pages; ManufacturerNew Japan Radio Co., Ltd..

Download Datasheet Parametric Compare View All

NJU6533FA2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NJU6533FA2	-	-	View	Buy Now

NJU6533FA2 Overview

Liquid Crystal Driver, 36-Segment, CMOS, PQFP52, QFP-52

NJU6533FA2 Parametric

Parameter Name	Attribute value
Maker	New Japan Radio Co., Ltd..
Parts packaging code	QFP
package instruction	QFP,
Contacts	52
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ALSO OPERATES AT 5V SUPPLY
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G52
JESD-609 code	e3
length	10 mm
Multiplex display function	YES
Number of functions	1
Number of segments	36
Number of terminals	52
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QFP
Package shape	SQUARE
Package form	FLATPACK
Certification status	Not Qualified
Maximum seat height	2.45 mm
Maximum supply voltage	3.6 V
Minimum supply voltage	2.4 V
Nominal supply voltage	3 V
Supply voltage 1-max	5.5 V
Mains voltage 1-minute	2.4 V
Supply voltage1-Nom	3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	QUAD
width	10 mm
minfmax	2 MHz

Preview

Download Datasheet

View All

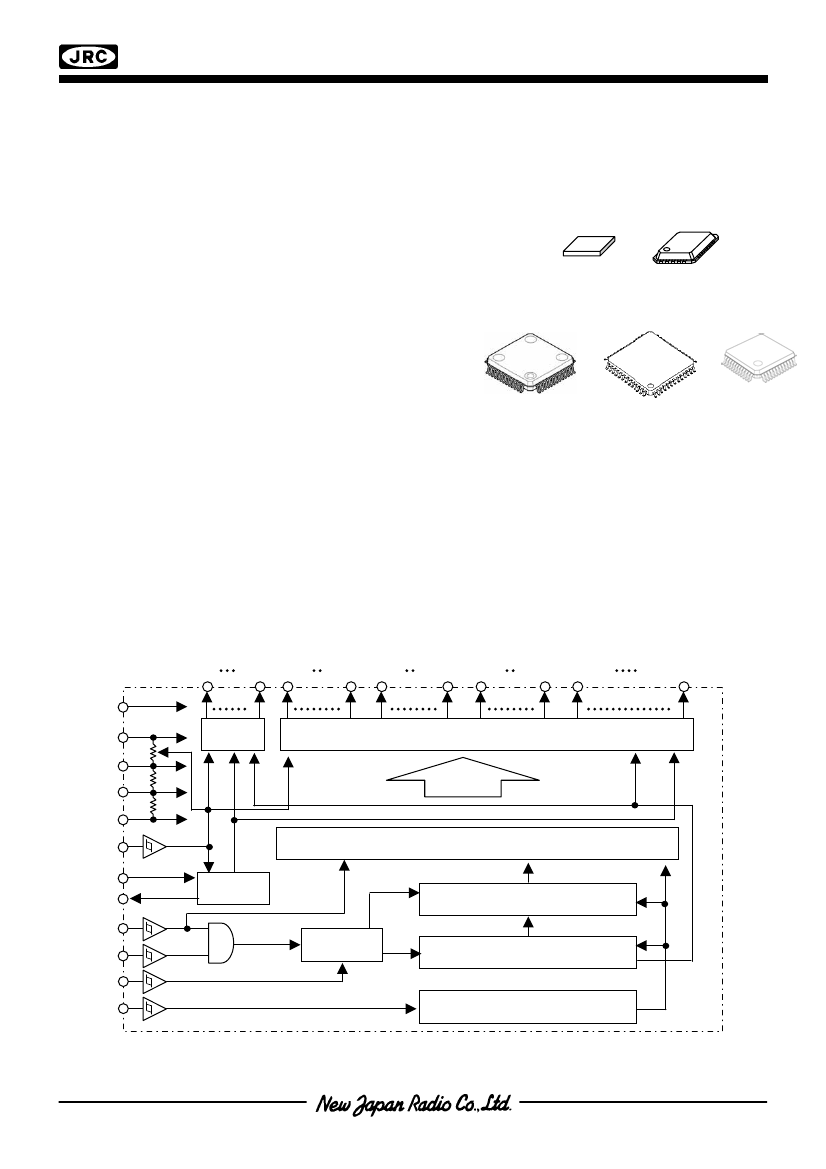

NJU6533

1/3, 1/4 Duty LCD Driver

GENERAL DESCRIPTION

NJU6533

is a 1/3 or 1/4 duty segment type LCD driver.

It incorporates 4 common driver circuits and 32 segment driver

circuits.

NJU6533

can drive maximum 96 segments in 1/3

duty ratio and maximum 128 segments in 1/4 duty ratio.

Be addition,

the

NJU6533's

useful functions and small

package meet a wide range of applications.

PACKAGE OUTLINE

NJU6533C

NJU6533KQ1

FEATURES

LCD driving circuit

Programmable Duty Ratio

1/3 duty ratio

1/4 duty ratio

Programmable Bias Ratio

Serial Data Transfer

Built-in Oscillator

Display OFF

Operating Voltage

C-MOS Technology

Package Outline

NJU6533FA2

:Max. 32outputs (4 outputs as for general purpose ports)

NJU6533FH2

NJU6533FR3

:Driving max. 96 segments

:Driving max. 128 segments

:1/2, 1/3 bias ratio

:Shift clock max. 2MHz

:CR

oscillation with external resistor, or external oscillation signal input

:INHb terminal

:3V / 5.0V

:P-Sub

:Bare Chip, QFN48-Q1, QFP52-A2, LQFP52-H2, LQFP48-R3

BLOCK DIAGRAM

COM1

LCD

INHb

OSC1

COM

Drivers

COM4 SEG1

SEG8

SEG9

SEG16 SEG17

SEG24

SEG25

SEG32/P4

Segment Drivers /General Purpose Output Ports

Data Latch Circuit

Oscillator

OSC2

CSb

SCK

RSTb

Display Data Register

Decoder

Command Register

Power ON Reset Circuit

Ver.2011-09-17

-1-

NJU6533FA2 Related Products

	NJU6533FA2	NJU6533KQ1	NJU6533C	NJU6533FH2	NJU6533FR3
Description	Liquid Crystal Driver, 36-Segment, CMOS, PQFP52, QFP-52	Liquid Crystal Driver, 36-Segment, CMOS, QFN-48	Liquid Crystal Driver, 36-Segment, CMOS, 2.60 X 2.36 MM, DIE-48	Liquid Crystal Driver, 32-Segment, CMOS, PQFP52, LQFP-52	Liquid Crystal Driver, 32-Segment, CMOS, PQFP48, LQFP-48
Maker	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..	New Japan Radio Co., Ltd..
Parts packaging code	QFP	QFN	DIE	QFP	QFP
package instruction	QFP,	QCCN,	DIE,	LQFP,	LFQFP,
Contacts	52	48	48	52	48
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ALSO OPERATES AT 5V SUPPLY	ALSO OPERATES AT 5V SUPPLY	ALSO OPERATES AT 5V SUPPLY	ALSO OPERATES AT 5V SUPPLY	ALSO OPERATES AT 5V SUPPLY
data entry mode	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQFP-G52	S-XQCC-N48	R-XUUC-N48	S-PQFP-G52	S-PQFP-G48
Multiplex display function	YES	YES	YES	YES	YES
Number of functions	1	1	1	1	1
Number of segments	36	36	36	32	32
Number of terminals	52	48	48	52	48
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QFP	QCCN	DIE	LQFP	LFQFP
Package shape	SQUARE	SQUARE	RECTANGULAR	SQUARE	SQUARE
Package form	FLATPACK	CHIP CARRIER	UNCASED CHIP	FLATPACK, LOW PROFILE	FLATPACK, LOW PROFILE, FINE PITCH
Maximum supply voltage	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage	2.4 V	2.4 V	2.4 V	2.4 V	2.4 V
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V
Supply voltage 1-max	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Mains voltage 1-minute	2.4 V	2.4 V	2.4 V	2.4 V	2.4 V
Supply voltage1-Nom	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	NO LEAD	NO LEAD	GULL WING	GULL WING
Terminal location	QUAD	QUAD	UPPER	QUAD	QUAD
JESD-609 code	e3	e6	e6	-	-
length	10 mm	-	-	10 mm	7 mm
Certification status	Not Qualified	Not Qualified	Not Qualified	-	-
Maximum seat height	2.45 mm	-	-	1.6 mm	1.6 mm
Terminal surface	TIN	TIN BISMUTH	TIN BISMUTH	-	-
Terminal pitch	0.65 mm	-	-	0.65 mm	0.5 mm
width	10 mm	-	-	10 mm	7 mm
minfmax	2 MHz	2 MHz	2 MHz	-	-
