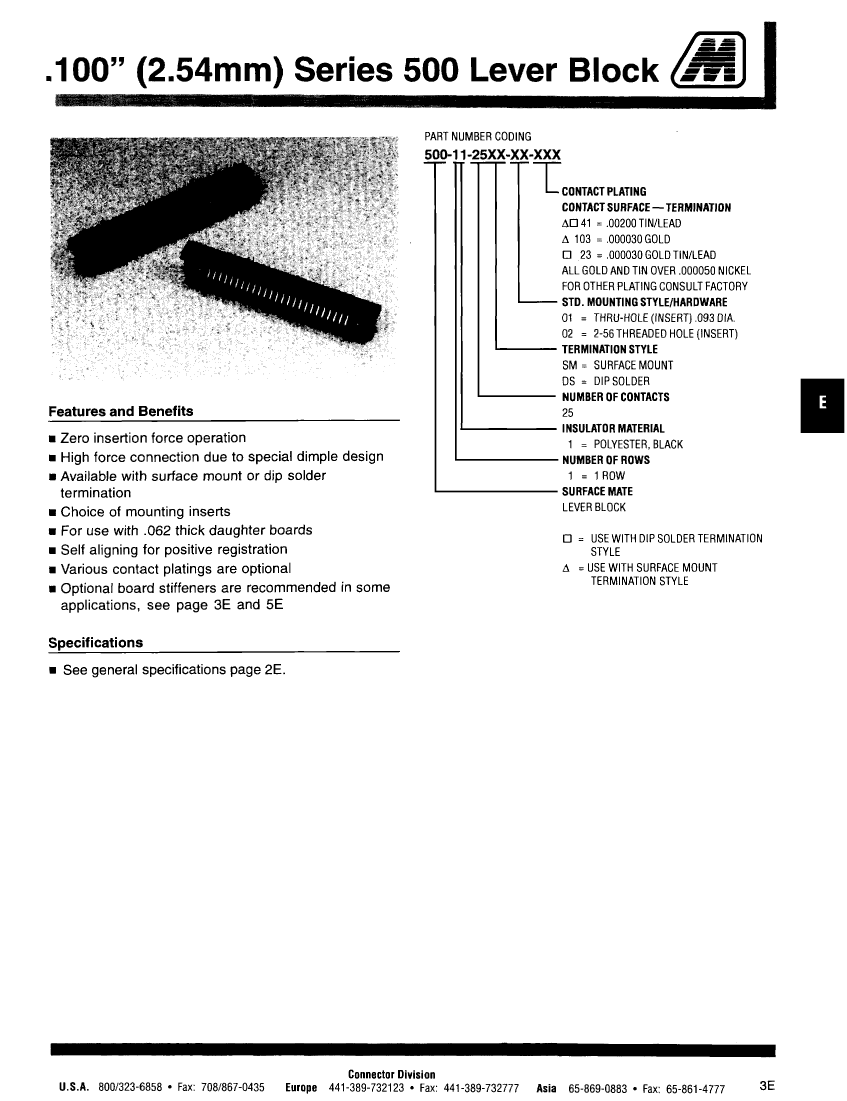

500-1-25SM-02 datasheet, PDF - EEWORLD Datasheet

500-1-25SM-02: DescriptionCard Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector The connector; File Size126KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric Compare View All

500-1-25SM-02 Overview

Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

	500-1-25SM-02	500-1-25DS-01	500-1-25DS-02	500-1-25SM-01
Description	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Solder Terminal	Card Edge Connector, 25 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	ZIF	ZIF	ZIF	ZIF
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SOLDER	SOLDER	SURFACE MOUNT
Total number of contacts	25	25	25	25
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maker	Methode Electronics Inc.	-	Methode Electronics Inc.	Methode Electronics Inc.
maximum insertion force	ZIF N	-	ZIF N	ZIF N
