Features
■
Small package dimensions
■
RoHS compliant*
■
Power rating at 70 °C = 1/16 W
■
Tight dimensional tolerances
■
Three layer termination process with
■
Suitable for most types of soldering
CO
M
processes
■
Standard packaging on paper tape and reel
*R
oH
S
nickel barrier prevents leaching and
provides excellent solderability

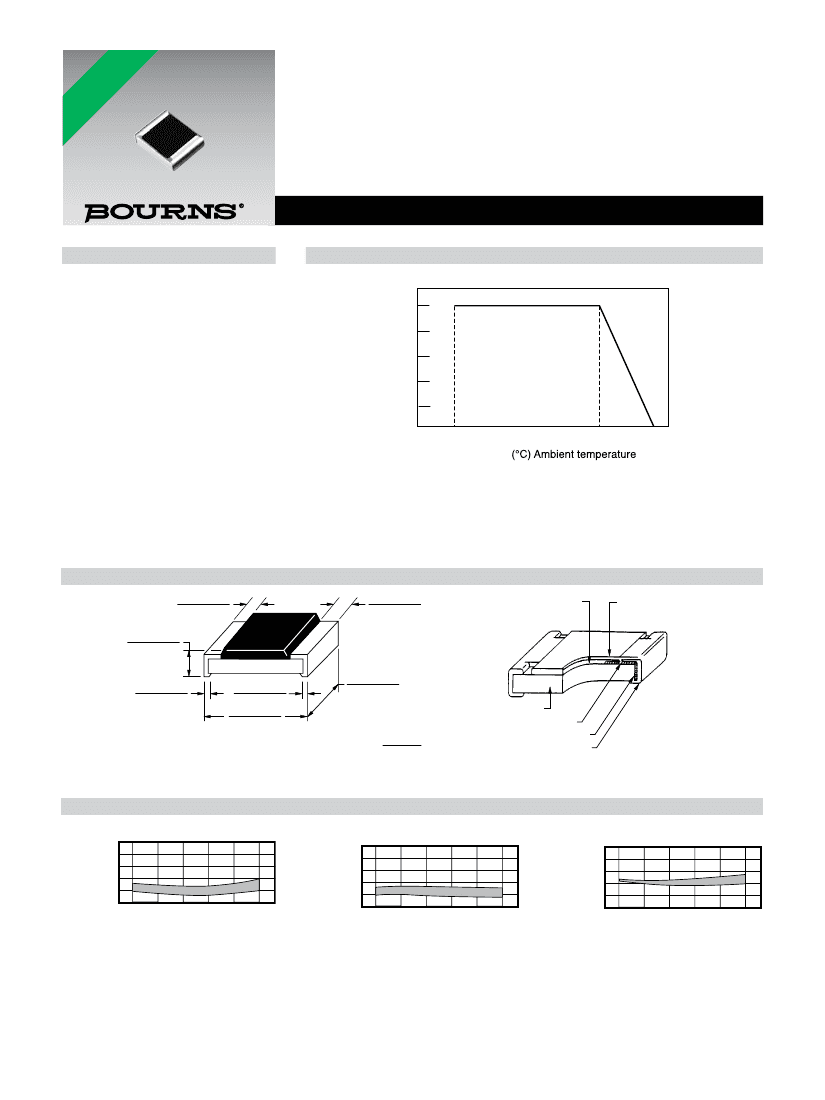

CR0402 - Chip Resistor
Electrical Characteristics
Power Rating @ 70 °C ................ 1/16 W
Operating Temperature Range
............................... -55 °C to +125 °C
Derated to 0 Load at .................+125 °C
Maximum Working Voltage..............50 V
Maximum Overload Voltage ..........100 V
Resistance Range
1 %, E-96 and E-24
........................10 ohms to 1 megohm
5 %, E-24
..................2.2 ohms to 5.6 megohms
Zero Ohm Jumper ............<0.05 ohms
Temperature Coefficient
1 %................................ ±100 ppm/°C
5 %................................ ±200 ppm/°C
2.2 ohm to 10 ohms
............ -200 ppm/°C to +500 ppm/°C
For Standard Values Used in Capacitors,
Inductors, and Resistors,
click here.
Derating Curve
Rated power in percentage (%)
100
80
60
40
20
0
-55
0
70
125
Dimensional Drawings
0.20 ± 0.10
(0.008 ± 0.004)
0.35 ± 0.05
(0.014 ± 0.002)
0.20 ± 0.10
(0.008 ± 0.004)
Resistor (Ru0
2
)
(Jumper chip is
a conductor)
Overcoat
0.25 ± 0.10
(0.010 ± 0.004)
0.25 ± 0.10
(0.010 ± 0.004)
1.00 ± 0.10
(0.040 ± 0.004)
0.50 ± 0.05
(0.020 ± 0.002)
Alumina Substrate
Internal Electrode (Ag-Pd)
Secondary Electrode (Nickel Plated)
External Electrode
(see Part Numbering - may be
ordered as solder-plated
or tin-plated)
DIMENSIONS:
MM
(INCHES)
Characteristic Data
Load Life 1000Hr
∆
R/R
(%)
3.0
2.0
1.0
0
10
100 1K 10K 100K 1M
Resistance Value (Ω)
3.0
2.0
1.0
0
10
100 1K 10K 100K 1M
Resistance Value (Ω)
Moisture Load Life 1000Hr
∆
R/R
(%)
1.0
∆
R/R 0.5
0
(%)
-0.5
10
100 1K 10K 100K 1M
Resistance Value (Ω)
Short Time Overload
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CR0402 - Chip Resistor
Soldering Profile for RoHS Compliant Chip Resistors and Arrays
275
<1>
Maximum of 20 seconds between
260 °C peak
<1>
255 °C
+255 °C and +260 °C
225
220 °C
Temperature (°C)
190 °C
175
150 °C
60 - 90
seconds
Ramp Down
6 °C/second
125
60 - 120 seconds
10 seconds minimum
75
Ramp Up
3 °C/second maximum
25
0
50
100
150
Time (seconds)
200
250
300
Packaging Dimensions (Conforms to EIA RS-481A)
1.5 + 0.1/-0
DIA.
(0.059 + 0.004/-0)
0.45 ± 0.1
(0.018 ± 0.004)
4.0 ± 0.1
(0.157 ± 0.004)
1.75 ± 0.1
(0.069 ± 0.004)
1.0 ± 0.2
(.040 ± .020)
2.0
(.080)
13.0 ± 0.5
(.512 ± .020)
80.0 ± 1.0
(3.150 ± .040)
0.65 ± 0.1
(0.026 ± 0.004)
1.15 ± 0.1
(0.045 ± 0.004)
3.5 ± 0.05
(0.138 ± 0.002)
8.0 ± 0.2
(0.315 ± 0.008)
Paper
(Punched)
Direction of Feeding
2.0 ± 0.1
(0.079 ± 0.004)
20.5
(.807)
178.0 ± 2.0
(7.008 ± .080)
DIMENSIONS:
MM
(INCHES)
10.0 ± 1.5
(.394 ± .059)
Part Marking System
No Marking on the CR0402 Chip Resistors.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CR0402 - Chip Resistor
How to Order
CR 0402 - F X - 8252 G LF
Model
(CR = Chip Resistor)
Size
• 0402
Resistance Tolerance
F = ±1 % .............Used with “X” TCR code only for values from 10 ohms through 1 megohm.
J = ±5 % ............... Used with “W” TCR code for values from 10 ohms through 5.6 megohms. Used with “/” TCR code for zero ohm (jumper)
and for values from 1 ohm through 9.1 ohms.
TCR (ppm/°C)
X = ±100 ..............Used with “F” Resistance Tolerance code only for values from 10 ohms through 1 megohm.
W = ±200 .............Used with “J” Resistance Tolerance code only for values from 10 ohms through 5.6 megohms.
/ = -250 to +500 ...Used with “J” Resistance Tolerance code only for zero ohm (jumper), and for values from 1 ohm through 9.1ohms.
Resistance Value
For 1 % Tolerance:
<100 ohms ...........“R” designates decimal point (example: 24R3 = 24.3 ohms)
≥100
ohms ...........First three digits are significant, fourth digit represents number of zeros to follow (example: 8252 = 82.5k ohms).
For 5 % Tolerance:
<10 ohms .............“R” designates decimal point (example: 4R7 = 4.7 ohms)
≥10
ohms .............First two digits are significant, third digit represents number of zeros to follow (example: 474 = 470k ohms; 000 = Jumper).
Packaging
G = Paper Tape (10,000 pcs.) on 7 ” Plastic Reel
Termination
LF = Tin-plated (RoHS compliant)
REV. 07/10
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
