AZ6961-1A-6DF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> AZ6961-1A-6DF

AZ6961-1A-6DF: DescriptionPower/Signal Relay, SPST, Momentary, 0.037A (Coil), 6VDC (Coil), 222mW (Coil), 10A (Contact), 240VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount; CategoryMechanical and electronic products relay; File Size78KB，2 Pages; ManufacturerAZETTLER; Websitehttp://www.azettler.com/; Environmental Compliance

Download Datasheet Parametric View All

AZ6961-1A-6DF Overview

Power/Signal Relay, SPST, Momentary, 0.037A (Coil), 6VDC (Coil), 222mW (Coil), 10A (Contact), 240VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount

AZ6961-1A-6DF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AZETTLER
Reach Compliance Code	unknown
ECCN code	EAR99
body width	10.35 mm
body height	12.55 mm
Body length or diameter	28.75 mm
Maximum coil current (DC)	0.037 A
Coil operating voltage (DC)	4.2 V
Coil power	222 mW
Coil resistance	164 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	10A@440VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@240VDC
Maximum contact voltage (AC)	440 V
Maximum contact voltage (DC)	240 V
Contact/Output Power Type	AC/DC
Electrical life	300000 Cycle(s)
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	7 ms
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
physical size	28.75mm x 10.35mm x 12.55mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	3 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

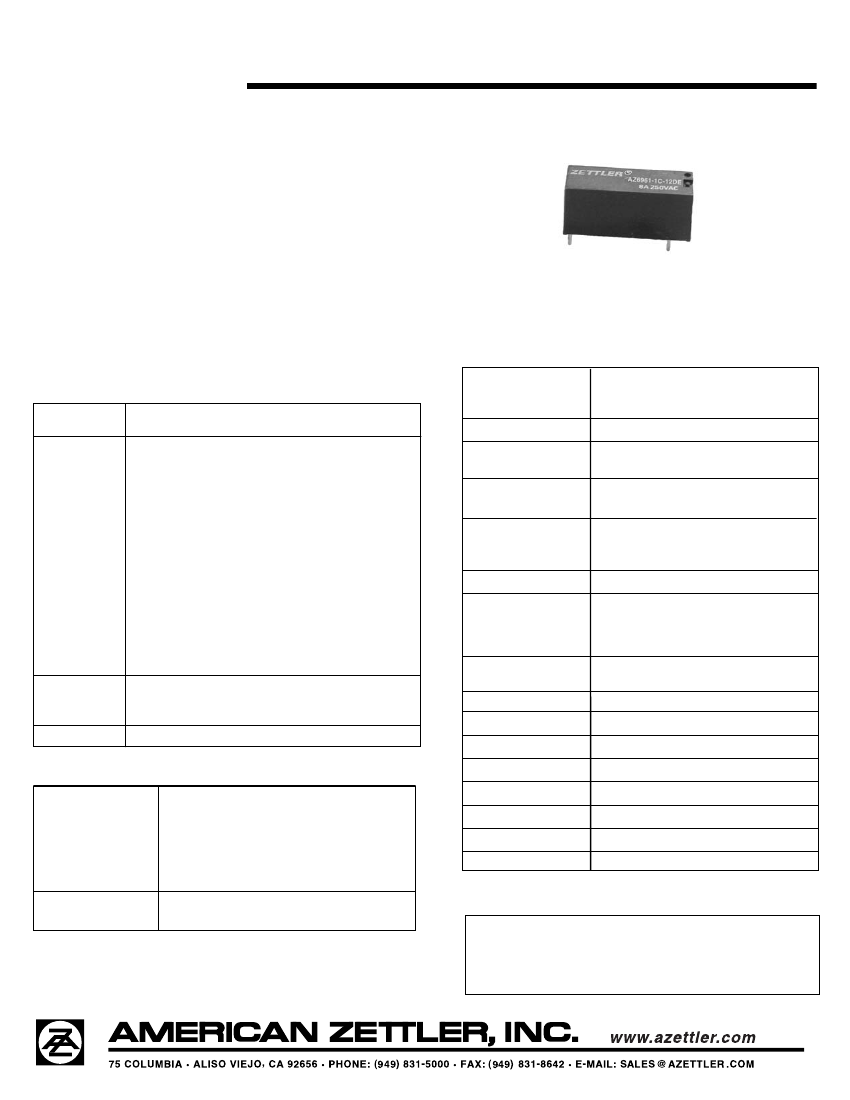

AZ6961

10 AMP SUBMINIATURE

POWER RELAY

FEATURES

•

High sensitivity, 120 mW pickup

Dielectric strength 5000 Vrms

Isolation spacing greater than 8 mm

10 Amp switching capability

Class B insulation standard, Class F version available

Epoxy sealed version for automatic wave soldering and

cleaning available

•

UL, CUR file E44211

•

VDE 131637ÜG

CONTACTS

Arrangement

Ratings

SPDT (1 Form C)

SPST (1 Form A)

Resistive load:

Max. switched power: 240 W or 2500 VA

Max. switched current: 10 A

Max. switched voltage: 240* VDC or 440 VAC

UL, CUR Rating:

10 A at 250 VAC resistive [1]

8 A at 30 VDC/250 VAC [1]

8 A at 30 VDC/250 VAC,

100k cycles [2]

B300 Pilot Duty [1]

R300 Pilot Duty [1]

1/4 HP at 125 VAC [1]

1/2 HP at 250 VAC [1]

VDE Rating:

8 A at 250 VAC

GENERAL DATA

Life Expectancy

Mechanical

Electrical

Operate Time (typical)

Release Time (typical)

Minimum operations

10 million

3 X 10

at 8 A 240 VAC res.

7 ms at nominal coil voltage

3 ms at nominal coil voltage

(with no coil suppression)

Dielectric Strength

5000 Vrms coil to contact

(at sea level for 1 min.)

1000 Vrms between open contacts

Insulation

Resistance

Dropout

Ambient Temperature

Operating

Storage

Vibration

Shock

Enclosure

Terminals

Max. Solder Temp.

Max. Solder Time

1000 megohms min. at 20°C, 500 VDC,

50% RH

Greater than 10% of nominal coil voltage

At nominal coil voltage

-40°C (-40°F) to 100°C (212°F)

-40°C (-40°F) to 130°C (266°F) Class B

-40°C (-40°F) to 155°C (311°F) Class F

Break Contact: 5g at 10...500 Hz

Make Contact: 20g at 10...500 Hz

10 g

P.B.T. polyester, UL94 V-0

Tinned copper alloy, P.C.

270°C (518°F)

5 seconds

80°C (176°F)

30 seconds

8 grams

*Note: if switching voltage is greater than 30 VDC, special

precautions must be taken. Please contact the factory.

Material

Silver cadmium oxide (AgCdO) [1]

Silver tin oxide (AgSnO

) [2]

Gold plating available

< 100 milliohms initially

Resistance

COIL

Power

At Pickup Voltage

(typical)

Max. Continuous

Dissipation

Temperature Rise

Temperature

120 mW

1.2 W at 20°C (68°F) ambient

20°C (36°F) at nominal coil voltage

Max. 130°C (266°F) Class B

Max. 155°C (311°F) Class F

Max. Solvent Temp.

Max. Immersion Time

Weight

NOTES

1. All values at 20°C (68°F).

2. Relay may pull in with less than “Must Operate” value.

3. Specifications subject to change without notice.

4. Class F version not VDE approved

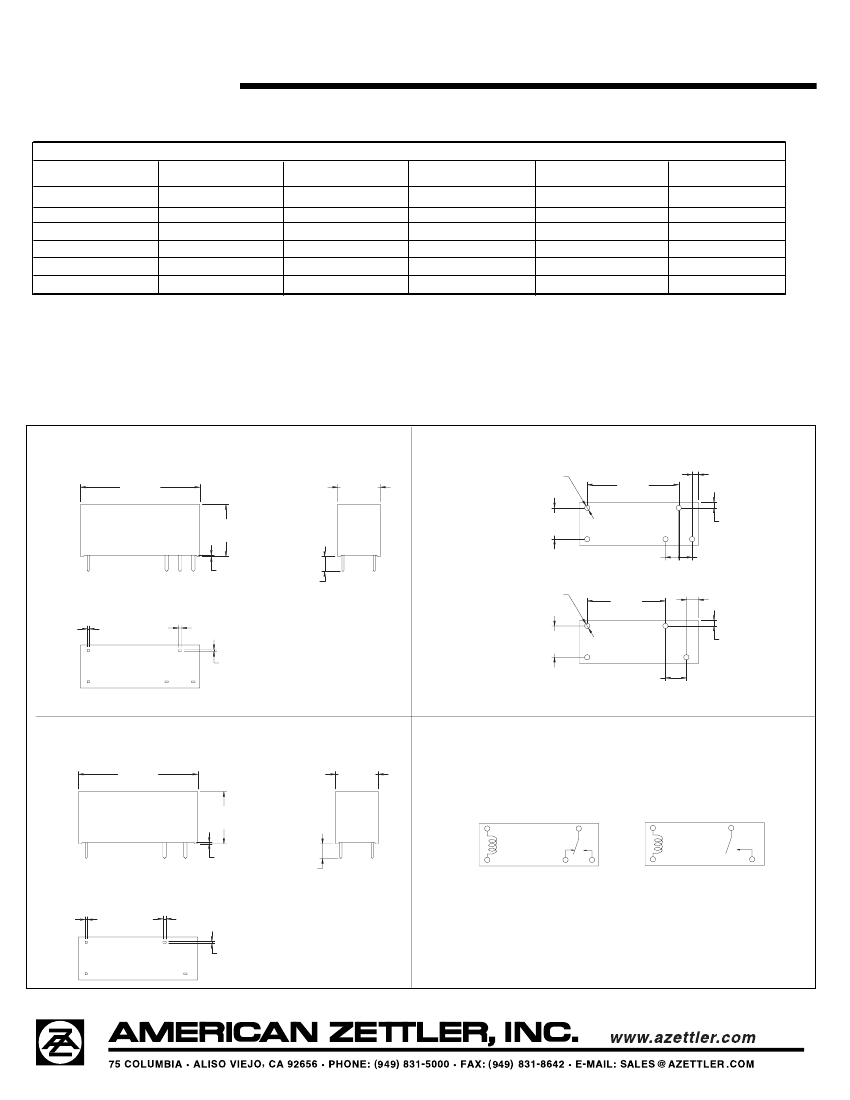

2/17/05W
