EM274205H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> EM274205H

EM274205H: Description6 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK; CategoryThe connector terminals; File Size53KB，1 Pages; ManufacturerCooper Industries

Download Datasheet Parametric View All

EM274205H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM274205H	-	-	View	Buy Now

EM274205H Overview

6 A, STRIP TERMINAL BLOCK, 2 ROWS, 1 DECK

EM274205H Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SAFETY APPROVAL: UL 94V-0, THERMOPLASTIC
Fastening method	SPRING LOADED
Installation type	BOARD
Number of layers	1
Rows	2
Number of channels	10
Rated current	6 A
Rated voltage	63 V
safety certificate	UL; CSA; CE
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Wire gauge	20 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

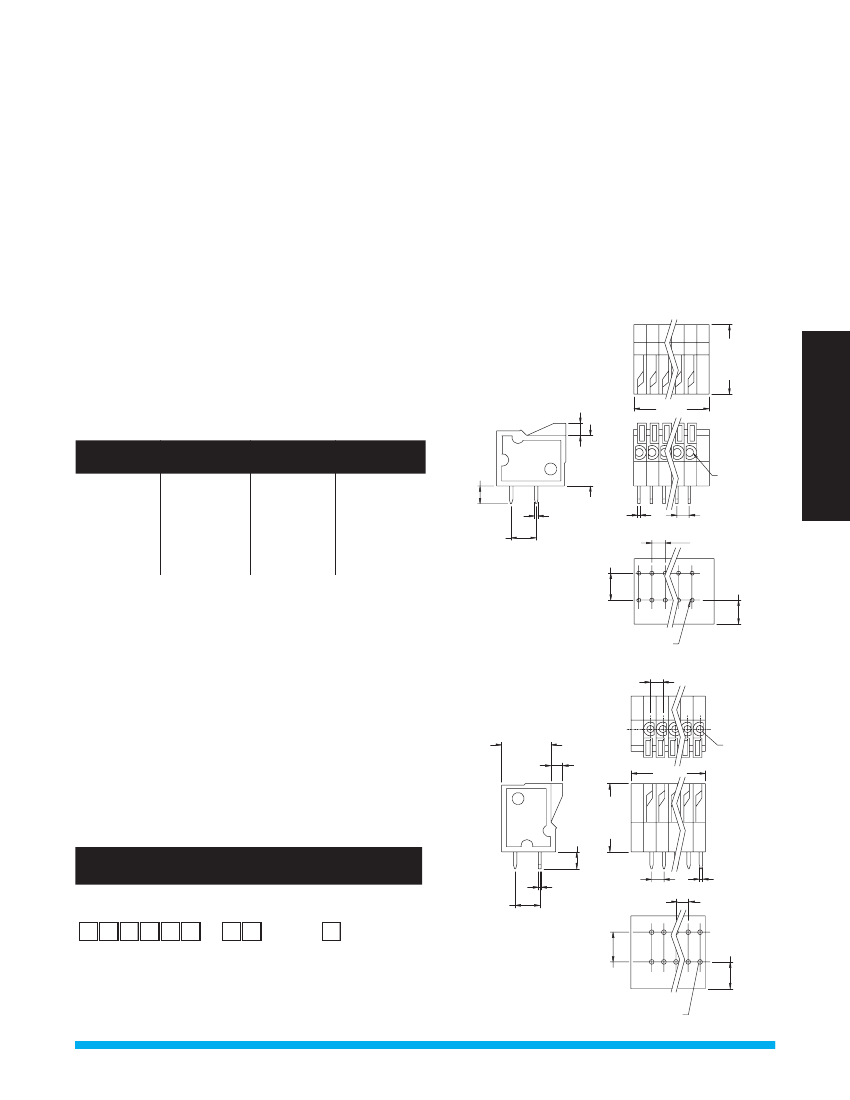

EM2742 Series

Euro-Mag Terminal Blocks

Screwless; 2.54 Centers

SPECIFICATIONS

EM274210H

Rating:

6A, 63V

Center Spacing:

.100” (25.4)

Wire Range:

#20-26 AWG

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Tin Plated Brass

Spring Material:

Stainless Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Recommended PCB Hole Diameters:

.051" (1.30)

Construction:

Mold to Length

Agency Information:

UL/CSA; CE Certified

TABLE A

Poles

L (mm)

8.08

10.62

13.16

15.70

18.24

33.48

30.94

28.40

Poles

L (mm)

30.94

33.48

36.02

38.56

41.10

43.64

46.18

3.5

(0.138")

(0.394")

Single & Double Row

Filtered Connectors

EM274206V

VERTICAL

(0.551")

2.6

(0.102")

Euro-MAG Series

Screwless

ﬂ1.5

(ﬂ0.059")

2.54

(0.100")

2.54

(0.100")

5.5

(0.217")

0.8

(0.032")

5.08

(0.200")

0.5

(0.020")

5.08

(0.200")

Base & Rail Mount

Connectors

To convert to inches, divide by 25.4

ﬂ1.2

(ﬂ0.04")

HORIZONTAL

2.54

(0.100")

(0.394")

2.6

(0.102")

ﬂ1.5

(ﬂ0.06")

Power Distribution Blocks

Part Numbering System

Series

# of Poles

Orientation

5.8

(0.200")

0.5

(0.020")

3.5

(0.138")

(0.55")

2.54

(0.100")

0.8

(0.03")

2.54

(0.100")

4.7

(0.85")

2 7 4 2

5.08

(0.200")

WIRE MANAGEMENT PRODUCTS

- horizontal

- vertical

ﬂ1.2

(ﬂ0.047")
