LTC1273CSW datasheet, PDF - EEWORLD Datasheet

LTC1273CSW: DescriptionIC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, 0.300 INCH, PLASTIC, SO-24, Analog to Digital Converter; CategoryAnalog mixed-signal IC converter; File Size106KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric View All

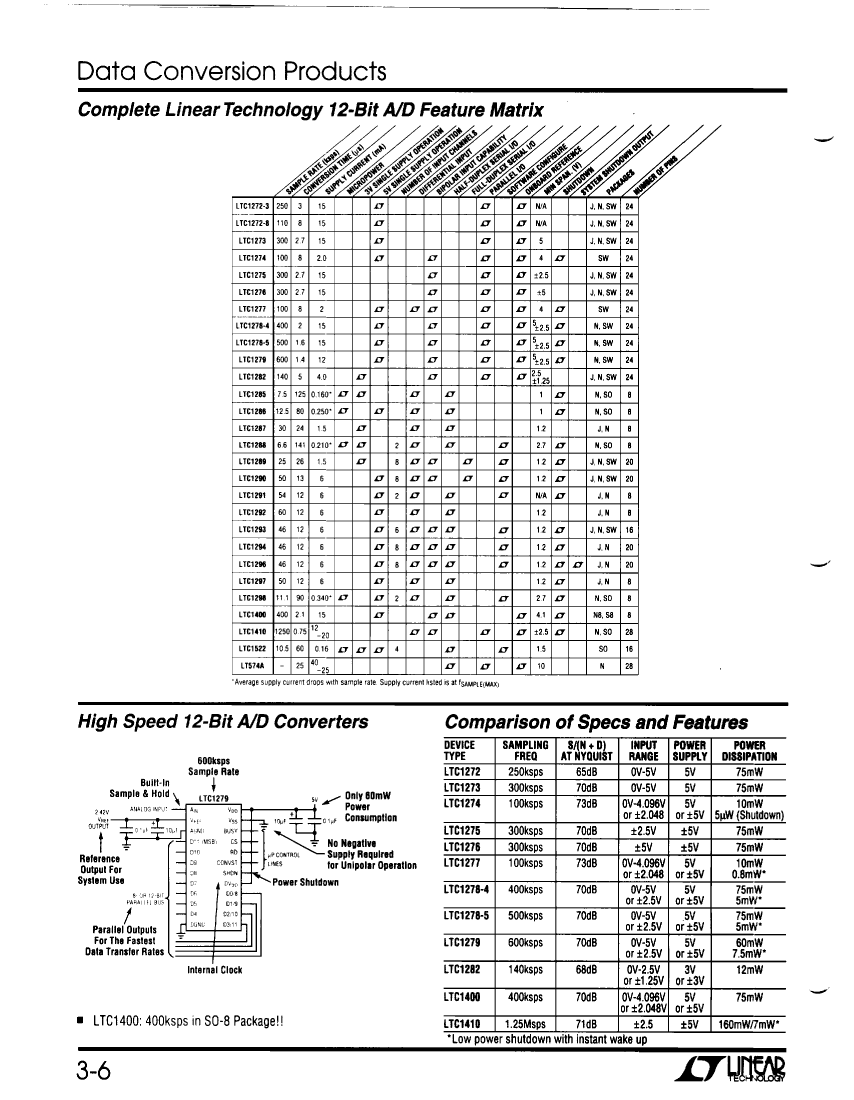

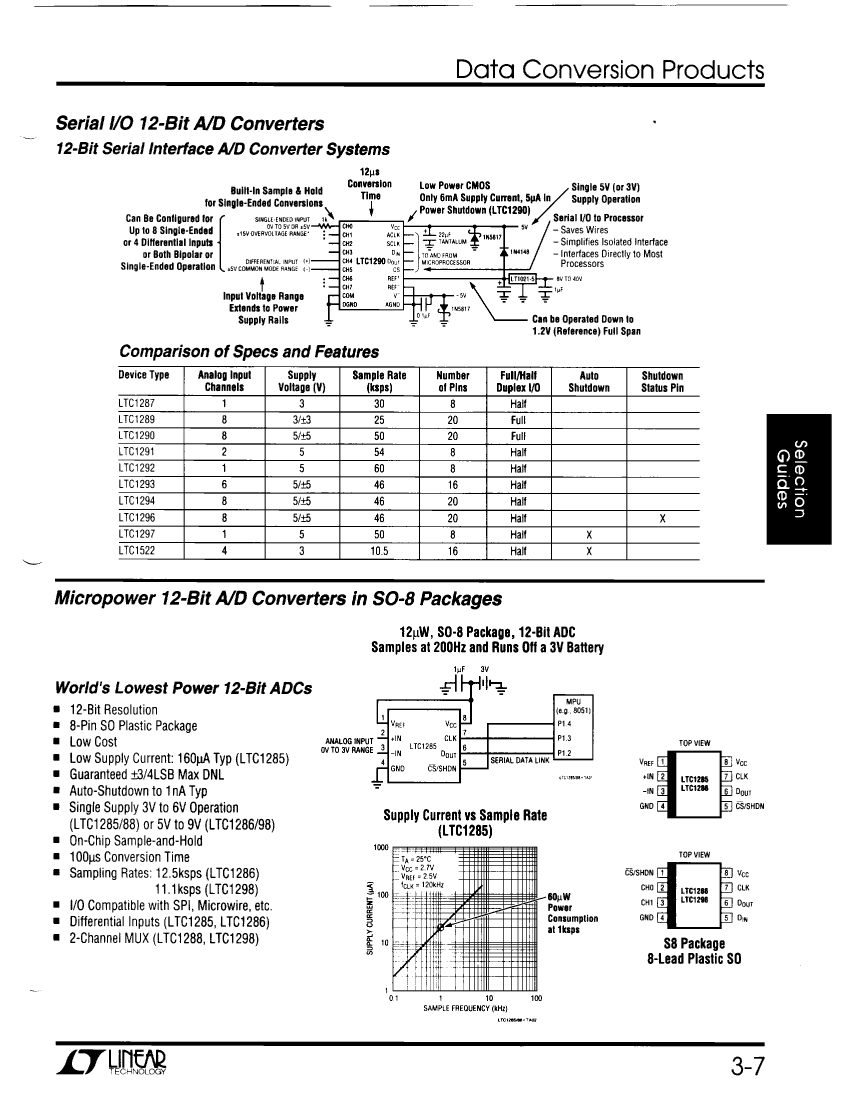

LTC1273CSW Overview

IC 1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, PDSO24, 0.300 INCH, PLASTIC, SO-24, Analog to Digital Converter

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	SOIC
package instruction	0.300 INCH, PLASTIC, SO-24
Contacts	24
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum analog input voltage	5 V
Minimum analog input voltage
Maximum conversion time	2.7 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDSO-G24
JESD-609 code	e0
length	15.4 mm
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Sampling rate	0.3 MHz
Maximum seat height	2.65 mm
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
