EC2800HSTS-33.000M-GTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EC2800HSTS-33.000M-GTR

EC2800HSTS-33.000M-GTR: DescriptionCRYSTAL OSCILLATOR, CLOCK, 33 MHz, HCMOS OUTPUT, ROHS COMPLIANT, DIP-8; CategoryPassive components oscillator; File Size196KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EC2800HSTS-33.000M-GTR Overview

CRYSTAL OSCILLATOR, CLOCK, 33 MHz, HCMOS OUTPUT, ROHS COMPLIANT, DIP-8

EC2800HSTS-33.000M-GTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Other features	TAPE AND REEL; TRISTATE ENABLE; 5 PPM/YEAR AGING AVAILABLE
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
JESD-609 code	e3
Manufacturer's serial number	EC28
Installation features	SURFACE MOUNT
Nominal operating frequency	33 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	13.2mm x 13.2mm x 5.6mm
longest rise time	6 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

EC28

Series

• RoHS Compliant (Pb-free)

• HCMOS output

• 2.5V supply voltage

• 8 pin DIP package

• Stability to ±20ppm

• Custom lead length,

gull wing options available

NOTES

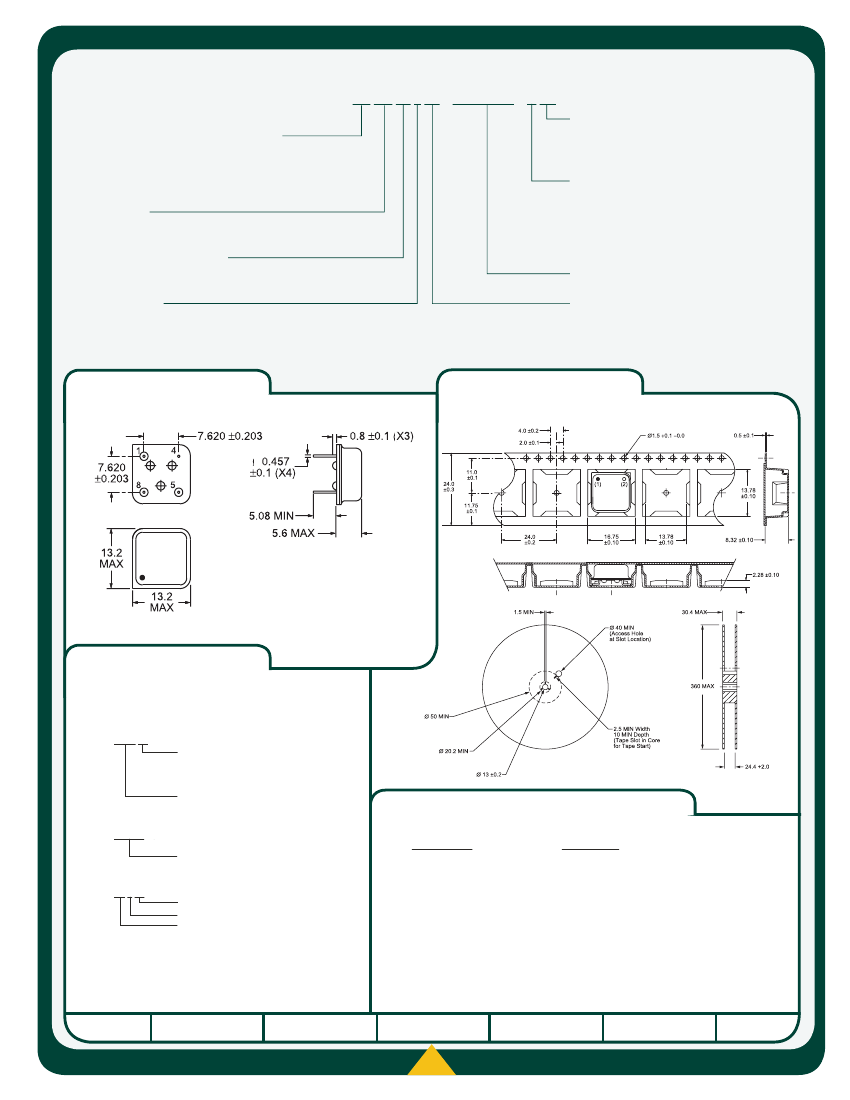

EC28

H 5.6

L 13.2

W 13.2

OSCILLATOR

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range (MHz)

Operating Temperature Range (OTR)

±100ppm, ±50ppm, or ±25ppm

±20ppm

Storage Temperature Range (STR)

Supply Voltage (V

)

Input Current (I

)

Frequency Tolerance / Stability

Output Voltage Logic High (V

)

Output Voltage Logic Low (V

)

Rise Time / Fall Time (T

)

Duty Cycle (SYM)

Load Drive Capability (C

LOAD

)

Tri-State Input Voltage

:No Connection

:≥90% of V

:≤10% of V

Aging (at 25°C)

Start Up Time (T

)

Period Jitter: Absolute

Period Jitter: One Sigma

20% to 80% of Waveform <24.000MHz

20% to 80% of Waveform >24.000MHz

at 50% of Waveform

<24.000MHz

>24.000MHz

Inclusive of Operating Temperature

Range, Supply Voltage, and Load

1.544MHz to 33.000MHz

0°C to 70°C or -40°C to 85°C

0°C to 70°C

-55°C to 125°C

2.5V

±5%

10mA Maximum

20mA Maximum

±100ppm, ±50ppm, ±25ppm, or

±20ppm Maximum (0°C to 70°C Only)

90% of V

Minimum I

=-4mA

10% of V

Maximum I

=+4mA

6 nSeconds Maximum

4 nSeconds Maximum

50 ±10(%) (Standard) or 50 ±5(%) (Optional)

15pF HCMOS Load

Enables Output

Disables Output: High Impedance

±5ppm / year Maximum

10mSeconds Maximum

±100pSeconds Maximum

±25pSeconds Maximum
