SED1526D0A datasheet, PDF - EEWORLD Datasheet

SED1526D0A: DescriptionLiquid Crystal Driver, 97-Segment, CMOS, 5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size449KB，12 Pages; ManufacturerSeiko Epson Corporation

Download Datasheet Parametric Compare View All

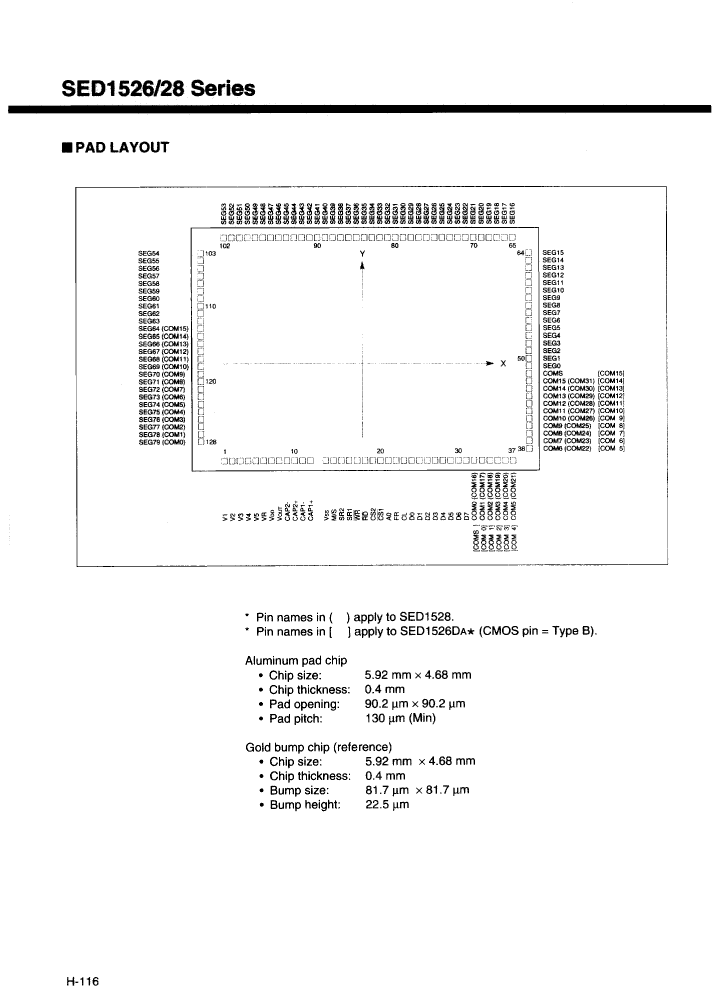

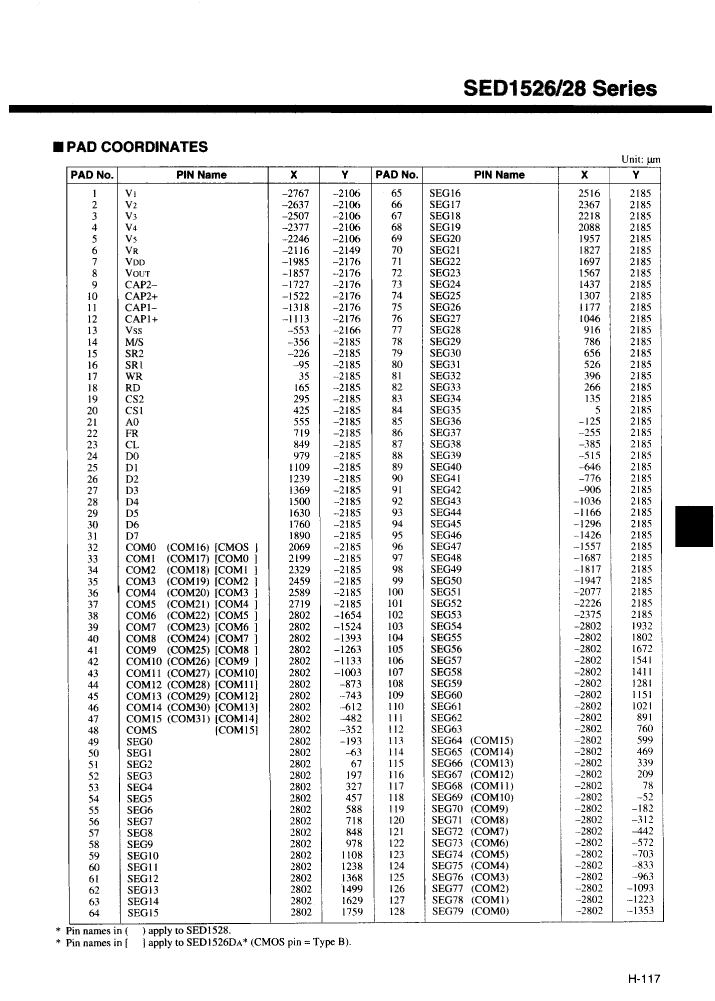

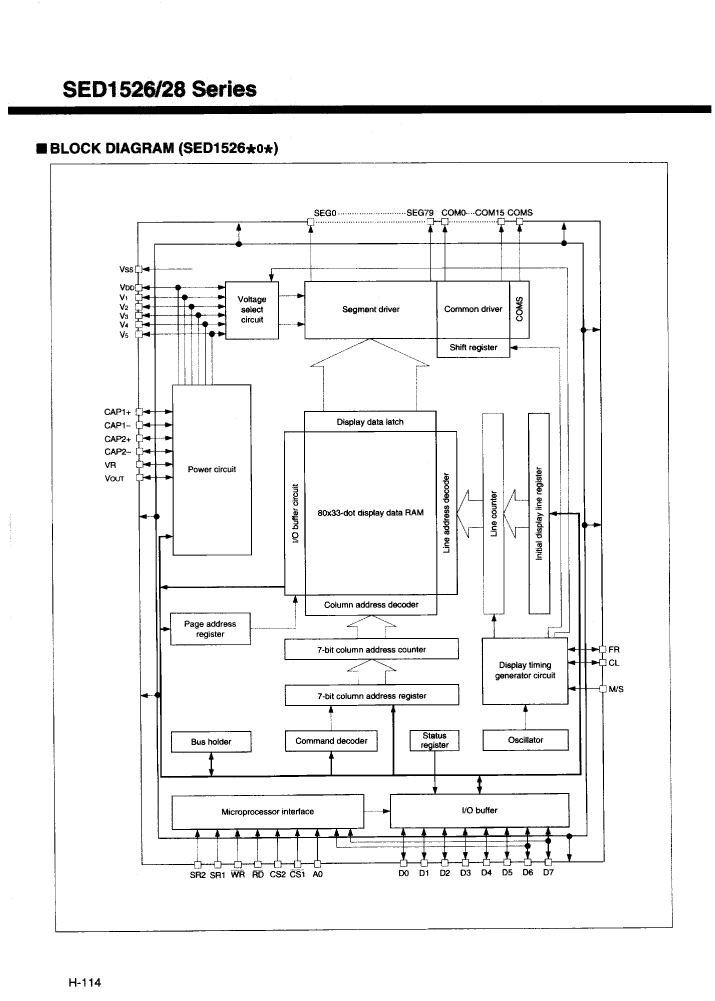

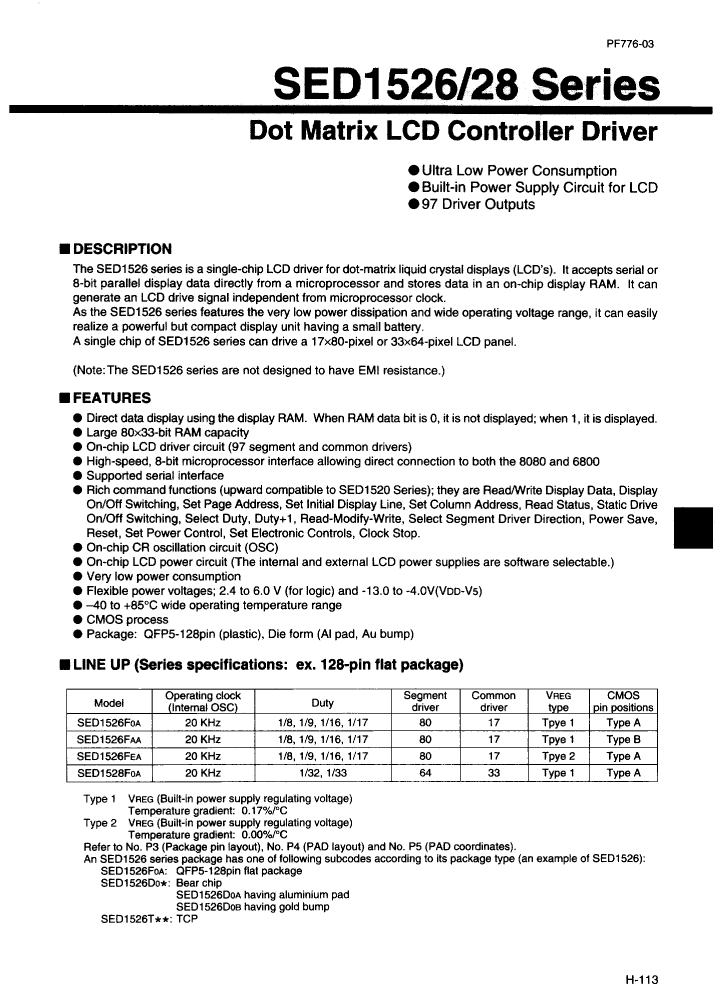

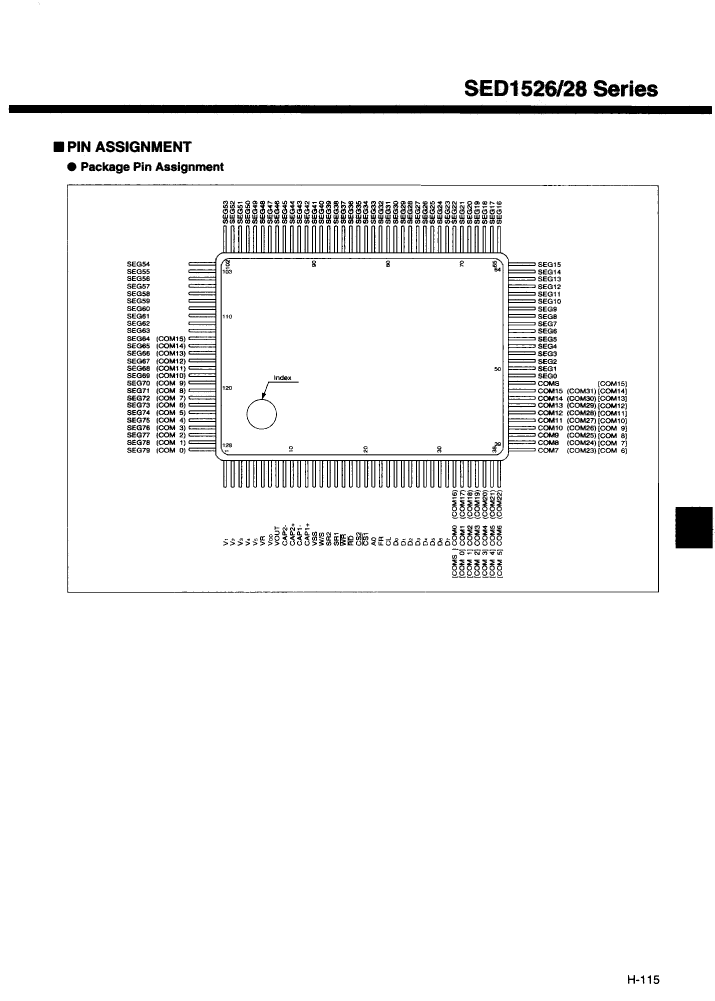

SED1526D0A Overview

Liquid Crystal Driver, 97-Segment, CMOS, 5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128

Parameter Name	Attribute value
Maker	Seiko Epson Corporation
package instruction	5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL/PARALLEL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	R-XUUC-N128
Multiplex display function	NO
Number of functions	1
Number of segments	97
Number of terminals	128
Output characteristics	TOTEM-POLE
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	RECTANGULAR
Package form	UNCASED CHIP
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Terminal form	NO LEAD
Terminal location	UPPER
minfmax	0.02 MHz

	SED1526D0A	SED1528FAA	SED1528D0A
Description	Liquid Crystal Driver, 97-Segment, CMOS, 5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128	17X80 DOTS DOT MAT LCD DRVR AND DSPL CTLR, PQFP128, PLASTIC, QFP5-128	LIQUID CRYSTAL DISPLAY DRIVER, UUC128, 5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128
package instruction	5.92 X 4.68 MM, 0.40 MM HEIGHT, 0.13 MM PITCH, ALUMINUM PAD, DIE-128	FQFP,	DIE,
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XUUC-N128	R-PQFP-G128	R-XUUC-N128
Number of terminals	128	128	128
Package body material	UNSPECIFIED	PLASTIC/EPOXY	UNSPECIFIED
encapsulated code	DIE	FQFP	DIE
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	UNCASED CHIP	FLATPACK, FINE PITCH	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Terminal form	NO LEAD	GULL WING	NO LEAD
Terminal location	UPPER	QUAD	UPPER
Maker	Seiko Epson Corporation	-	Seiko Epson Corporation
ECCN code	EAR99	-	EAR99
data entry mode	SERIAL/PARALLEL	-	SERIAL/PARALLEL
display mode	DOT MATRIX	-	DOT MATRIX
Input properties	STANDARD	-	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	-	LIQUID CRYSTAL DISPLAY DRIVER
Multiplex display function	NO	-	NO
Number of functions	1	-	1
Number of segments	97	-	97
Output characteristics	TOTEM-POLE	-	TOTEM-POLE
minfmax	0.02 MHz	-	0.02 MHz
Parts packaging code	-	QFP	DIE
Contacts	-	128	128
