AD7507TD/883B datasheet, PDF - EEWORLD Datasheet

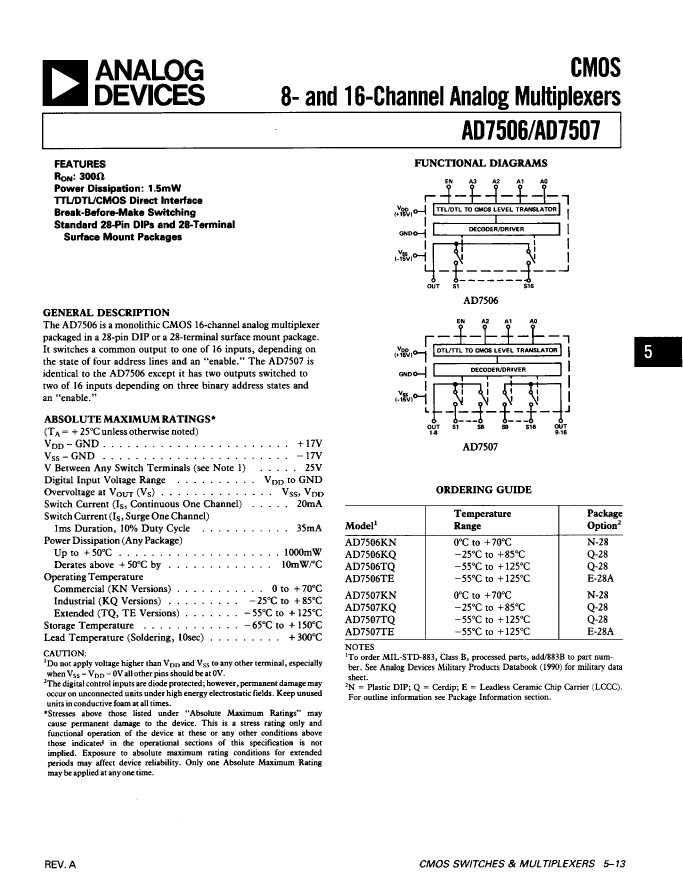

AD7507TD/883B: DescriptionIC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,28PIN,CERAMIC, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size244KB，4 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric View All

AD7507TD/883B Overview

IC IC,ANALOG MUX,SINGLE,8-CHANNEL,CMOS,DIP,28PIN,CERAMIC, Multiplexer or Switch

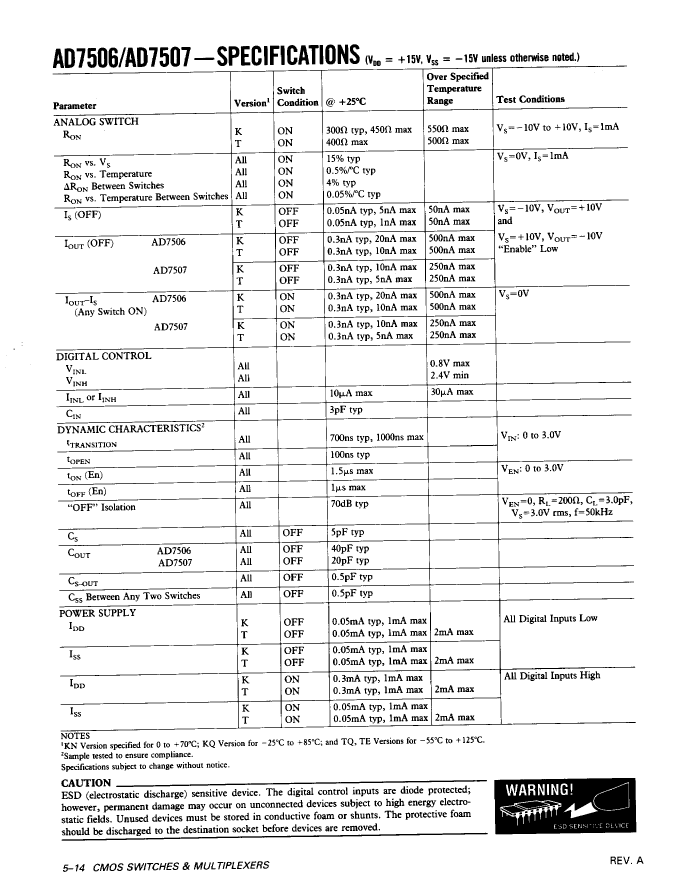

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	ADI
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-XDIP-T28
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	8
Number of functions	1

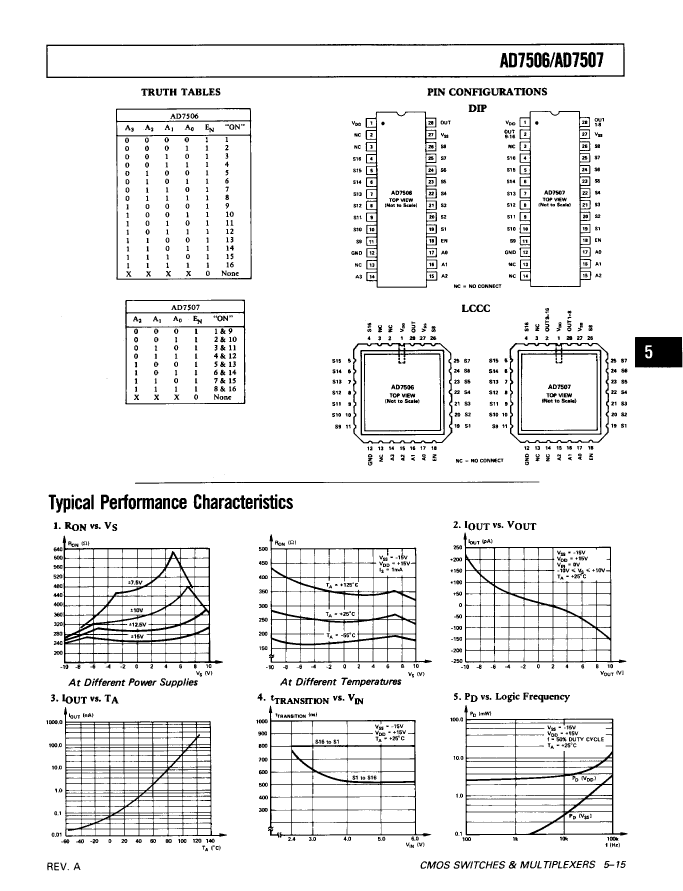

Number of terminals	28
Maximum on-state resistance (Ron)	500 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum signal current	0.035 A
Maximum supply current (Isup)	2 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO

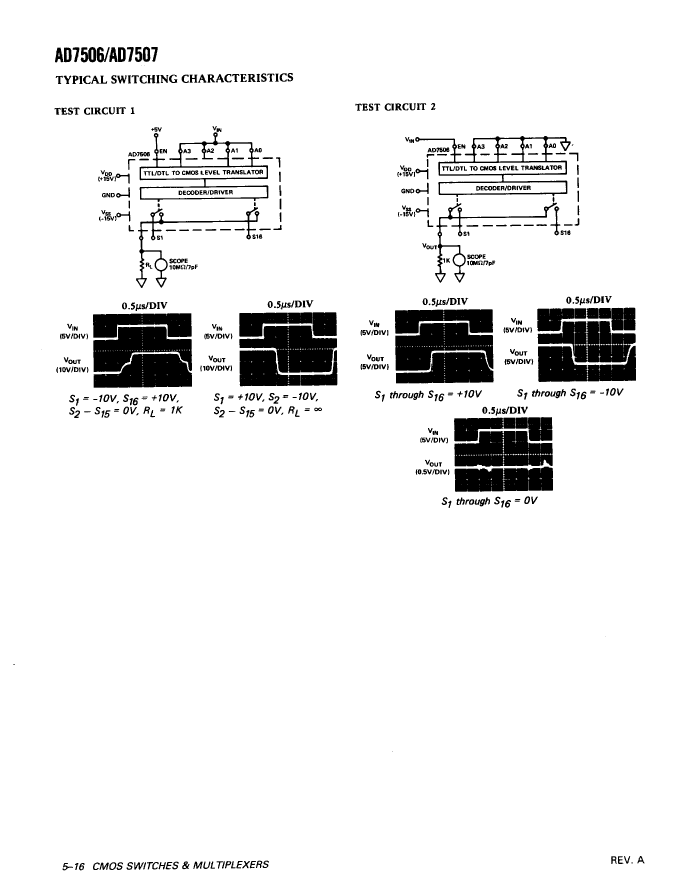

Maximum connection time	1500 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
