FREQXO32025UITB datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FREQXO32025UITB

FREQXO32025UITB: DescriptionHCMOS/LSTTL Output Clock Oscillator, 1MHz Min, 54MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size236KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

FREQXO32025UITB Overview

HCMOS/LSTTL Output Clock Oscillator, 1MHz Min, 54MHz Max, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

FREQXO32025UITB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	2 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/LSTTL
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.95mm
longest rise time	2 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

EURO

QUARTZ

Ultra-miniature 3.2 x 2.5 x 0.95mm package

Frequency Range 1.0MHz to 54.0MHz

Tristate (Enable/Disable) function as standard

Supply voltage 1.8, 2.5 or 3.3 Volts

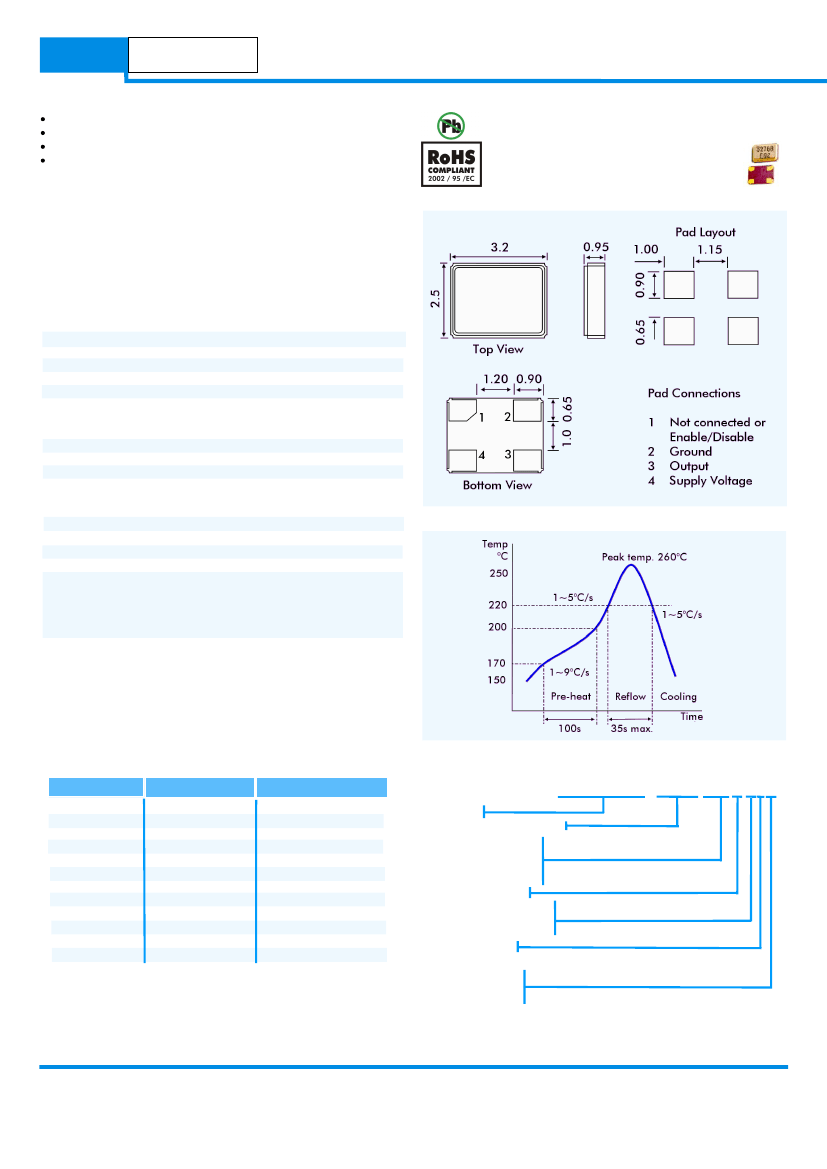

XO32 Series Oscillators

3.2 x 2.5 x 0.95mm SMD HCMOS

DESCRIPTION

XO32 ultra-miniature oscillators consist of a TTL/CMOS-compatible

hybrid circuit and a miniature quartz crystal packaged in a low-profile,

industry-standard ceramic package. The package provides a fully

specified clock oscillator with a very small footprint.

OUTLINE & DIMENSIONS

SPECIFICATION

Frequency Range:

Supply Voltage:

Output Logic:

Frequency Stability:

Rise/Fall Time:

Output Voltage:

HIGH ‘1’:

LOW ‘0’:

Output Load

Duty Cycle:

Supply Current:

Operating Temperature

Commercial:

Industrial:

Storage Temperature:

Start-up Time:

Ageing:

Phase Jitter RMS:

Tristate Function (Pad 1):

1.0MHz to 54.0MHz

1.8, 2.5 or 3.3 Volts ±5%

HCMOS/LSTTL

See table

2ns typical.

(Frequency dependant)

90%Vdd minimum

10%Vdd maximum

15pF (50pF available for 3.3V supply )

50%±5% typical

See table

0° to +70°C

-40° to +85°C

-55 to +100°C

10ms max.

±5ppm max. in first year at 25°C

10ps typical

Enable/Disable function is standard for

XO32. Output (Pad 3) is active if Pad 1

is not connected or Pad 1 is 'HIGH'.

Output is high impedance when 'LOW'

or GROUND is applied to Pad 1.

8mm tape, 178mm reel, 1k pieces

SOLDER TEMPERATURE PROFILE

Packaging:

Note: Parameters are measured at ambient temperature of 25°C,

supply voltage as stated and a load of 15pF

CURRENT CONSUMPTION

Supply Voltage

1.8 Volts

Frequency Range Current Consumption*

1.0~1.5MHz

1.5~20MHz

20~50MHz

50MHz+

0.3~1.5MHz

1.5~20MHz

20~50MHz

50MHz+

0.3~1.5MHz

1.5~20MHz

20~50MHz

50MHz+

5mA

8mA

15mA

22mA

5mA

8mA

15mA

25mA

5mA

8mA

15mA

35mA

PART NUMBERING

Example:

20.000MHz XO32050UCTA

2.5 Volts

3.3 Volts

* Current consumption quoted is maximum

Frequency

Series Designation XO32

Stability*

100 = ±100ppm

50 = ±50ppm

25 = ±25ppm

Output Universal

Operating Temp. Range

C = Commercial

I = Industrial

Tristate Function

Supply Voltage

A = 3.3 Volts

B = 2.5 Volts

C = 1.8 Volts

* For other stability requirements enter figure required.

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
