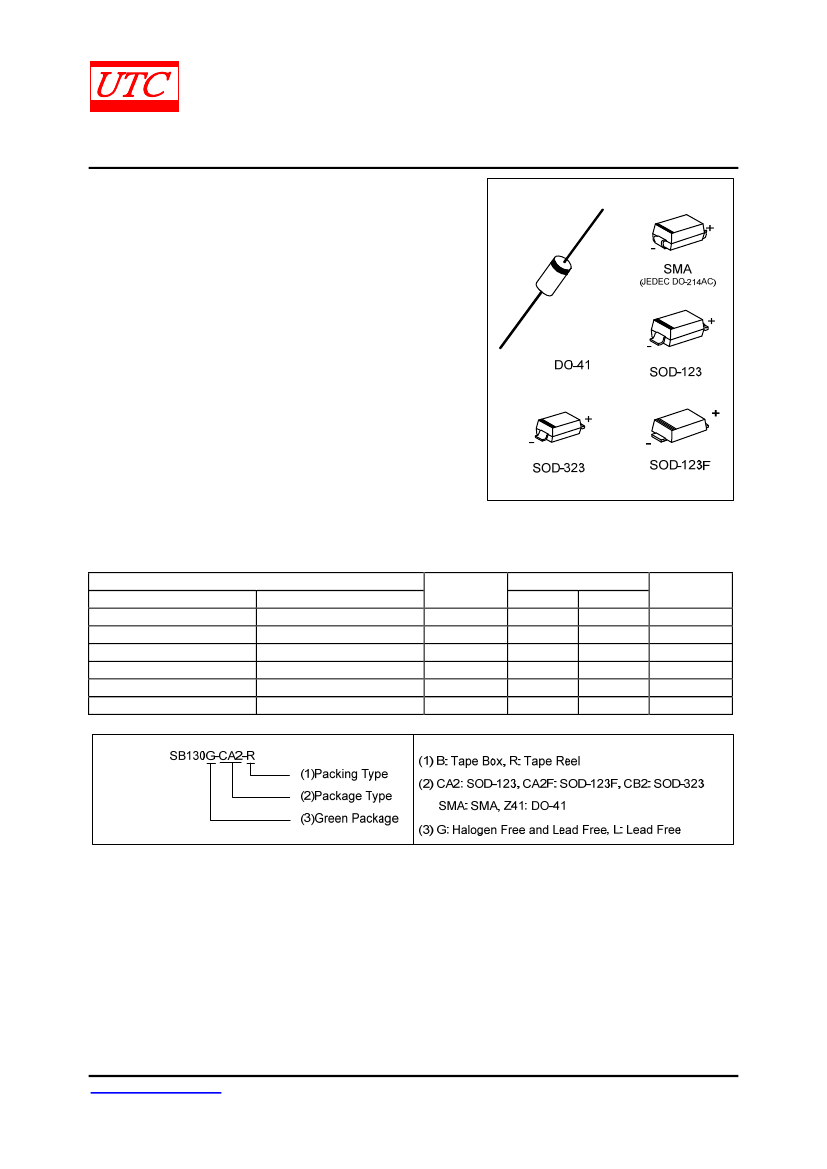

UNISONIC TECHNOLOGIES CO., LTD
SB130
1.0A SCHOTTKY BARRIER
RECTIFIER
DESCRIPTION
DIODE
The UTC
SB130
is a 1.0A schottky barrier rectifier, it uses UTC’s
advanced technology to provide customers with low forward voltage
drop, high current capability and high efficiency, etc.
The UTC
SB130
is suitable for use in free wheeling, high frequency
inverters, low voltage and polarity protection applications.
FEATURES
* Low forward voltage drop
* High current capability
* High surge capability
* Low power loss
* High efficiency
ORDERING INFORMATION
Package
SOD-123
SOD-123F
SOD-323
SMA
DO-41
DO-41
Pin Assignment
1
2
K
A
K
A
K
A
K
A
K
A
K
A
Packing
Tape Reel
Tape Reel
Tape Reel
Tape Reel
Tape Box
Tape Reel
Ordering Number
Lead Free
Halogen Free
SB130L-CA2-R
SB130G-CA2-R
SB130L-CA2F-R
SB130G-CA2F-R
SB130L-CB2-R
SB130G-CB2-R
SB130L-SMA-R
SB130G-SMA-R
SB130L-Z41-B
SB130G-Z41-B
SB130L-Z41-R
SB130G-Z41-R
Note: Pin Assignment: K: Cathode
A: Anode
www.unisonic.com.tw
Copyright © 2019 Unisonic Technologies Co., Ltd
1 of 4
QW-R601-276.E
SB130
MARKING
PACKAGE
SOD-123
SOD-123F
SOD-323
UTC
SB130
Date Code
L: Lead Free
G: Halogen Free
DIODE
MARKING
SMA
Cathode Band for
uni-directional Only
Cathode Band for uni-directional Only
DO-41
SB130
L: Lead Free
G: Halogen Free
Date Code
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 4
QW-R601-276.E
SB130
ABSOLUTE MAXIMUM RATINGS
(T
A
=25°C unless otherwise specified)
DIODE
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
PARAMETER
SYMBOL
RATINGS
UNIT
Working Peak Reverse Voltage
V
RWM
30
V
Peak Repetitive Reverse Voltage
V
RRM
30
V
RMS Reverse Voltage
V
R(RMS)
21
V
DC Blocking Voltage
V
R
30
V
Average Rectified Output Current
I
O
1.0
A
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
I
FSM
25
A
(JEDEC Method)
Operating Junction Temperature
T
J
-65 ~ +125
°C
Storage Temperature
T
STG
-65 ~ +150
°C
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
THERMAL DATA
PARAMETER
SOT-123
SOD-123F
SOD-323
SMA
DO-41
SYMBOL
RATINGS
200
θ
JA
95
50
°C/W
°C/W
UNIT
°C/W
Junction to Ambient (Note 2)
ELECTRICAL CHARACTERISTICS (Note 2)
(T
A
=25°C
unless otherwise specified.)
MIN
30
TYP MAX UNIT
V
0.5
V
1.0 mA
10
mA
PARAMETER
SYMBOL
TEST CONDITIONS
I
R
=0.50mA
Reverse Breakdown Voltage
V
(BR)R
Forward Voltage Drop
V
FM
I
F
=1.0A
Peak Reverse Current at Rated DC
T
A
=25°C
I
RM
Blocking Voltage
T
A
=100°C
Notes: 1. Measured at ambient temperature at a distance of 9.5mm from the case.
2. Short duration test pulse used to minimize self-heating effect.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 4
QW-R601-276.E
SB130

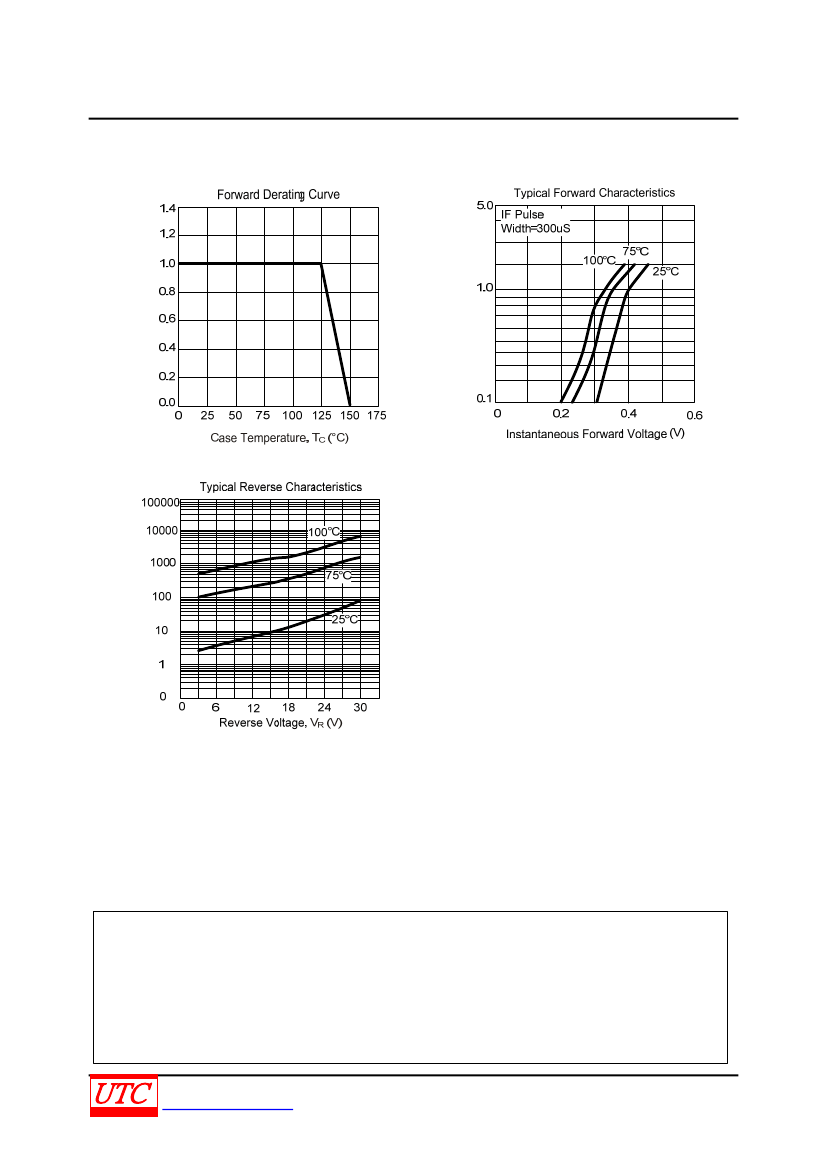

TYPICAL CHARACTERISTICS
DIODE
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all UTC products described or contained herein.
UTC products are not designed for use in life support appliances, devices or systems where malfunction
of these products can be reasonably expected to result in personal injury. Reproduction in whole or in
part is prohibited without the prior written consent of the copyright owner. UTC reserves the right to
make changes to information published in this document, including without limitation specifications and
product descriptions, at any time and without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
Instantaneous Reverse Current (μA)
Average Rectified Current, I
O
(A)
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
Instantaneous Forward Current (A)
4 of 4
QW-R601-276.E
