Data Sheet
FOL15DCWx-A**-W****-* / 1550nm CW DFB Laser Module
Date February 16, 2005 ODC-4R002B
Wavelength Selected 1550nm CW DFB Laser Module
Applications
•
•
•
Probe Light Source
Supervisory System
OC-192/STM-64 Transmission Systems
Features
•
Low Driving Current, High Slope Efficiency
•
High Side Mode Suppression Ratio
•
Any Selected Wavelength between 1490nm and 1625nm
•
Narrow Linewidth Available
•
1625nm Supervisory Channels
Descriptions
FOL15DCWx-Axx-Wxxxx series of DFB laser module is designed for probe light sources,
supervisory channel. The polarization maintaining fiber pigtail enables to directly connect a
modulator without polarization control. The polarization state of output laser beam is
maintained to a consistent orientation. The module is housed in an industry standard
hermetically sealed 14-pin butterfly package, which contains optical isolator, thermoelectric
cooler, power monitor photodiode. A particular wavelength selection is available from a very
wide wavelength range between 1490nm and 1625nm.
Absolute Maximum Ratings
Parameter
Storage Temperature
Operating Case Temperature
LD Reverse Voltage
LD Forward Current
PD Reverse Voltage
PD Forward Current
TEC Current
TEC Voltage
Sym
Tstg
Tc
V
rLD
I
fLD
V
rPD
I
fPD
Itec
Vtec
Min
-40
-5
-
-
-
-
-
-
Max
85
70
2
350
20
5
1.6
2.6
Unit
°C
°C
V
mA
V
mA
A
V
Conditions
-
-
-
-
-
-
-
-
1/1
Data Sheet
FOL15DCWx-A**-W****-* / 1550nm CW DFB Laser Module
Date February 16, 2005 ODC-4R002B
Optical Characteristics
(TLD=Tset, Tc=25°C, unless otherwise specified)
Parameter
Optical Output Power
LD Forward Current
Submount Temperature
LD Forward Voltage
Threshold Current
Wavelength
Wavelength tolerance
Linewidth (-3dB fullwidth)
Side Mode Suppression Ratio
Optical Isolation
Sym
Pf
If
Tset
Vf
I
th
λ
∆λ
∆½
SMSR
Iso
Min
10
-
-
-
20
-
-
1490
λc-3
-
-
-
-
35
25
-
Relative Intensity Noise
RIN
-
-
Monitor Current
Monitor Dark Current
Tracking Error
TEC Current
TEC Voltage
Thermistor B constant
Thermistor Resistance
Extinction Ratio
*
1
BOL : Beginning of Life
*
2
O
pRL
: Optical Return Loss
Im
Id
TE
Itec
Vtec
B
R
Er
0.05
0.1
0.15
-
-0.5
-
-
-
9.5
20
Typ
-
-
-
-
-
-
15
-
λc
-
-
-
-
45
-
-
-
-
-
-
-
-
-
-
-
3900
-
-
Max
40
80
150
300
35
2.5
40
1625
λc+3
10
5
2
1
-
-
-133
-138
-140
1
2
3
100
0.5
1.2
2.4
-
10.5
-
Unit
mW
mA
mA
mA
°C
V
mA
nm
nm
MHz
MHz
MHz
MHz
dB
dB
dB/Hz
Conditions
CW
Pf=10mW,CW,BOL*
1
Pf=20mW,CW,BOL*
1
Pf=40mW,CW,BOL*
1
Rated Power, CW
Rated Power, CW
BOL
Rated Power, CW
Rated Power, CW
Pf=10, 20 40mW,CW
Pf=10, 20 40mW,CW,Optional (-A)
Pf=10, 20, 40mW,CW,Optional (-B)
Pf=20, 40mW,CW,Optional (-C)
Rated Power,CW
Pf=10mW,CW,O
pRL
<-25dB*
2
100MHz<f<10GHz
Pf=20mW,CW,O
pRL
<-25dB*
2
dB/Hz
100MHz<f<10GHz
Pf=40mW,CW,O
pRL
<-25dB*
2
dB/Hz
100MHz<f<10GHz
mA Pf=10mW,CW, V
rPD
=5V
mA Pf=20mW,CW, V
rPD
=5V
mA Pf=40mW,CW, V
rPD
=5V
nA V
rPD
=5V
dB Im=constant, Tc=-5 to 70°C
A Tc=70°C, Rated Power,CW
V Tc=70°C, Rated Power,CW
K Tset=25°C
kΩ Tset=25°C
dB Rated Power,CW
2/2
Data Sheet
FOL15DCWx-A**-W****-* / 1550nm CW DFB Laser Module
Date February 16, 2005 ODC-4R002B
Dimensions and Pin Assignments
7
6
5
4
3
2
1
PIN No.
1
2
Object
Thermistor
Thermistor
LD Cathode(-)
Monitor Anode(-)
Monitor Cathode(+)
TEC(+)
TEC(-)
PIN No.
8
9
10
11
12
13
14
Object
Case Ground
Case Ground
No Connect
Laser Anode(+),
Case Ground*
Laser RF
Laser Anode(+),
Case Ground*
No Connect
L1
180nH
TEC
TH
10kΩ
3
4
CASE
R1
20Ω
5
6
7
8
9
10
11
12
13
14
*LD anode float pin assignment is available.
Optical Fiber Pigtail Specifications
Parameter
Fiber Type
Nominal Fiber Length
Connector Type
Polarization Axis
Specification
FUJIKURA PANDA
PM,SM15-P-8/125 UV/UV 400 or equivalent
UV coating (0.4mm
φ)
or Hytrel coating(0.9mmφ)
Min.1,000
(Boot edge (fiber side) to connector edge)
FC/SPC Connector
Slow Axis
Unit
-
mm
-
-
3/3
Data Sheet
FOL15DCWx-A**-W****-* / 1550nm CW DFB Laser Module
Date February 16, 2005 ODC-4R002B

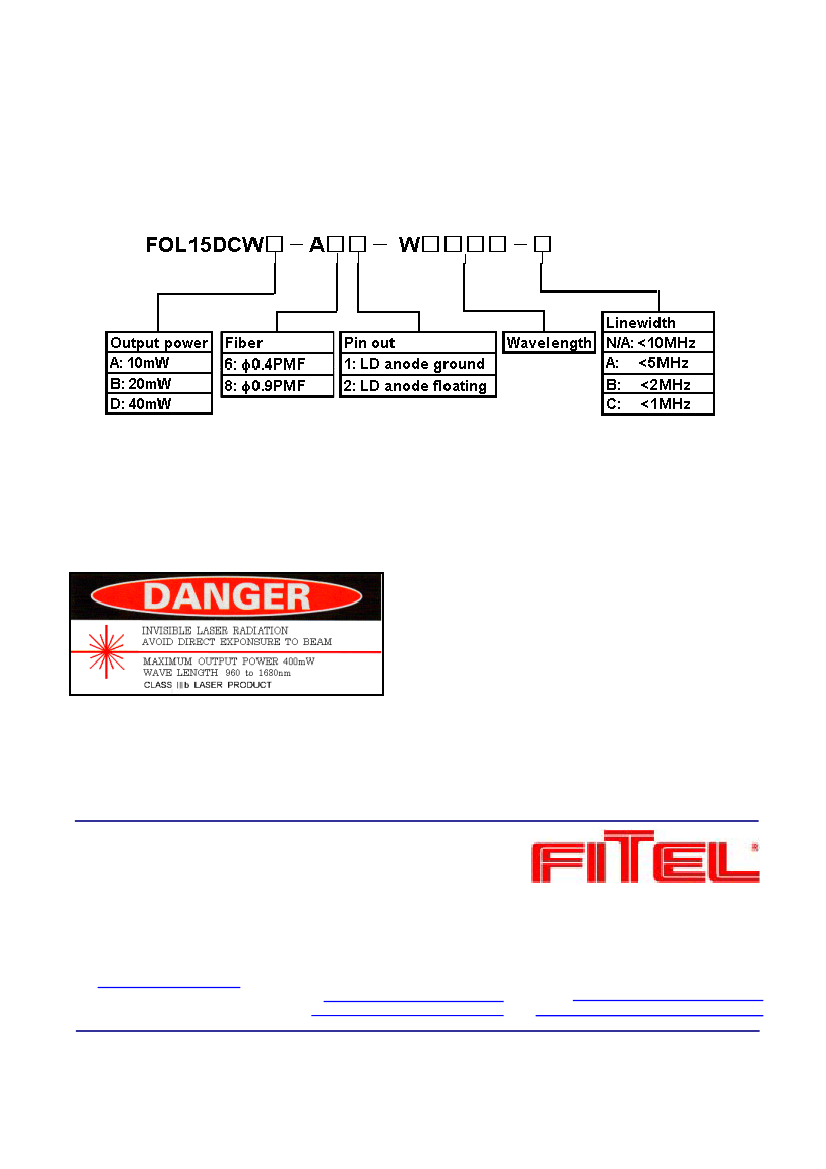

Ordering Information
The selected wavelength is entered with 4-digit number of wavelength in nanometer. For example, 1625nm 40mW
DFB laser module with
φ0.9
PMF, LD anode ground and the line width of <2MHz is FOL15DCWD-A81-W1625-B.
Safety Information
This product complies with 21 CFR 1040.10 and 1040.11,
Class 3b laser product. Invisible laser radiation is emitted
from the end of the fiber or connector.
Avoid direct exposure to the beam
Furukawa Electric Co, Ltd., Furukawa America, Inc, and Furukawa Electric Europe, Ltd. reserve the right to change data
contained in this document in the interest of continued product improvement. The publication of this information does not imply
freedom from patent or any other rights of The Furukawa Electric Company, Ltd. or its affiliated companies.
All Rights Reserved, Copyright © THE FURUKAWA ELECTRIC CO., LTD
