DV74HC153D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74HC153D

DV74HC153D: DescriptionMultiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16; Categorylogic logic; File Size511KB，3 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

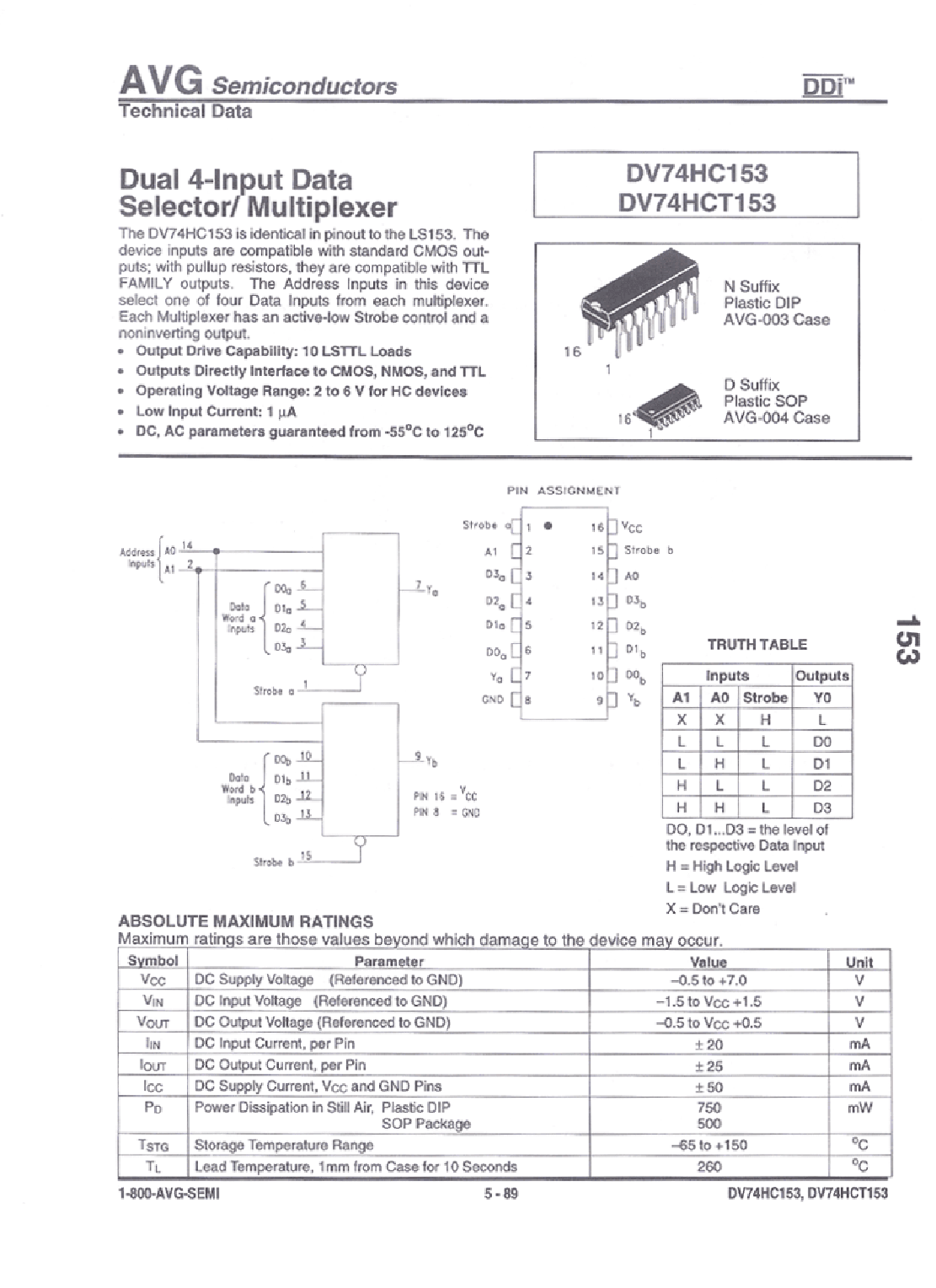

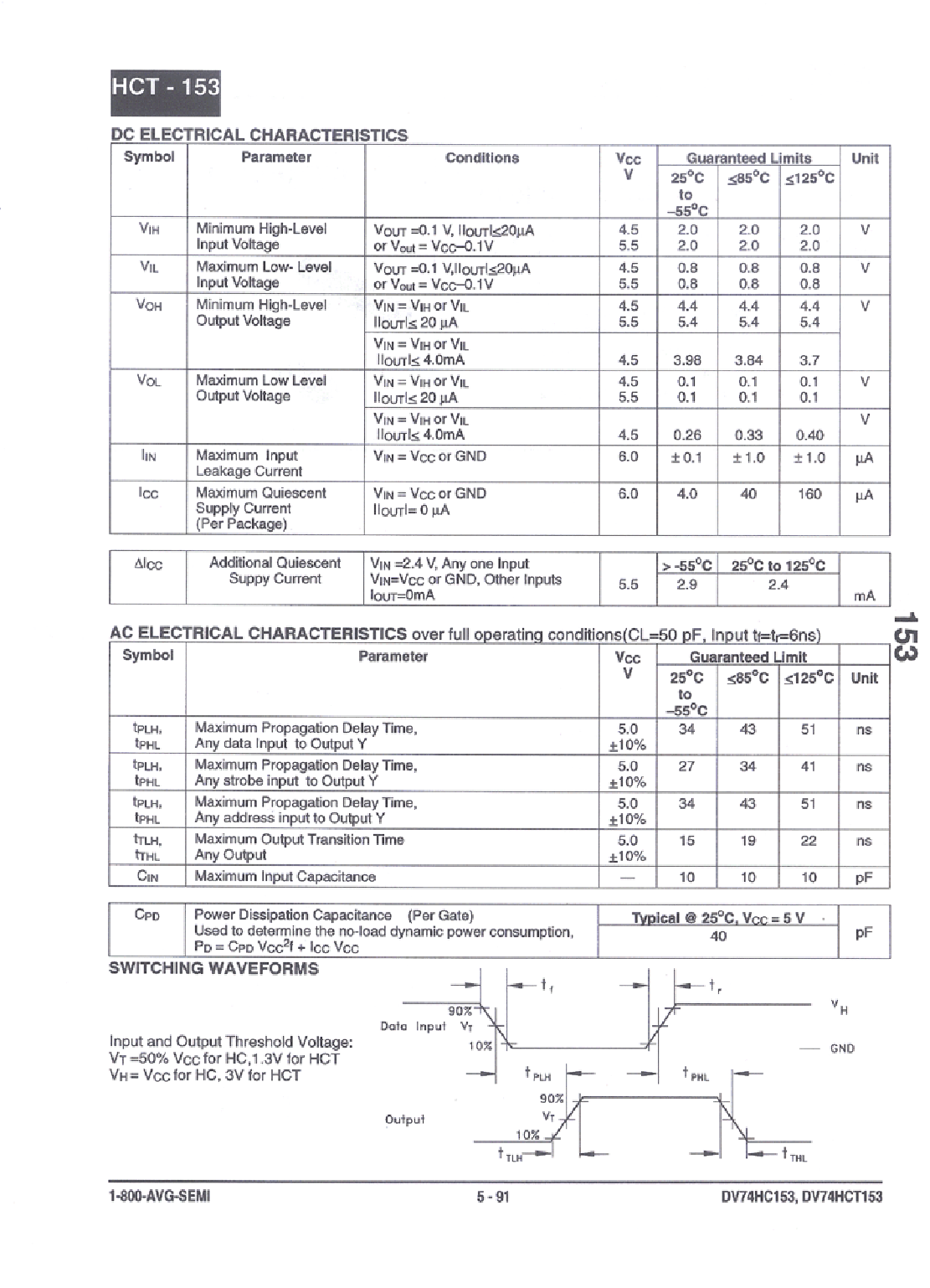

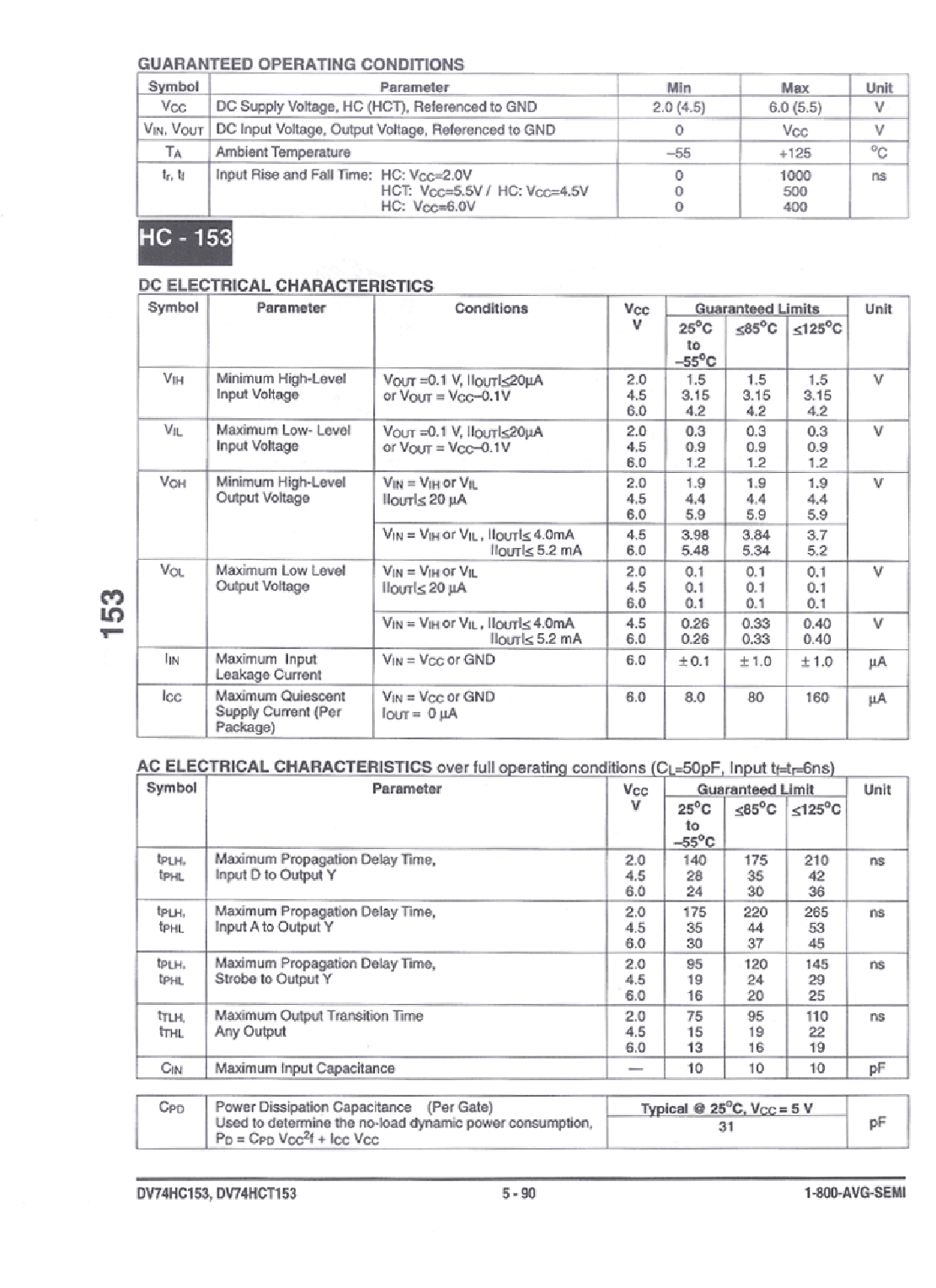

DV74HC153D Overview

Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16

DV74HC153D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
series	HC/UH
JESD-30 code	R-PDSO-G16
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	210 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm

Preview

Download Datasheet

View All

DV74HC153D Related Products

	DV74HC153D	DV74HC153N	DV74HCT153N
Description	Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDSO16, PLASTIC, SOP-16	Multiplexer, HC/UH Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16	Multiplexer, HCT Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP	DIP
package instruction	SOP,	DIP,	DIP,
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
series	HC/UH	HC/UH	HCT
JESD-30 code	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16
length	9.9 mm	19.175 mm	19.175 mm
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2
Number of entries	4	4	4
Output times	1	1	1
Number of terminals	16	16	16
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Output polarity	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE
propagation delay (tpd)	210 ns	210 ns	51 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	4.44 mm	4.44 mm
Maximum supply voltage (Vsup)	6 V	6 V	5.5 V
Minimum supply voltage (Vsup)	2 V	2 V	4.5 V
Nominal supply voltage (Vsup)	4.5 V	4.5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	7.62 mm	7.62 mm
