Z8031DC

Description
Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40
CategoryThe embedded processor and controller    Microcontrollers and processors
File Size943KB，29 Pages
ManufacturerAMD
Websitehttp://www.amd.com
Download Datasheet Parametric Compare View All

Z8031DC Overview

Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40

Z8031DC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerAMD
Parts packaging codeDIP
package instructionDIP, DIP40,.6
Contacts40
Reach Compliance Codecompliant
Address bus width8
boundary scanNO
Bus compatibilityZ8000; 8086
maximum clock frequency4 MHz
letter of agreementASYNC, BIT
Data encoding/decoding methodsNRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate0.125 MBps
External data bus width8
JESD-30 codeR-GDIP-T40
JESD-609 codee0
length52.324 mm
low power modeNO
Number of DMA channels
Number of I/O lines
Number of serial I/Os2
Number of terminals40
On-chip data RAM width
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP40,.6
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
RAM (number of words)0
Maximum seat height5.715 mm
Maximum slew rate250 mA
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
technologyMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width15.24 mm
uPs/uCs/peripheral integrated circuit typeSERIAL IO/COMMUNICATION CONTROLLER, SERIAL

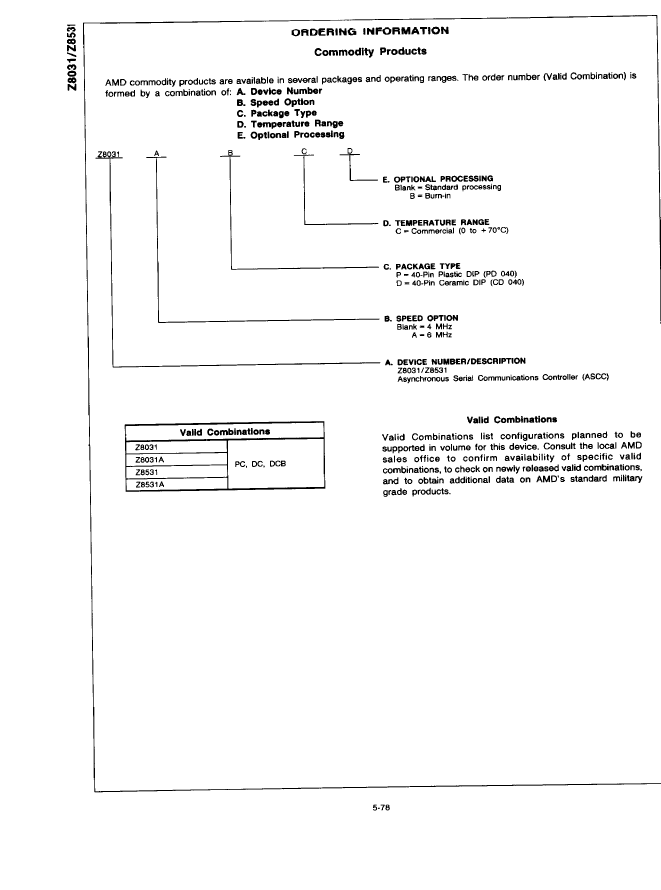

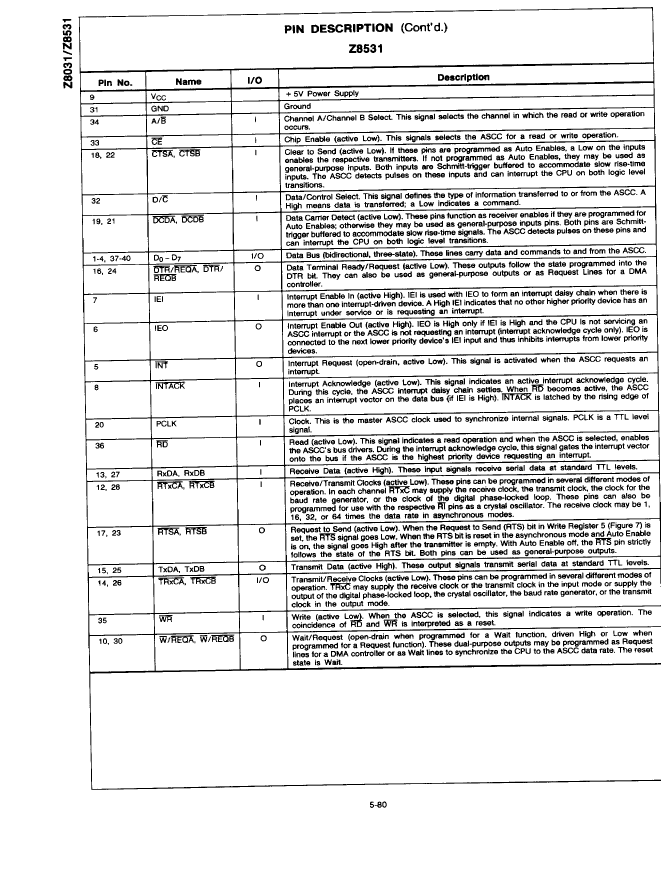

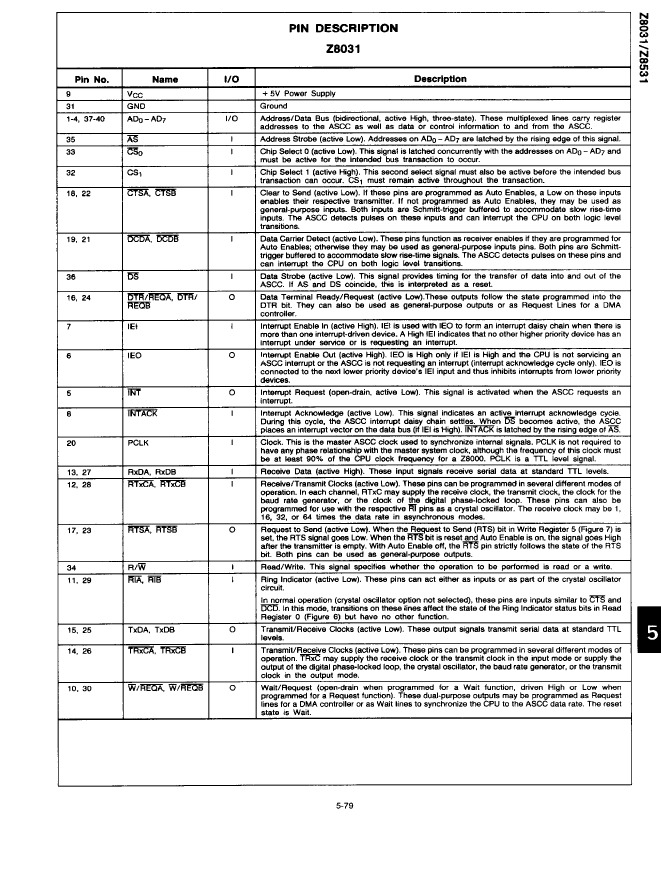

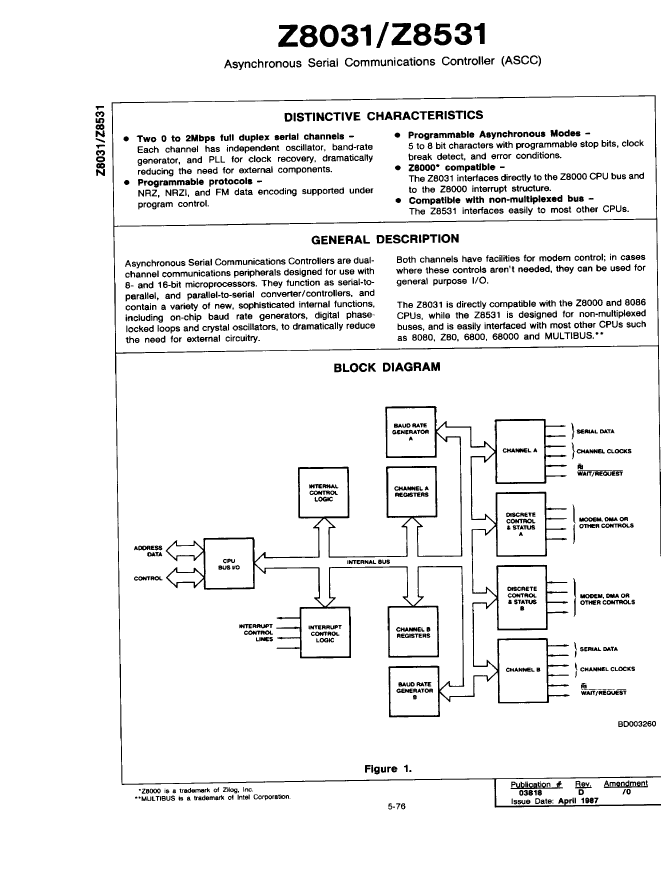

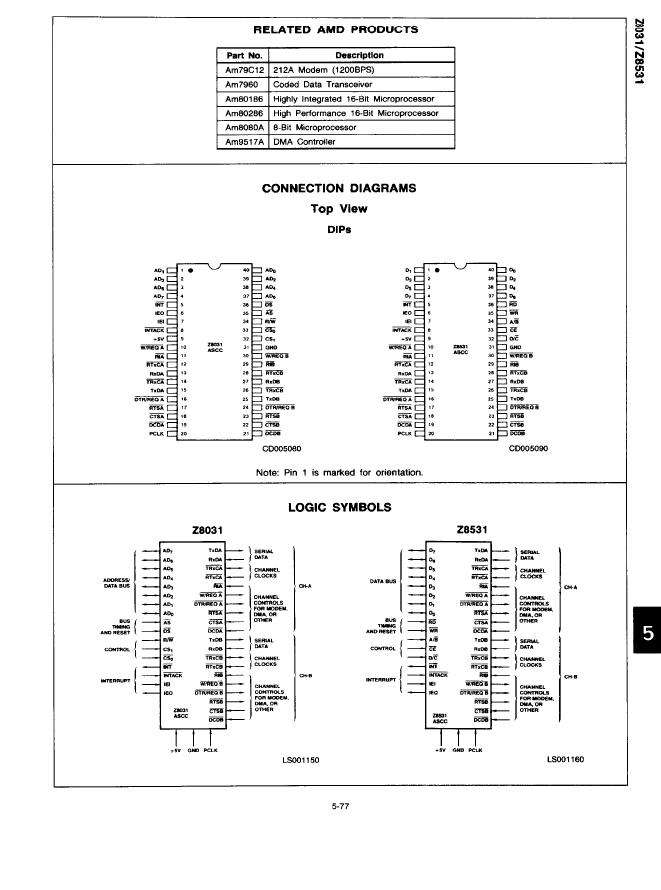

Preview

Download Datasheet
Powered by ICminer.com Electronic-Library Service CopyRight 2003

Z8031DC Related Products

Z8031DC Z8531APC Z8531ADC Z8031PC Z8531PC Z8031DCB Z8531DC
Description Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, PDIP40, PLASTIC, DIP-40 Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40 Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, PDIP40, PLASTIC, DIP-40 Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, PDIP40, PLASTIC, DIP-40 Micro Peripheral IC, MOS, CDIP40 Serial I/O Controller, 2 Channel(s), 0.125MBps, MOS, CDIP40, HERMETIC SEALED, CERAMIC, DIP-40
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible
package instruction DIP, DIP40,.6 DIP, DIP40,.6 DIP, DIP40,.6 DIP, DIP40,.6 DIP, DIP40,.6 DIP, DIP40,.6 DIP, DIP40,.6
Reach Compliance Code compliant compliant compliant compliant compliant compliant compli
JESD-30 code R-GDIP-T40 R-PDIP-T40 R-GDIP-T40 R-PDIP-T40 R-PDIP-T40 R-XDIP-T40 R-GDIP-T40
JESD-609 code e0 e0 e0 e0 e0 e0 e0
Number of terminals 40 40 40 40 40 40 40
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Package body material CERAMIC, GLASS-SEALED PLASTIC/EPOXY CERAMIC, GLASS-SEALED PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC CERAMIC, GLASS-SEALED
encapsulated code DIP DIP DIP DIP DIP DIP DIP
Encapsulate equivalent code DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6 DIP40,.6
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE IN-LINE
surface mount NO NO NO NO NO NO NO
technology MOS MOS MOS MOS MOS MOS MOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maker AMD - - AMD AMD AMD AMD
Parts packaging code DIP DIP DIP DIP DIP - DIP
Contacts 40 40 40 40 40 - 40
boundary scan NO NO NO NO NO - NO
Bus compatibility Z8000; 8086 8080; Z80; 6800; 68000; MULTIBUS 8080; Z80; 6800; 68000; MULTIBUS Z8000; 8086 8080; Z80; 6800; 68000; MULTIBUS - 8080; Z80; 6800; 68000; MULTIBUS
maximum clock frequency 4 MHz 6.06 MHz 6.06 MHz 4 MHz 4 MHz - 4 MHz
letter of agreement ASYNC, BIT ASYNC, BIT ASYNC, BIT ASYNC, BIT ASYNC, BIT - ASYNC, BIT
Data encoding/decoding methods NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER) NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER) NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER) NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER) NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER) - NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate 0.125 MBps 0.125 MBps 0.125 MBps 0.125 MBps 0.125 MBps - 0.125 MBps
External data bus width 8 8 8 8 8 - 8
length 52.324 mm 52.2605 mm 52.324 mm 52.2605 mm 52.2605 mm - 52.324 mm
low power mode NO NO NO NO NO - NO
Number of serial I/Os 2 2 2 2 2 - 2
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified
Maximum seat height 5.715 mm 5.461 mm 5.715 mm 5.461 mm 5.461 mm - 5.715 mm
Maximum slew rate 250 mA 250 mA 250 mA 250 mA 250 mA - 250 mA
Maximum supply voltage 5.25 V 5.25 V 5.25 V 5.25 V 5.25 V - 5.25 V
Minimum supply voltage 4.75 V 4.75 V 4.75 V 4.75 V 4.75 V - 4.75 V
Nominal supply voltage 5 V 5 V 5 V 5 V 5 V - 5 V
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED - NOT SPECIFIED
width 15.24 mm 15.24 mm 15.24 mm 15.24 mm 15.24 mm - 15.24 mm
uPs/uCs/peripheral integrated circuit type SERIAL IO/COMMUNICATION CONTROLLER, SERIAL SERIAL IO/COMMUNICATION CONTROLLER, SERIAL SERIAL IO/COMMUNICATION CONTROLLER, SERIAL SERIAL IO/COMMUNICATION CONTROLLER, SERIAL SERIAL IO/COMMUNICATION CONTROLLER, SERIAL - SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
power supply - 5 V 5 V - 5 V - 5 V
