T74LS353B1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> T74LS353B1

T74LS353B1: DescriptionLS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size105KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

T74LS353B1 Overview

LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16

T74LS353B1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	not_compliant
series	LS
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Load capacitance (CL)	15 pF
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	12 mA
propagation delay (tpd)	32 ns
Certification status	Not Qualified
Maximum seat height	5.1 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

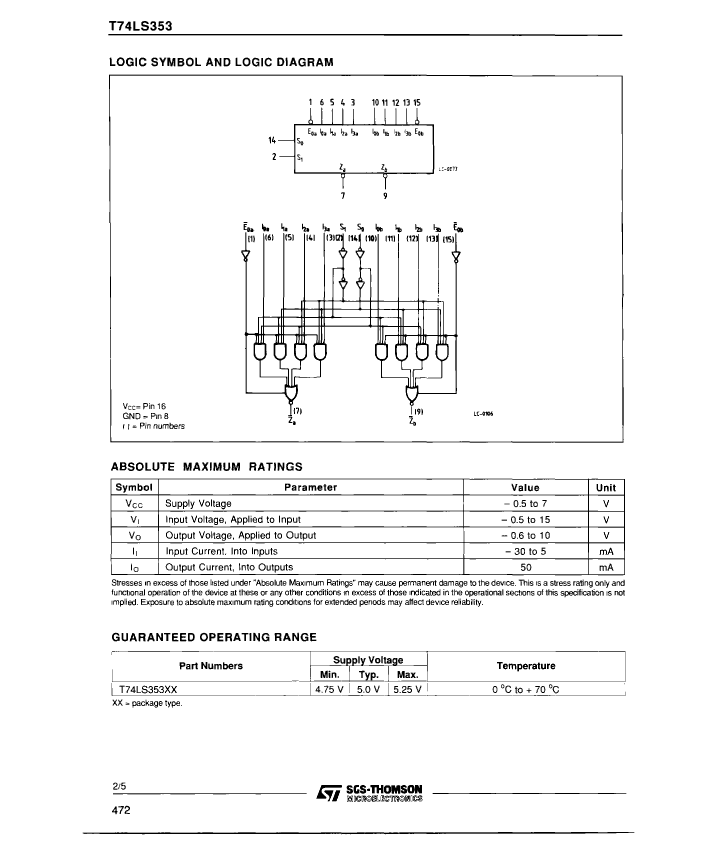

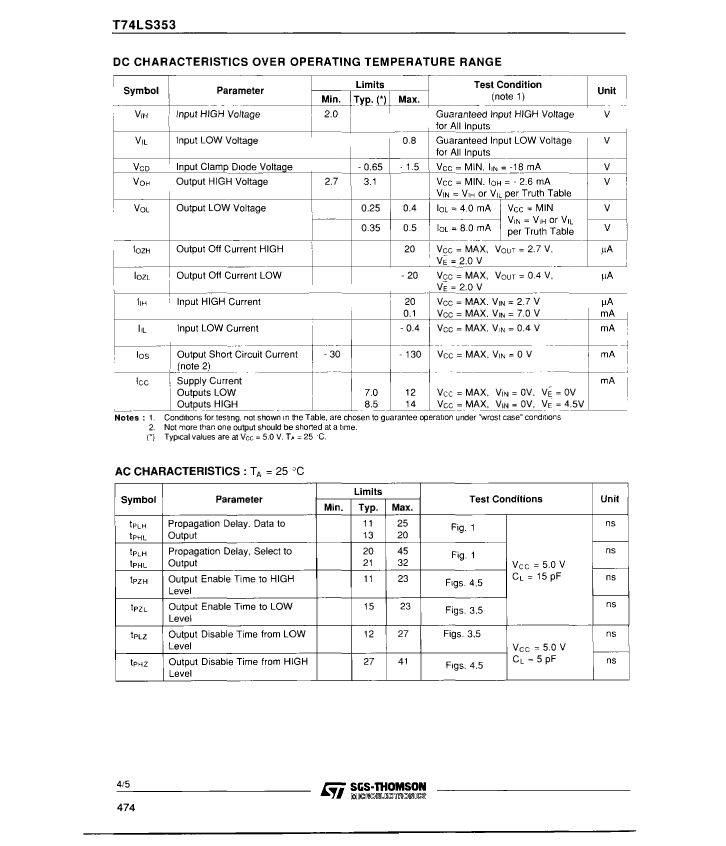

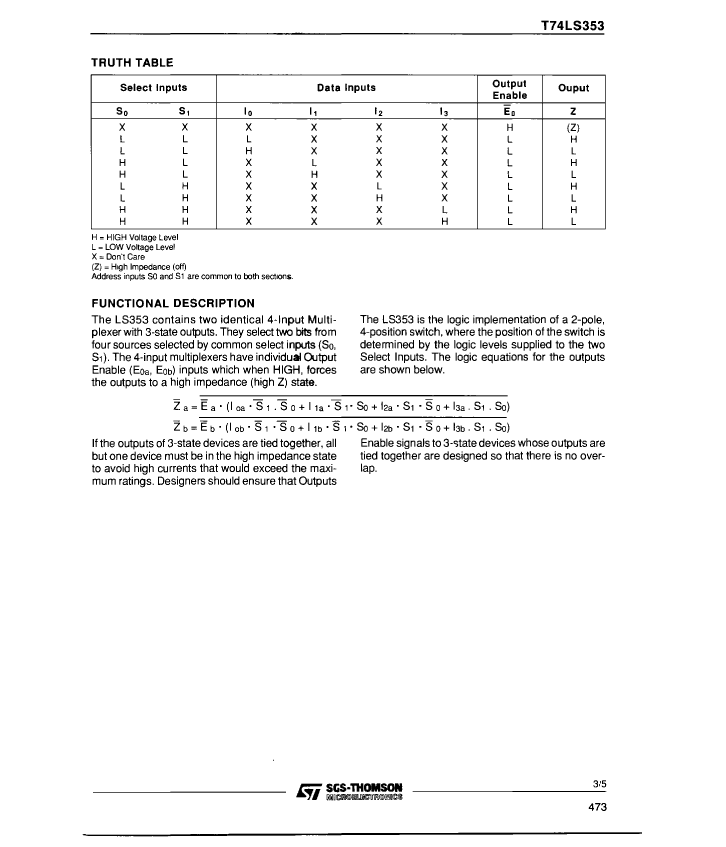

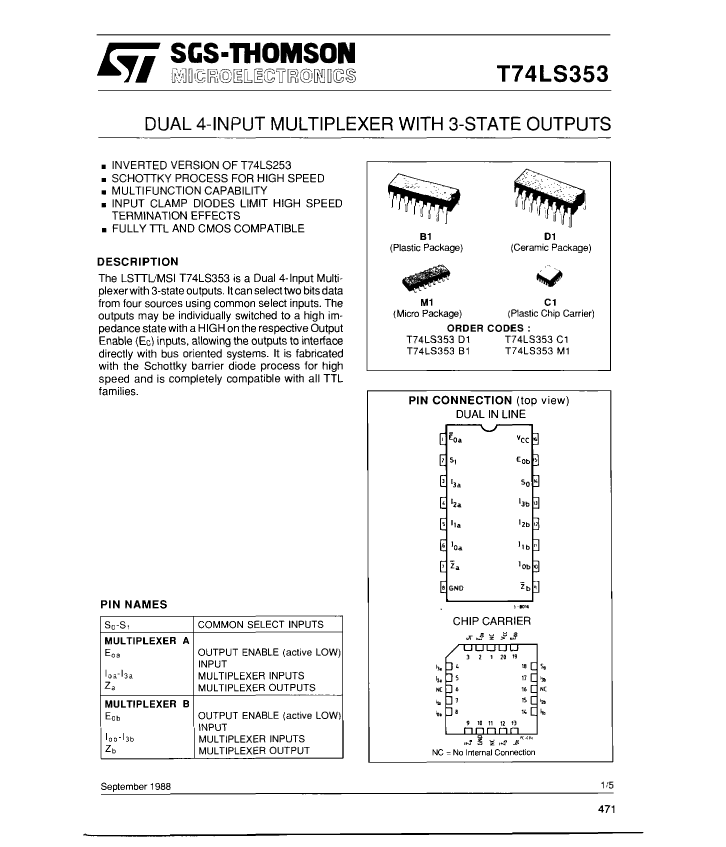

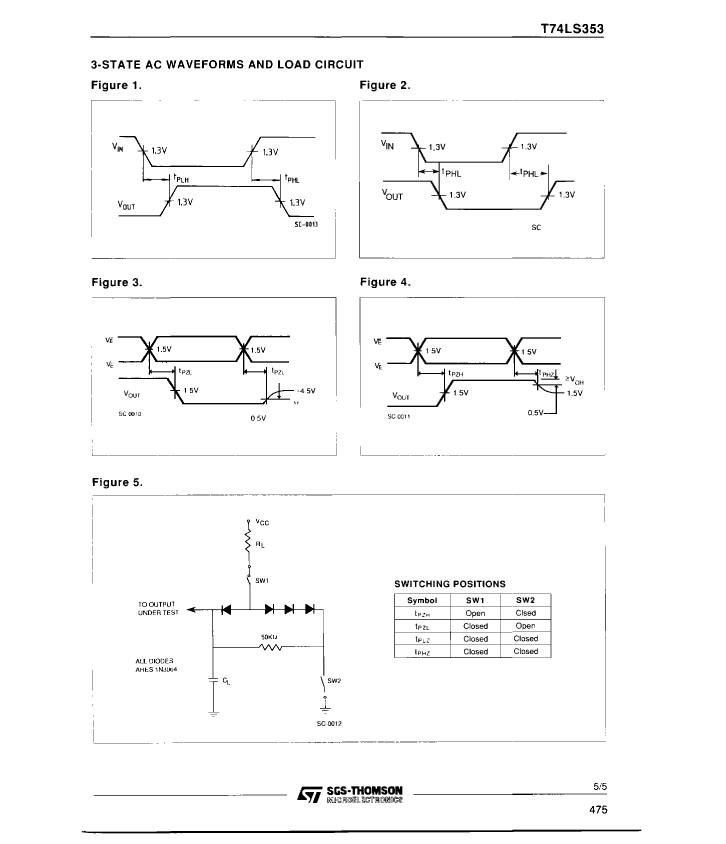

Preview

Download Datasheet

View All

T74LS353B1 Related Products

	T74LS353B1	T74LS353D1	T74LS353C1	T74LS353M1
Description	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDIP16, PLASTIC, DIP-16	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, CDIP16, CERAMIC, DIP-16	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PQCC20, PLASTIC, LCC-20	LS SERIES, DUAL 4 LINE TO 1 LINE MULTIPLEXER, INVERTED OUTPUT, PDSO16, SO-16
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	DIP	QLCC	SOIC
package instruction	DIP, DIP16,.3	DIP, DIP16,.3	QCCJ,	SOP, SOP16,.25
Contacts	16	16	20	16
Reach Compliance Code	not_compliant	not_compliant	unknown	_compli
series	LS	LS	LS	LS
JESD-30 code	R-PDIP-T16	R-GDIP-T16	S-PQCC-J20	R-PDSO-G16
Load capacitance (CL)	15 pF	15 pF	15 pF	15 pF
Logic integrated circuit type	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER	MULTIPLEXER
Number of functions	2	2	2	2
Number of entries	4	4	4	4
Output times	1	1	1	1
Number of terminals	16	16	20	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	SOP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	SMALL OUTLINE
Maximum supply current (ICC)	12 mA	12 mA	12 mA	12 mA
propagation delay (tpd)	32 ns	32 ns	32 ns	32 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.1 mm	5.08 mm	4.57 mm	1.75 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	TTL	TTL	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	GULL WING
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	DUAL
width	7.62 mm	7.62 mm	8.9662 mm	3.9 mm
Is it Rohs certified?	incompatible	incompatible	-	incompatible
Encapsulate equivalent code	DIP16,.3	DIP16,.3	-	SOP16,.25
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	225	-	NOT SPECIFIED
power supply	5 V	5 V	-	5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED
