HC0438A-Q datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> HC0438A-Q

HC0438A-Q: DescriptionLiquid Crystal Driver, 32-Segment, CMOS, PQCC44; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size159KB，4 Pages; ManufacturerHughes Aircraft

Download Datasheet Parametric Compare View All

HC0438A-Q Overview

Liquid Crystal Driver, 32-Segment, CMOS, PQCC44

HC0438A-Q Parametric

Parameter Name	Attribute value
Maker	Hughes Aircraft
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
data entry mode	SERIAL
display mode	DOT MATRIX
Input properties	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQCC-J44
Multiplex display function	NO
Number of functions	1
Number of segments	32
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	OPEN-DRAIN
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Maximum slew rate	0.06 mA
Maximum supply voltage	10 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal location	QUAD
minfmax	1 MHz

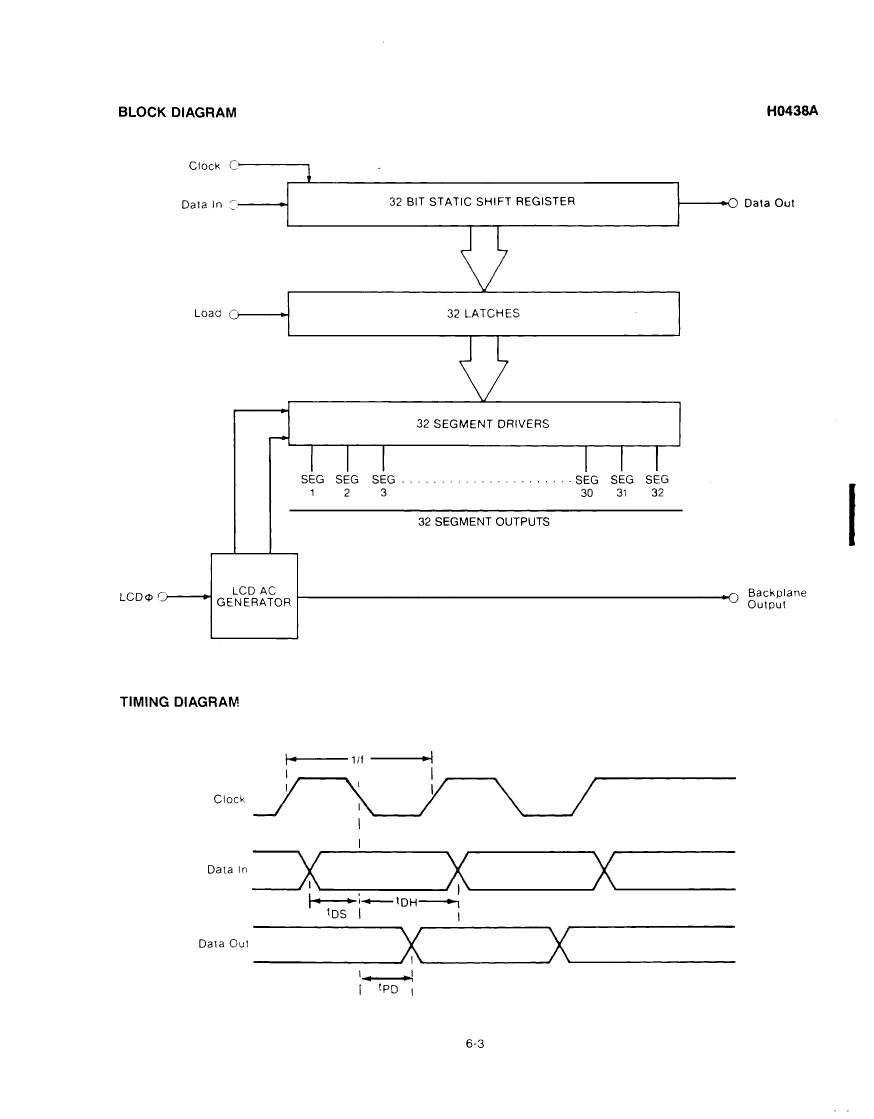

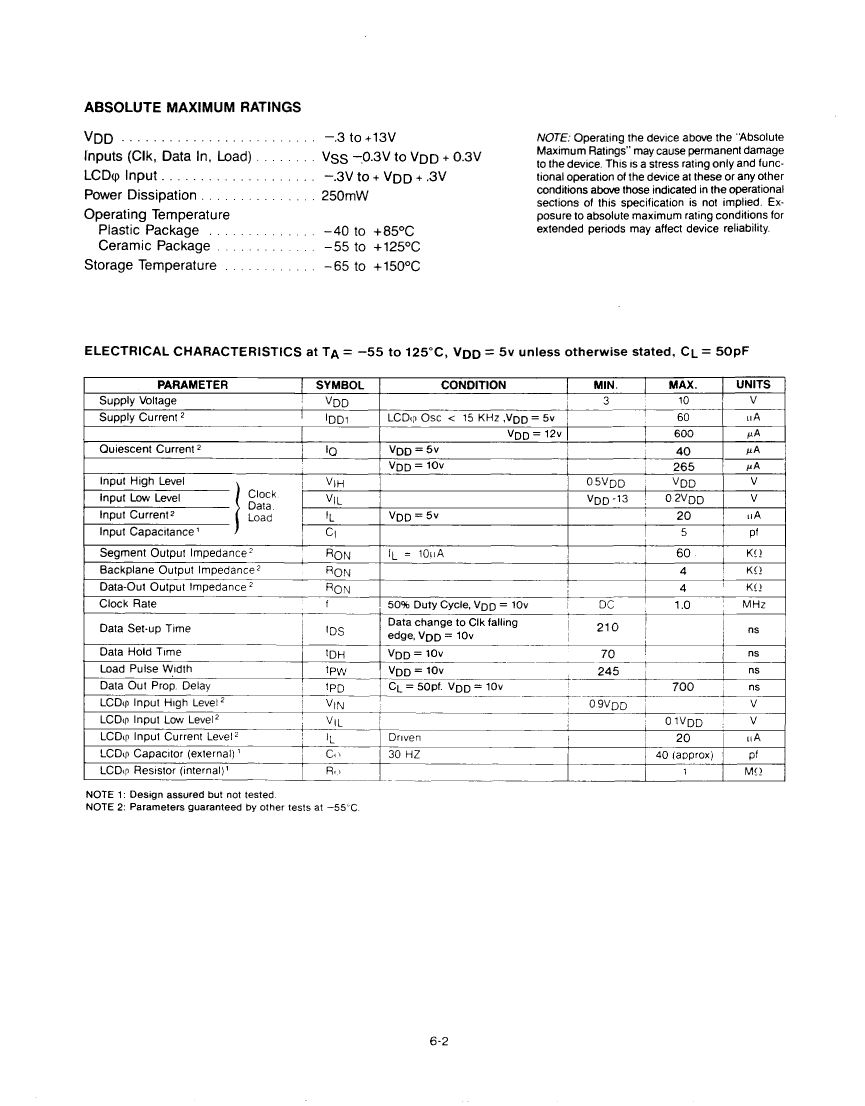

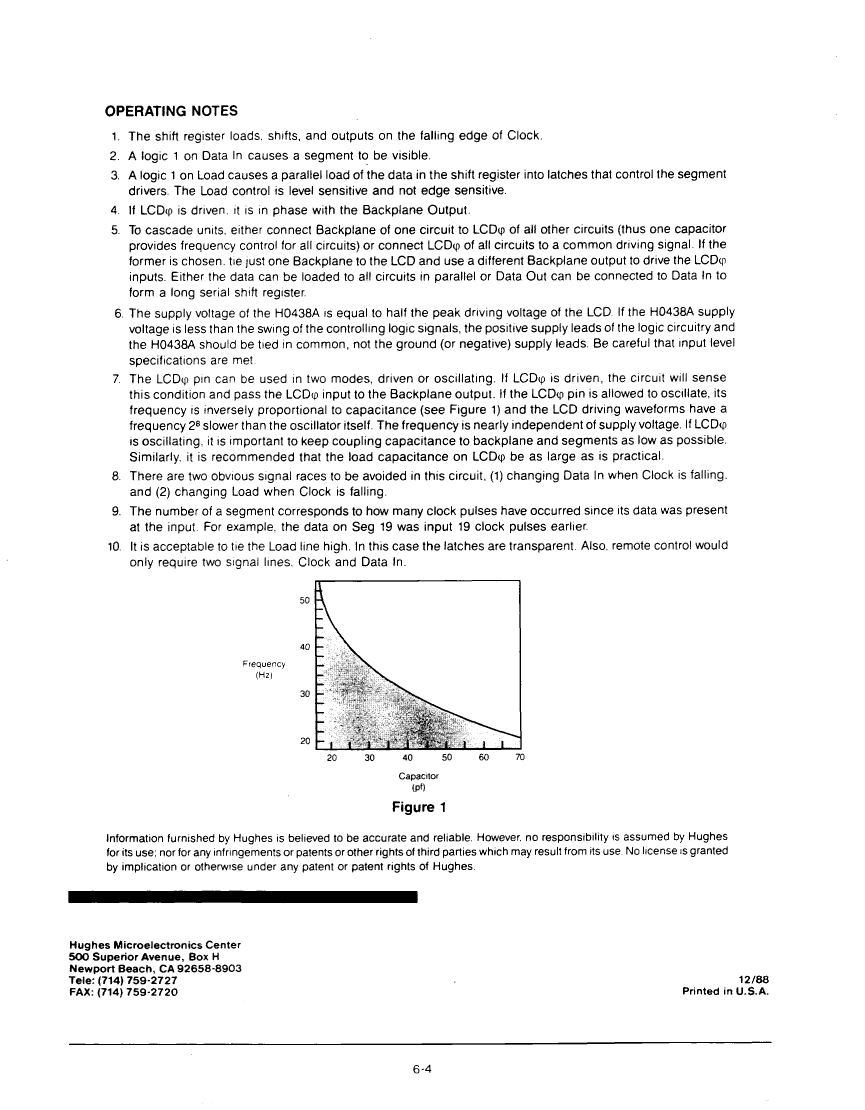

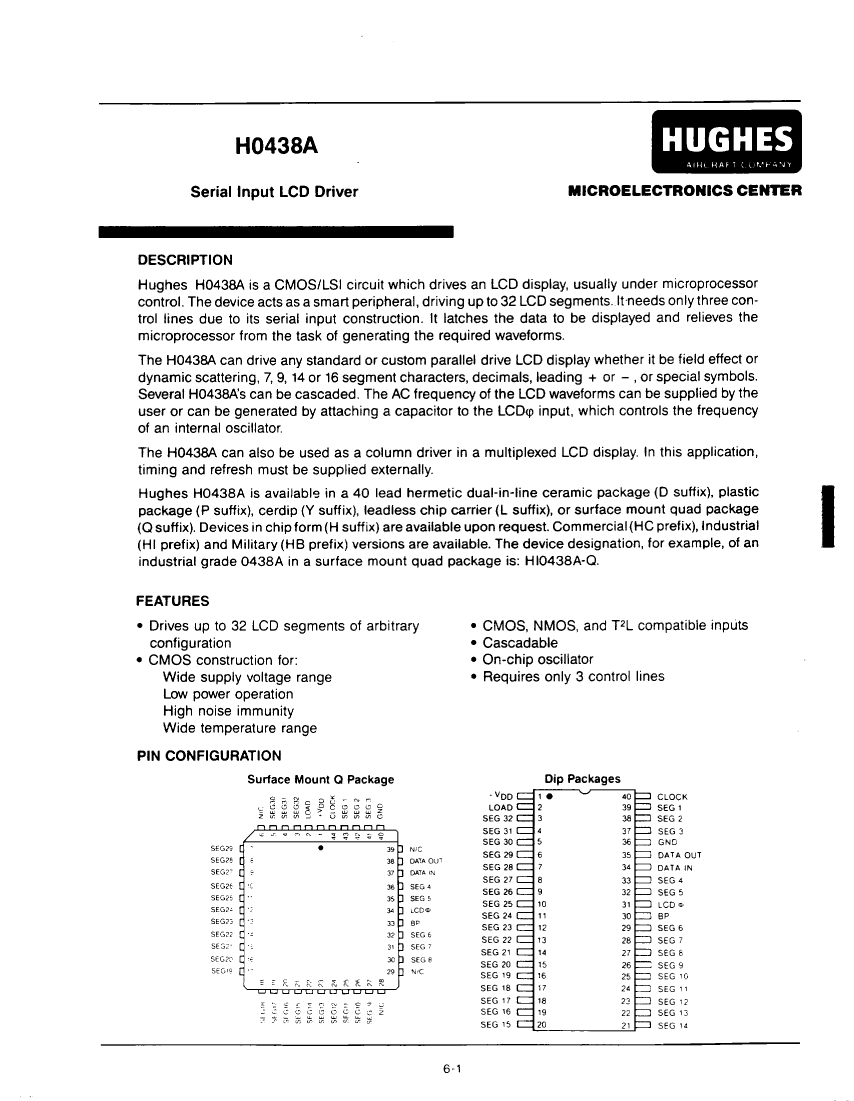

Preview

Download Datasheet

View All

HC0438A-Q Related Products

	HC0438A-Q	HB0438A-H	HI0438A-H	HB0438A-D	HB0438A-Y	HC0438A-P	HI0438A-P	HB0438A-L	HI0438A-Q	HC0438A-H
Description	Liquid Crystal Driver, 32-Segment, CMOS, PQCC44	Liquid Crystal Driver, 32-Segment, CMOS	Liquid Crystal Driver, 32-Segment, CMOS	Liquid Crystal Driver, 32-Segment, CMOS, CDIP40	Liquid Crystal Driver, 32-Segment, CMOS, CDIP40	Liquid Crystal Driver, 32-Segment, CMOS, PDIP40	Liquid Crystal Driver, 32-Segment, CMOS, PDIP40	Liquid Crystal Driver, 32-Segment, CMOS, CQCC44	Liquid Crystal Driver, 32-Segment, CMOS, PQCC44	Liquid Crystal Driver, 32-Segment, CMOS
Maker	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft	Hughes Aircraft
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
data entry mode	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX	DOT MATRIX
Input properties	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD	STANDARD
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	S-PQCC-J44	X-XUUC-N40	X-XUUC-N40	R-CDIP-T40	R-GDIP-T40	R-PDIP-T40	R-PDIP-T40	S-CQCC-N44	S-PQCC-J44	X-XUUC-N40
Multiplex display function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of segments	32	32	32	32	32	32	32	32	32	32
Number of terminals	44	40	40	40	40	40	40	44	44	40
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	125 °C	85 °C	85 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-40 °C	-40 °C
Output characteristics	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN	OPEN-DRAIN
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	UNSPECIFIED
Package shape	SQUARE	UNSPECIFIED	UNSPECIFIED	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	UNSPECIFIED
Package form	CHIP CARRIER	UNCASED CHIP	UNCASED CHIP	IN-LINE	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA	0.06 mA
Maximum supply voltage	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V	10 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	NO	NO	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal form	J BEND	NO LEAD	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	J BEND	NO LEAD
Terminal location	QUAD	UPPER	UPPER	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	UPPER
minfmax	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz	1 MHz
