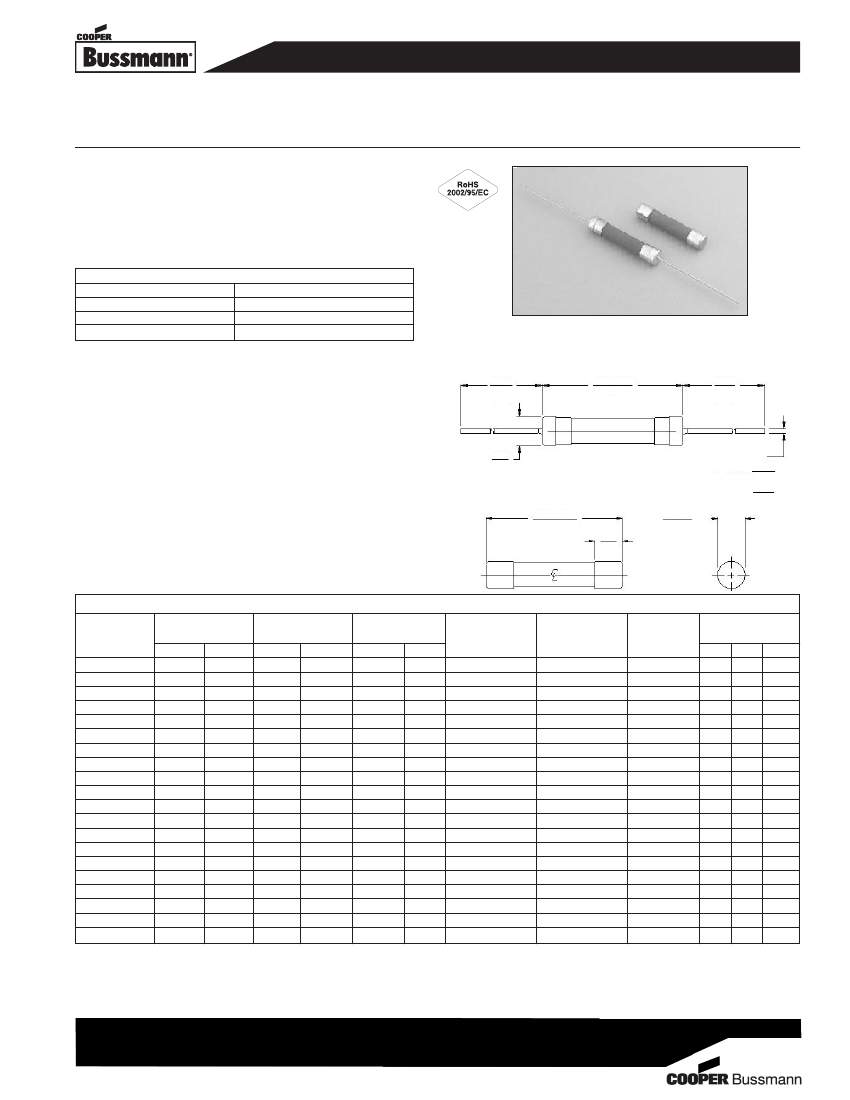

˝ Ceramic Tube Fuses
ABC Series Fast-Acting
Description
• Fast-acting
• Optional axial leads available
•
1
⁄
4
˝ x 1
1
⁄
4
˝ (6.4 x 31.7mm) physical size
• Ceramic tube, nickel-plated brass endcap construction
• UL Listed product meets standard 248-14
Electrical Characteristics
% of Amp Rating
Opening Time
100%
4 Hours Minimum
135%
60 Minutes maximum
200%
120 Seconds Maximum
Agency Information
• UL Listed: Guide JDYX & File E19180.
• UL Recognition: Guide JDYX2 & File E19180.
• CSA Certification: Class 1422-01 & 1422-03, File
53787.
Environmental Data
• Shock:
1
⁄
4
-30A – MIL-STD-202,
Method 213, Test Condition J
• Vibration:
1
⁄
4
-30A – MIL-STD-202,
Method 204, Test Condition C (Except 5g, 500HZ)
Ordering
• Specify packaging, product, and option code
Dimensions - mm (in)
Drawing Not to Scale
38.10
(1.500)
(REF)
32.82±0.79
(1.292±0.031)
38.10
(1.500)
(REF)
6.76
(0.266)
DIA. OF LEADS
0-15 Amp: 0.81 (REF)
(0.032)
18-30 Amp: 1.02 (REF)
(0.040)
31.75±0.79
(1.250±0.031)
6.48
(0.255)
6.35±0.1
(0.250±0.0)
Specifications
Part
Number
ABC-
1
/
4
-R
ABC-
1
/
2
-R
ABC-
3
/
4
-R
ABC-1-R
ABC-1-
1
/
2
-R
ABC-2-R
ABC-2-
1
/
2
-R
ABC-3-R
ABC-4-R
ABC-5-R
ABC-6-R
ABC-7-R
ABC-8-R
ABC-10-R
ABC-12-R
ABC-15-R
ABC-18-R
ABC-20-R
ABC-25-R
ABC-30-R
Voltage
Ratings
Vac
Vdc
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
250
125
125
125
125
125
Vac Interrupting
Ratings* (amps)
250
125
35
10,000
35
10,000
35
10,000
35
10,000
100
10,000
100
10,000
100
10,000
100
10,000
200
10,000
200
10,000
200
10,000
200
10,000
200
10,000
200
10,000
750
10,000
750
10,000
400
1000
400
1000
-
1000
-
1000
Vdc Interrupting
Ratings (amps)
125
75
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
10,000
-
400
1000
400
1000
Typical DC Cold
Ω
Resistance (Ω)**
2.950
0.587
0.300
0.1950
0.131
0.0890
0.061
0.047
0.031
0.026
0.021
0.016
0.014
0.011
0.0068
0.00553
0.00465
0.00366
0.0028
0.002225
Typical
Pre-Arc I
2
t AC†
0.0020
0.0390
0.1450
0.4310
1.1630
2.1670
4.4670
6.55
22.28
32.83
58
109.33
116.5
208.8
133.3
200.2
400
550.8
839.3
1429
Typical
Voltage
Drop (mV)‡
0.35
0.41
0.32
0.3
0.28
0.31
0.23
0.14
0.17
0.22
0.19
0.17
0.19
0.15
0.1
0.1
0.1
0.1
0.09
0.09
Agency Approvals
UL
UR CSA
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
* Interrupting ratings measured at 70% - 80% power factor on AC. The interrupting ratings for 20A were measured at 85% - 95% power factor on AC.
** Typical DC cold resistance measured at <10% of rated current.
† Typical melting I
2
t measured at listed interrupting rating and rated voltage.
‡ Typical voltage drop measured at 25°C±3°C ambient temperature at rated current.
0709
BU-SB09291
Page 1 of 2
Data Sheet 2000

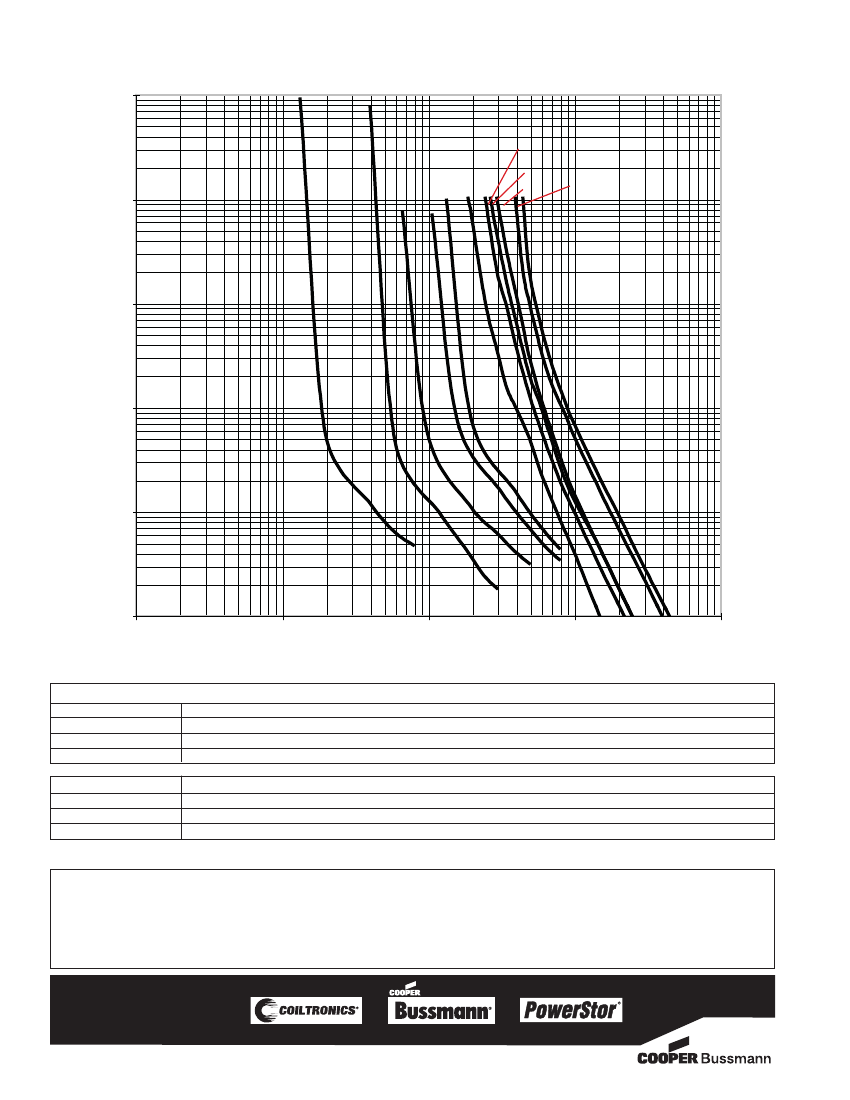

Time-Current Curve
1
3
5
8
10 12
15
18
20
30
25
Time in Seconds
Current in Amps
Packaging Code
Packaging Code
BK
BK1
BK8
Description
100 fuses packed into a cardboard carton
1,000 fuses packed into a cardboard carton
8,000 fuses packed into a cardboard carton
Option Code
Option Code
B
V
Description
Sealed to withstand aqueous cleaning (board washable)
Axial leads - copper tinned wire with nickel plated brass overcaps
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life support
systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in
significant injury to the user.
© 2009 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0709
BU-SB09291
Page 2 of 2
Data Sheet 2000
