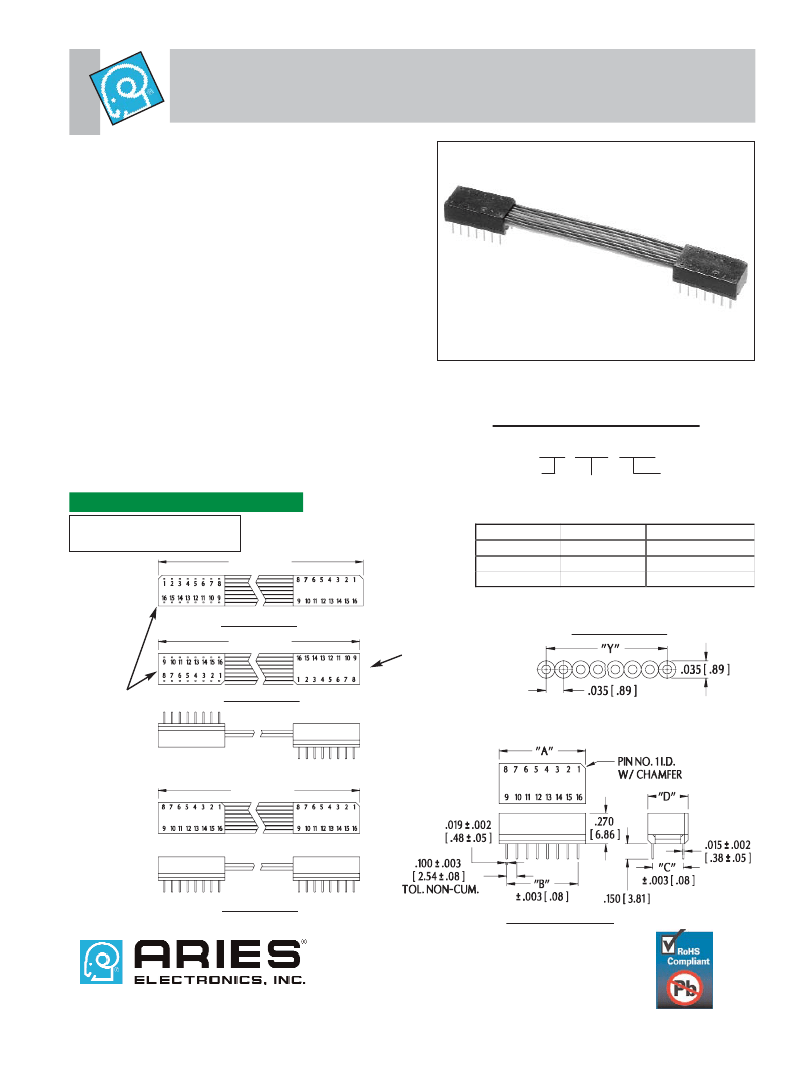

Series 115, 116, & 117
DIP-ER Logic Jumper
Features:
• Aries offers a wide array of DIP jumper configurations
and wiring possibilities for all your programming needs.
• Reliable, electronically tested solder connections.
• Protective covers are ultrasonically welded on and
provide strain relief for cables.
• 10-color cable allows for easy identification and tracing.
• DIP-ER Logic jumper wiring is point to point. Consult
factory for other wiring needs.
Specifications:
• Header body is black UL 94 V-0 Glass-filled 4/6 Nylon.
• Header pins are Brass, 1/2 hard.
• Pin plating is 10
μ
[.25μm] min. Gold per MIL-G-45204
over 50μ [1.27μm] min. Nickel per SAE-AMS-QQ-N-290.
• Cable insulation is UL Style 2697 flame retardant
Polyvinyl Chloride (PVC), .010 [.25] nominal thickness.
• Conductors are 28 AWG, 7/36 strand, Tinned Copper
per ASTM B 33.
• Cable current rating=1 Amp @ 10°C [50°F] above
ambient.
• Cable voltage rating=300 Volts.
• Cable temperature rating=176°F [80°C].
• Insulation resistance=10
10
Ohms (10 ft. [3 meters] min.).
Mounting Considerations:
• Suggested PCB hole size=.033 ± .002 [.86 ± .05].
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-XXX-XXX
No. of conductors
(see table)
Length “L” in
inches
Dim. “D”
.395 [10.03]
.495 [12.57]
.695 [17.65]
Jumper series:
115, 116, 117
All tolerances ± .005 [.13]
unless otherwise specified
“L” ± .125
Centers “C”
.300 [7.62]
.400 [10.16]
.600 [15.24]
Avaiable Sizes
8, 14, 16, 18, 20
22
24, 28, 40
“Y”=(NO. OF CONDUCTORS - 1) X .035 [.89]
SERIES 115
“L” ± .125
Note: 18, 20 con-
ductor jumpers do
not have numbers
on covers
CABLE DETAIL
Numbers
shown pin
side for
reference
only.
SERIES 116
“A”=(NO. OF CONDUCTORS X .050 [1.27]) + .095 [2.41]
“B”=(NO. OF CONDUCTORS - 1) X .050 [1.27]
“L” ± .125
SERIES 117
HEADER DETAIL
11011
REV. E
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
