FEATURES
High efficiency : 95.5% @ 12V/25A
Size:
57.9*36.8*11.2mm(2.28”*1.45”*0.44”)
(without heat spreader)
57.9*36.8*12.7mm(2.28”*1.45”*0.50”)
(with heat spreader)
Standard footprint
Industry standard pin out
Fixed frequency operation
Input UVLO, Output OCP, OVP, OTP
Hiccup output over current protection
(OCP)
Hiccup output over voltage protection
(OVP)
Auto recovery OTP and input UVLO
1500V isolation and basic insulation
No minimum load required
ISO 9001, TL 9000, ISO 14001, QS9000,
OHSAS18001 certified manufacturing
facility
UL/cUL 60950-1 (US & Canada)
recognized
Delphi Series Q48SQ, Quarter Brick Family
DC/DC Power Modules:
36~75V in, 12V/25A out, 300W
The Delphi series Q48SQ12025, quarter brick, 36~75V input, single output,
isolated DC/DC converter is the latest offering from a world leader in power
system and technology and manufacturing ― Delta Electronics, Inc. This
product provides up to 300 watts of power in an industry standard footprint
and pin out. With creative design technology and optimization of component
placement, these converters possess outstanding electrical and thermal
performances, as well as extremely high reliability under highly stressful
operating conditions. The Q48SQ12025 offers more than 95.8% high
efficiency at 25A full load. The Q48SQ12025 is fully protected from abnormal
input/output voltage, current, and temperature conditions and meets all
safety requirements with basic insulation.
OPTIONS
Latched over current protection
Positive/Negative On/Off logic
Latched over voltage protection
Heat spreader optional
APPLICATIONS
Telecom / Datacom
Wireless Networks
Optical Network Equipment
Server and Data Storage
Industrial / Testing Equipment
DS_Q48SQ12025_07042013
TECHNICAL SPECIFICATIONS
(T
A
=25°C, airflow rate=300 LFM, V
in
=48Vdc, nominal Vout unless otherwise noted;
PARAMETER
ABSOLUTE MAXIMUM RATINGS
Input Voltage
Continuous
Transient
Operating Ambient Temperature
Storage Temperature
Input/Output Isolation Voltage
INPUT CHARACTERISTICS
Operating Input Voltage
Input Under-Voltage Lockout
Turn-On Voltage Threshold
Turn-Off Voltage Threshold
Lockout Hysteresis Voltage
Maximum Input Current
No-Load Input Current
Off Converter Input Current
Inrush Current (I
2
t)
Input Reflected-Ripple Current
Input Voltage Ripple Rejection
OUTPUT CHARACTERISTICS
Output Voltage Set Point
Output Voltage Regulation
Over Load
Over Line
Over Temperature
Total Output Voltage Range
Output Voltage Ripple and Noise
Peak-to-Peak
RMS
Operating Output Current Range
Output DC Current-Limit Inception
DYNAMIC CHARACTERISTICS
Output Voltage Current Transient
Positive Step Change in Output Current
Negative Step Change in Output Current
Settling Time (within 1% Vout nominal)
Turn-On Transient
Start-Up Time, From On/Off Control
Start-Up Time, From Input
Maximum Output Capacitance
EFFICIENCY
100% Load
60% Load
ISOLATION CHARACTERISTICS
Input to Output
Isolation Resistance
Isolation Capacitance
FEATURE CHARACTERISTICS
Switching Frequency
ON/OFF Control, Negative Remote On/Off logic
Logic Low (Module On)
Logic High (Module Off)
ON/OFF Control, Positive Remote On/Off logic
Logic Low (Module Off)
Logic High (Module On)
ON/OFF Current (for both remote on/off logic)
Leakage Current (for both remote on/off logic)
Output Over-Voltage Protection
Output voltage trim range
GENERAL SPECIFICATIONS
MTBF(with heat spreader)
Weight(without heat spreader)
Weight(with heat spreader)
Over-Temperature Shutdown (without heat spreader)
NOTES and CONDITIONS
Q48SQ12025 (Standard)
Min.
Typ.
Max.
Units
80
100
85
125
1500
48
34
32
2
100
9
20
-30
11.88
12.00
±10
±10
±60
11.64
100
25
0
30
32.5
12.12
±30
±30
12.36
150
50
25
35
75
35
33
13
Vdc
Vdc
°C
°C
Vdc
Vdc
Vdc
Vdc
Vdc
A
mA
mA
A
2
s
mA
dB
Vdc
mV
mV
mV
Vdc
mV
mV
A
A
100ms
-40
-55
36
33
31
Vin=48V, Io=0A
Vin=48V, Io=0A
P-P thru 12µH inductor, 5Hz to 20MHz
120 Hz
Vin=48V, Io=0, Tc=25°C
Vin=48V, Io=Io,min to Io,max
Vin=36V to 75V, Io=Io min
Vin=48V, Tc=-40°C to 85°C
over sample load, line and temperature
5Hz to 20MHz bandwidth
Full Load, 1µF ceramic, 10µF tantalum
Full Load, 1µF ceramic, 10µF tantalum
Output Voltage 10% Low
48V, 100uF Al Ecap,10µF Tan & 1µF Ceramic load
cap, 0.1A/µs
50% Io.max to 75% Io.max
75% Io.max to 50% Io.max
13
1
250
250
300
100
100
mV
mV
us
ms
ms
µF
%
%
1500
Vdc
MΩ
pF
kHz
0.8
50
0.8
50
1
50
140
10
V
V
V
V
mA
uA
%
%
M hours
grams
grams
°C
°C
°C
Low ESR CAP (OSCON), 100% load;
Vin=48V
Vin=48V
0
95.5
95.4
5500
10
6800
130
Von/off at Ion/off=1.0mA
Von/off at Ion/off=0.0 µA
Von/off at Ion/off=1.0mA
Von/off at Ion/off=0.0 µA
Ion/off at Von/off=0.0V
Logic High, Von/off=15V
Over full temp range; % of nominal Vout
Pout≤Max rated power
Io=80% of Io, max; Tc=25°C;Airflow=300LFM
0
2
0
2
115
-20
125
2
50.0
65.5
130
123
125
Refer to Figure 21 for Hot spot location
(48Vin,80% Io, 200LFM,Airflow from Vin+ to Vin-)
Refer to Figure 23 for Hot spot location
Over-Temperature Shutdown (with heat spreader)
(48Vin,80% Io, 200LFM,Airflow from Vin+ to Vin-)
Over-Temperature Shutdown (NTC Resistor)
Refer to Figure 21 NTC resistor location
Note: Please attach thermocouple on NTC resistor to test OTP function, the hot spot’s temperature is just for reference.
2
DS_Q48SQ12025_07042013
ELECTRICAL CHARACTERISTICS CURVES

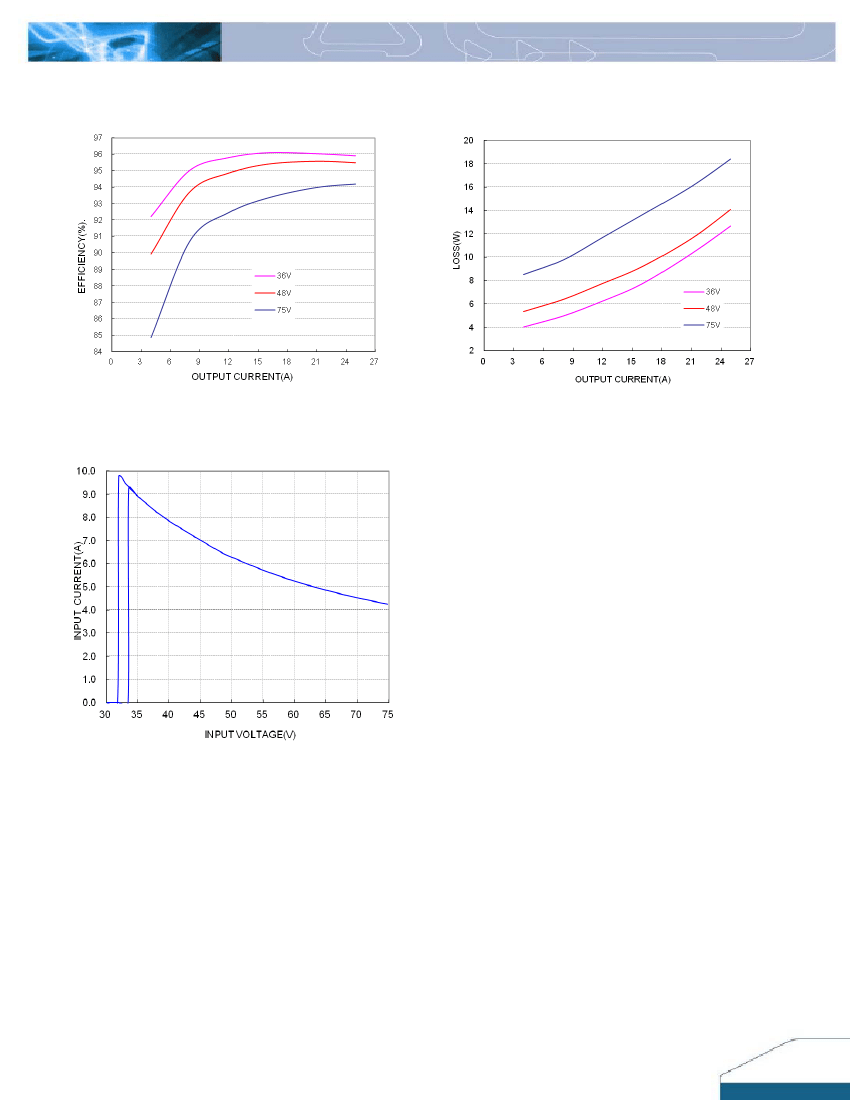

Figure 1:
Efficiency vs. load current for minimum, nominal, and
maximum input voltage at 25°C.
Figure 2:
Power dissipation vs. load current for minimum,
nominal, and maximum input voltage at 25°C.
Figure 3:
Typical full load input characteristics at room
temperature.
3
DS_Q48SQ12025_07042013
ELECTRICAL CHARACTERISTICS CURVES
For Negative Remote On/Off Logic

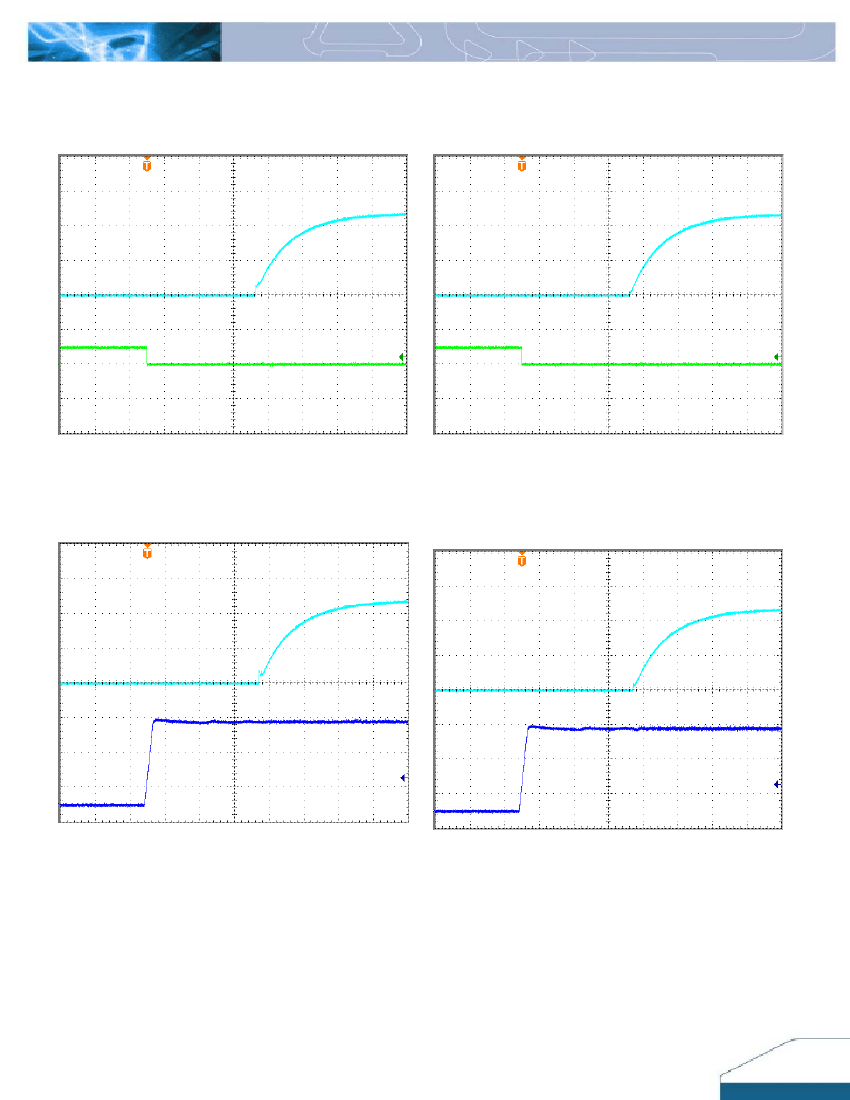

Figure 4:
Turn-on transient at zero load current) (20ms/div).
Top Trace: Vout; 5V/div; Bottom Trace: ON/OFF input: 5V/div.
Figure 5:
Turn-on transient at full rated load current (20
ms/div). Top Trace: Vout: 5V/div; Bottom Trace: ON/OFF input:
5V/div.
For Input Voltage Start up
Figure 6:
Turn-on transient at zero load current (20 ms/div).
Top Trace: Vout; 5V/div; Bottom Trace: input voltage: 20V/div.
Figure 7:
Turn-on transient at full rated load current (20
ms/div). Top Trace: Vout; 5V/div; Bottom Trace: input voltage:
20V/div.
4
DS_Q48SQ12025_07042013
ELECTRICAL CHARACTERISTICS CURVES

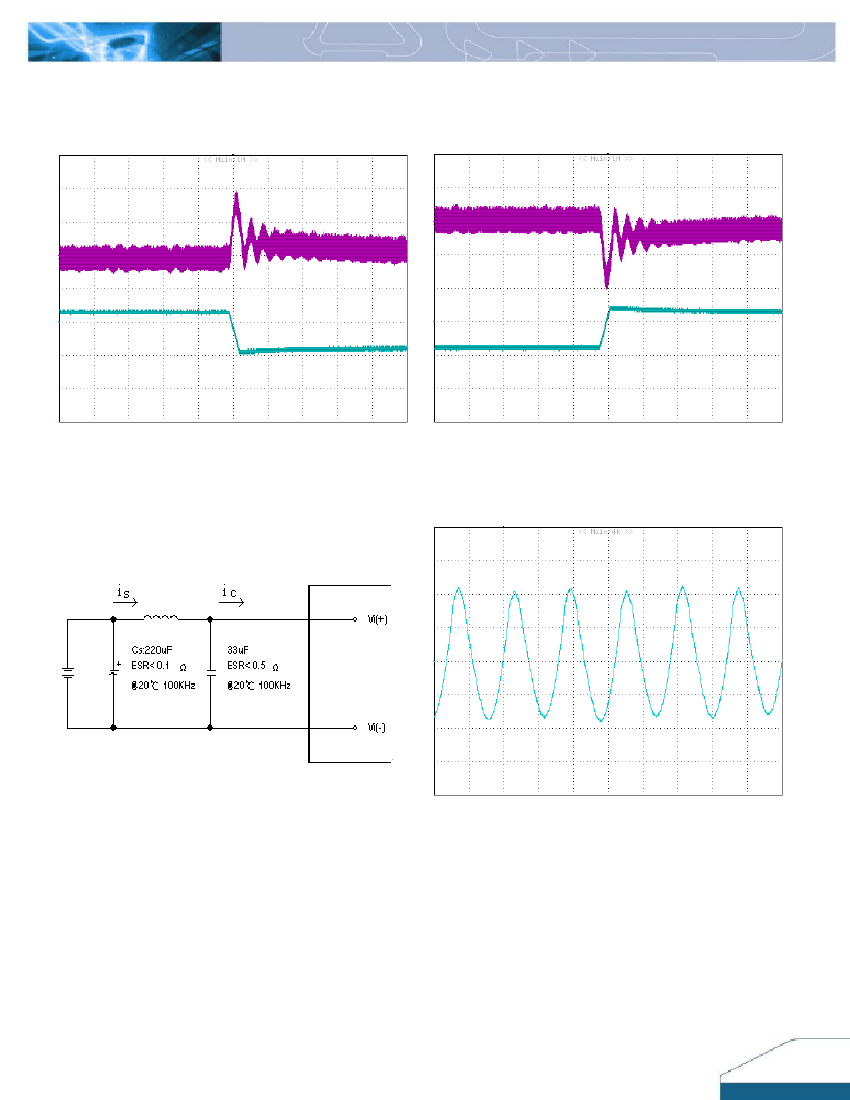

Figure 8:
Output voltage response to step-change in load
current (75%-50% of Io, max; di/dt = 0.1A/µs). Load cap: 100uF
Al-Electrolytic capacitor, 10µF tantalum capacitor and 1µF
ceramic capacitor. Top Trace: Vout; 200mV/div; Bottom Trace:
output current: 5A/div, Time: 200us/div
Figure 9:
Output voltage response to step-change in load
current (50%-75% of Io, max; di/dt = 0.1A/µs). Load cap:
100uF Al-Electrolytic capacitor, 10µF tantalum capacitor and
1µF ceramic capacitor. Top Trace: Vout; 200mV/div; Bottom
Trace: output current: 10A/div, Time: 200us/div
Figure 10:
Test set-up diagram showing measurement points
for Input Terminal Ripple Current and Input Reflected Ripple
Current.
Note: Measured input reflected-ripple current with a simulated
source Inductance (L
TEST
) of 12 μH. Capacitor Cs offset
possible battery impedance. Measure current as shown above.
Figure 11:
Input Terminal Ripple Current, i
c
, at full rated output
current and nominal input voltage with 12µH source impedance
and 33µF electrolytic capacitor (200 mA/div
，
2us/div).
5
DS_Q48SQ12025_07042013
