Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> UA1558RM
PDF
Preview

UA1558RM

Description
Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP8,
CategoryAnalog mixed-signal IC    Amplifier circuit
File Size155KB，6 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

UA1558RM Overview

Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP8,

UA1558RM Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerFairchild
package instructionDIP, DIP8,.3
Reach Compliance Codecompliant
Amplifier typeOPERATIONAL AMPLIFIER
ArchitectureVOLTAGE-FEEDBACK
frequency compensationYES
Maximum input offset voltage6000 µV
JESD-30 codeR-XDIP-T8
JESD-609 codee0
low-dissonanceNO
Nominal Negative Supply Voltage (Vsup)-15 V
Number of functions2
Number of terminals8
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP8,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply+-15 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)15 V
surface mountNO
technologyBIPOLAR
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL

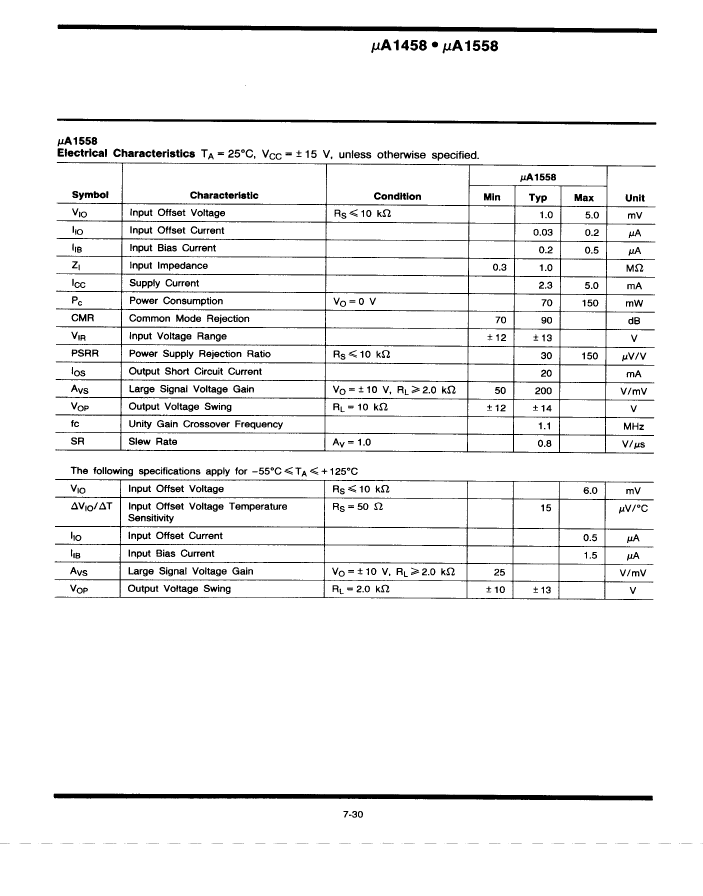

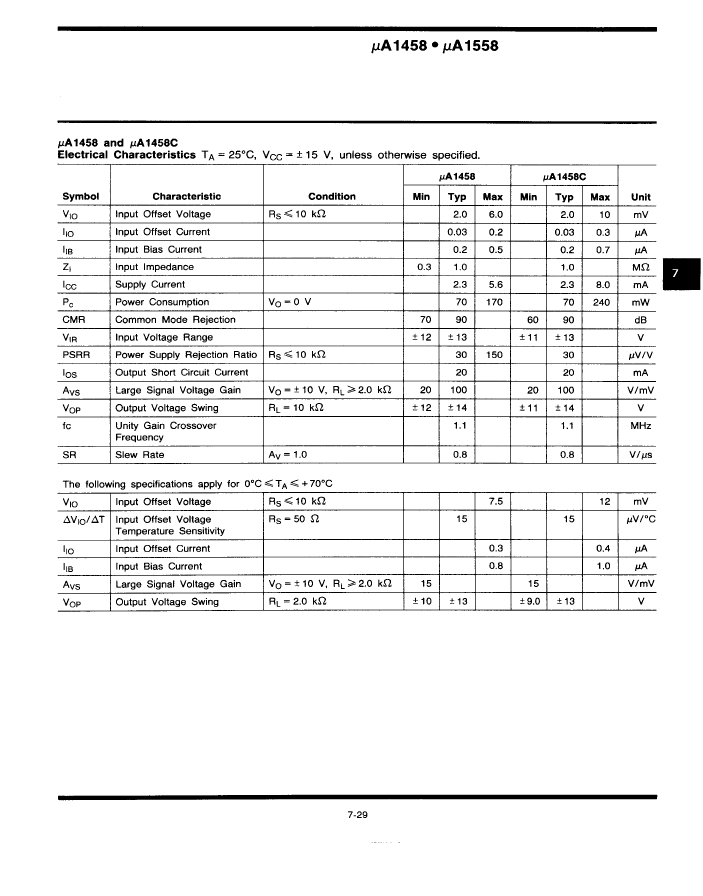

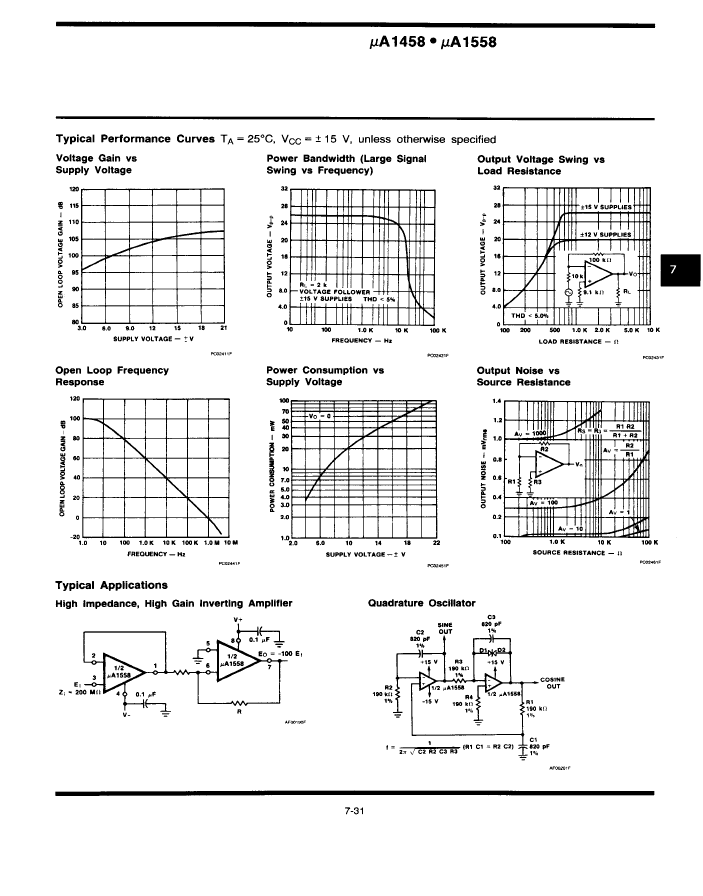

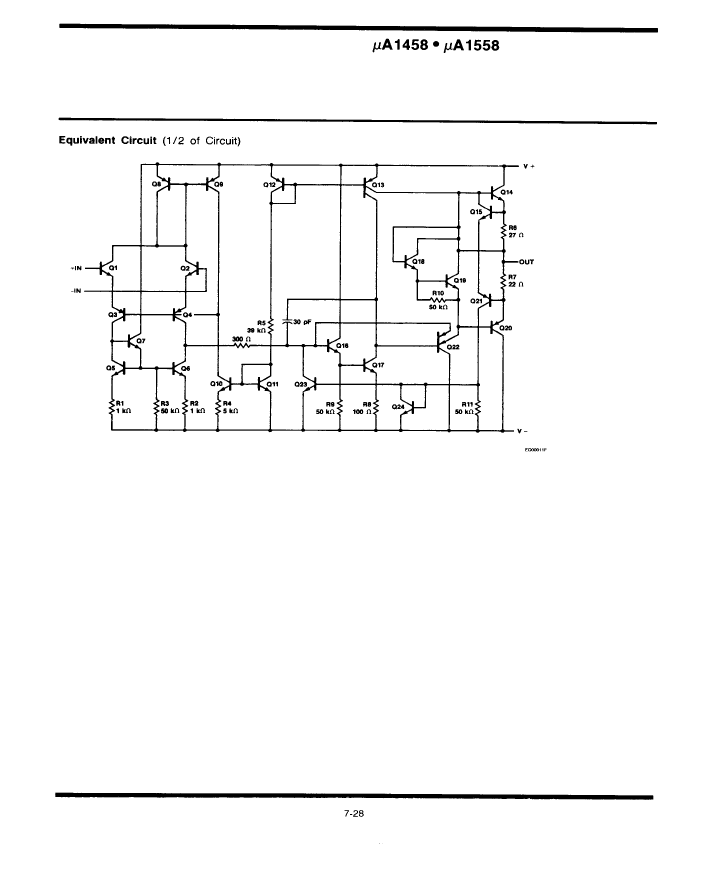

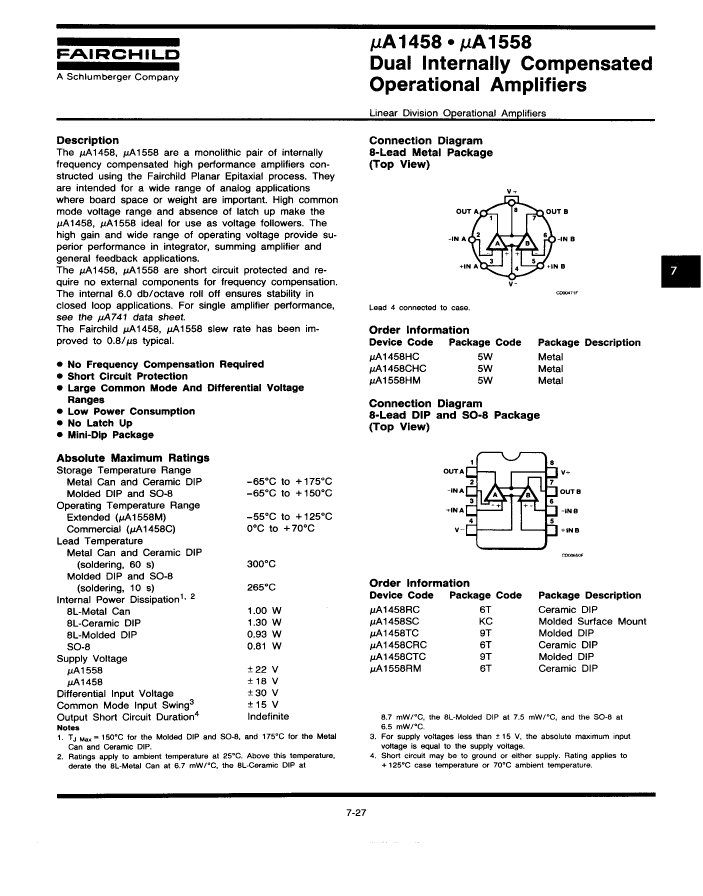

Preview

Download Datasheet
This Material Copyrighted By Its Respective Manufacturer

UA1558RM Related Products

UA1558RM UA1458RC UA1558HM UA1458TC UA1458HC UA1458CTC UA1458CRC UA1458CHC UA1458SC
Description Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, CDIP8, Operational Amplifier, 2 Func, 7500uV Offset-Max, BIPolar, CDIP8, Operational Amplifier, 2 Func, 6000uV Offset-Max, BIPolar, METAL, CAN-8 Operational Amplifier, 2 Func, 7500uV Offset-Max, BIPolar, PDIP8, Operational Amplifier, 2 Func, 7500uV Offset-Max, BIPolar, MBCY8, Operational Amplifier, 2 Func, 12000uV Offset-Max, BIPolar, PDIP8, Operational Amplifier, 2 Func, 12000uV Offset-Max, BIPolar, CDIP8, Operational Amplifier, 2 Func, 12000uV Offset-Max, BIPolar, MBCY8, Operational Amplifier, 2 Func, 7500uV Offset-Max, BIPolar, PDSO8,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Reach Compliance Code compliant unknown unknown unknown unknown compliant compliant compliant compliant
Amplifier type OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK VOLTAGE-FEEDBACK
frequency compensation YES YES YES YES YES YES YES YES YES
Maximum input offset voltage 6000 µV 7500 µV 6000 µV 7500 µV 7500 µV 12000 µV 12000 µV 12000 µV 7500 µV
JESD-30 code R-XDIP-T8 R-XDIP-T8 O-XBCY-W8 R-PDIP-T8 O-MBCY-W8 R-PDIP-T8 R-XDIP-T8 O-MBCY-W8 R-PDSO-G8
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0 e0
low-dissonance NO NO NO NO NO NO NO NO NO
Nominal Negative Supply Voltage (Vsup) -15 V -15 V -15 V -15 V -15 V -15 V -15 V -15 V -15 V
Number of functions 2 2 2 2 2 2 2 2 2
Number of terminals 8 8 8 8 8 8 8 8 8
Maximum operating temperature 125 °C 70 °C 125 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Package body material CERAMIC CERAMIC UNSPECIFIED PLASTIC/EPOXY METAL PLASTIC/EPOXY CERAMIC METAL PLASTIC/EPOXY
Encapsulate equivalent code DIP8,.3 DIP8,.3 CAN8,.2 DIP8,.3 CAN8,.2 DIP8,.3 DIP8,.3 CAN8,.2 SOP8,.25
Package shape RECTANGULAR RECTANGULAR ROUND RECTANGULAR ROUND RECTANGULAR RECTANGULAR ROUND RECTANGULAR
Package form IN-LINE IN-LINE CYLINDRICAL IN-LINE CYLINDRICAL IN-LINE IN-LINE CYLINDRICAL SMALL OUTLINE
power supply +-15 V +-15 V +-15 V +-15 V +-15 V +-15 V +-15 V +-15 V +-15 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Nominal supply voltage (Vsup) 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V
technology BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR BIPOLAR
Temperature level MILITARY COMMERCIAL MILITARY COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE THROUGH-HOLE WIRE THROUGH-HOLE WIRE THROUGH-HOLE THROUGH-HOLE WIRE GULL WING
Terminal location DUAL DUAL BOTTOM DUAL BOTTOM DUAL DUAL BOTTOM DUAL
Maker Fairchild - Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild
package instruction DIP, DIP8,.3 - , CAN8,.2 DIP, DIP8,.3 , CAN8,.2 DIP, DIP8,.3 DIP, DIP8,.3 , CAN8,.2 SOP, SOP8,.25
encapsulated code DIP DIP - DIP - DIP DIP - SOP
surface mount NO NO NO NO - NO NO - YES
Terminal pitch 2.54 mm 2.54 mm - 2.54 mm - 2.54 mm 2.54 mm - 1.27 mm
Is it lead-free? - Contains lead - Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Parts packaging code - DIP BCY DIP BCY DIP DIP BCY SOIC
Contacts - 8 8 8 8 8 8 8 8
ECCN code - EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Humidity sensitivity level - 2A - 2A 2A 2A 2A 2A 2A
Peak Reflow Temperature (Celsius) - 250 NOT SPECIFIED 250 250 250 250 250 250
Maximum time at peak reflow temperature - 30 NOT SPECIFIED 30 30 30 30 30 30
