EB41C6SGFXFS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> EB41C6SGFXFS

EB41C6SGFXFS: DescriptionCard Edge Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal,; CategoryThe connector The connector; File Size161KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric View All

EB41C6SGFXFS Overview

Card Edge Connector, 6 Contact(s), 1 Row(s), Female, Straight, Solder Terminal,

EB41C6SGFXFS Parametric

Parameter Name	Attribute value
Maker	Vishay
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	GOLD FLASH OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

EB4

Vishay Dale

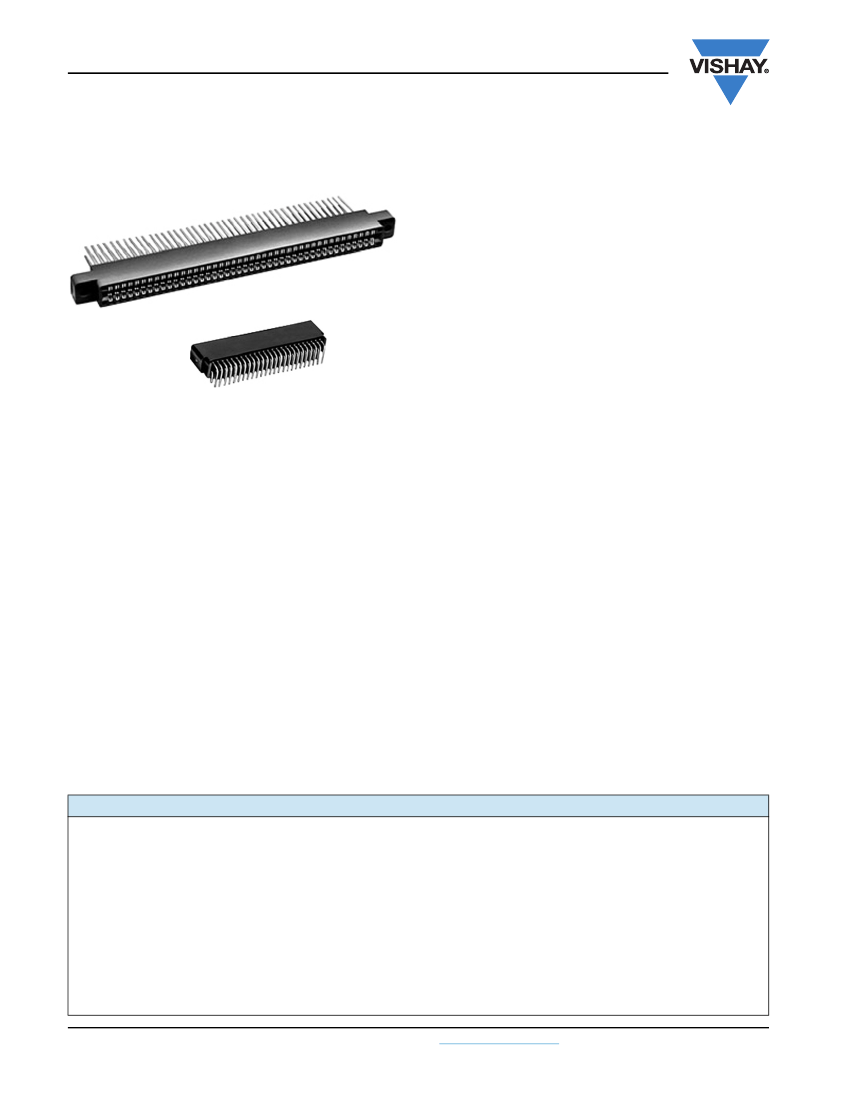

Edgeboard Connectors, Dual Readout, 0.100" (2.54 mm) C-C,

Standard and Right Angle Terminals

FEATURES

• Grid Patterns: 0.100" C-C x 0.150" (2.54 mm x 3.81 mm)

and 0.100" C-C x 0.200" (2.54 mm x 5.08 mm)

• Standard and right angle terminals

• Greater design latitude:

4 body materials: Diallyl phthalate, phenolic, glass-filled

polyester and glass-filled polyphenylene sulfied

7 contact termination styles - 3 standard, 4 right angle

20 body sizes and 6 mounting styles

• Selective gold plating

• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm

to 1.80 mm)

• Polarization between contact positions in all sizes.

Between contact polarization permits polarizing without

loss of contact position.

•

Recognized under the Component Program of

Underwriters Laboratories, Inc. listed under file

E65524, project 77CH3889

ELECTRICAL SPECIFICATIONS

Current Rating:

3 A

Test Voltage Between Contacts:

At sea level: 650 V

RMS

At 70 000 feet (21 336 meters): 275 V

RMS

Insulation Resistance:

5000 MΩ minimum at 500 V

potential

Contact Resistance:

30 mV maximum at rated current (with

gold plating)

Operating Temperature:

- 65 °C to + 125 °C

Humidity:

96 h at 90 % relative humidity at + 40 °C, dried at

room temperature for 3 h minimum, insulation resistance

was greater than 5000 MΩ

Durability:

After 500 cycles of insertion and withdrawal of a

0.070" (1.78 mm) thick steel test board, contact resistance

less than 0.030 V at 3 A on gold plated contacts and

individual contact pair separation force when measured with

a 0.054" (1.37 mm) thick steel test blade was greater than

½ oz.

Shock:

Three 50G shocks in each of 3 mutually

perpendicular planes with no loss of continuity

Vibration:

2 h in each of 3 mutually perpendicular planes,

frequency sweep 10 cps to 55 cps at 0.06 double amplitude

with no loss of continuity

APPLICATIONS

For use with 0.0625" (1.59 mm) printed circuit boards

requiring an edgeboard type connector on 0.100" (2.54 mm)

centers

MATERIAL SPECIFICATIONS

Body Material:

“1” glass-filled diallyl phthalate per MIL-M-14, Type SDG-F

green, flame retardant (UL 94 V-0)

“2” glass-filled phenolic per MIL-M-14, Type MFH dark

green, flame retardant (UL 94 V-0)

“3” thermoplastic polyester, glass-filled, black, flame

retardant (UL 94 V-0)

”5” thermoplastic polyphenylene sulfied, glass filled, brown,

flame retardant (UL 94 V-0)

Contacts:

Phosphor bronze (See Ordering Information)

Polarizing Key:

Glass reinforced nylon, flame retardant

(UL 94H-B)

Plating:

Gold (See Ordering Information)

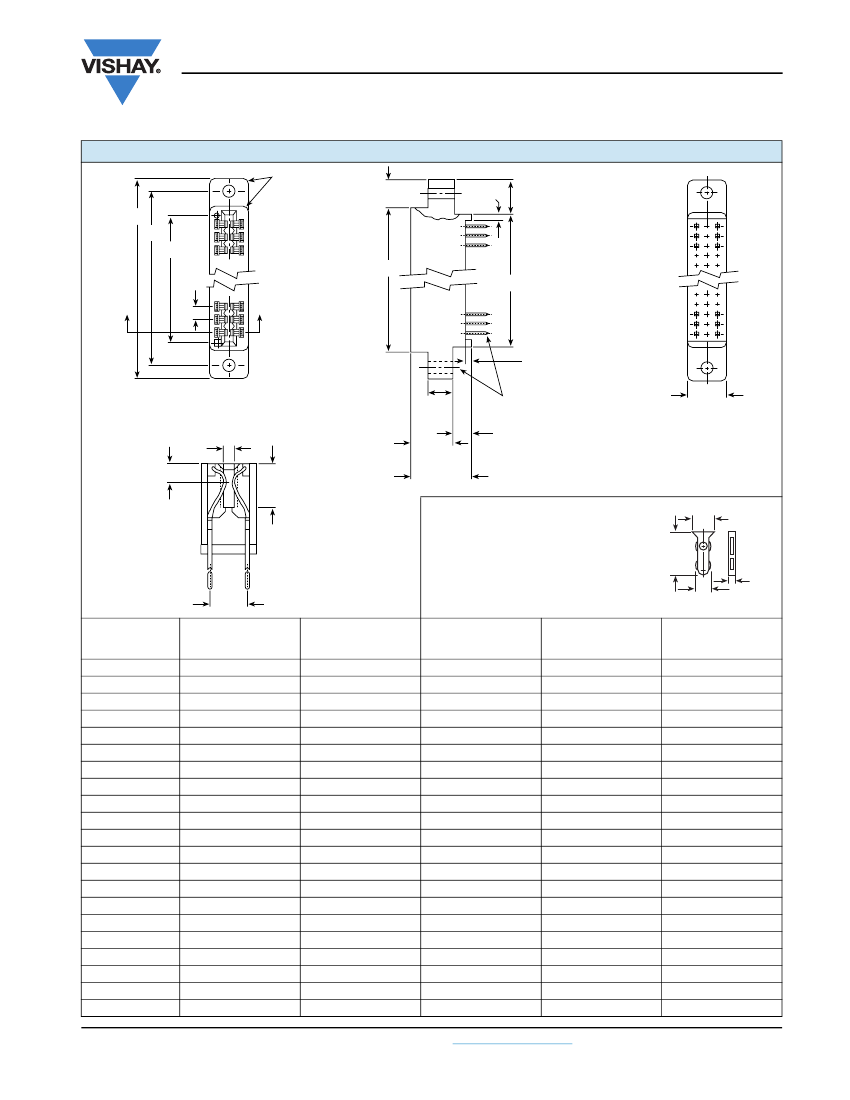

ORDERING INFORMATION

EB4

MODEL

BODY

MATERIAL

MOUNTING

POLARIZING

CONTACT PLATING

STANDARD CONTACTS

VARIATIONS

PER SIDE

TERMINAL

KEY POSITIONS

SG = Selective gold plating (0.00003"

VARIATIONS

6, 10, 12, (0.000762 mm) minimum thick) on contact

Key(s) are located to

1 = Diallyl

area with gold flash on terminal.

15, 18, 20,

C, D, K,

right of position(s)

Phthalate

SGF = Selective gold plating (0.000010"

22, 25, 28,

1R, 2R,

designated. Use odd-

2 = Phenolic

30, 31, 35, (0.000254 mm) minimum thick) on contact

3R, 4R

numbered contact for

3 = Glass-filled

area with gold flash on terminal.

36, 40, 43,

ordering: -1, -3, -5, etc.

Polyester

All gold plating over 0.00005"

44, 48, 49,

Required only when

5 = Glass-filled

(0.00127 mm) minimum nickel underplate.

50, 60,

polarizing keys are to be

Polyphenylene

Contact factory for additional plating

and 65

factory installed.

Sulfied

options.

Note:

To order polarizing

keys individually, specify

model PK-4.

For technical questions, contact:

connectors@vishay.com

Document Number: 36001

Revision: 16-Feb-09

www.vishay.com

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Material Category Policy

Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the

definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council

of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment

(EEE) - recast, unless otherwise specified as non-compliant.

Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that

all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.

Revision: 12-Mar-12

Document Number: 91000
