SMH-130-02-L-S datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SMH-130-02-L-S

Preview

SMH-130-02-L-S: DescriptionBoard Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size846KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

SMH-130-02-L-S Overview

Board Connector, 30 Contact(s), 1 Row(s), Female, Right Angle, 0.1 inch Pitch, Surface Mount Terminal, Locking, Black Insulator, Socket, ROHS COMPLIANT

SMH-130-02-L-S Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SAMTEC
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Factory Lead Time	2 weeks
Samacsys Description	.100" Horizontal Surface Mount Socket Strip
Other features	TIGER BUY
body width	0.095 inch
subject depth	0.47 inch
body length	3.02 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	30

Preview

Download Datasheet

View All

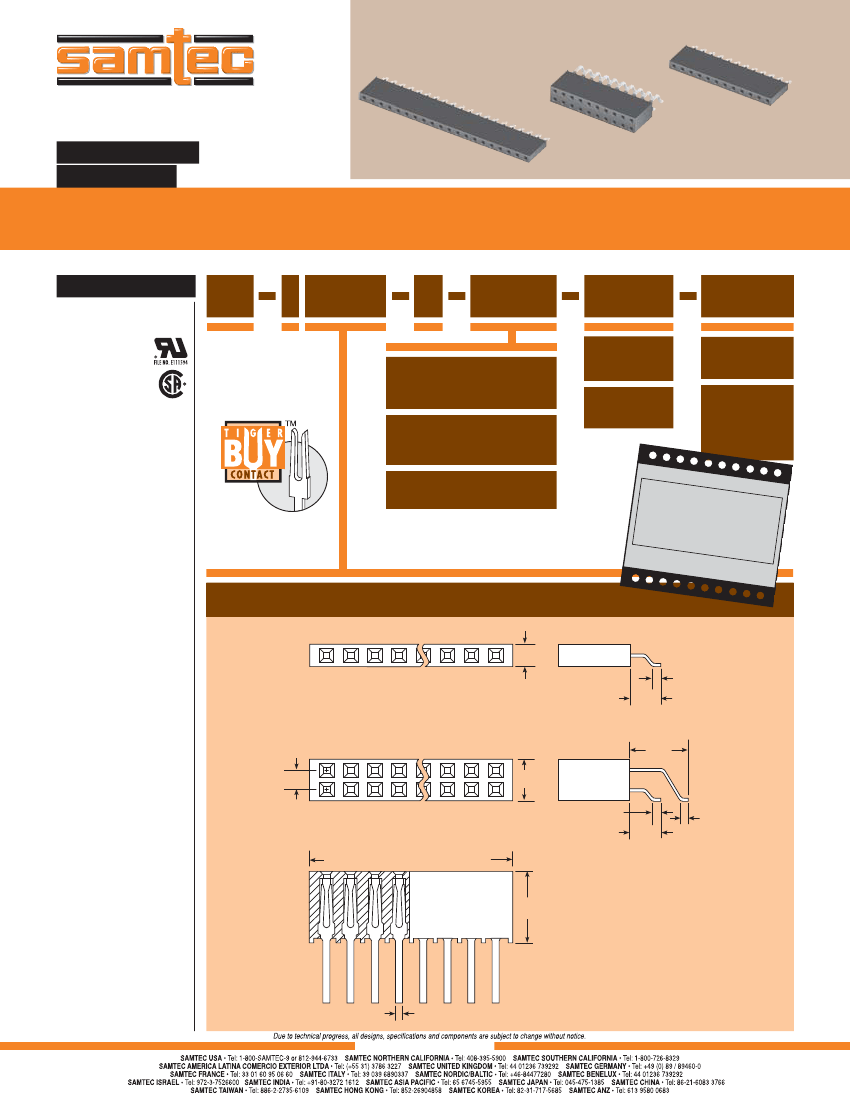

F-213

SMH–110–02–L–D

SMH–112–02–L–S

(2,54 mm) .100"

SMH SERIES

SMH–120–02–G–S

SMT HORIZONTAL SOCKET

SPECIFICATIONS

For complete speciﬁcations

and recommended PCB layouts

see www.samtec.com?SMH

Insulator Material:

Black LCP

Contact Material:

Phosphor Bronze

Plating:

Au or Sn over

50µ" (1,27 µm) Ni

Current Rating:

3A per contact continuous

Operating Temp Range:

-55°C to +125°C with Gold

-55°C to +105°C with Tin

Contact Resistance:

10 mΩ

Insertion Depth:

(3,68 mm) .145" to

(6,35 mm) .250"

Insertion Force:

(Single contact only)

6 oz (1,67 N) avg.

Withdrawal Force:

(Single contact only)

5 oz (1,39 N) avg.

Max Cycles:

100 with 10µ" (0,25 µm) Au

RoHS Compliant:

Yes

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,15 mm) .006" max (02-24)

(0,20 mm) .008" max (25-36)

01

(3,43)

.135

SMH

1

NO. PINS

PER ROW

02

PLATING

OPTION

ROW

OPTION

OTHER

OPTION

Mates With:

TSW, MTSW, MTLW,

EW, ZW, TSS, ZSS, TSM

–L

= 10µ" (0,25 µm) Gold on contact,

Matte Tin on tail

–S

= Single Row

–“XX”

= Polarized Position

–D

= Double Row

–TR

= Tape & Reel

Packaging

(02-29 positions

only)

–G

= 20µ" (0,51 µm) Gold on contact,

Gold ﬂash on tail

–T

= Matte Tin

Note:

Other Gold plating options available.

Contact Samtec.

ABILITY

No to

Minimum o oling charges.

a full ree rder is the lesse

Order any l quantity or 125 pier of

ce

qu

In-house d antity above minimus.

esign, man

m.

ufac

Quick turn

-around. ture.

Call Sa

mtec

and orderi for specifications

ng informa

tion.

TAPE & R

EEL AVAIL

Processing:

02 thru 36

(2,41)

.095

(1,14)

.045

02

(2,54)

.100

01

(4,95)

.195

(1,14)

.045

(3,43)

.135

(No. of Positions x (2,54) .100) + (0,51) .020

(7,24)

.285

(0,71)

.028

(8,51)

.335

Important Note:

SMH mated to TSM–DH/–SH

not coplanar, SSM–DH/–SH

recommended for coplanar

applications.

Note:

Some lengths, styles and

options are non-standard,

non-returnable.

(0,79) x(0,41)

.031 .016

WWW.SAMTEC.COM
