IRKU250-16D20

Description
Silicon Controlled Rectifier, 250000mA I(T), 1600V V(RRM), 2 Element
CategoryAnalog mixed-signal IC    Trigger device
File Size186KB,13 Pages
ManufacturerInternational Rectifier ( Infineon )
Websitehttp://www.irf.com/
Download Datasheet Parametric View All

IRKU250-16D20 Overview

Silicon Controlled Rectifier, 250000mA I(T), 1600V V(RRM), 2 Element

IRKU250-16D20 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInternational Rectifier ( Infineon )
package instruction,
Reach Compliance Codeunknown
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Maximum DC gate trigger current350 mA
Maximum DC gate trigger voltage4 V
Quick connection description2G
Description of screw terminalsA-K-AK
Maximum holding current500 mA
Maximum leakage current50 mA
On-state non-repetitive peak current7150 A
Number of components2
Maximum on-state voltage1.44 V
Maximum on-state current250000 A
Maximum operating temperature130 °C
Minimum operating temperature-40 °C
Repeated peak reverse voltage1600 V
Trigger device typeSCR
Bulletin I27102 rev. A 10/97
IRK. SERIES
SCR / SCR and SCR / DIODE
Features
High voltage
Electrically isolated base plate
3000 V
RMS
isolating voltage
Industrial standard package
Simplified mechanical designs, rapid assembly
High surge capability
Large creepage distances
UL E78996 approved
MAGN-A-pakä Power Modules
170A
230A
250A
Description

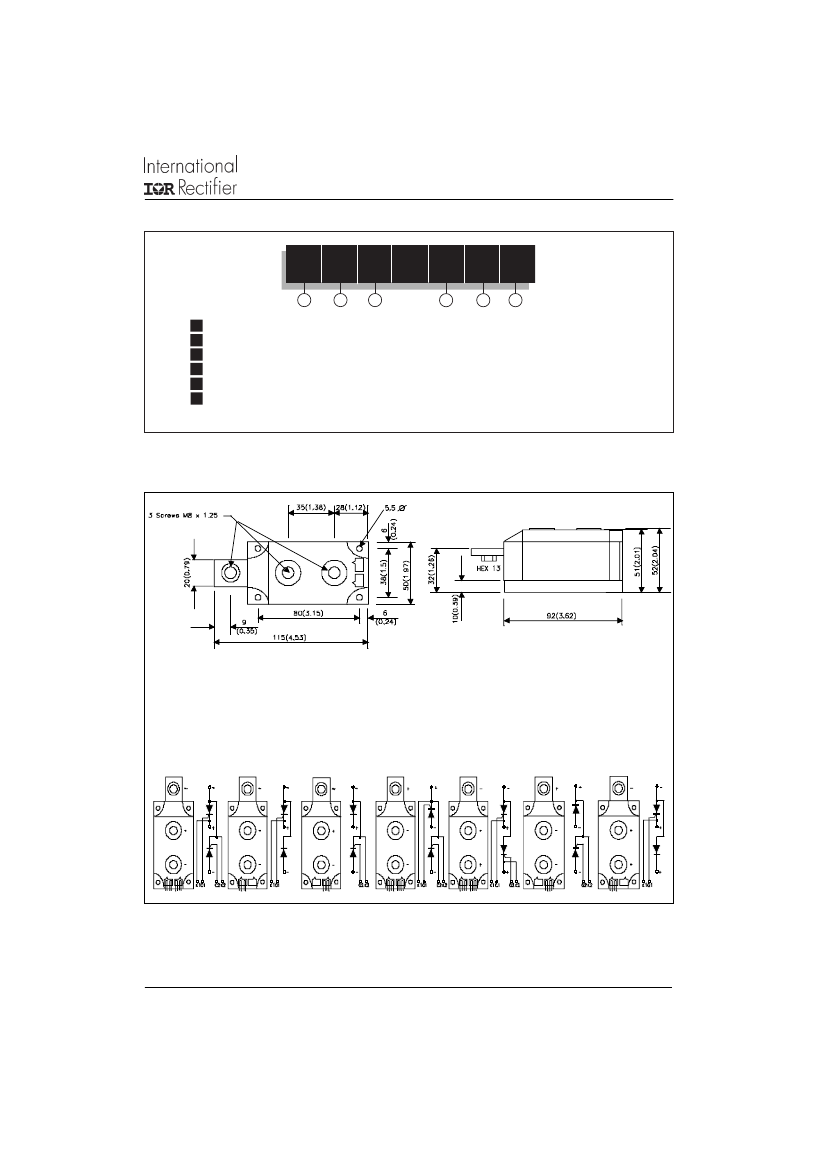

This new IRK serie of MAGN-A-paks modules uses high
voltage power thyristor/thyristor and thyristor/diode in
seven basic configurations. The semiconductors are elec-
trically isolated from the metal base, allowing common
heatsinks and compact assemblies to be built. They can
be interconnected to form single phase or three phase
bridges or as AC-switches when modules are connected in
anti-parallel mode.
These modules are intended for general purpose applica-
tions such as battery chargers, welders and plating equip-
ment and where high voltage and high current are required
(motor drives, U.P.S., etc.).
Major Ratings and Characteristics
Parameters
I
T(AV)
@ 85°C
I
T(RMS)
I
TSM
I
2
t
@ 50Hz
@ 60Hz
@ 50Hz
@ 60Hz
I
2
√t
V
DRM
/ V
RRM
T
J
range
IRK.170..
170
377
5100
5350
131
119
1310
IRK.230..
230
510
7500
7850
280
256
2800
IRK.250..
Units
250
555
8500
8900
361
330
3610
A
A
A
A
KA
2
s
KA
2
s
KA
2
√s
V
o
Up to1600 Up to 2000 Up to1600
-40 to 130
C
www.irf.com
1
