RN6183: Description10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size204KB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

RN6183 Overview

10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN

RN6183 Parametric

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Gain	28 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

Cross Reference Guide

RN6183 / SRN6183*

* Part number for additional environmental screening.

Performance Data

Frequency

Gain

Noise Figure

1dB

Order Intercept

VSWR

Reverse Isolation

Power Supply

Operating Temperature

10.0 - 1000.0 MHz

29.0 dB Typical

28.0 dB Min

4.0 dB Typical

5.0 dB Max

15.0 dBm Typical

13.5 dBm Min

25.0 dBm Typical

32.0 dBm Typical

1.5/2.0 Input Typ/Max

1.5/2.0 Output Typ/Max

-36.0 dB Typical

34.0 dB Min

15.0 Volts

70.0 mA

-55.0 - 85.0 °C

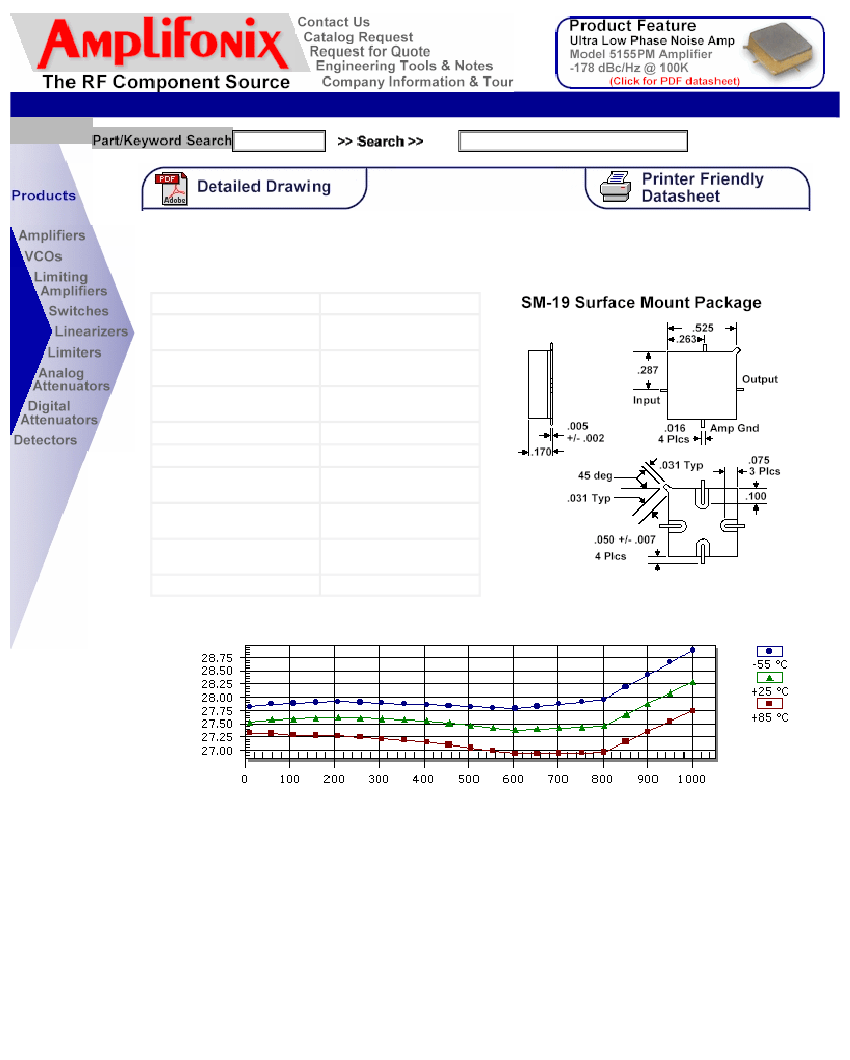

Package Drawing

Gain

Frequency (MHz)

Noise Figure

RN6183 Related Products

	RN6183	SRN6183
Description	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN	10 MHz - 1000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM-19, 4 PIN
Maker	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT	COMPONENT
Gain	28 dB	28 dB
Maximum input power (CW)	6 dBm	6 dBm
Maximum operating frequency	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2
