XR-1489AMD datasheet, PDF - EEWORLD Datasheet

XR-1489AMD: DescriptionLine Driver/Receiver, BIPolar, PDSO14; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size170KB，3 Pages; ManufacturerExar

Download Datasheet Parametric Compare View All

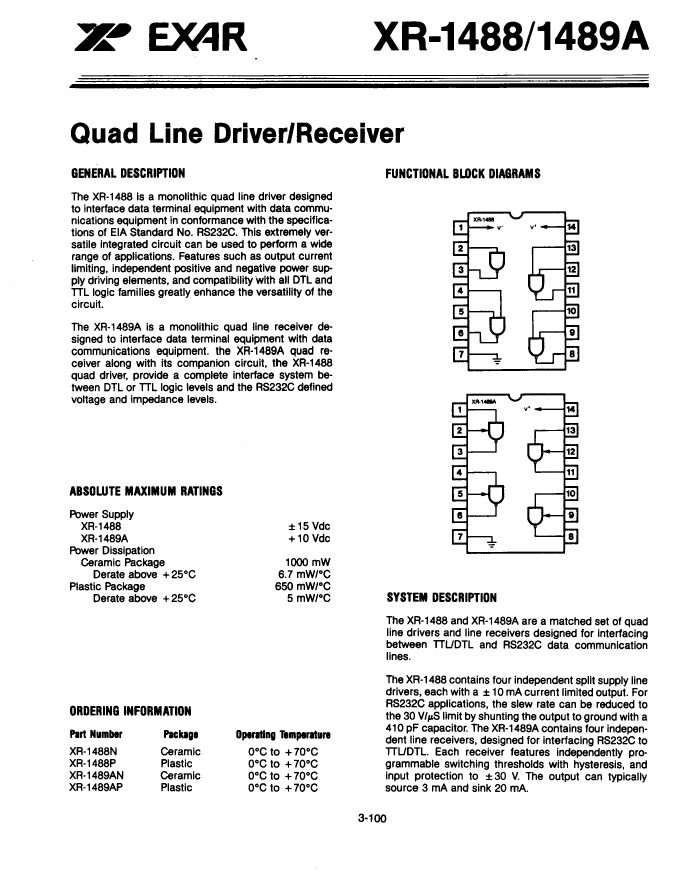

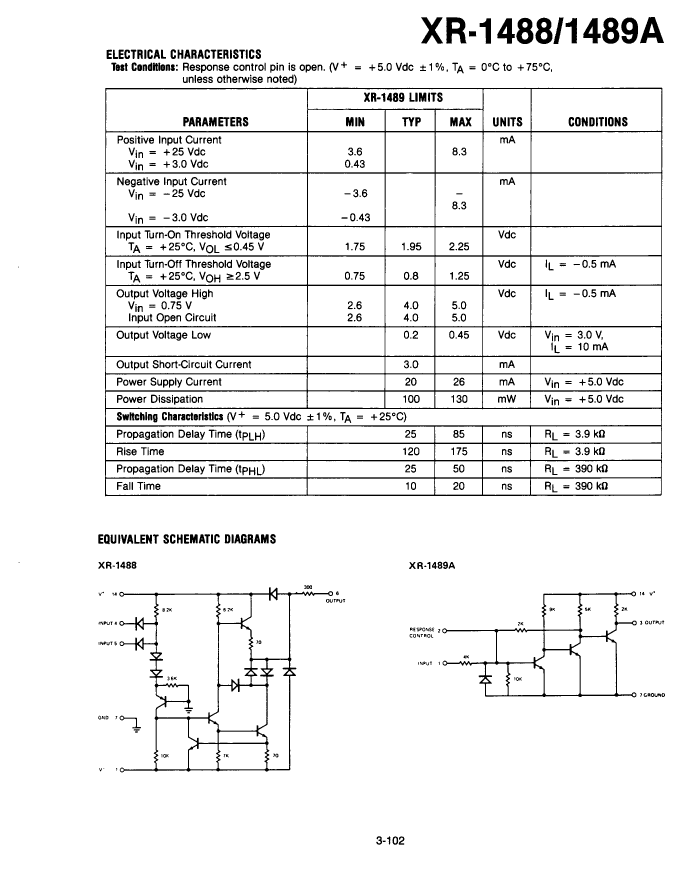

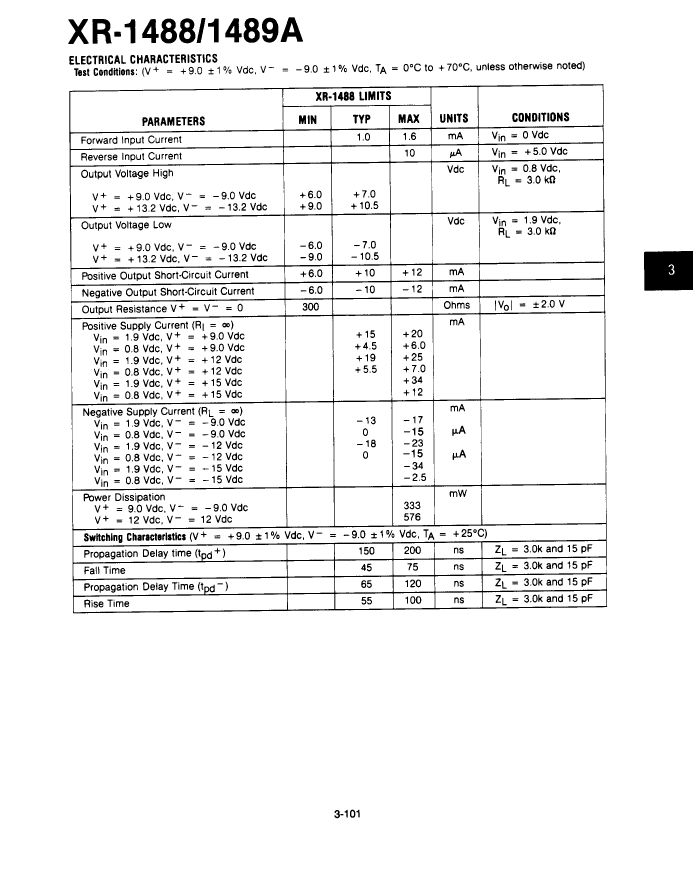

XR-1489AMD Overview

Line Driver/Receiver, BIPolar, PDSO14

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Exar
package instruction	SOP, SOP14,.25
Reach Compliance Code	unknown
ECCN code	EAR99
JESD-30 code	R-PDSO-G14
JESD-609 code	e0
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Maximum output low current	0.01 A
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum receive delay
Maximum slew rate	26 mA
Nominal supply voltage	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

	XR-1489AMD	XR-1488MD
Description	Line Driver/Receiver, BIPolar, PDSO14	Line Driver/Receiver, 4 Driver, BIPolar, PDSO14
Is it Rohs certified?	incompatible	incompatible
Maker	Exar	Exar
package instruction	SOP, SOP14,.25	SOP, SOP14,.25
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
JESD-30 code	R-PDSO-G14	R-PDSO-G14
JESD-609 code	e0	e0
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP14,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	+-9 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage	5 V	9 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
