D8051KB Overview

Microcontroller, 8-Bit, MROM, 12MHz, MOS, CDIP40, CERDIP-40

D8051KB Parametric

Parameter Name	Attribute value
Maker	Intel
Parts packaging code	DIP
package instruction	WDIP,
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Other features	BOOLEAN PROCESSOR
Address bus width	16
bit size	8
maximum clock frequency	12 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-GDIP-T40
length	52.325 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	NO
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WDIP
Package shape	RECTANGULAR
Package form	IN-LINE, WINDOW
Certification status	Not Qualified
ROM programmability	MROM
Maximum seat height	5.72 mm
speed	12 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

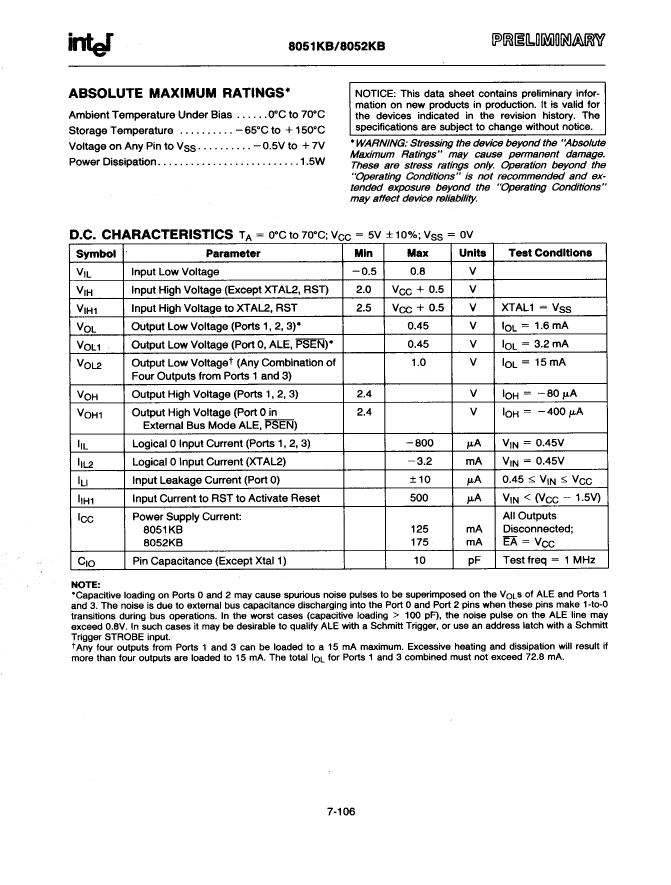

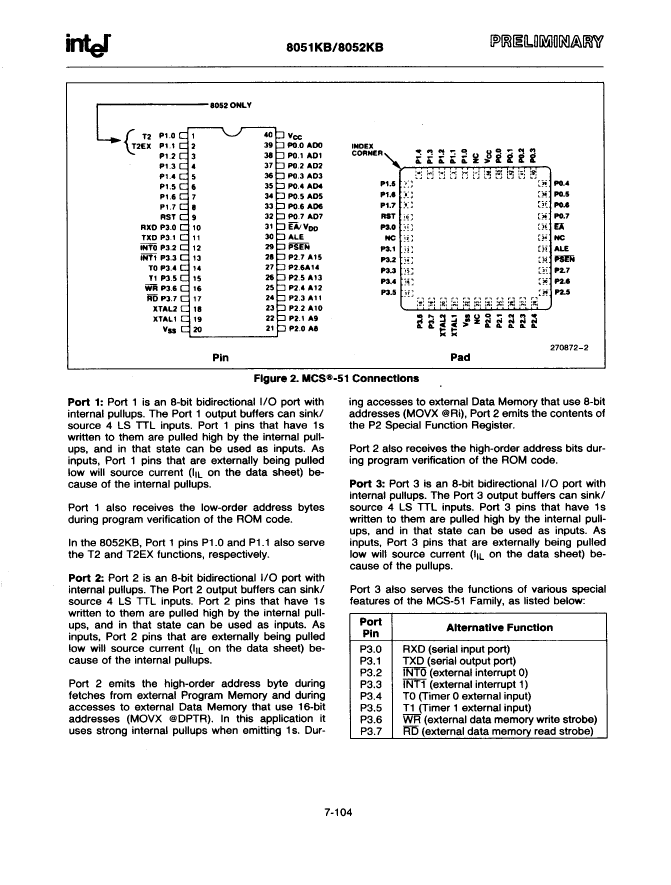

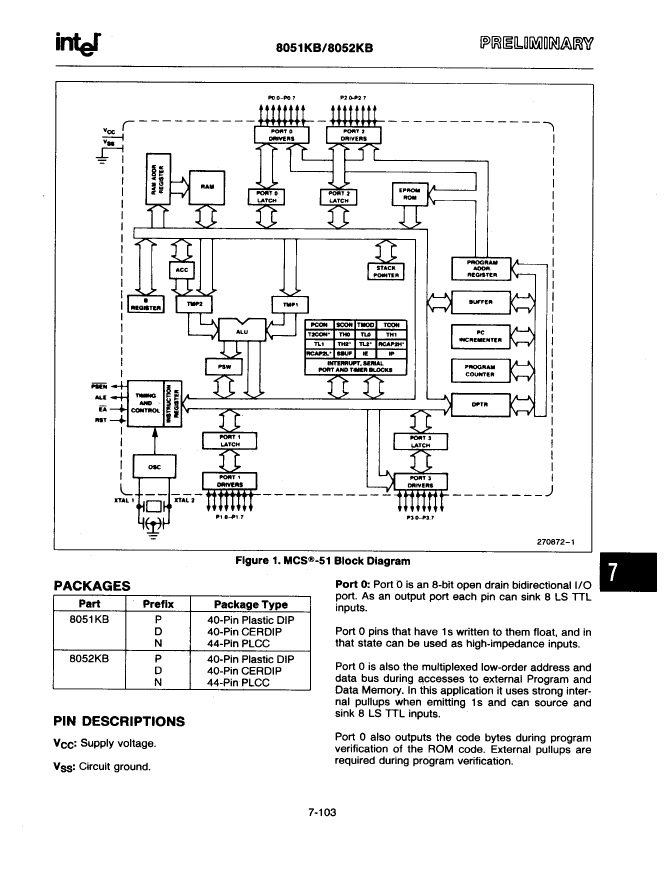

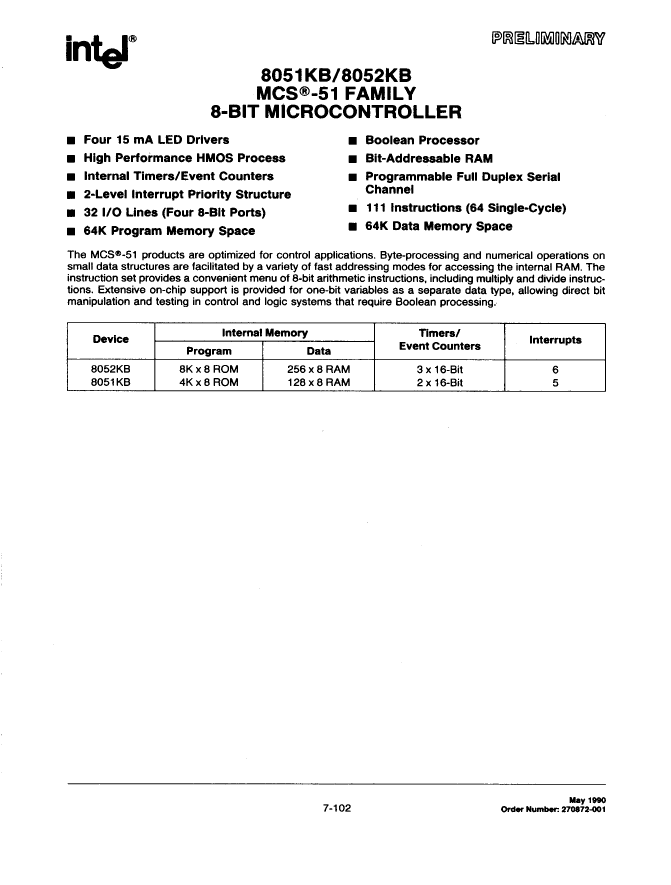

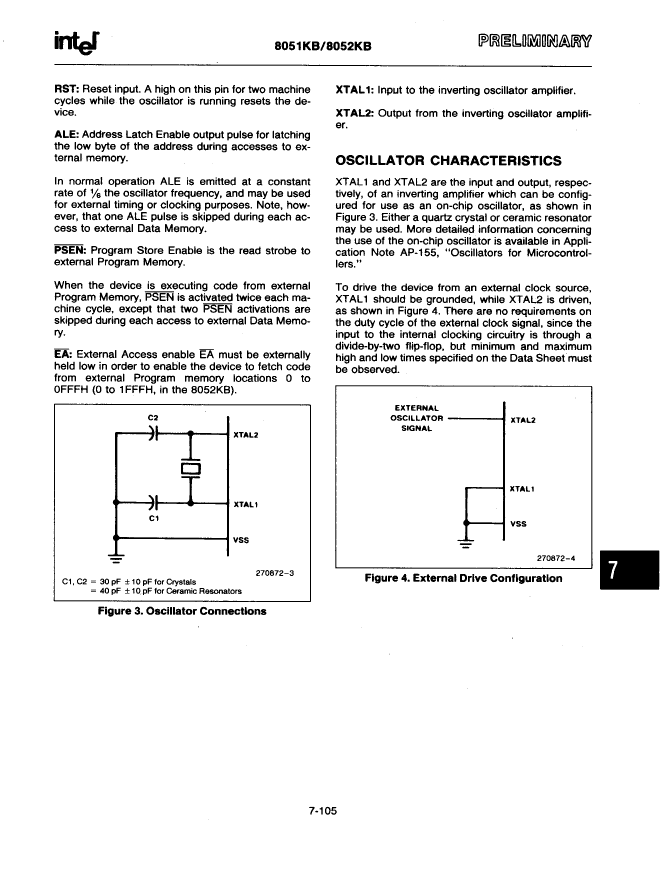

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

D8051KB Related Products

	D8051KB	P8051KB	N8051KB	D8052KB
Description	Microcontroller, 8-Bit, MROM, 12MHz, MOS, CDIP40, CERDIP-40	Microcontroller, 8-Bit, MROM, 12MHz, MOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 12MHz, MOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, MROM, 12MHz, MOS, CDIP40, CERDIP-40
Parts packaging code	DIP	DIP	LCC	DIP
package instruction	WDIP,	DIP,	QCCJ,	WDIP,
Contacts	40	40	44	40
Reach Compliance Code	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO
Other features	BOOLEAN PROCESSOR	BOOLEAN PROCESSOR	BOOLEAN PROCESSOR	BOOLEAN PROCESSOR
Address bus width	16	16	16	16
bit size	8	8	8	8
maximum clock frequency	12 MHz	12 MHz	12 MHz	12 MHz
DAC channel	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO
External data bus width	8	8	8	8
JESD-30 code	R-GDIP-T40	R-PDIP-T40	S-PQCC-J44	R-GDIP-T40
length	52.325 mm	52.26 mm	16.5862 mm	52.325 mm
Number of I/O lines	32	32	32	32
Number of terminals	40	40	44	40
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
PWM channel	NO	NO	NO	NO
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	WDIP	DIP	QCCJ	WDIP
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR
Package form	IN-LINE, WINDOW	IN-LINE	CHIP CARRIER	IN-LINE, WINDOW
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
ROM programmability	MROM	MROM	MROM	MROM
Maximum seat height	5.72 mm	5.08 mm	4.57 mm	5.72 mm
speed	12 MHz	12 MHz	12 MHz	12 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO
technology	MOS	MOS	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	QUAD	DUAL
width	15.24 mm	15.24 mm	16.5862 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Intel	-	Intel	Intel
