1808WA102JAZ1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 1808WA102JAZ1A

1808WA102JAZ1A: DescriptionCAPACITOR, CERAMIC, MULTILAYER, 600 V, X7R, 0.01 uF, SURFACE MOUNT, 1206; CategoryPassive components; File Size55KB，2 Pages; ManufacturerAVX

Download Datasheet Parametric View All

1808WA102JAZ1A Overview

CAPACITOR, CERAMIC, MULTILAYER, 600 V, X7R, 0.01 uF, SURFACE MOUNT, 1206

1808WA102JAZ1A Parametric

Parameter Name	Attribute value
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	600 V
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
terminal coating	MATTE Tin OVER Nickel
Installation features	surface mount
Manufacturer Series	1206
size code	1206
capacitance	0.0100 uF
packaging shape	Rectangular PACKAGE
Capacitor type	ceramics
Terminal shape	WRAPAROUND
Temperature Coefficient	15%
Temperature characteristic code	×7R
multi-layer	Yes

Preview

Download Datasheet

View All

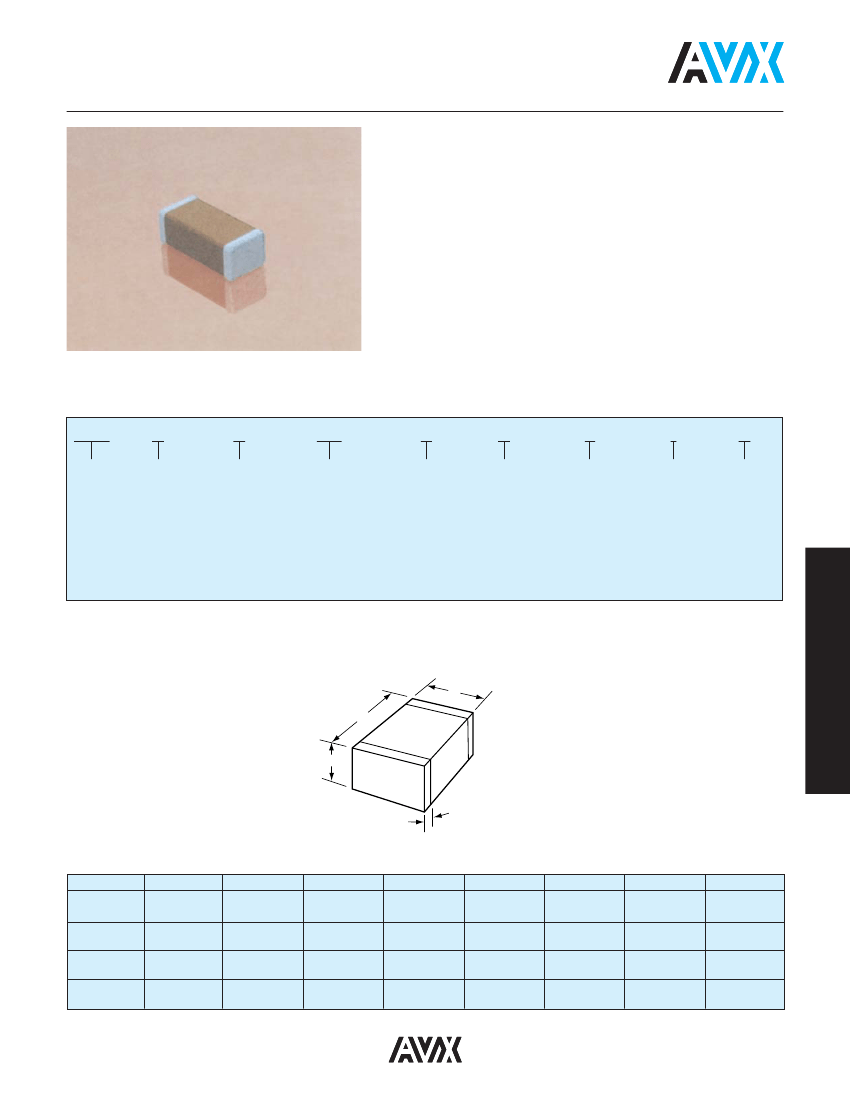

High Voltage MLC Chips FLEXITERM

For 600V to 3000V Applications

High value, low leakage and small size are difficult parameters to obtain

in capacitors for high voltage systems. AVX special high voltage MLC

chips capacitors meet these performance characteristics and are

designed for applications such as snubbers in high frequency power

converters, resonators in SMPS, and high voltage coupling/DC blocking.

These high voltage chip designs exhibit low ESRs at high frequencies.

To make high voltage chips, larger physical sizes than are normally

encountered are necessary. These larger sizes require that special pre-

cautions be taken in applying these chips in surface mount assemblies.

In response to this, and to follow from the success of the FLEXITERM

range of low voltage parts, AVX is delighted to offer a FLEXITERM

high

voltage range of capacitors, FLEXITERM

The FLEXITERM

layer is designed to enhance the mechanical flexure

and temperature cycling performance of a standard ceramic capacitor,

giving customers a solution where board flexure or temperature cycle

damage are concerns.

HOW TO ORDER

1808

AVX

Style

0805

1206

1210

1808

1812

1825

2220

2225

***

Voltage

600V/630V =

1000V =

1500V =

2000V =

2500V =

3000V =

272

Test Level

Termination*

Z = FLEXITERM

100% Tin

(RoHS Compliant)

Temperature Capacitance Code Capacitance

Coefficient

(2 significant digits

Tolerance

C0G = A

+ no. of zeros)

C0G: J = ±5%

X7R = C

Examples:

K = ±10%

10 pF = 100

M = ±20%

100 pF = 101 X7R: K = ±10%

1,000 pF = 102

M = ±20%

22,000 pF = 223

Z = +80%,

220,000 pF = 224

-20%

1 μF = 105

Packaging

Special

1 = 7" Reel

Code

3 = 13" Reel A = Standard

9 = Bulk

Notes: Capacitors with X7R dielectrics are not intended for applications across AC supply mains or AC line filtering with polarity reversal. Contact plant for recommendations.

Contact factory for availability of Termination and Tolerance options for Specific Part Numbers.

***

AVX offers nonstandard chip sizes. Contact factory for details.

DIMENSIONS

SIZE

(L) Length

0805

1206

3.20 ± 0.20

(0.126 ± 0.008)

1.60 ± 0.20

(0.063 ± 0.008)

1.52

(0.060)

0.25 (0.010)

0.75 (0.030)

1210*

3.20 ± 0.20

(0.126 ± 0.008)

2.50 ± 0.20

(0.098 ± 0.008)

1.70

(0.067)

0.25 (0.010)

0.75 (0.030)

1808*

4.57 ± 0.25

(0.180 ± 0.010)

2.03 ± 0.25

(0.080 ± 0.010)

2.03

(0.080)

0.25 (0.010)

1.02 (0.040)

1812*

4.50 ± 0.30

(0.177 ± 0.012)

3.20 ± 0.20

(0.126 ± 0.008)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

1825*

4.50 ± 0.30

(0.177 ± 0.012)

6.40 ± 0.30

(0.252 ± 0.012)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)

2.01 ± 0.20

(0.079 ± 0.008)

(W) Width

1.25 ± 0.20

(0.049 ± 0.008)

(T) Thickness

1.30

Max.

(0.051)

(t) terminal min. 0.50 ± 0.25

max. (0.020 ± 0.010)

*Reflow Soldering Only

millimeters (inches)

2220*

5.7 ± 0.40

(0.224 ± 0.016)

5.0 ± 0.40

(0.197 ± 0.016)

3.30

(0.130)

0.25 (0.010)

1.02 (0.040)

2225*

5.72 ± 0.25

(0.225 ± 0.010)

6.35 ± 0.25

(0.250 ± 0.010)

2.54

(0.100)

0.25 (0.010)

1.02 (0.040)
