TC648VOART datasheet, PDF - EEWORLD Datasheet

TC648VOART: DescriptionBrushless DC Motor Controller, PDSO8, SOIC-8; CategoryOther integrated circuit (IC) The signal circuit; File Size463KB，13 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric Compare View All

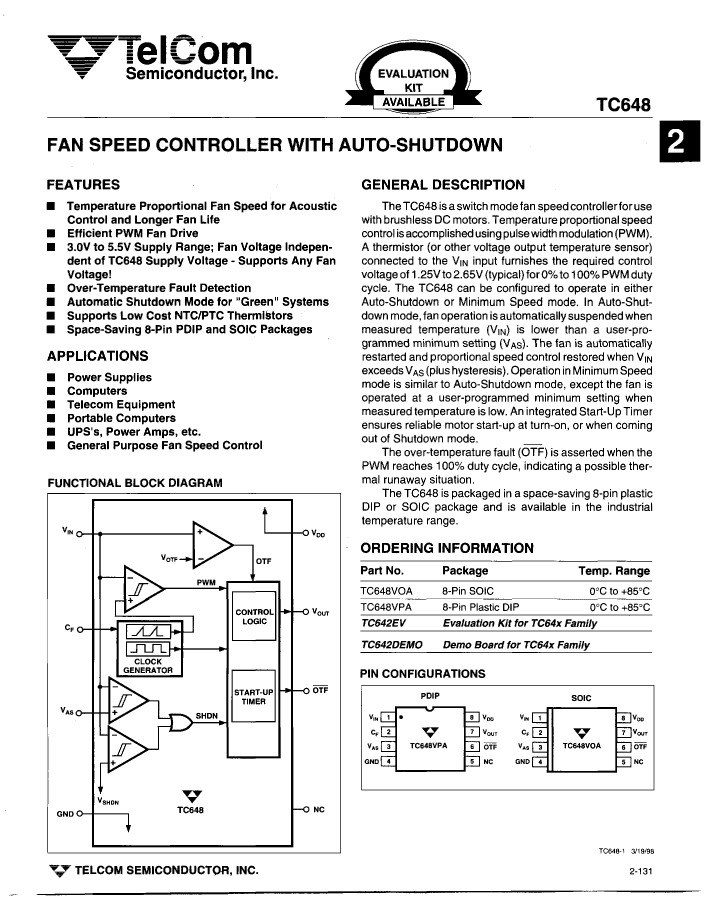

TC648VOART Overview

Brushless DC Motor Controller, PDSO8, SOIC-8

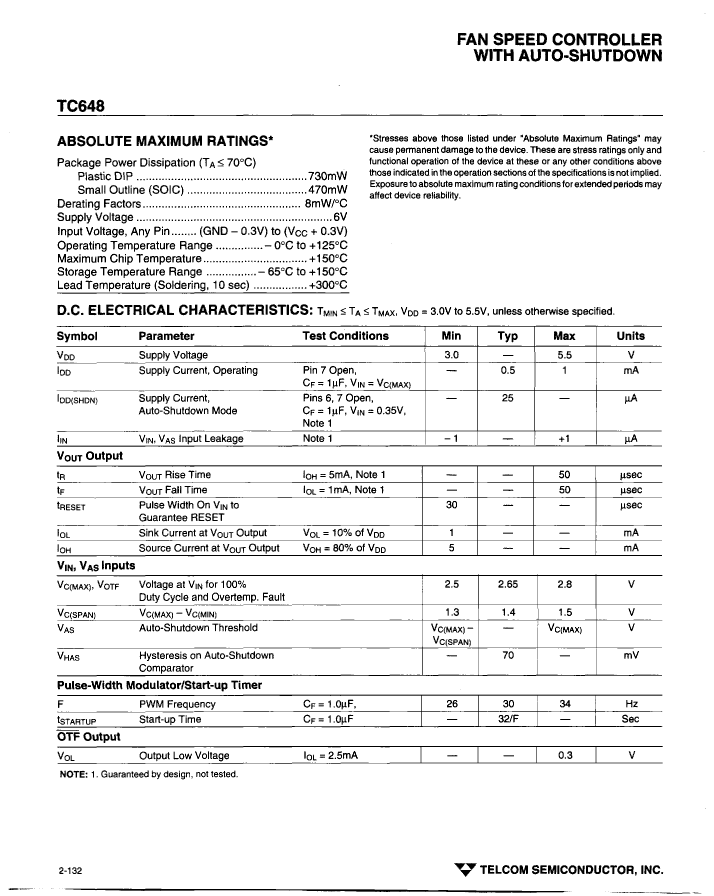

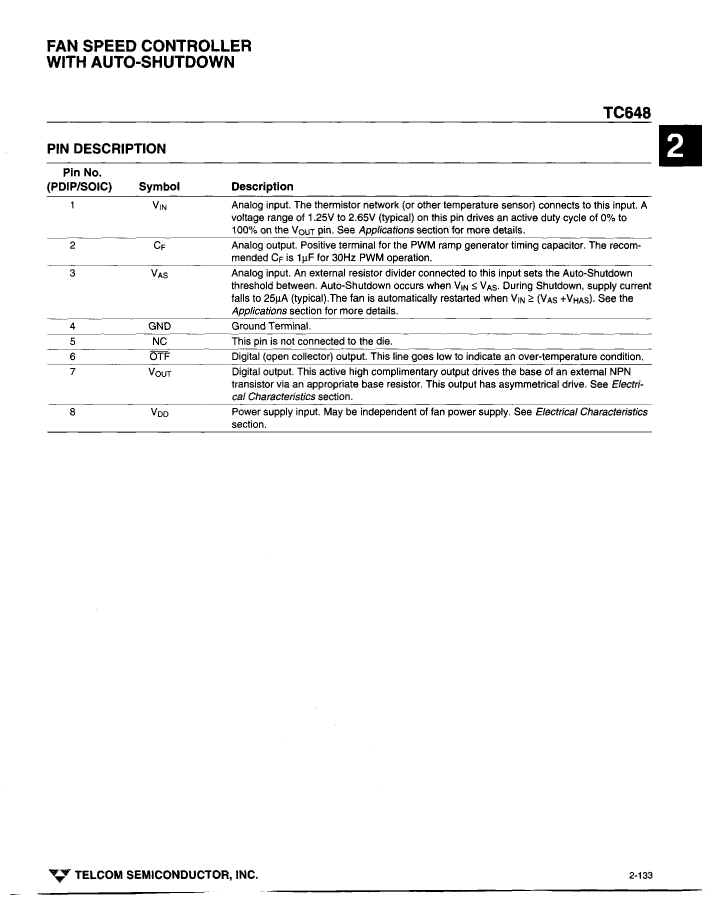

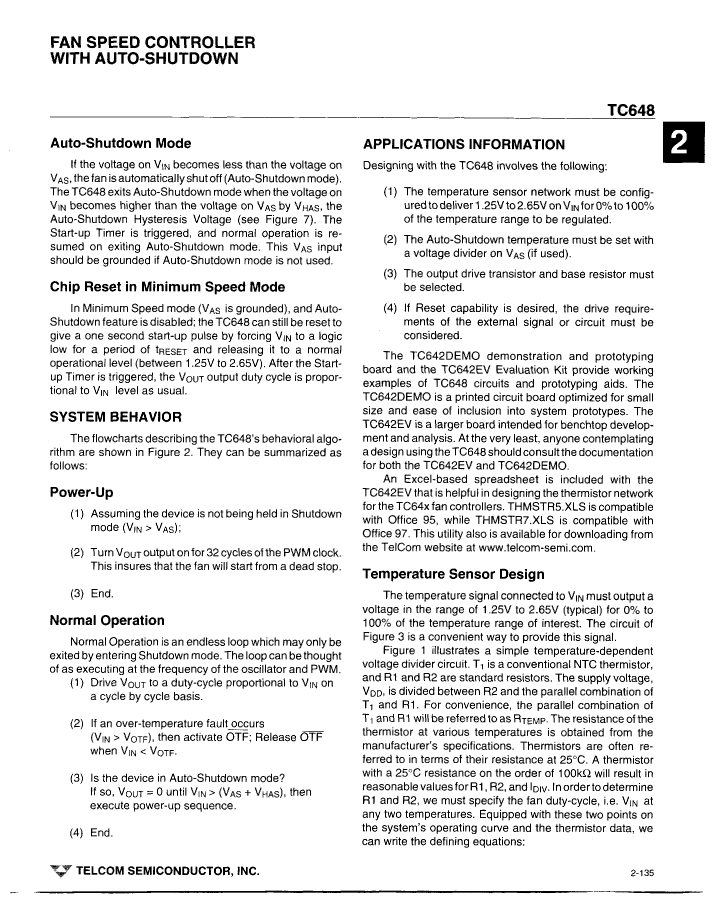

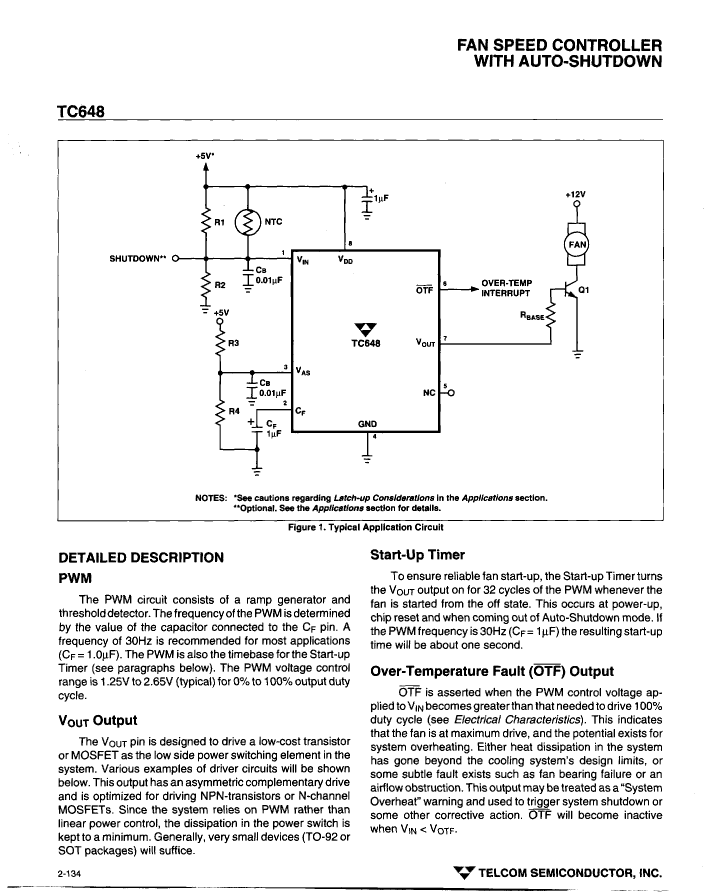

Parameter Name	Attribute value
Maker	TelCom Semiconductor, Inc. (Microchip Technology)
package instruction	SOP,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8
Number of functions	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
Temperature level	OTHER
Terminal form	GULL WING
Terminal location	DUAL

	TC648VOART	TC648VOATR	TC648VOA713	TC648VOA723
Description	Brushless DC Motor Controller, PDSO8, SOIC-8	Brushless DC Motor Controller, PDSO8, SOIC-8	Brushless DC Motor Controller, PDSO8, SOIC-8	Brushless DC Motor Controller, PDSO8, SOIC-8
Maker	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)
package instruction	SOP,	SOIC-8	SOP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER	BRUSHLESS DC MOTOR CONTROLLER
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
Number of functions	1	1	1	1
Number of terminals	8	8	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
Temperature level	OTHER	OTHER	OTHER	OTHER
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
