LPR1250-1000F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> LPR1250-1000F

LPR1250-1000F: DescriptionAudio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,; CategoryThe connector The connector; File Size148KB，2 Pages; ManufacturerSMK; Websitehttps://www.smk.co.jp/

Download Datasheet Parametric Compare View All

LPR1250-1000F Overview

Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,

LPR1250-1000F Parametric

Parameter Name	Attribute value
Maker	SMK
Reach Compliance Code	unknown
Body/casing type	JACK
Configuration	2X2 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	LPR1250
Installation type	BOARD
Number of poles	6
Number of ports	4
Options	GENERAL PURPOSE
Termination type	SOLID LEAD

Preview

Download Datasheet

View All

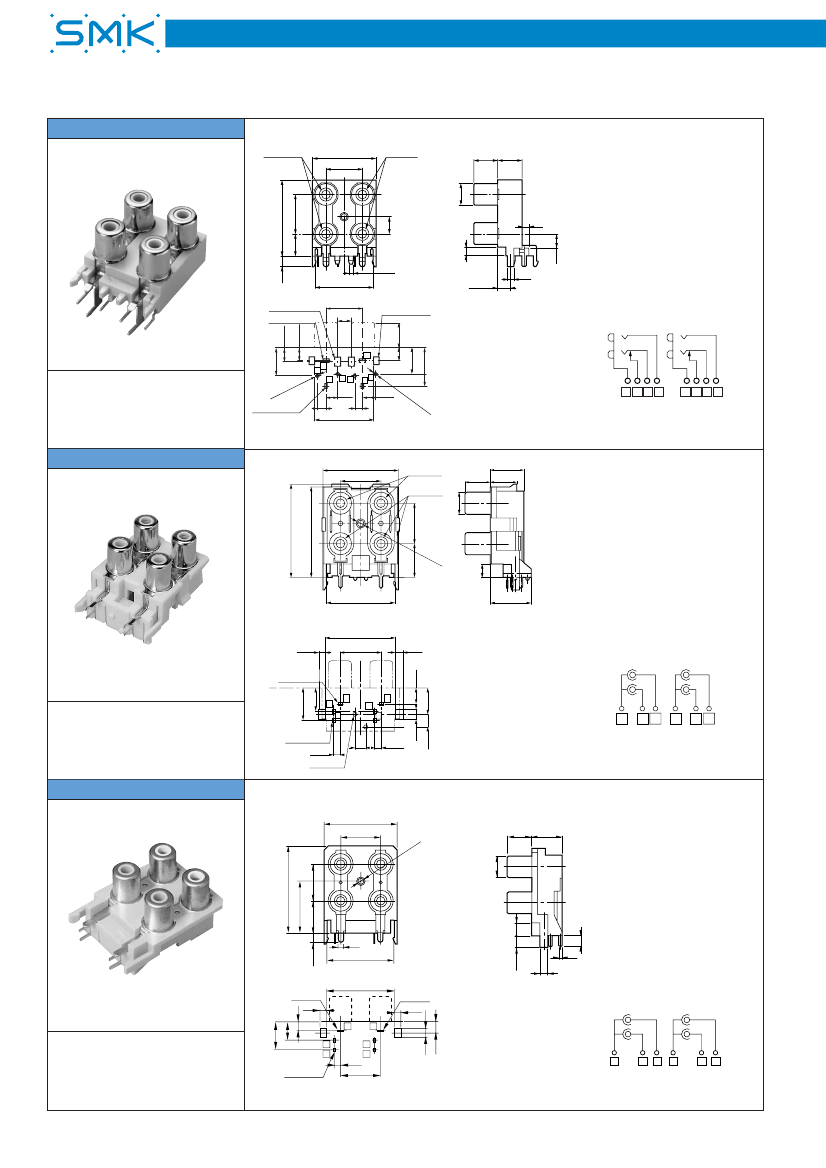

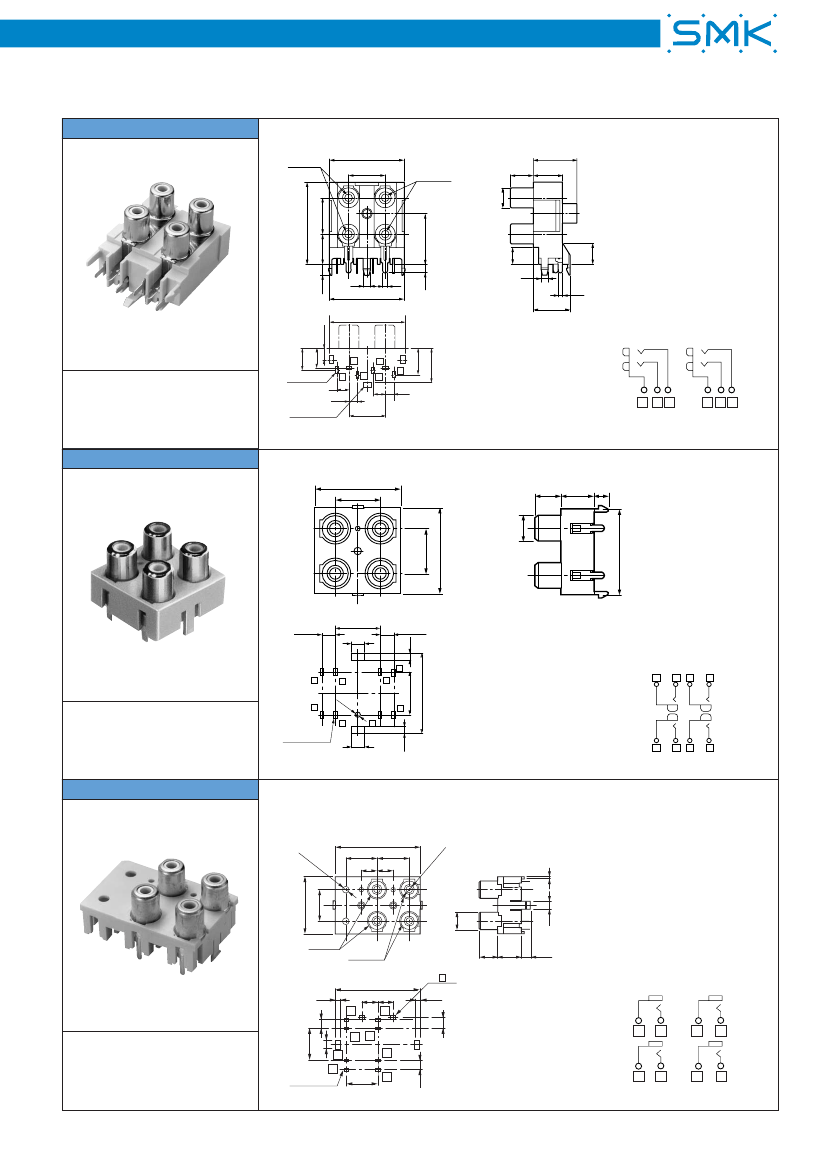

4P Pin Jack

LPR8529-0100F

H=8.5mm

Yellow

White

ø8.3

9.5

8.5

6.5

2.5

3.3

5.5

4.85

2.5

Circuits

(With Switch)

(Recommended P.W.Board Dimension)

(The Pattern Side)

1.8

5.4

2-2.8x2.2

4.9 (9)

9.7

14.2

2-3.2x2.2

2-1.5x2.2

10.4

Right Angle

LPR1220-1000F

H=12.5mm

5.2

4.85

b c h

2-ø

2-1.8x0.8

1.4

4.6

4.8

ø1

a b c d

e f g h

28.4

White

4-ø8.3

Yellow

9.5

12.6

34.5

33.5

12.5

ø2

15.5

Circuits

(Without Switch)

25.6

2.5

2-1.5x0.8

11.7

8.3

25.6

2.5

5.9

9.5

Right Angle

LPR1250-0101F

H=12.5mm

(Recommended P.W.Board Dimension)

(The Pattern Side)

2.2

3.5

4.5

b c

e f

4-1.3x0.8

2.2

2-ø2.2

ø2

ø8.3

9.5 11.5

33.5

12.5 14

3.5

4.5

25.6

1.2

Circuits

(Without Switch)

0.8x2.3

2.5

3.5

4.5

10.9

7.1

<China>

Right Angle

3.5

0.8x2.3

2.5

(Recommended P.W.Board Dimension)

(The Pattern Side)

4-0.8x1.5

2.2

LPR1250-1000F Related Products

	LPR1250-1000F	LPR1220-1000F	LPV1020-0300F	LPR1250-0101F	LPR8529-0100F
Description	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 8 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,	Audio/RCA Connector, 6 Pole(s), Solid Lead Terminal, Jack,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	JACK	JACK	JACK	JACK	JACK
Configuration	2X2 HORIZONTAL	2X2 HORIZONTAL	2X2 VERTICAL	2X2 HORIZONTAL	2X2 HORIZONTAL
Connector type	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR	AUDIO/RCA CONNECTOR
DIN compliance	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO
Manufacturer's serial number	LPR1250	LPR1220	LPV1020	LPR1250	LPR8529
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of poles	6	6	8	6	6
Number of ports	4	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Termination type	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD	SOLID LEAD
